Cobra LTX102HR2L - Tractor Jan 2025 Lift Diagram

Description

Cobra LTX102HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COB2X06W00000 Available to backorder	Nut	£1.25 £1.04

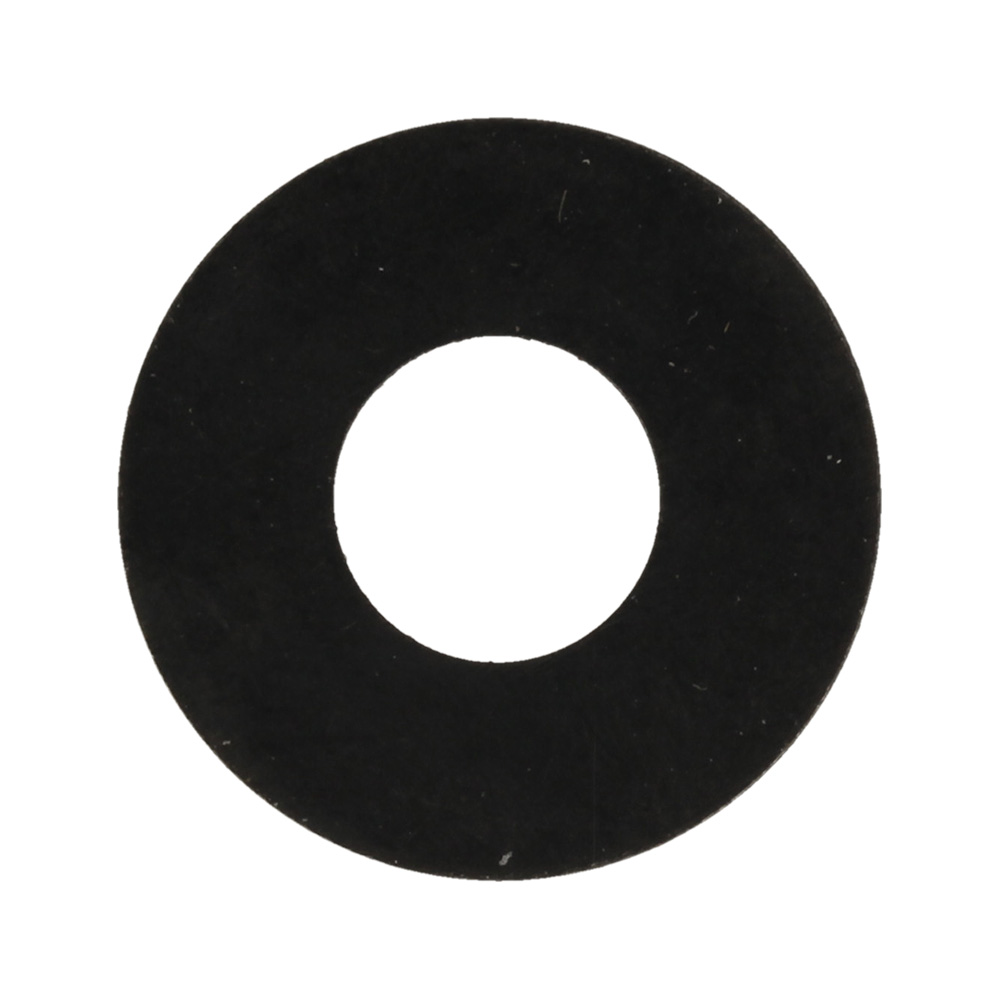

2	COB5088B00000 In stock	Flat Washer	£1.25 £1.04
3	COT0920510000 Available to backorder	Lever	£10.21 £8.51
4	COB1018W10035 Available to backorder	Bolt	£1.25 £1.04
5	COT09204GX000 Available to backorder	T92 Pedal Pressure Plate	£3.38 £2.82
6	COB3006W16000 Available to backorder	Screw	£1.25 £1.04
7	COT0920540000 Available to backorder	Bracket Assembly	£33.92 £28.27
8	COBB012W00000 Available to backorder	Split Pin	£1.25 £1.04
9	COBB010W00000 Available to backorder	Split Pin	£1.25 £1.04

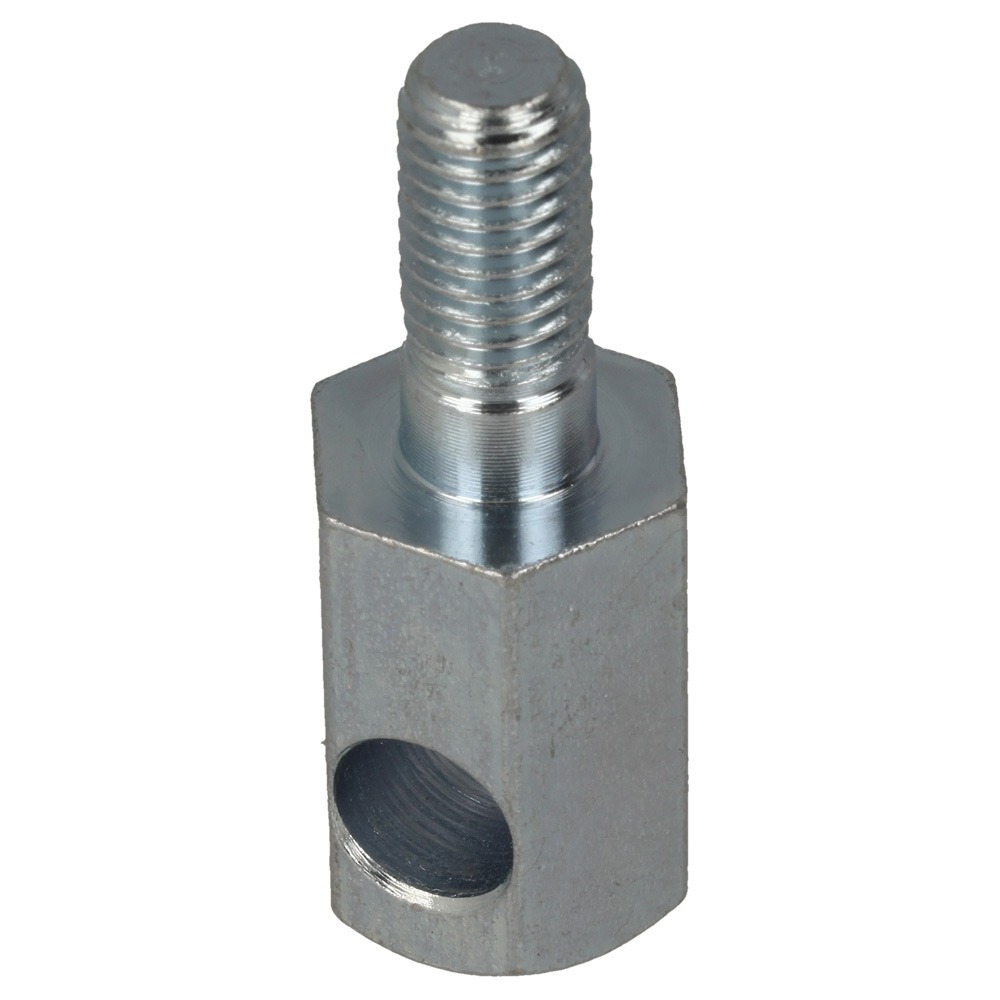

10	COT09205C0000 Available to backorder	Raise Hexagonal Joint	£3.50 £2.92
11	COB2004W00000 Available to backorder	Nut	£1.25 £1.04

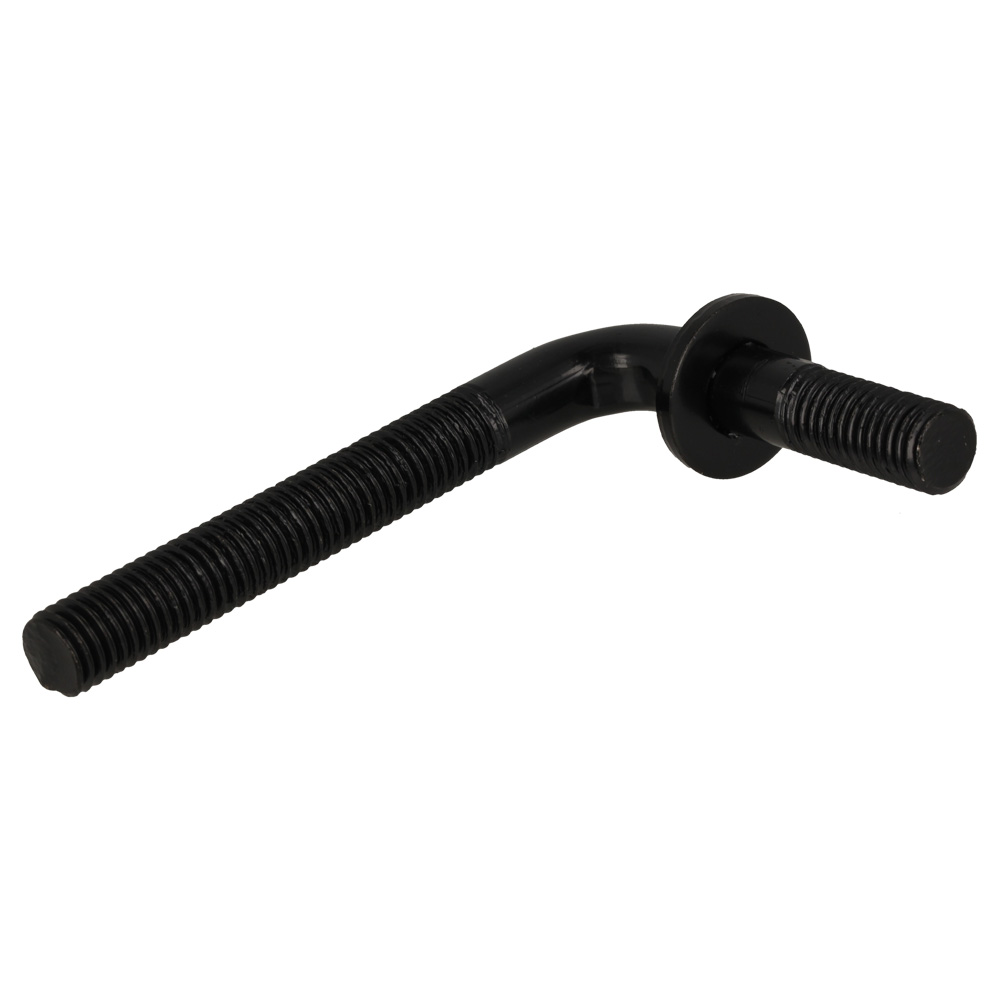

12	COT09205B0000 Available to backorder	Lever	£4.30 £3.58
13	COT0920520000 Available to backorder	Connecting Rod	£9.41 £7.84
14	COT0920550000 Available to backorder	Bracket Assembly	£34.84 £29.03
15	COT09205E0000 Available to backorder	Hexagonal Joint	£3.20 £2.67
16	COT0920530000 Available to backorder	Lever	£10.50 £8.75
17	COT09206B0000 Available to backorder	Bearing	£13.36 £11.13
18	COB1005W10100 Available to backorder	Bolt	£1.38 £1.15
19	COT09205D0000 Available to backorder	Adjusting Rod	£4.42 £3.68
20	COB5072W00000 Available to backorder	Washer	£1.25 £1.04
21	COT09205G007G Available to backorder	Lever	£11.11 £9.26
22	COT0920570000 Available to backorder	Handle	£15.94 £13.28
23	COB1098W08070 Available to backorder	Bolt	£1.61 £1.34
24	COT0920580000 Available to backorder	Spring	£1.25 £1.04
25	COB2028W00000 Available to backorder	Nut	£2.52 £2.10
26	COT0920560000 Available to backorder	Arm Bracket	£29.45 £24.54
27	COT0920590000 Available to backorder	Height Adjust Board	£12.84 £10.70
28	COB5080W00000 Available to backorder	Washer	£1.25 £1.04
29	COB3008B20000 Available to backorder	Screw	£1.25 £1.04
30	COT09205F0000 Available to backorder	Spring	£1.78 £1.48
31	COT09205FX000 Available to backorder	Spring	£3.84 £3.20
32	COT09205A0000 Available to backorder	Left Front Hanger Rod For Cutter Height Adjustment	£5.28 £4.40
33	COB1110B10040 Available to backorder	Bolt	£1.25 £1.04
