Cobra LTX102HR2L - Tractor Jan 2025 Cutting Deck Diagram

Description

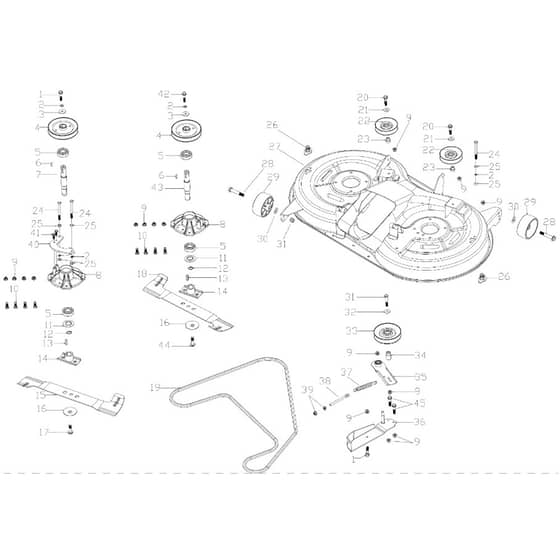

Cobra LTX102HR2L Ride On Mower Parts Diagram

	Part No.	Details
1	COB1077W08025 Available to backorder	Bolt	£2.48 £2.07
2	COB6006W00000 Available to backorder	Spring Washer	£2.48 £2.07
3	COB5091B00000 Available to backorder	Flat Washer	£1.24 £1.03
4	COT0920320000 Available to backorder	Pulley Assembly	£33.35 £27.79
5	COB0041W00000 Available to backorder	Ball Bearing	£4.63 £3.86
6	COBE00LW00000 Available to backorder	Flat Key	£1.24 £1.03
7	COT066032X000 Available to backorder	Pulley Shaft	£20.86 £17.38
8	COT066032XX00 Available to backorder	Belt Pulley Seat	£41.71 £34.76
9	COB2028W00000 Available to backorder	Nut	£2.48 £2.07
10	COB1010W08025 Available to backorder	Bolt	£1.24 £1.03
11	COT066032Y000 Available to backorder	Dust Cover	£1.24 £1.03
12	COB9020B00000 Available to backorder	Lock Ring	£1.24 £1.03
13	COBE004W00000 Available to backorder	Flat Key	£1.24 £1.03
14	COT0660380000 Available to backorder	Blade Holder Assembly	£8.48 £7.07
15	COT10203A0000 Available to backorder	Left Blade	£39.31 £32.76
16	COG3520000000 Available to backorder	Blade Washer	£2.58 £2.15
17	COB1001B00032 In stock	Blade Bolt	£2.58 £2.15
18	COT10203B0000 Available to backorder	Right Blade	£39.31 £32.76
19	COBA0214X0000 In stock	Fabric Belt	£84.48 £70.40
20	COB1043W08040 Available to backorder	Bolt	£1.24 £1.03
21	COB5005W00000 Available to backorder	Flat Washer	£2.48 £2.07
22	COT0920390000 Available to backorder	Idler Assembly	£28.69 £23.91
23	COT0920370000 Available to backorder	Sleeve	£2.98 £2.48
24	COB1098W08070 Available to backorder	Bolt	£1.60 £1.33
25	COB2020W00000 Available to backorder	Nut	£2.48 £2.07
26	COT09209V5000 Available to backorder	Cleaning Connector	£1.24 £1.03
27	COT1020310057 Available to backorder	Deck	£372.12 £310.10
28	COT09203C0000 Available to backorder	Bolt	£1.39 £1.16
29	COT09209V6000 Available to backorder	4-Inch Guide Wheel	£15.34 £12.78
30	COB5033W00000 Available to backorder	Flat Washer	£2.48 £2.07
31	COB1097B08055 Available to backorder	Bolt	£1.24 £1.03
32	COB5064B00000 Available to backorder	Flat Washer	£1.24 £1.03
33	COT0920340000 Available to backorder	Tensioning Wheel Assembly	£32.42 £27.02
34	COT0920380000 Available to backorder	Sleeve	£1.32 £1.10
35	COT0920350000 Available to backorder	Tensioning Wheel Swing Arm Assembly	£12.56 £10.47
36	COT0920360000 Available to backorder	Fixed Plate	£27.56 £22.97
37	COT09203D0000 Available to backorder	Spring	£2.17 £1.81
38	COT09203G0000 Available to backorder	Bolt	£2.23 £1.86
39	COB2059W00000 Available to backorder	Nut	£1.24 £1.03
40	COT09203E0000 Available to backorder	Fixed Plate	£12.77 £10.64
41	COB1060W06016 Available to backorder	Bolt	£2.48 £2.07
42	COB1100BL8025 Available to backorder	Bolt	£1.24 £1.03
43	COT066032XLH0 Available to backorder	Axle	£20.86 £17.38
44	COB1001BLH032 Available to backorder	Blade Bolt	£1.24 £1.03
45	COB1076W08035 Available to backorder	Bolt	£1.24 £1.03
