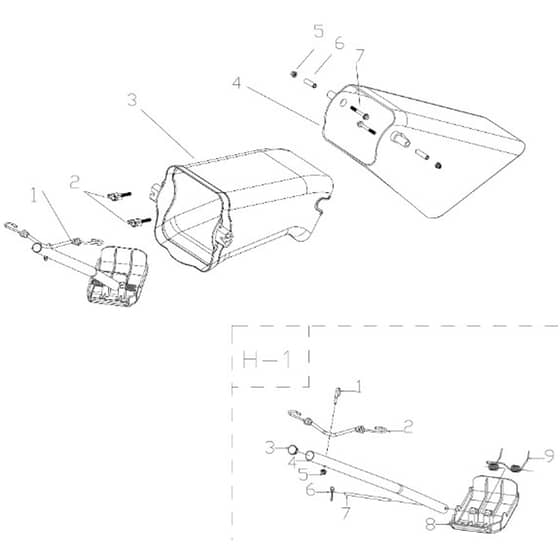

Cobra LTX102HR2L - Tractor Jan 2025 Chute and Mulch Diagram

Cobra LTX102HR2L - Tractor Jan 2025 Chute and Mulch Diagram
Cobra LTX102HR2L - Tractor Jan 2025 Chute and Mulch Diagram

Description

Cobra LTX102HR2L Ride On Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Grass Plug Component
Grass Plug Component
COT09207J0000
Available to backorder
Grass Plug Component
£35.53 £29.61

  2 Knob
Knob
COGP33C110010
Available to backorder
Knob
£1.25 £1.04

  3 Rear Row Grass Tube
Rear Row Grass Tube
COT09209V0000
Available to backorder
Rear Row Grass Tube
£20.75 £17.29

  4 Front Row Grass Tube
Front Row Grass Tube
COT09209U9000
Available to backorder
Front Row Grass Tube
£25.55 £21.29

  5 Nut
Nut
COB2008W00000
Available to backorder
Nut
£2.62 £2.18

  6 Sleeve
Sleeve
COT09202X0000
Available to backorder
Sleeve
£1.38 £1.15

  7 Bolt
Bolt
COB1047W06050
Available to backorder
Bolt
£1.25 £1.04

  11 H-1-1 Bull Tendon Rope Compression Rod
H-1-1 Bull Tendon Rope Compression Rod
COT06603WH000
Available to backorder
H-1-1 Bull Tendon Rope Compression Rod
£1.25 £1.04

  12 H-1-2 Rope
H-1-2 Rope
COT09207J1000
Available to backorder
H-1-2 Rope
£2.99 £2.49

  13 H-1-3 Handle Plug
H-1-3 Handle Plug
COG33J0000000
Available to backorder
H-1-3 Handle Plug
£2.52 £2.10

  14 H-1-4 Lever
H-1-4 Lever
COT09207J2001
Available to backorder
H-1-4 Lever
£10.78 £8.98

  15 H-1-5 Nut
H-1-5 Nut
COB2040W00000
Available to backorder
H-1-5 Nut
£1.25 £1.04

  16 H-1-6 Split Pin
H-1-6 Split Pin
COBB011W00000
Available to backorder
H-1-6 Split Pin
£1.25 £1.04

  17 H-1-7 Shaft
H-1-7 Shaft
COT09207J3000
Available to backorder
H-1-7 Shaft
£1.27 £1.06

  18 H-1-8 Plug
H-1-8 Plug
COT09207J4010
Available to backorder
H-1-8 Plug
£17.59 £14.66

  19 H-1-9 Spring
H-1-9 Spring
COT09207J5000
Available to backorder
H-1-9 Spring
£1.56 £1.30


Description

Cobra LTX102HR2L Ride On Mower Parts Diagram
