Cobra LT86MRL 2024 - Tractor Jan 2024 from build 2312- only Cutting Deck Diagram

Description

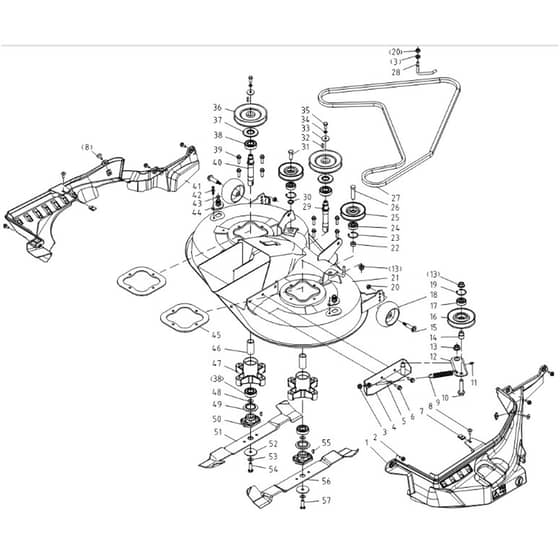

Cobra LT86MRL 2024 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20088572 Available to backorder	Belt Cover Right	£36.78 £30.65
2	CO20082801 Available to backorder	Hexagon Head Tapping Screw6.3X11.5	£1.25 £1.04
3	CO20061336 Available to backorder	Flange Nut M8	£1.25 £1.04
4	CO20084618 Available to backorder	Cut Tention Support Weldment	£16.04 £13.37
5	CO20084542 Available to backorder	Adjusting Screw Rod	£1.80 £1.50
6	CO20082799 Available to backorder	Flange Bolt5/16-18Tx3/4	£1.25 £1.04
7	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04
8	CO20060893 Available to backorder	Screw M6×16	£1.20 £1.00
9	CO20084598 Available to backorder	Traction Spring	£2.44 £2.03
10	CO20061286 Available to backorder	Hexagon Bolt M12X1.25X50	£1.43 £1.19
11	CO20061649 Available to backorder	Oil Injection Nozzle	£1.38 £1.15
12	CO20084615 Available to backorder	Cut Tention Arm Weldment	£11.46 £9.55
13	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.25 £1.04
14	CO20084617 Available to backorder	Tention Pulley Cushion Cover	£3.08 £2.57
15	CO20085378 Available to backorder	Wheel Axle	£4.42 £3.68
16	CO20084596 Available to backorder	Tention Pulley Weldment Ttm86 Plating White Zinc Passivation	£27.26 £22.72
17	CO20061610 Available to backorder	Bearing 6203-2Rz	£12.52 £10.43
18	CO20088559 Available to backorder	Wheel	£15.29 £12.74
19	CO20061540 Available to backorder	Circle 40	£1.25 £1.04
20	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
21	CO20088577 Available to backorder	Deck Weldment	£372.31 £310.26
22	CO20084610 Available to backorder	Right Guide Wheel Cushion Cover	£2.64 £2.20
23	CO20061549 Available to backorder	Snap Ring 37	£1.25 £1.04
24	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
25	CO20070536 Available to backorder	Tention Pulley	£27.70 £23.08
26	CO20084604 Available to backorder	Bolt	£4.30 £3.58
27	CO20084304 In stock	Belt Ttm86-Haa2237 Aa88	£65.36 £54.47
28	CO20088710 Available to backorder	Clutch Lever Welding Part Ttm86	£6.76 £5.63
29	CO20083936 Available to backorder	Right Blade Axle	£30.68 £25.57
30	CO20061452 Available to backorder	Spring Washer 12	£1.25 £1.04
31	CO20062310 Available to backorder	Bolt	£1.94 £1.62
32	CO20061650 Available to backorder	Flat Key C6×18	£1.48 £1.23
33	CO20055114 Available to backorder	Washer	£1.25 £1.04
34	CO20061472 Available to backorder	Spring Washer 8	£1.25 £1.04
35	CO20061274 Available to backorder	Hexagon Bolt M8X20	£1.25 £1.04
36	CO20085352 Available to backorder	Pulley	£31.18 £25.98
37	CO20071285 Available to backorder	Hood Bearing	£2.32 £1.93
38	CO20061625 In stock	Bearing 6204-2Rz	£12.10 £10.08
39	CO20061265 Available to backorder	Flange Bolt M8X35	£1.25 £1.04
40	CO20083934 Available to backorder	Left Blade Axle	£31.79 £26.49
41	CO20088573 Available to backorder	Belt Cover Left	£22.07 £18.39
42	CO20085899 Available to backorder	Plastic Expansion Rivets	£1.87 £1.56
43	CO20055756 Available to backorder	O Ring 11.2×2.65	£1.25 £1.04
44	CO20070624 Available to backorder	Water Nozzle	£1.34 £1.12
45	CO20088737 Available to backorder	Deck Disc Reinforcement Plate	£15.53 £12.94
46	CO20071282 Available to backorder	Pivot Tube	£4.06 £3.38
47	CO20054352 Available to backorder	Cuttter House	£57.90 £48.25
48	CO20071283 Available to backorder	Spacer Ring	£1.25 £1.04
49	CO20071286 Available to backorder	Washer 50X20.2X2	£1.34 £1.12
50	CO20054345 In stock	Sleeve	£11.68 £9.73
51	CO20084826 In stock	Left Blade	£20.88 £17.40
52	CO20070623 In stock	Saucer Washer	£2.32 £1.93
53	CO20061497 In stock	Washer 10	£1.20 £1.00
54	CO20061267 In stock	Bolt 3/8-24Unf	£2.58 £2.15
55	CO20061651 Available to backorder	Halfmoon Key 4×16	£1.92 £1.60
56	CO20084829 In stock	Right Blade	£20.88 £17.40
57	CO20061266 Available to backorder	Lh Bolt 3/8-24-1.25"-1.25-Lh	£2.68 £2.23
