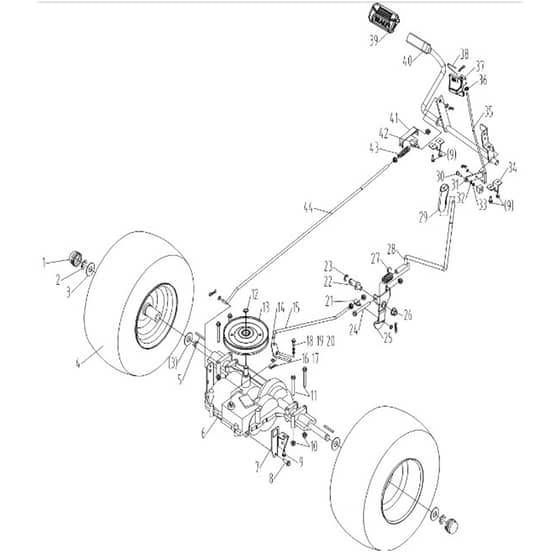

Cobra LT86MRL 2023 - Tractor Apr 2023 Mechanical Pedal Assy Diagram

Description

Cobra LT86MRL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20068187 Available to backorder	Hub Cover	£1.81 £1.51
2	CO20061430 Available to backorder	Retainer Ring 15	£1.25 £1.04
3	CO20071143 Available to backorder	Washer Φ20×Φ43×3	£1.72 £1.43
4	CO20086530 Available to backorder	Rear Wheel Assembly	£124.14 £103.45
5	CO20071174 Available to backorder	Flat Key 4.75× 4.75×60	£1.50 £1.25
6	CO20089295 Available to backorder	Gear Box	£694.13 £578.44
7	CO20084693 Available to backorder	Gearbox Connecting Plate	£6.19 £5.16
8	CO20061274 Available to backorder	Flange Bolt M8×20	£1.25 £1.04
9	CO20082800 Available to backorder	Hexagon Washer Lock Screw 6X16	£1.25 £1.04
10	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
11	CO20061240 Available to backorder	Flange Bolt 8×65	£1.25 £1.04
12	CO20061434 Available to backorder	Snap Ring 16	£1.25 £1.04
13	CO20070884 Available to backorder	Driving Passive Wheel	£40.57 £33.81
14	CO20084685 Available to backorder	Shift Arm	£7.26 £6.05
15	CO20084699 Available to backorder	Shift Lever	£17.52 £14.60
16	CO20061431 Available to backorder	Washer Φ8	£1.25 £1.04
17	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
18	CO20061273 Available to backorder	Bolt 1/4"-28 -3/4"	£1.25 £1.04
20	CO20061539 Available to backorder	Big Washer 6	£1.20 £1.00
21	CO20070581 Available to backorder	Shift Pin	£2.06 £1.72
22	CO20084686 Available to backorder	Shift Pin	£7.55 £6.29
23	CO20061473 Available to backorder	Split Retaining Ring	£1.25 £1.04
24	CO20083999 Available to backorder	Flange Bolt M8X80	£1.25 £1.04
25	CO20084697 Available to backorder	Shift Lever Plate	£20.29 £16.91
26	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.25 £1.04
27	CO20084702 Available to backorder	Torsion Spring	£8.30 £6.92
28	CO20084692 Available to backorder	Shift Lever	£30.83 £25.69
29	CO20070900 Available to backorder	Handle	£3.28 £2.73
30	CO20084575 Available to backorder	Parking Pin	£2.12 £1.77
31	CO20084590 Available to backorder	Parking Plate	£2.24 £1.87
32	CO20061482 Available to backorder	Washer 6	£1.25 £1.04
33	CO20061487 Available to backorder	Spring Washer 6	£1.25 £1.04
34	CO20084532 Available to backorder	U-Shaped Plate	£1.32 £1.10
35	CO20084595 Available to backorder	Parking Lever	£9.41 £7.84
37	CO20085155 Available to backorder	Parking Handle	£9.25 £7.71
38	CO20084581 Available to backorder	U-Shaped Latch	£1.40 £1.17
39	CO20082728 Available to backorder	Brake Pedal	£8.83 £7.36
40	CO20084701 Available to backorder	Brake Pedal	£31.57 £26.31
41	CO20084705 Available to backorder	Slotted Adjustment Plate	£2.81 £2.34
42	CO20084700 Available to backorder	Resell	£3.88 £3.23
43	CO20084706 Available to backorder	Compression Spring	£3.23 £2.69
44	CO20084684 Available to backorder	Brake Lever	£11.29 £9.41
