Cobra LT86MRL 2023 - Tractor Apr 2023 Fuel Tank Assy Diagram

Name: Cobra LT86MRL 2023 - Tractor Apr 2023 Fuel Tank Assy Diagram
SKU: lt86mrl_2023_tractor_apr_2023_fuel_tank_assy-group
Price: 1.03 GBP
Availability: InStock

Part No. lt86mrl_2023_tractor_apr_2023_fuel_tank_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT86MRL 2023 - Tractor Apr 2023 Fuel Tank Assy Diagram

Description

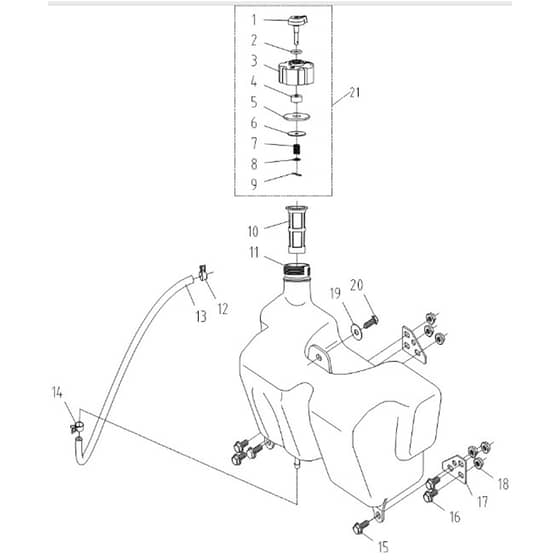

Cobra LT86MRL 2023 Ride On Mower Parts Diagram

	Part No.	Details
10	CO20059766 Available to backorder	Filter Cap	£2.09 £1.74
11	CO20071228 Available to backorder	Fuel Tank	£42.97 £35.81
12	CO20062744 Available to backorder	Clip Φ10	£1.24 £1.03
13	CO20070865 Available to backorder	Fuel Hose	£16.91 £14.09
14	CO20071161 Available to backorder	Clip Φ10	£1.24 £1.03
15	CO20061274 Available to backorder	Flange Bolt M8×20	£1.24 £1.03
16	CO20061300 Available to backorder	Bolt M8×16	£1.24 £1.03
18	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
19	CO20071676 Available to backorder	Gasket 6×25×1.5	£1.24 £1.03
20	CO20082800 Available to backorder	Tapping Screwm6*1	£1.24 £1.03
21	CO20071747 In stock	Fuel Tank Cap Asy	£8.90 £7.42
