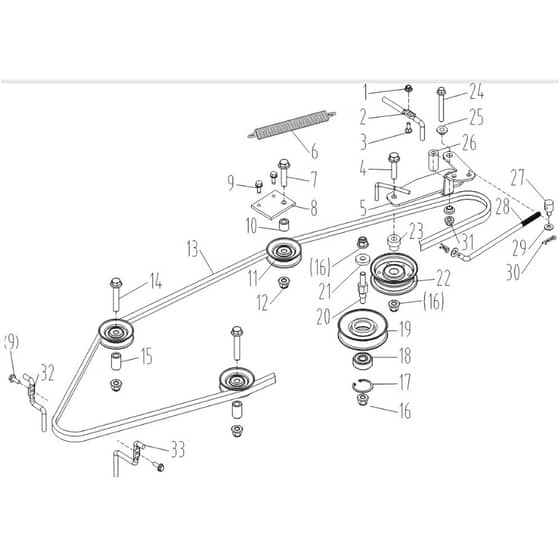

Cobra LT86MRL 2023 - Tractor Apr 2023 Drive Assy Diagram

Name: Cobra LT86MRL 2023 - Tractor Apr 2023 Drive Assy Diagram
SKU: lt86mrl_2023_tractor_apr_2023_drive_assy-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT86MRL 2023 - Tractor Apr 2023 Drive Assy Diagram

Description

Cobra LT86MRL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061385 Available to backorder	Hexagon Flange Lock Nut M6	£1.20 £1.00
2	CO20084713 Available to backorder	Left Front Stop Lever (Manual)	£2.68 £2.23
3	CO20061289 Available to backorder	Bolt M6X16	£1.25 £1.04
4	CO20062521 Available to backorder	Flange Bolt M10×1.25×40	£1.25 £1.04
5	CO20084440 Available to backorder	Travel Tension Arm	£9.23 £7.69
6	CO20070875 In stock	Spring	£4.92 £4.10
7	CO20061321 Available to backorder	Flange Bolt M10×1.25×45	£1.34 £1.12
8	CO20084715 Available to backorder	Guide Wheel Seat Plate	£4.42 £3.68
9	CO20082800 Available to backorder	Hexagon Washer Lock Screw	£1.25 £1.04
10	CO20084712 Available to backorder	Left Front Guide Wheel Bushing	£2.64 £2.20
11	CO20071208 Available to backorder	Travel Guide Wheel Assembly	£23.88 £19.90
12	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.25 £1.04
13	CO20084444 Available to backorder	V-Belt	£63.96 £53.30
14	CO20062515 Available to backorder	Flange Bolt M10×1.25×50	£1.25 £1.04
15	CO20084442 Available to backorder	Guide Wheel Bushing	£1.96 £1.63
16	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.25 £1.04
17	CO20061549 Available to backorder	Snap Ring 37	£1.25 £1.04
18	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
19	CO20070536 Available to backorder	Tention Pulley	£27.70 £23.08
20	CO20084604 Available to backorder	Tensioner Bolt	£4.30 £3.58
21	CO20062499 Available to backorder	Washer ¢27X¢10.5X5	£2.24 £1.87
22	CO20071213 Available to backorder	Tention Pulley	£30.08 £25.07
23	CO20071180 Available to backorder	Tention Pulley Bushing	£3.44 £2.87
24	CO20061275 Available to backorder	Flange Bolt M8×60	£1.25 £1.04
25	CO20084446 Available to backorder	Tension Arm Bushing	£2.32 £1.93
26	CO20084436 Available to backorder	Spacer	£2.56 £2.13
27	CO20070581 Available to backorder	Gear Shift Pin	£2.06 £1.72
28	CO20084710 Available to backorder	Linked Putter	£9.52 £7.93
29	CO20062716 Available to backorder	Washer 8	£1.25 £1.04
30	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
31	CO20061336 Available to backorder	Flange Nut M8	£1.25 £1.04
32	CO20084709 Available to backorder	Left Stop Lever (Manual)	£2.68 £2.23
33	CO20084716 Available to backorder	Right Stop Lever (Manual)	£2.68 £2.23
