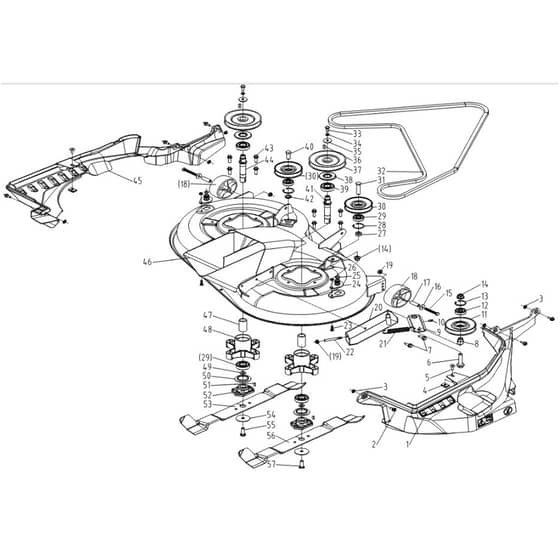

Cobra LT86MRL 2023 - Tractor Apr 2023 Cutting Deck Diagram

Name: Cobra LT86MRL 2023 - Tractor Apr 2023 Cutting Deck Diagram
SKU: lt86mrl_2023_tractor_apr_2023_cutting_deck-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT86MRL 2023 - Tractor Apr 2023 Cutting Deck Diagram

Description

Cobra LT86MRL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20088572 Available to backorder	Belt Cover Right	£36.78 £30.65
2	CO20082801 Available to backorder	Step Self-Tapping Screw St6X17	£1.25 £1.04
4	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04
5	CO20060893 Available to backorder	Screw M6×16	£1.20 £1.00
6	CO20082799 Available to backorder	Flange Bolt5/16-18Tx3/4	£1.25 £1.04
7	CO20061286 Available to backorder	Hexagon Bolt M12X1.25X50	£1.43 £1.19
8	CO20084617 Available to backorder	Tensioner Cover	£3.08 £2.57
9	CO20084615 Available to backorder	Cutting Tension Arm	£11.46 £9.55
10	CO20061649 Available to backorder	Oil Injection Nozzle	£1.38 £1.15
11	CO20084596 Available to backorder	Tensioner	£27.26 £22.72
12	CO20061610 Available to backorder	Bearing 6203-2Rz	£12.52 £10.43
13	CO20061540 Available to backorder	Circlips	£1.25 £1.04
14	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.25 £1.04
15	CO20061275 Available to backorder	Flange Bolt M8×60	£1.25 £1.04
16	CO20061431 Available to backorder	Washer 8	£1.25 £1.04
17	CO20085378 Available to backorder	Pivot Tube	£4.42 £3.68
18	CO20071268 Available to backorder	Wheel	£15.29 £12.74
19	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
20	CO20084618 Available to backorder	Cutting Tension Bracket	£16.04 £13.37
21	CO20084598 Available to backorder	Tension Spring	£2.44 £2.03
22	CO20084542 Available to backorder	Adjusting Screw	£1.80 £1.50
23	CO20061289 Available to backorder	Bolt M6X16	£1.25 £1.04
24	CO20070624 Available to backorder	Water Nozzle	£1.34 £1.12
25	CO20055756 Available to backorder	O Ring 11.2×2.65	£1.25 £1.04
26	CO20061385 Available to backorder	Flange Lock Nut M6	£1.25 £1.04
27	CO20084610 Available to backorder	Right Idler Wheel Bushing	£2.64 £2.20
28	CO20061549 Available to backorder	Snap Ring 37	£1.25 £1.04
29	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
30	CO20070536 Available to backorder	Tention Pulley	£27.70 £23.08
31	CO20084441 Available to backorder	Tensioner Bolt Length	£3.73 £3.11

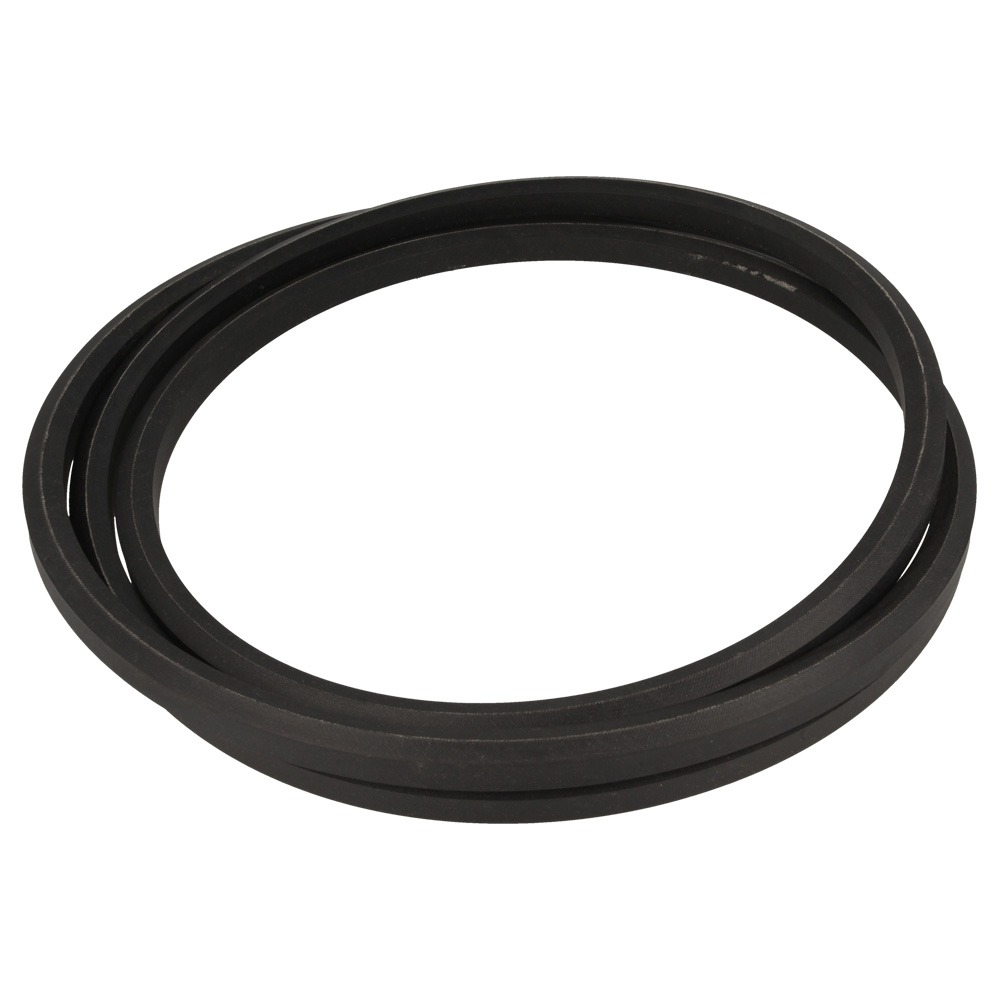

32	CO20084304 In stock	Belt	£65.36 £54.47
33	CO20061274 Available to backorder	Hexagon Bolt M8X20	£1.25 £1.04
34	CO20061472 Available to backorder	Spring Washer 8	£1.25 £1.04
35	CO20055114 Available to backorder	Washer	£1.25 £1.04
36	CO20061662 Available to backorder	Key C6X30	£1.49 £1.24

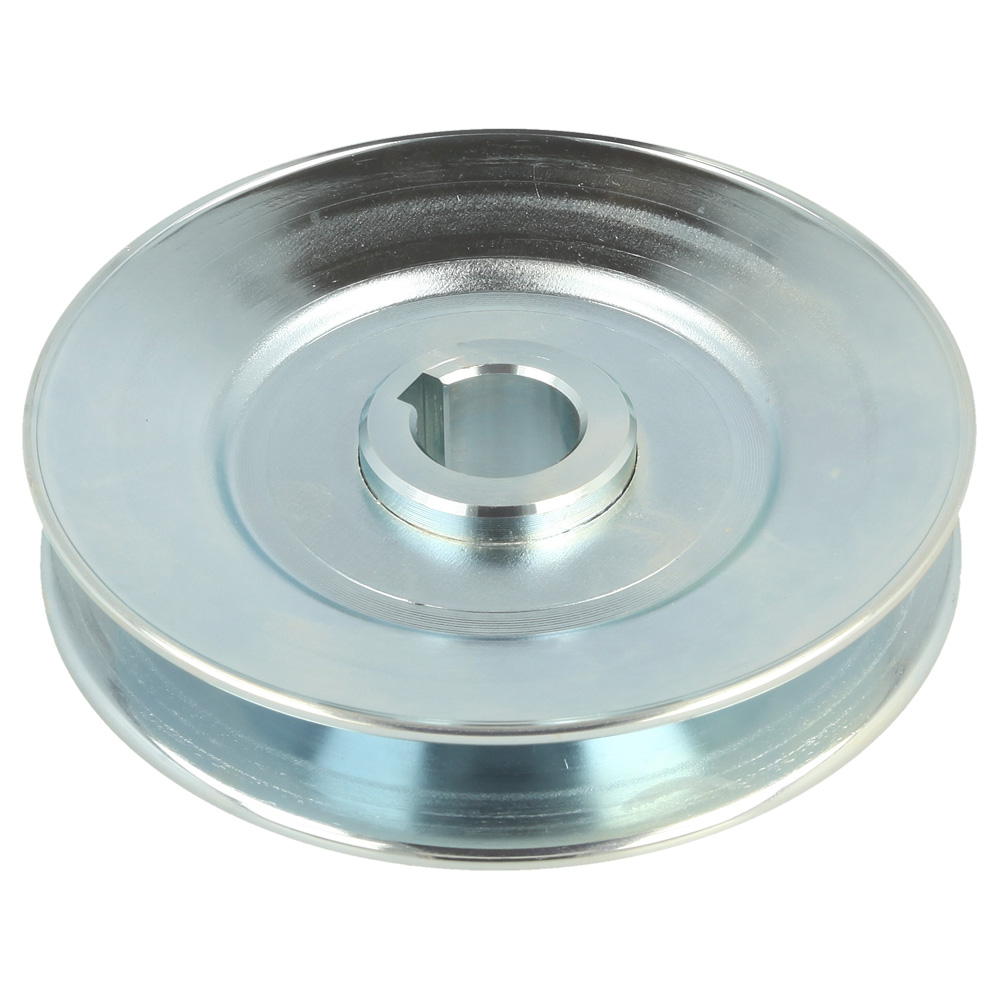

37	CO20085352 Available to backorder	Tool Shaft Pulley	£31.18 £25.98
38	CO20071285 Available to backorder	Hood Bearing	£2.32 £1.93
39	CO20061625 In stock	Bearing 6204-2Rz	£12.10 £10.08
40	CO20062310 Available to backorder	Bolt	£1.94 £1.62
41	CO20083936 Available to backorder	Right Shaft	£30.68 £25.57
42	CO20061452 Available to backorder	Spring Washer	£1.25 £1.04
43	CO20061298 Available to backorder	Flange Bolt M8X25	£1.42 £1.18
44	CO20083934 Available to backorder	Left Shaft	£31.79 £26.49
45	CO20084821 Available to backorder	Belt Cover Left	£36.78 £30.65
46	CO20084828 Available to backorder	Cutter Welding	£223.39 £186.16
47	CO20071282 Available to backorder	Pivot Tube	£4.06 £3.38
48	CO20054352 Available to backorder	Cuttter House	£57.90 £48.25
49	CO20071283 Available to backorder	Spacer Ring	£1.25 £1.04
50	CO20071286 Available to backorder	Washer 50X20.2X2	£1.34 £1.12
51	CO20061651 Available to backorder	Woodruff Key 4X16	£1.92 £1.60
52	CO20054345 In stock	Sleeve	£11.68 £9.73

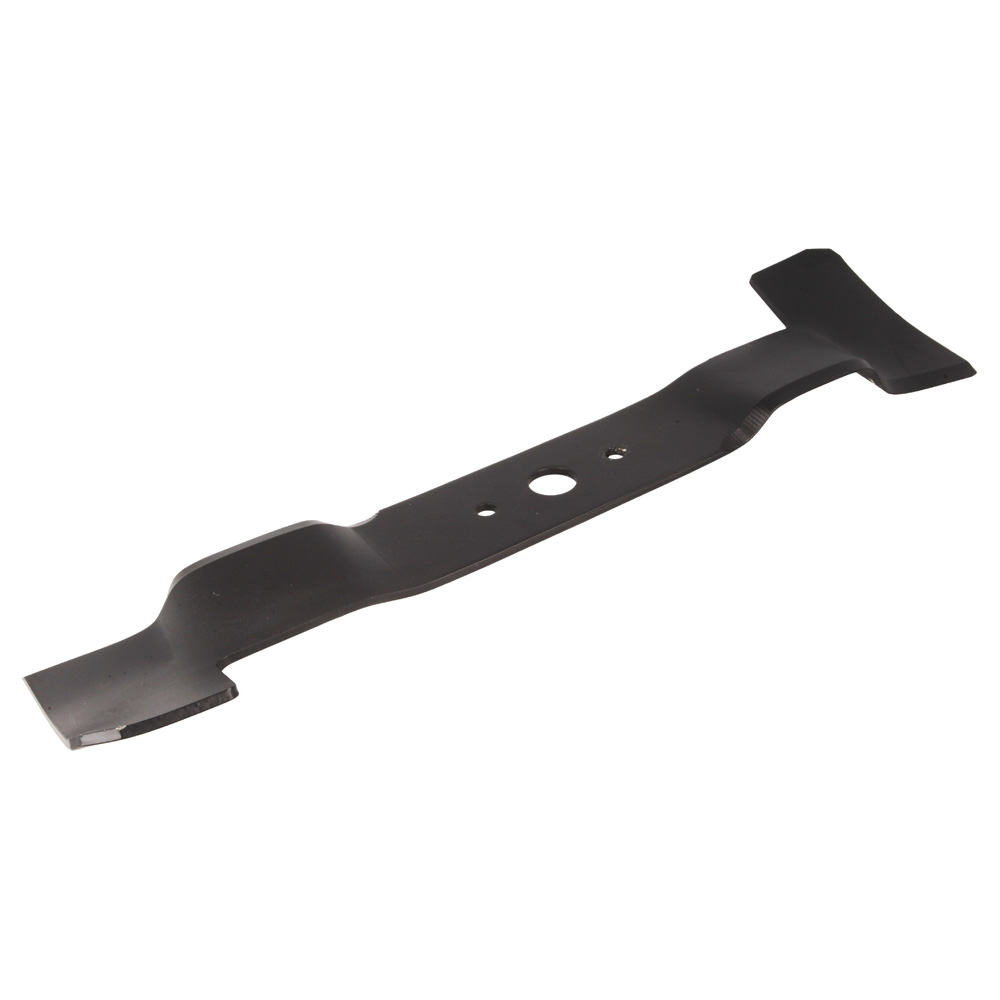

53	CO20084826 In stock	Left Blade	£20.88 £17.40
54	CO20070623 In stock	Saucer Washer	£2.32 £1.93
55	CO20061267 In stock	Bolt 3/8-24Unf	£2.58 £2.15

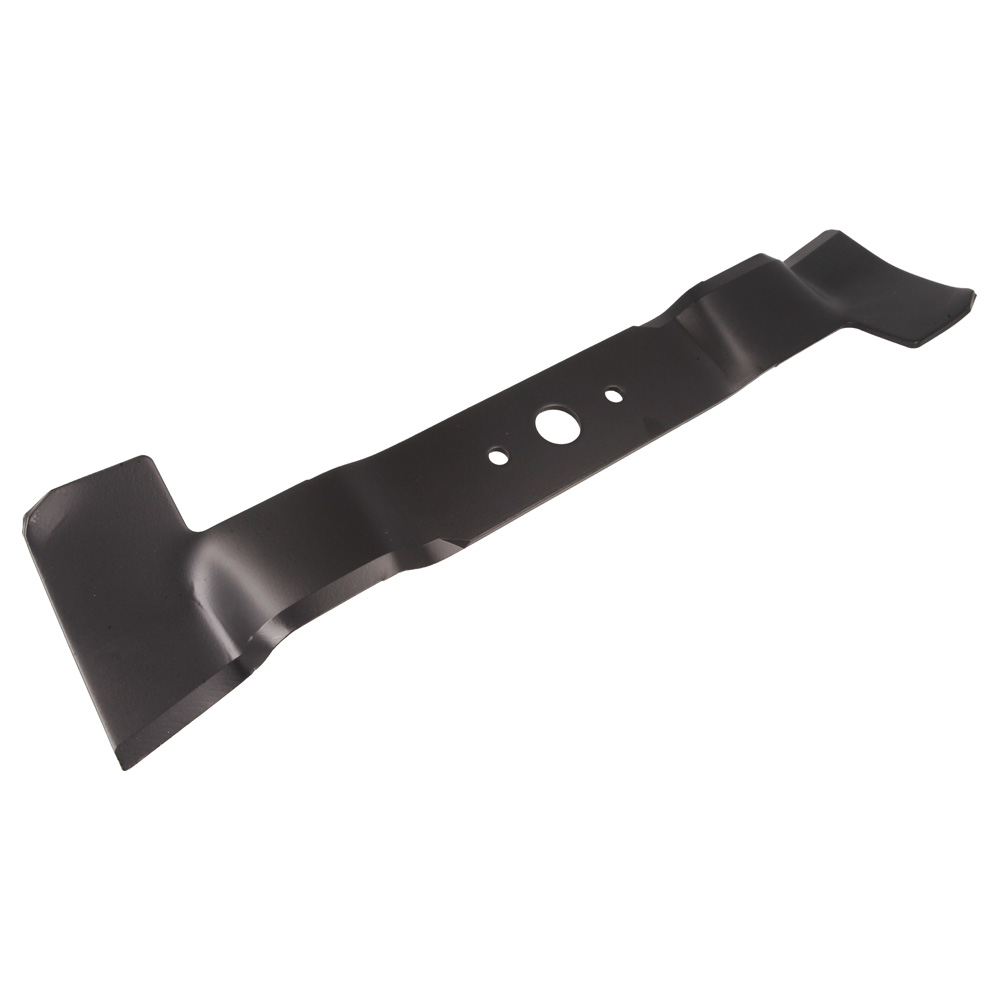

56	CO20084829 In stock	Right Blade	£20.88 £17.40
57	CO20061266 Available to backorder	Lh Bolt 3/8-24-1.25"-1.25-Lh	£2.68 £2.23
