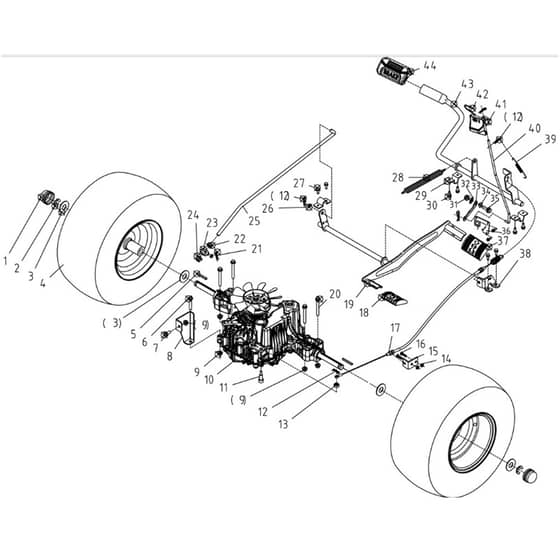

Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Hydraulic Axle Shift Brake Diagram

Name: Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Hydraulic Axle Shift Brake Diagram
SKU: lt86hrl_2024_tractor_jan_2024_from_build_2312_only_hydraulic_axl
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Hydraulic Axle Shift Brake Diagram

Description

Cobra LT86HRL 2024 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20068187 Available to backorder	Hub Cover	£1.81 £1.51
2	CO20061430 Available to backorder	Retainer Ring 15	£1.25 £1.04
3	CO20071143 Available to backorder	Washer Φ20×Φ43×3	£1.72 £1.43
4	CO20086530 Available to backorder	Rear Wheel Assembly	£124.14 £103.45
5	CO20071174 Available to backorder	Flat Key 4.85×60	£1.50 £1.25
6	CO20061254 Available to backorder	Flange Bolt M8×40	£1.25 £1.04
7	CO20061274 Available to backorder	Flange Bolt M8×20	£1.25 £1.04
8	CO20085196 Available to backorder	Rear Fixed Plate Of Hydraulic Axle（K46）	£10.61 £8.84
9	CO20061348 Available to backorder	Flange Lock Nut M8 (Ref: 9 & 31)	£1.25 £1.04
10	CO20086645 Available to backorder	Hydro Transaxle	£1,443.22 £1,202.68
11	CO20086191 Available to backorder	Bow-Tie Cotter Pin 2(K46)	£1.34 £1.12
12	CO20070582 Available to backorder	Cotter Pin	£1.25 £1.04
13	CO20061419 Available to backorder	Lock Nut M10	£1.87 £1.56
14	CO20061385 Available to backorder	Flange Lock Nut M6	£1.25 £1.04
15	CO20085192 Available to backorder	Cable Support	£3.73 £3.11
16	CO20061289 Available to backorder	Bolt M6X16	£1.25 £1.04
17	CO20088865 Available to backorder	Brake Cable （K46)	£25.76 £21.47
18	CO20068229 Available to backorder	Reverse Pedal	£8.59 £7.16
19	CO20084591 Available to backorder	Foot Lever Weldment	£68.75 £57.29
20	CO20061310 Available to backorder	Flange Bolt 8×65	£1.34 £1.12
21	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
22	CO20061369 Available to backorder	Hexagon Nut 10X1.25	£1.25 £1.04
23	CO20085748 Available to backorder	Pull Rod Pin	£2.18 £1.82
24	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.25 £1.04
25	CO20085194 Available to backorder	Traveling Pull Rod（K46）	£40.91 £34.09
26	CO20061497 In stock	Washer 10	£1.20 £1.00
27	CO20082800 Available to backorder	Tapping Screwm6*16	£1.25 £1.04
29	CO20084532 Available to backorder	U-Shaped Clamp	£1.32 £1.10
30	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.25 £1.04
32	CO20061541 Available to backorder	Big Washer 8	£1.25 £1.04
33	CO20089014 Available to backorder	Parking Hook	£3.11 £2.59
34	CO20088842 Available to backorder	Cruise Step Cover	£2.74 £2.28
35	CO20061250 Available to backorder	Flange Bolt M8×25	£1.56 £1.30
36	CO20089015 Available to backorder	Brake Switch Seat Plate	£3.83 £3.19
37	CO20068230 Available to backorder	Forward Pedal	£5.74 £4.78
38	CO20088861 Available to backorder	Cable Fixing Plate	£4.37 £3.64
39	CO20084574 Available to backorder	Brake Return Tension Spring，Ttm86	£2.48 £2.07
40	CO20088846 Available to backorder	Drag Link Brake Parking	£9.41 £7.84
41	CO20084583 Available to backorder	Brake Handle	£9.25 £7.71
42	CO20084581 Available to backorder	U Bolt	£1.40 £1.17
43	CO20088844 Available to backorder	Brake Foot Bar Weldment(Hydraulic Pressure)	£68.75 £57.29
44	CO20082728 Available to backorder	Brake Pedal	£8.83 £7.36
