Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Grass Catcher Diagram

Name: Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Grass Catcher Diagram
SKU: lt86hrl_2024_tractor_jan_2024_from_build_2312_only_grass_catcher
Price: 1.03 GBP
Availability: InStock

Part No. lt86hrl_2024_tractor_jan_2024_from_build_2312_only_grass_catcher

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Grass Catcher Diagram

Description

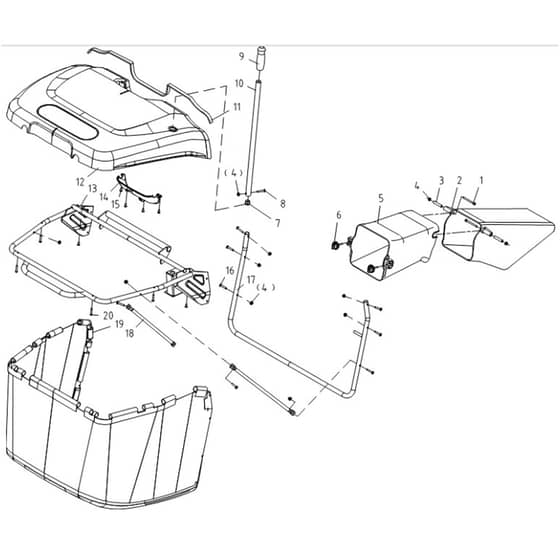

Cobra LT86HRL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20084300 Available to backorder	Screw M6X65	£1.24 £1.03
2	CO20085874 Available to backorder	Front Grass Collectorttm86，K46/T2	£37.32 £31.10
3	CO20084482 Available to backorder	Spacer Φ6Φ1048	£3.26 £2.72
4	CO20061385 Available to backorder	Hexagon Lock Nut M6	£1.24 £1.03
5	CO20085875 Available to backorder	Rear Grass Collector Ttm86，K46/T2	£30.43 £25.36
6	CO20086201 Available to backorder	Lock Knob	£4.31 £3.59
7	CO20070642 Available to backorder	Core Plug	£2.15 £1.79
8	CO20060905 Available to backorder	Screw M6×30	£1.86 £1.55
9	CO20070643 In stock	Handle	£4.01 £3.34
10	CO20071295 Available to backorder	Lever	£21.40 £17.83
11	CO20071687 Available to backorder	Sealing Wool	£1.76 £1.47
12	CO20085124 Available to backorder	Cover	£102.24 £85.20
13	CO20084469 Available to backorder	Grass Collecting Frame Front Support Weldment	£90.24 £75.20
14	CO20084472 Available to backorder	Handle Decprative Plate	£4.20 £3.50
15	CO20084298 Available to backorder	Tapping Screw St4.8X16	£1.24 £1.03
16	CO20061246 Available to backorder	Hexagon Boltm6X35	£1.24 £1.03
17	CO20084483 Available to backorder	Grass Collecting Frame State Support Weldment	£38.34 £31.95
18	CO20084488 Available to backorder	Side Stay Pipe	£8.21 £6.84
19	CO20084473 Available to backorder	Grass Catcher(Bottom+Catcher)	£128.88 £107.40
20	CO20084299 Available to backorder	Tapping Screw St5.5X35	£1.24 £1.03
