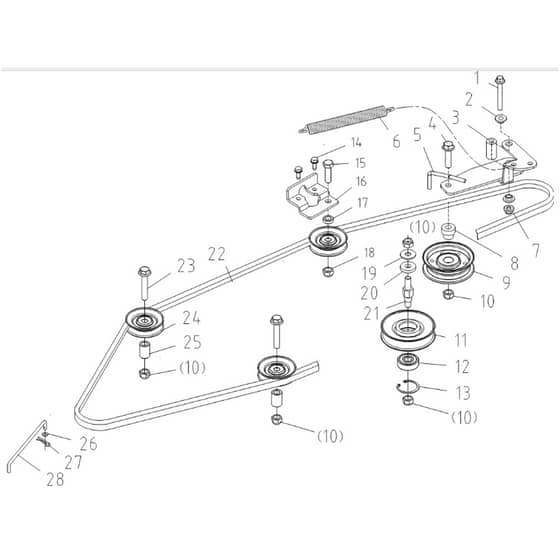

Cobra LT86HRL 2024 - Tractor Jan 2024 from build 2312- only Drive Assy Diagram

Description

Cobra LT86HRL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20061275 Available to backorder	Flange Bolt M8×60	£1.24 £1.03
2	CO20070780 Available to backorder	Bushing	£1.24 £1.03
3	CO20084436 Available to backorder	Spacer ¢8X¢18X33	£2.54 £2.12
4	CO20062521 Available to backorder	Flange Bolt M10×1.25×40	£1.24 £1.03
5	CO20084440 Available to backorder	Driving Tention Arm Weldment	£9.23 £7.69
6	CO20070875 In stock	Spring	£5.24 £4.37
7	CO20061336 Available to backorder	Flange Nut M8	£1.24 £1.03
8	CO20071180 Available to backorder	Tention Pulley Bushing	£3.43 £2.86
9	CO20071213 Available to backorder	Tention Pulley	£30.08 £25.07
10	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.24 £1.03
11	CO20070536 Available to backorder	Tention Pulley	£28.66 £23.88
12	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
13	CO20061549 Available to backorder	Snap Ring 37	£1.24 £1.03
14	CO20082800 Available to backorder	Tapping Screwm6*16	£1.24 £1.03
15	CO20062547 Available to backorder	Flange Bolt M10×1.5×35	£1.24 £1.03
16	CO20088482 Available to backorder	Guide Pulley Base Plate	£6.52 £5.43
17	CO20088483 Available to backorder	Washer ¢10X¢18X7	£1.86 £1.55
18	CO20061419 Available to backorder	Lock Nut M10×1.5	£1.86 £1.55
19	CO20061542 Available to backorder	Big Washer 10	£1.55 £1.29
20	CO20062499 Available to backorder	Washer ¢27X¢10.5X5	£2.23 £1.86
21	CO20084441 Available to backorder	Tensioning Wheel Bolt	£3.72 £3.10
22	CO20085198 Available to backorder	V Belt Lg4-1030	£63.96 £53.30
23	CO20062515 Available to backorder	Flange Bolt M10×1.25×50	£1.24 £1.03
24	CO20071208 In stock	Driving Guide Pulley	£23.88 £19.90
25	CO20084442 Available to backorder	Guide Pulley Cushion Sleeve	£1.94 £1.62
26	CO20061445 Available to backorder	Washer 5	£1.24 £1.03
27	CO20059765 Available to backorder	Split Pin	£1.24 £1.03
28	CO20085193 Available to backorder	Oil Discharge Push Rod (K46)	£4.03 £3.36
