Cobra LT86HRL 2023 - Tractor Apr 2023 Rear Rack Diagram

Description

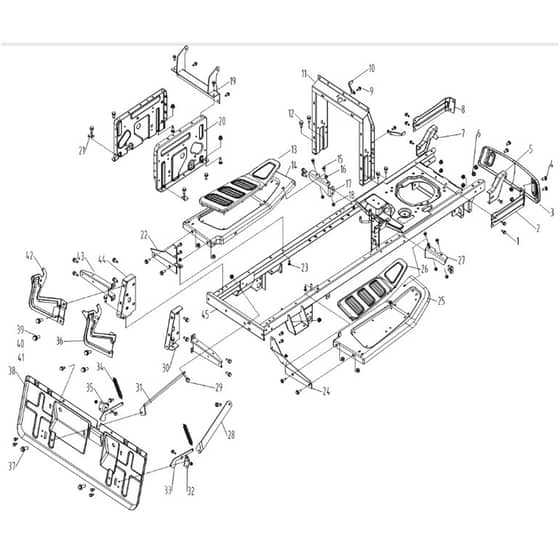

Cobra LT86HRL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061274 Available to backorder	Flange Bolt M8×20	£1.20 £1.00
2	CO20084410 Available to backorder	Crash Bar Post Right	£11.86 £9.88
3	CO20085086 Available to backorder	Crash Plate	£25.10 £20.92
4	CO20061299 Available to backorder	Bolt M8×20 (Ref: 4 & 23)	£1.20 £1.00
5	CO20084375 Available to backorder	Hood Bracket Right	£21.14 £17.62
6	CO20061348 Available to backorder	Flange Lock Nut M8	£1.20 £1.00
7	CO20084403 Available to backorder	Hood Bracket Left	£21.14 £17.62
8	CO20084378 Available to backorder	Crash Bar Post Left	£11.86 £9.88
9	CO20082800 Available to backorder	Hexagon Washer Lock Screw 6X16	£1.25 £1.04
10	CO20084384 Available to backorder	Pillar Rear Cover	£1.37 £1.14
11	CO20084401 Available to backorder	Column Frame	£39.66 £33.05
12	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.25 £1.04
13	CO20084388 Available to backorder	Foot Pad Left	£9.68 £8.07
14	CO20084429 Available to backorder	Left Pedal	£29.98 £24.98
15	CO20061196 Available to backorder	Flange Bolt M6×25	£1.25 £1.04
16	CO20070916 Available to backorder	Bushing	£1.25 £1.04
17	CO20084422 Available to backorder	Support Left Before Pedal	£14.53 £12.11
18	CO20061385 Available to backorder	Hexagon Flange Lock Nut M6	£1.20 £1.00
19	CO20084417 Available to backorder	Seat Front Cross Member	£35.68 £29.73
20	CO20084399 Available to backorder	Side Riser	£35.68 £29.73
22	CO20084414 Available to backorder	Left Foot Hanger	£22.01 £18.34
24	CO20084428 Available to backorder	Right Foot Hanger	£22.01 £18.34
25	CO20084430 Available to backorder	Right Pedal	£29.98 £24.98
26	CO20084393 Available to backorder	Foot Pad Right	£9.68 £8.07
27	CO20084427 Available to backorder	Front Foot Support Right	£14.53 £12.11
28	CO20084412 Available to backorder	Rear Stay Right	£9.29 £7.74
29	CO20084421 Available to backorder	Step Bolt M8*20	£2.47 £2.06
30	CO20084392 Available to backorder	Trapezoidal Connecting Plate Weldment Right	£13.38 £11.15
31	CO20084418 Available to backorder	Rear Stay Left	£7.24 £6.03
32	CO20084381 Available to backorder	Retractor Seat Right	£2.93 £2.44
33	CO20085354 Available to backorder	Hook	£4.30 £3.58
