Cobra LT62MRL 2024 - Tractor Jan 2024 from build 2312- only Frame Diagram

Description

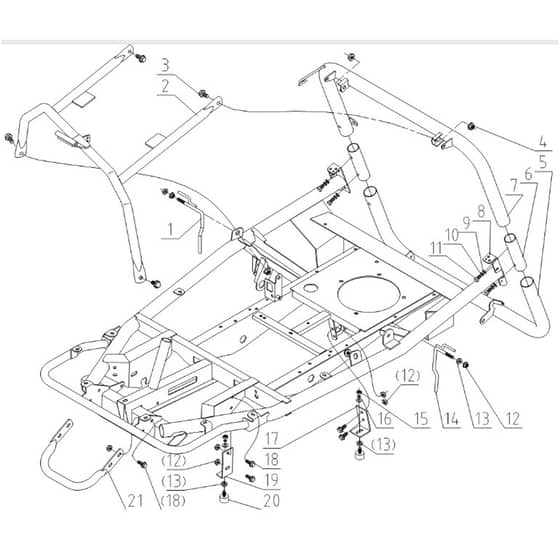

Cobra LT62MRL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20070534 Available to backorder	Right Rod Assembly	£5.81 £4.84
2	CO20070547 Available to backorder	Chassis Assembly	£93.72 £78.10
3	CO20062534 Available to backorder	Hexagon Lock M10X1.25X25	£1.24 £1.03
4	CO20061369 Available to backorder	Hexagon Nut 10X1.25	£1.24 £1.03
5	CO20070550 Available to backorder	Rear Lower Pipe Assembly	£68.16 £56.80
6	CO20070545 Available to backorder	Inner Liner Tube Assembly	£85.20 £71.00
7	CO20070548 Available to backorder	Rear Upper Pipe Assembly	£68.16 £56.80
9	CO20061541 Available to backorder	Big Washer 8	£1.24 £1.03
10	CO20061533 Available to backorder	Spring Washer 8	£1.24 £1.03
11	CO20061298 Available to backorder	Hexagon Bolt M8X25	£1.40 £1.17
12	CO20061348 Available to backorder	Hexagon Lock Nut M8	£1.24 £1.03
13	CO20061336 Available to backorder	Hexagon Nut M8	£1.24 £1.03
14	CO20070533 Available to backorder	Left Rod Assembly	£7.06 £5.88
15	CO20061393 Available to backorder	Nut M8	£1.24 £1.03
16	CO20061544 Available to backorder	Washer 8.1X17X1.6	£1.24 £1.03
17	CO20070542 Available to backorder	Rear Damper	£4.40 £3.67
18	CO20061274 Available to backorder	Hexagon Bolt M8X20	£1.24 £1.03
19	CO20070541 Available to backorder	Front Damper	£4.40 £3.67
20	CO20070540 Available to backorder	Bumper Cushion	£4.40 £3.67
21	CO20070539 Available to backorder	Front Protect Pipe	£93.72 £78.10
