Cobra LT62HRL 2024 - Tractor Jan 2024 from build 2312- only Interlock Diagram

Description

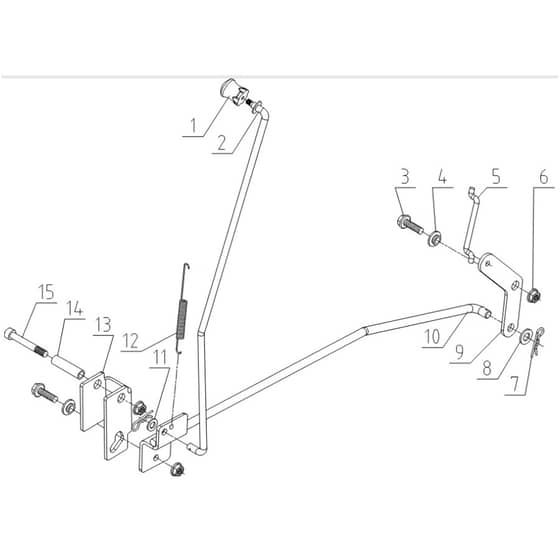

Cobra LT62HRL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20068202 Available to backorder	Parking Handle	£2.63 £2.19
2	CO20088084 Available to backorder	Unlock Push Rod	£9.71 £8.09
3	CO20062534 Available to backorder	Hexagon Bolt M8*25	£1.24 £1.03
4	CO20070780 Available to backorder	Bushing	£1.24 £1.03
5	CO20070783 Available to backorder	Link Tie Rod	£2.42 £2.02
6	CO20061348 Available to backorder	Hexagon Lock Nut M8	£1.24 £1.03
7	CO20070576 Available to backorder	Cotter Pin	£1.24 £1.03
8	CO20061497 In stock	Washer Φ10	£1.28 £1.07
9	CO20070782 Available to backorder	Interlocking Lever	£2.21 £1.84
10	CO20070791 Available to backorder	Interlocking Lever Assembly	£10.57 £8.81
11	CO20061431 Available to backorder	Washer Φ8	£1.24 £1.03
12	CO20070787 Available to backorder	Spring	£1.88 £1.57
13	CO20070786 Available to backorder	Lock Plate	£4.14 £3.45
14	CO20070788 Available to backorder	Branch Pipe	£1.61 £1.34
15	CO20061216 Available to backorder	Hexagon Bolt M8*65	£1.24 £1.03
