Cobra LT112HR2L - Tractor Jan 2025 Steering Diagram

Name: Cobra LT112HR2L - Tractor Jan 2025 Steering Diagram
SKU: lt112hr2l_tractor_jan_2025_steering-group
Price: 1.04 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT112HR2L - Tractor Jan 2025 Steering Diagram

Description

Cobra LT112HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20093109 Available to backorder	Joint Bearing M10	£14.54 £12.12
2	CO20093113 Available to backorder	Nut M12*1.75	£1.25 £1.04
3	CO20093108 Available to backorder	Steering Drag Rod	£11.03 £9.19
4	CO20093106 Available to backorder	Joint Bearing Si12Tk	£15.24 £12.70
5	CO20061420 Available to backorder	Lock Nut M12×1.75	£1.25 £1.04
6	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
7	CO20084463 Available to backorder	Square Hole Card Board	£3.50 £2.92
8	CO20061299 Available to backorder	Screw M8×20	£1.25 £1.04
9	CO20061298 Available to backorder	Flange Bolt M8×25	£1.42 £1.18
10	CO20083389 Available to backorder	Couplings	£8.09 £6.74
11	CO20082643 Available to backorder	Hatch Bushing	£1.25 £1.04

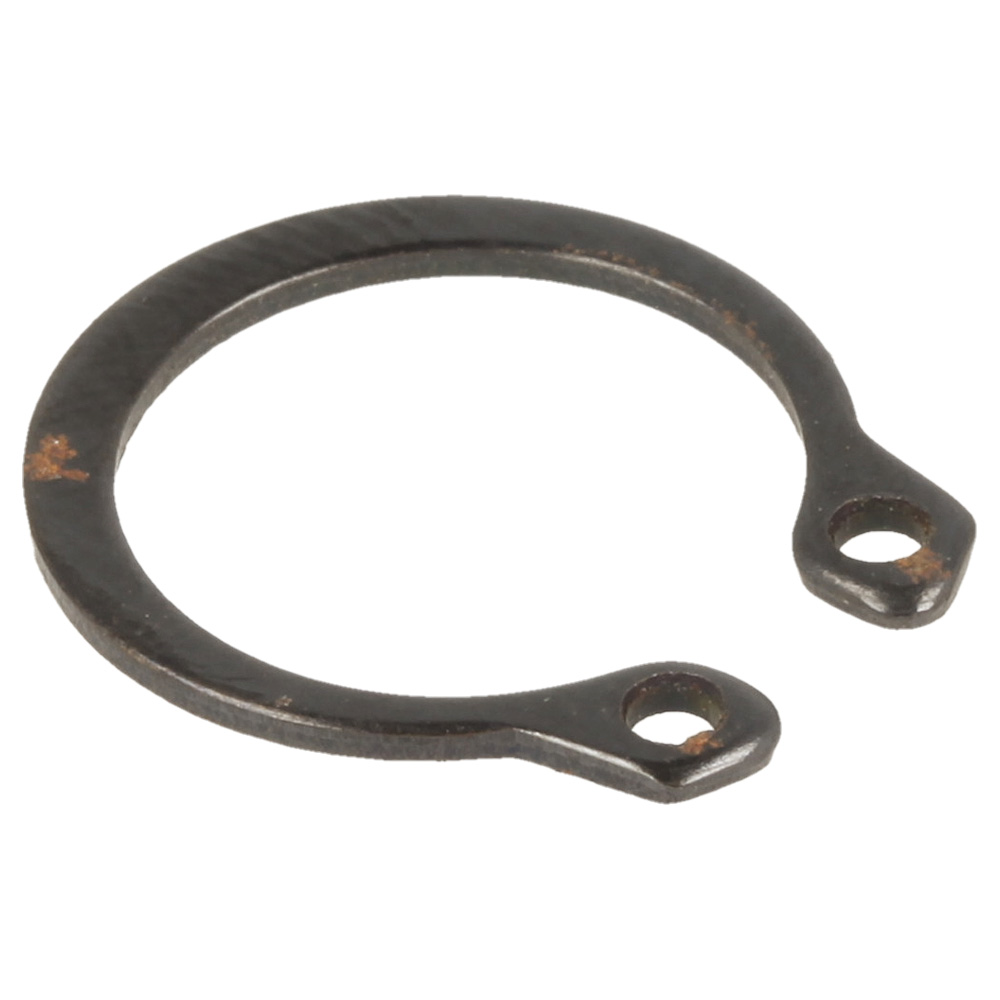

12	CO20061548 Available to backorder	Snap Ring 15	£1.25 £1.04
13	CO20093110 Available to backorder	Steering Column	£12.04 £10.03

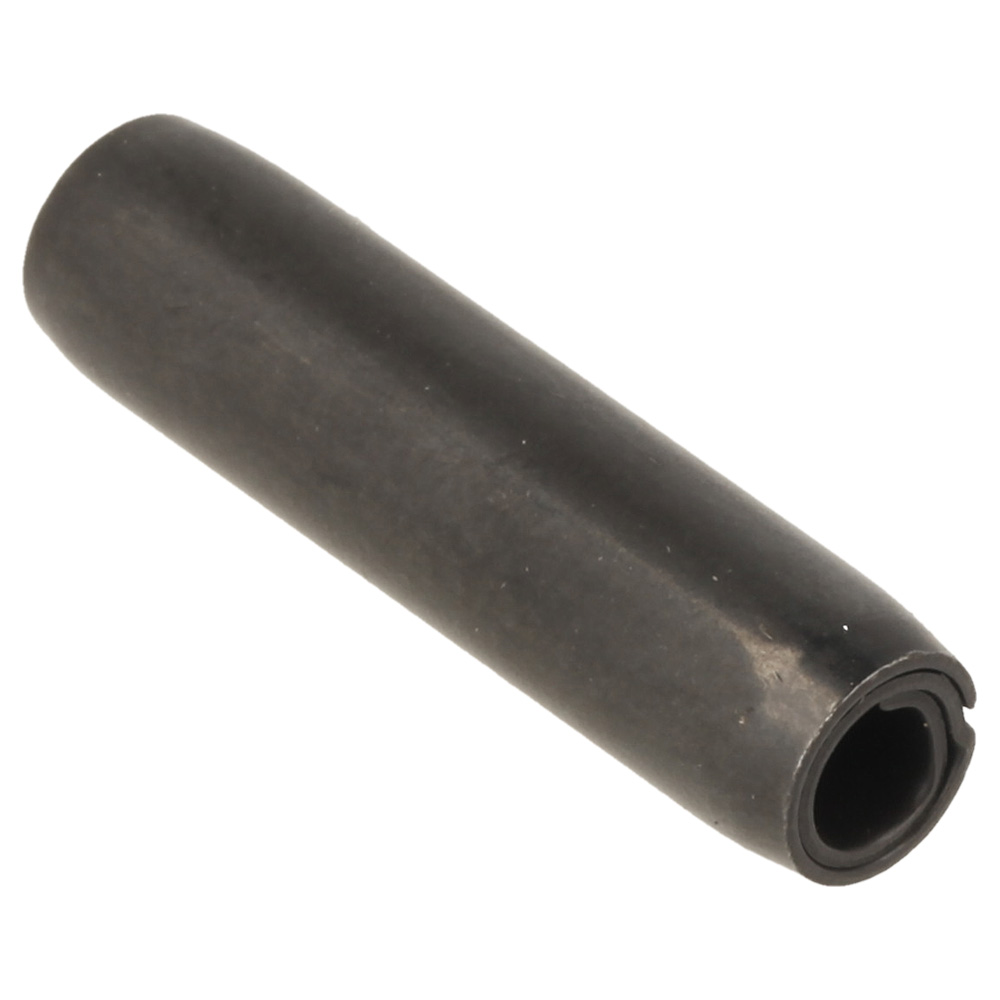

14	CO20061569 Available to backorder	Pin 6×26	£1.49 £1.24
15	CO20070776 Available to backorder	Steering Gear	£10.28 £8.57

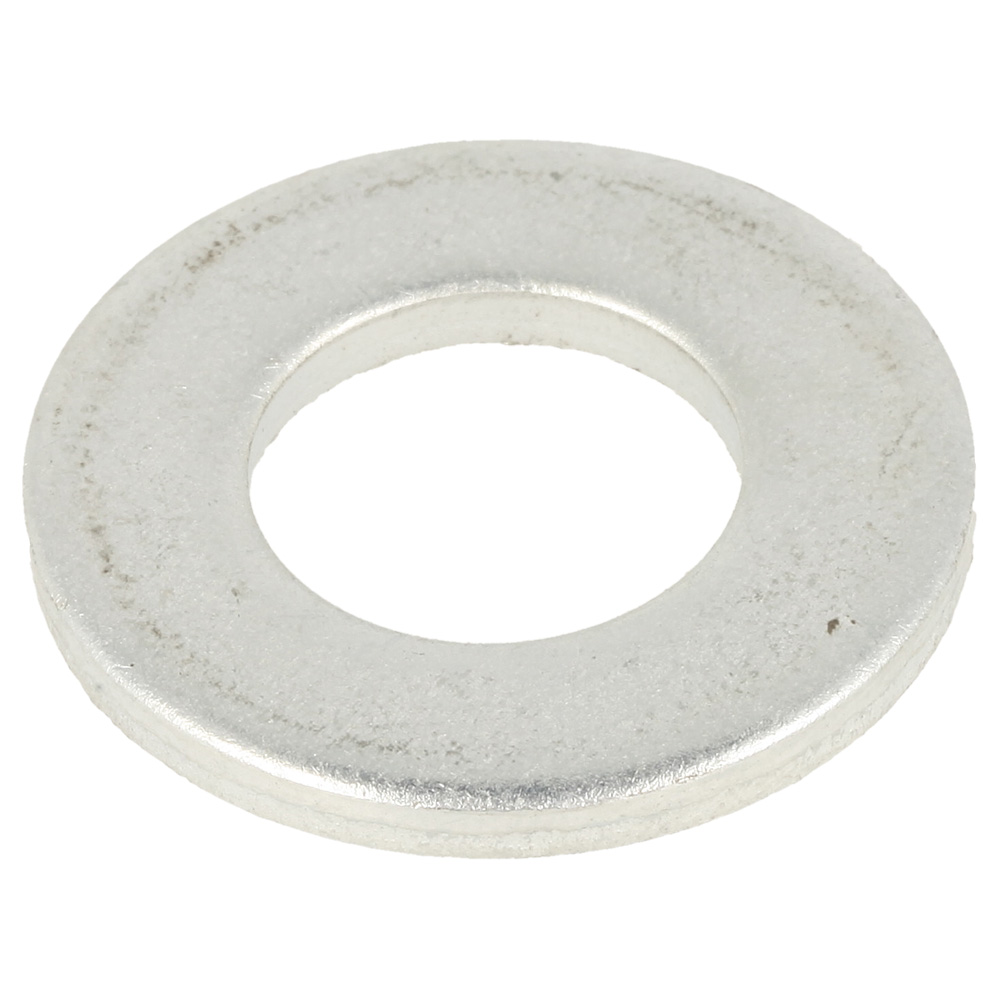

16	CO20061437 Available to backorder	Washer 16X32X3	£1.25 £1.04

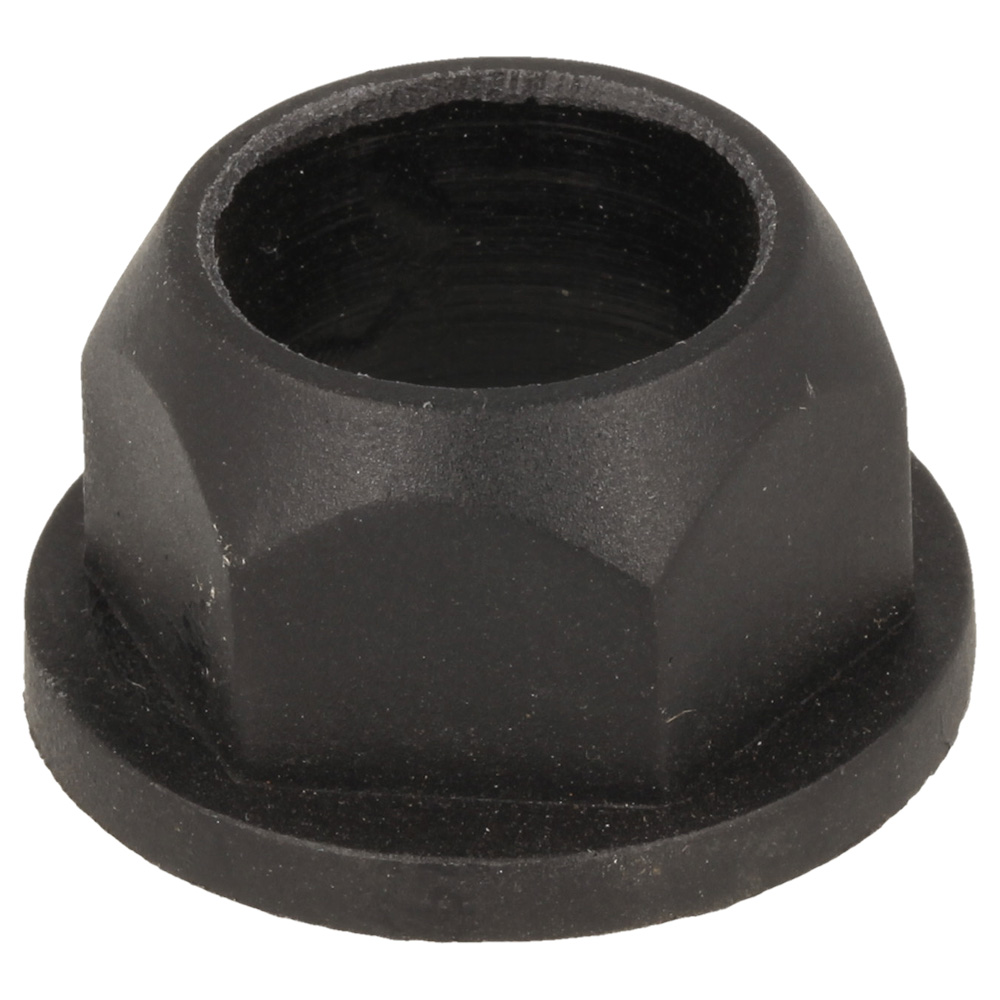

17	CO20070612 Available to backorder	Hexagon Bushing	£2.02 £1.68

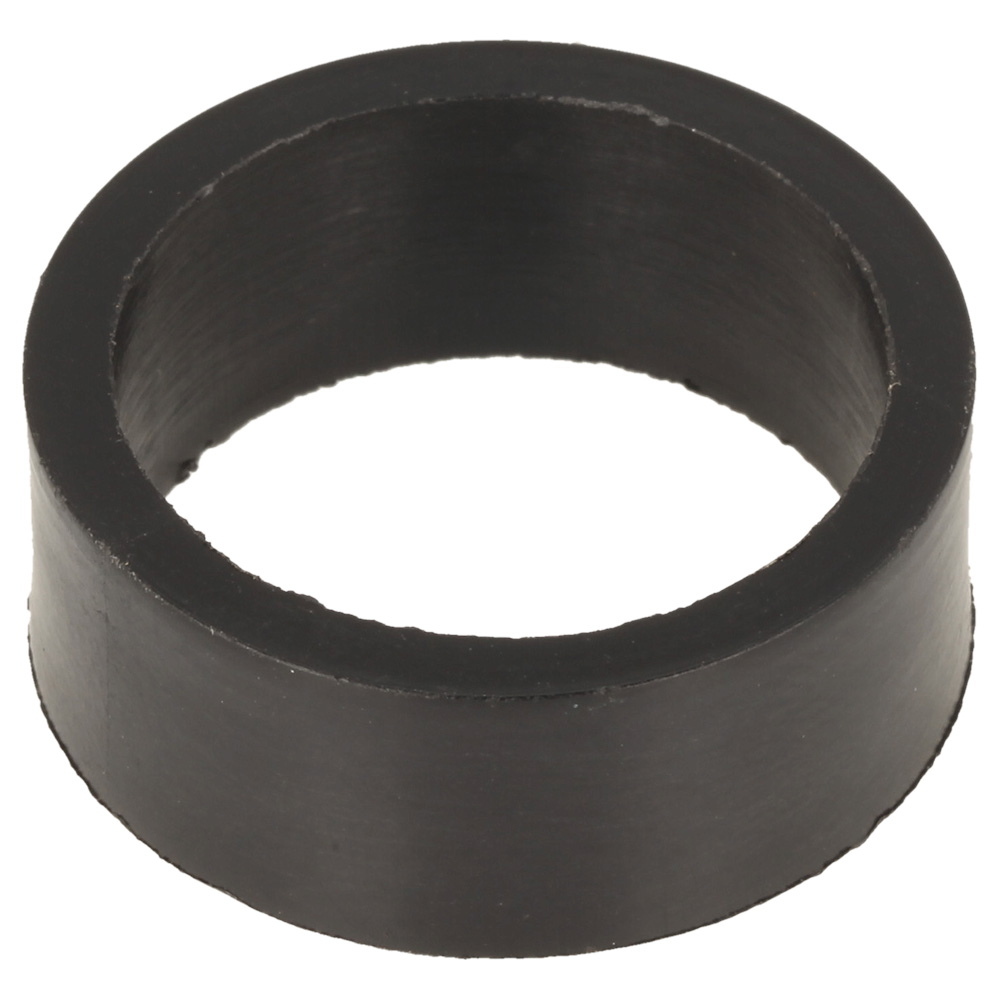

18	CO20071127 Available to backorder	Bushing	£1.78 £1.48
19	CO20085898 Available to backorder	Snap Ring 16	£1.25 £1.04
20	CO20078739 Available to backorder	Screw M8×25	£1.25 £1.04
21	CO20093107 Available to backorder	Treble Hole Board	£4.74 £3.95
22	CO20093111 Available to backorder	Steering Gear Plate Weldment	£32.32 £26.93

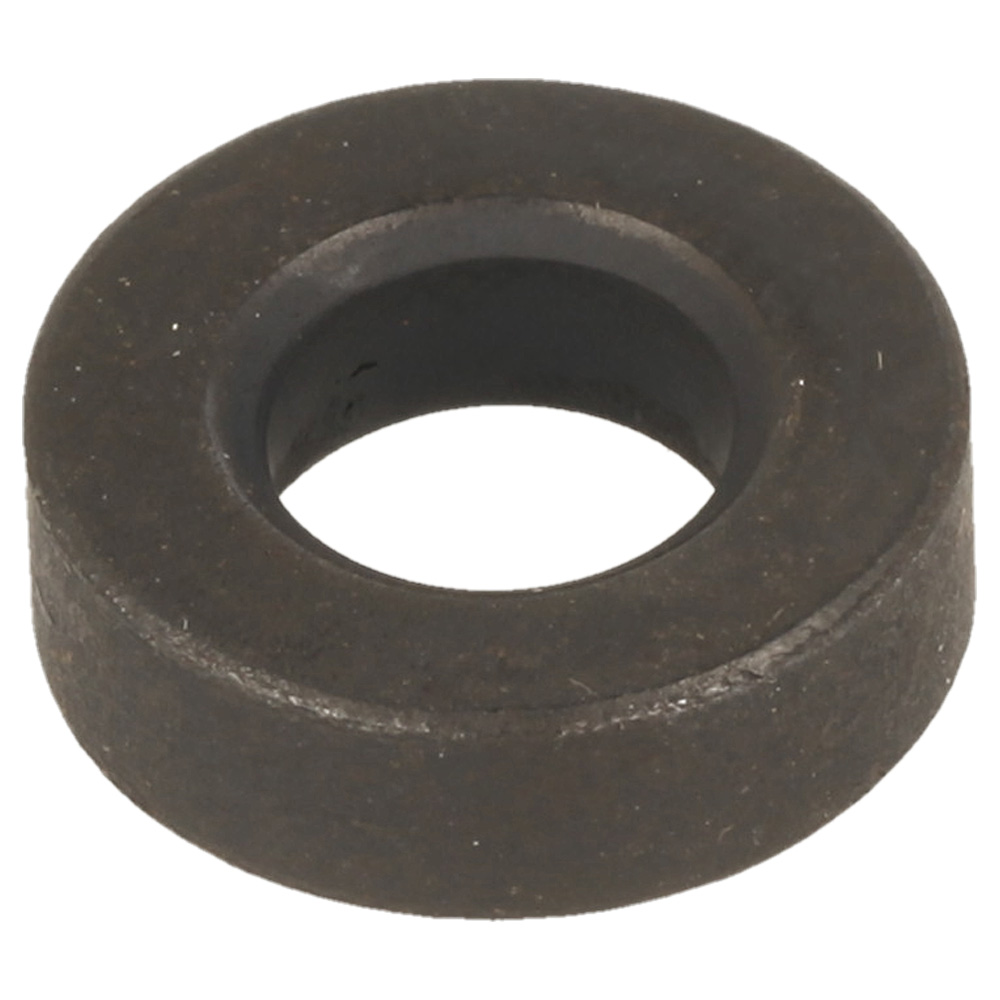

23	CO20070932 Available to backorder	Bushing	£2.02 £1.68
24	CO20093104 Available to backorder	Tie Plate	£6.44 £5.37
25	CO20062534 Available to backorder	Flange Bolt M101.2525	£1.25 £1.04
26	CO20093102 Available to backorder	Bushingφ10.2	£2.09 £1.74
27	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.25 £1.04
28	CO20061284 Available to backorder	Flange Bolt M101.2525	£1.27 £1.06
29	CO20070610 Available to backorder	Washer10.1X20X4	£1.25 £1.04
30	CO20061640 Available to backorder	Joint Bearing M10	£15.59 £12.99
31	CO20061400 Available to backorder	Flange Nut M10	£1.25 £1.04
32	CO20070936 Available to backorder	Steering Drag Rod	£18.38 £15.32
33	CO20061399 Available to backorder	Nut M10	£1.25 £1.04
34	CO20061641 Available to backorder	Joint Bearing Sijk10C	£15.02 £12.52
35	CO20084468 Available to backorder	Steering Wheel Rod A	£17.20 £14.33
36	CO20060880 Available to backorder	Tapping Screw St4.8X16	£1.25 £1.04
37	CO20082707 Available to backorder	Steering Wheel	£39.44 £32.87
38	CO20079969 Available to backorder	Splined Hub	£7.31 £6.09
39	CO20082683 Available to backorder	Washer	£2.30 £1.92

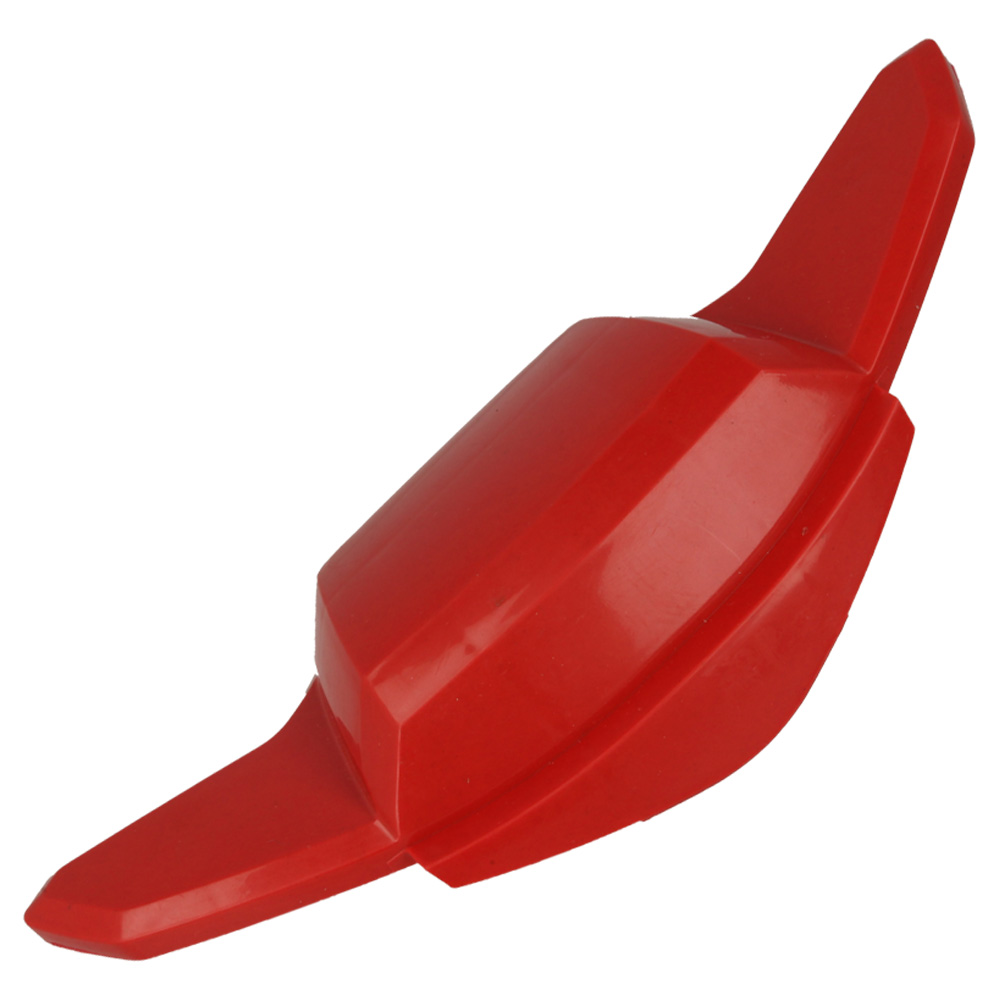

40	CO20082679 Available to backorder	Steering Wheel Cap	£6.98 £5.82
