Cobra LT112HR2L - Tractor Jan 2025 Seat Diagram

Name: Cobra LT112HR2L - Tractor Jan 2025 Seat Diagram
SKU: lt112hr2l_tractor_jan_2025_seat-group
Price: 1.03 GBP
Availability: InStock

Part No. lt112hr2l_tractor_jan_2025_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT112HR2L - Tractor Jan 2025 Seat Diagram

Description

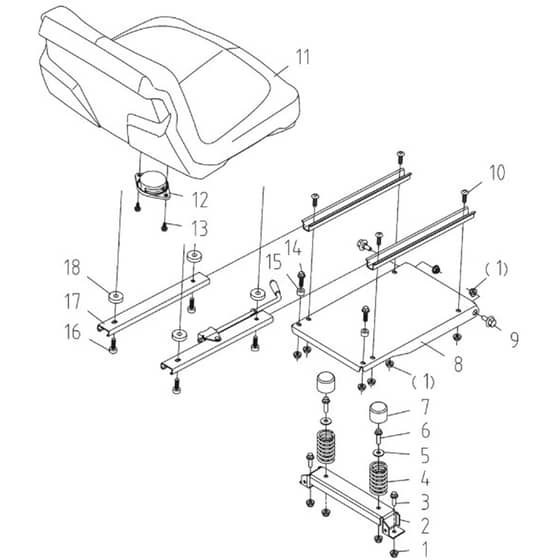

Cobra LT112HR2L Ride On Mower Parts Diagram

	Part No.	Details
1	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
2	CO20084447 Available to backorder	Seat Back Beam	£15.86 £13.22
3	CO20084454 Available to backorder	Screw M8X20	£1.24 £1.03
4	CO20070964 Available to backorder	Seat Spring Trm74	£3.79 £3.16
5	CO20061541 Available to backorder	Big Washer	£1.24 £1.03
6	CO20061298 Available to backorder	Flange Bolt M8×25 (Ref: 6 & 14)	£1.40 £1.17
7	CO20068240 Available to backorder	Spring Cap	£2.23 £1.86
8	CO20089818 Available to backorder	Welding Parts For Sild Rail Base Plate	£32.60 £27.17
9	CO20088755 Available to backorder	Seat Screws	£2.17 £1.81
10	CO20073981 Available to backorder	Screw M8X16	£1.24 £1.03
11	CO20088748 Available to backorder	Seat	£197.88 £164.90
12	CO20082800 Available to backorder	Tapping Screwm6*16	£1.24 £1.03
13	CO20088756 Available to backorder	Seat Switcch Components	£18.06 £15.05
15	CO20087372 Available to backorder	Tube 1489	£1.24 £1.03
16	CO20062556 Available to backorder	Hexagon Socket Flat Round Head Screw M8X20，Gb/T70.2	£1.24 £1.03
18	CO20062501 Available to backorder	Washer	£2.48 £2.07
