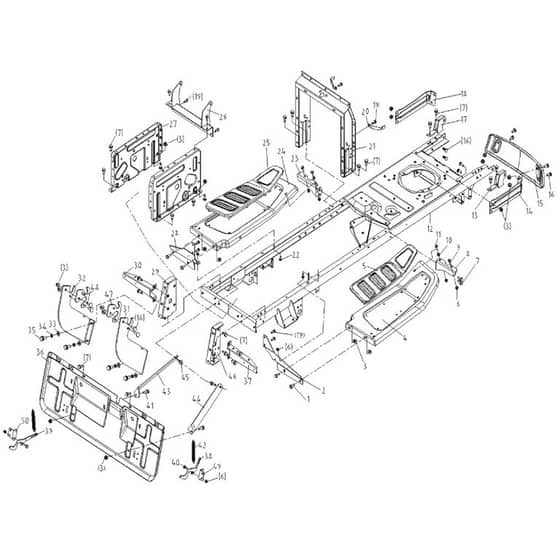

Cobra LT112HR2L - Tractor Jan 2025 Rear Rack Diagram

Name: Cobra LT112HR2L - Tractor Jan 2025 Rear Rack Diagram
SKU: lt112hr2l_tractor_jan_2025_rear_rack-group
Price: 1.04 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT112HR2L - Tractor Jan 2025 Rear Rack Diagram

Description

Cobra LT112HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061274 Available to backorder	Flange Bolt M8×20	£1.25 £1.04
2	CO20084428 Available to backorder	Right Foot Step Suspension Plate	£22.01 £18.34
3	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
4	CO20084430 Available to backorder	Right Pedal	£29.98 £24.98
5	CO20084393 Available to backorder	Foot Pad Right	£9.68 £8.07
6	CO20061385 Available to backorder	Hexagon Flange Lock Nut M6	£1.25 £1.04
7	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.25 £1.04
8	CO20084427 Available to backorder	Foot Forward Support Right	£14.53 £12.11
9	CO20061200 Available to backorder	Flange Bolt M6×16	£1.25 £1.04
10	CO20070916 Available to backorder	Bushing	£1.25 £1.04
11	CO20061196 Available to backorder	Flange Bolt M6×25	£1.25 £1.04
13	CO20089632 Available to backorder	Right Side Of Hood Bracket Ttm112H	£22.16 £18.47
14	CO20088534 Available to backorder	Collision Bar Extension Right	£11.86 £9.88
15	CO20085086 Available to backorder	Bumper	£25.10 £20.92
16	CO20061299 Available to backorder	Bolt M8×20	£1.25 £1.04
17	CO20089627 Available to backorder	Left Side Of Hood Bracket Ttm112H	£22.16 £18.47
18	CO20088532 Available to backorder	Collision Bar Extension Left	£11.86 £9.88
19	CO20082800 Available to backorder	Tapping Screwm6*16	£1.25 £1.04
20	CO20084384 Available to backorder	Pillar Rear Cover Support Plate	£1.37 £1.14
21	CO20084401 Available to backorder	Column Frame Welding Parts	£39.66 £33.05
22	CO20061289 Available to backorder	Bolt M6X16	£1.25 £1.04
23	CO20084422 Available to backorder	Foot Forward Support Left	£14.53 £12.11
24	CO20084429 Available to backorder	Left Pedal	£29.98 £24.98
25	CO20084388 Available to backorder	Foot Pad Left	£9.68 £8.07
26	CO20084417 Available to backorder	Seat Font Crossbeam Weldment	£35.68 £29.73
27	CO20084399 Available to backorder	Side Standing Plate	£35.68 £29.73
28	CO20084414 Available to backorder	Left Foot Step Suspension Plate	£22.01 £18.34
29	CO20089646 Available to backorder	Left Side Of Trapezoidal Connecting Plate Weldment	£17.94 £14.95
30	CO20089611 Available to backorder	Rear Baffle Bracket Ttm112H	£20.05 £16.71
31	CO20089652 Available to backorder	Rotaing Bracket Right Weldment Ttm112H	£15.01 £12.51
32	CO20089623 Available to backorder	Rotaing Bracket Left Weldment Ttm112H	£13.24 £11.03
33	CO20061513 Available to backorder	Washer 10	£1.25 £1.04
34	CO20061471 Available to backorder	Spring Washer 10	£1.25 £1.04
35	CO20061316 Available to backorder	Hexagonal Head Bolt M10X1.5X30，Gb/T5783	£1.25 £1.04
36	CO20084387 Available to backorder	Tailgate	£77.99 £64.99
37	CO20089618 Available to backorder	Rear Fender Bracket Right Ttm112H	£7.39 £6.16

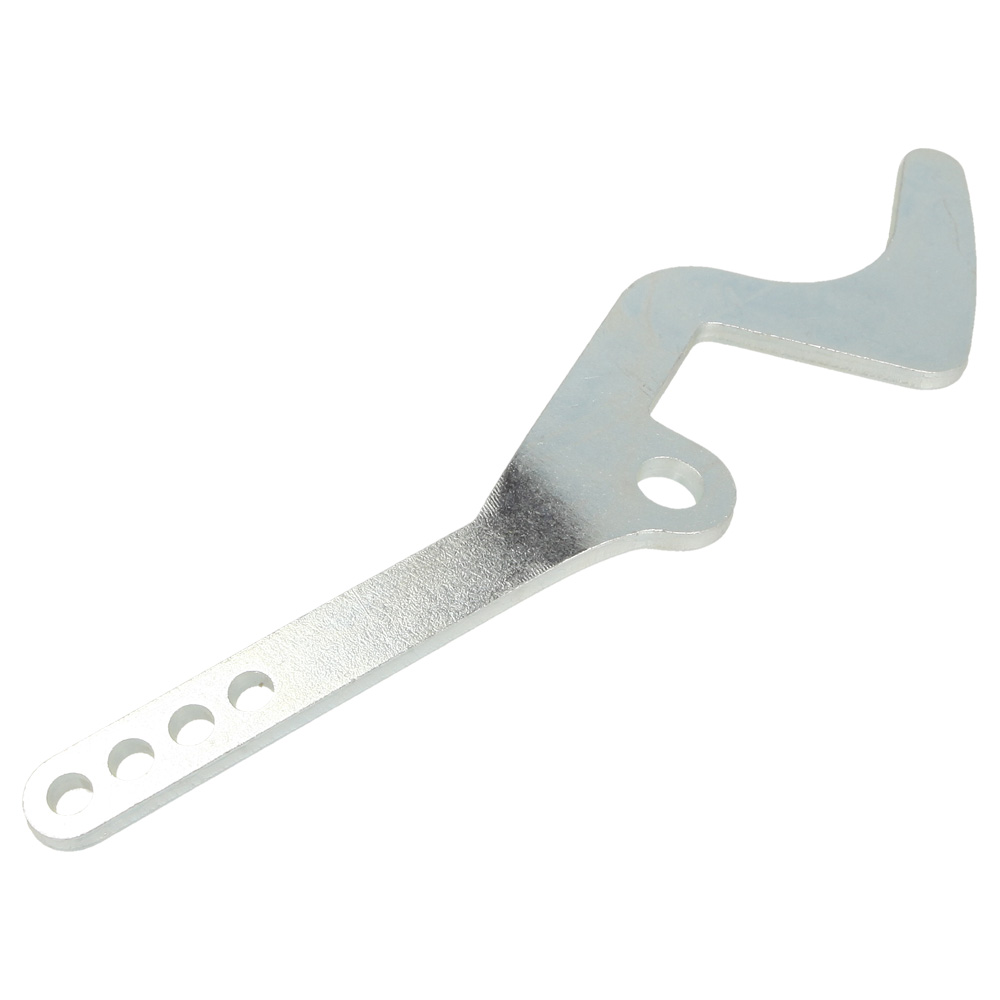

38	CO20085354 Available to backorder	Hook L	£4.30 £3.58

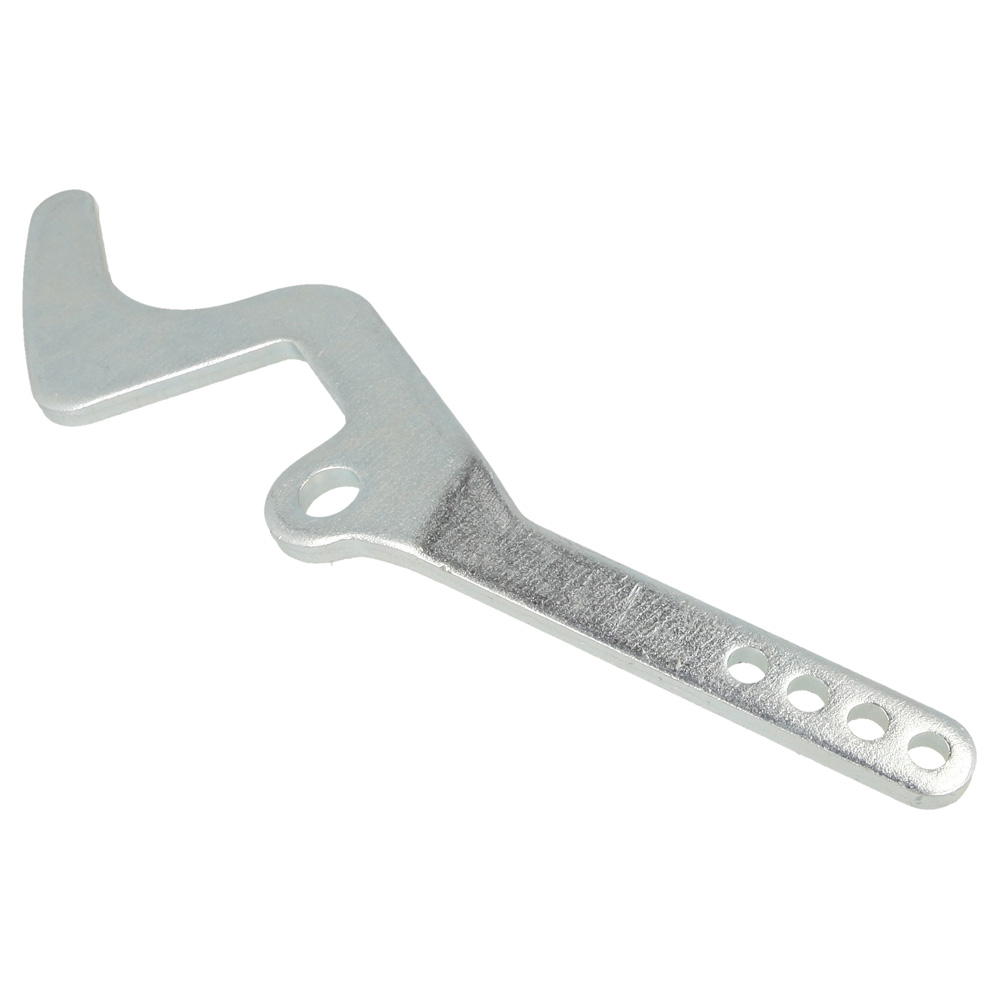

39	CO20087837 Available to backorder	Hook R	£4.27 £3.56
40	CO20070649 Available to backorder	Pin Screw	£1.25 £1.04
41	CO20061298 Available to backorder	Flange Bolt M8×25	£1.42 £1.18
42	CO20070645 Available to backorder	Spring	£1.34 £1.12
43	CO20089628 Available to backorder	Rear Strut Left	£5.57 £4.64
44	CO20089605 Available to backorder	Rear Strut Right	£5.57 £4.64
45	CO20084421 Available to backorder	Step Bolt M8*20	£2.47 £2.06
46	CO20089635 Available to backorder	Right Side Of Trapezoidal Connecting Plate Weldment	£17.03 £14.19
47	CO20089616 Available to backorder	Swivel Plate Left Weldment (Black) - Ttm112H	£20.80 £17.33
48	CO20089631 Available to backorder	Swivel Plate Right Weldment (Black) - Ttm112H	£19.68 £16.40
49	CO20084390 Available to backorder	Pull Hook Seat Left Ttm86	£2.28 £1.90
50	CO20084381 Available to backorder	Pull Hook Seat Right Ttm86	£2.93 £2.44
