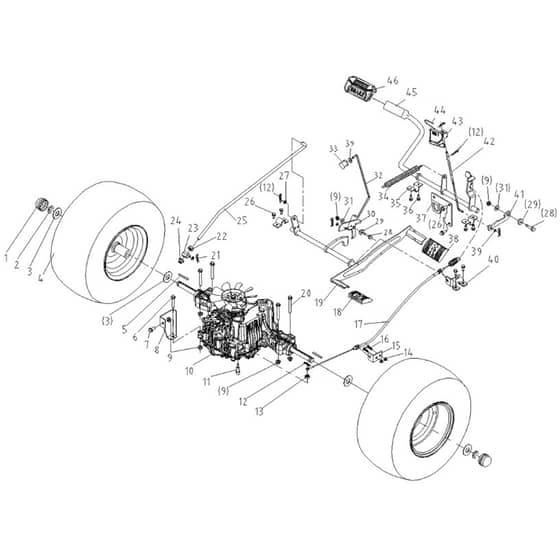

Cobra LT112HR2L - Tractor Jan 2025 Hydraulic Axle Shift Brake Diagram

Name: Cobra LT112HR2L - Tractor Jan 2025 Hydraulic Axle Shift Brake Diagram
SKU: lt112hr2l_tractor_jan_2025_hydraulic_axle_shift_brake-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT112HR2L - Tractor Jan 2025 Hydraulic Axle Shift Brake Diagram

Description

Cobra LT112HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20068187 Available to backorder	Hub Cover	£1.81 £1.51
2	CO20061430 Available to backorder	Retainer Ring 15	£1.25 £1.04
3	CO20071143 Available to backorder	Washer Φ20×Φ43×3	£1.72 £1.43
4	CO20093054 Available to backorder	Rear Wheel Assembly	£140.48 £117.07
5	CO20071174 Available to backorder	Flat Key 4.85×60	£1.50 £1.25
6	CO20061254 Available to backorder	Flange Bolt M8×40	£1.25 £1.04
7	CO20061274 Available to backorder	Flange Bolt M8×20	£1.20 £1.00
8	CO20085196 Available to backorder	Rear Fixed Plate Of Hydraulic Axle（K46）	£10.61 £8.84
9	CO20061348 Available to backorder	Flange Lock Nut M8	£1.20 £1.00
10	CO20086645 Available to backorder	Hydro Transaxle	£1,443.22 £1,202.68
11	CO20086191 Available to backorder	Bow-Tie Cotter Pin 2(K46)	£1.34 £1.12
12	CO20070582 Available to backorder	Cotter Pin	£1.25 £1.04
13	CO20061419 Available to backorder	Lock Nut M10	£1.87 £1.56
14	CO20061385 Available to backorder	Flange Lock Nut M6	£1.20 £1.00
15	CO20085192 Available to backorder	Cable Support	£3.73 £3.11
16	CO20061289 Available to backorder	Bolt M6X16	£1.25 £1.04
17	CO20088865 Available to backorder	Brake Cable Ttm112H（K46)	£25.76 £21.47
18	CO20068229 Available to backorder	Reverse Pedal	£8.59 £7.16
19	CO20089661 Available to backorder	Foot Lever Weldment	£70.55 £58.79
20	CO20061310 Available to backorder	Flange Bolt 8×65	£1.34 £1.12
21	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
22	CO20061369 Available to backorder	Hexagon Nut 10X1.25	£1.25 £1.04
23	CO20085748 Available to backorder	Pull Rod Pin	£2.18 £1.82
24	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.25 £1.04
25	CO20089664 Available to backorder	Traveling Pull Rod（K46）	£41.54 £34.62
26	CO20082800 Available to backorder	Tapping Screwm6*16	£1.25 £1.04
27	CO20061497 In stock	Washer 10	£1.20 £1.00
28	CO20061250 Available to backorder	Flange Bolt M8×25	£1.56 £1.30
29	CO20088842 Available to backorder	Cruise Step Sets	£2.74 £2.28
30	CO20089665 Available to backorder	Cruise Ratchet Ttm112H (Black)	£6.59 £5.49
31	CO20061541 Available to backorder	Big Washer8	£1.25 £1.04
32	CO20089660 Available to backorder	Cruise Lever Ttm112H	£5.57 £4.64
33	CO20068202 Available to backorder	Rarking Handle	£2.63 £2.19
34	CO20084574 Available to backorder	Brake Reset Tension Spring	£2.48 £2.07
35	CO20089912 Available to backorder	U-Shaped Clamp	£2.87 £2.39
36	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.25 £1.04
37	CO20089015 Available to backorder	Brak Switch Sert Plate	£3.83 £3.19
38	CO20068230 Available to backorder	Forward Pedal	£5.74 £4.78
39	CO20061482 Available to backorder	Washer 6	£1.25 £1.04
40	CO20088861 Available to backorder	Cable Fixing Plate	£4.37 £3.64
41	CO20090105 Available to backorder	Parking Hook Plate Ttm112H	£3.68 £3.07
42	CO20090104 Available to backorder	Drag Link Brake Parking	£10.03 £8.36
43	CO20084583 Available to backorder	Brake Handle	£9.25 £7.71
44	CO20084581 Available to backorder	U Bolt	£1.40 £1.17
45	CO20089666 Available to backorder	Brake Foot Bar Weldment(Hydraulic Pressure)Ttm112H	£71.20 £59.33
46	CO20082728 Available to backorder	Brake Pedal	£8.83 £7.36
