Cobra LT112HR2L - Tractor Jan 2025 Cutting Deck Diagram

Name: Cobra LT112HR2L - Tractor Jan 2025 Cutting Deck Diagram
SKU: lt112hr2l_tractor_jan_2025_cutting_deck-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT112HR2L - Tractor Jan 2025 Cutting Deck Diagram

Description

Cobra LT112HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20089721 Available to backorder	Belt Cover Right	£39.13 £32.61
2	CO20082801 Available to backorder	Hexagon Head Tapping Screw6.3X11.5	£1.25 £1.04
3	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04

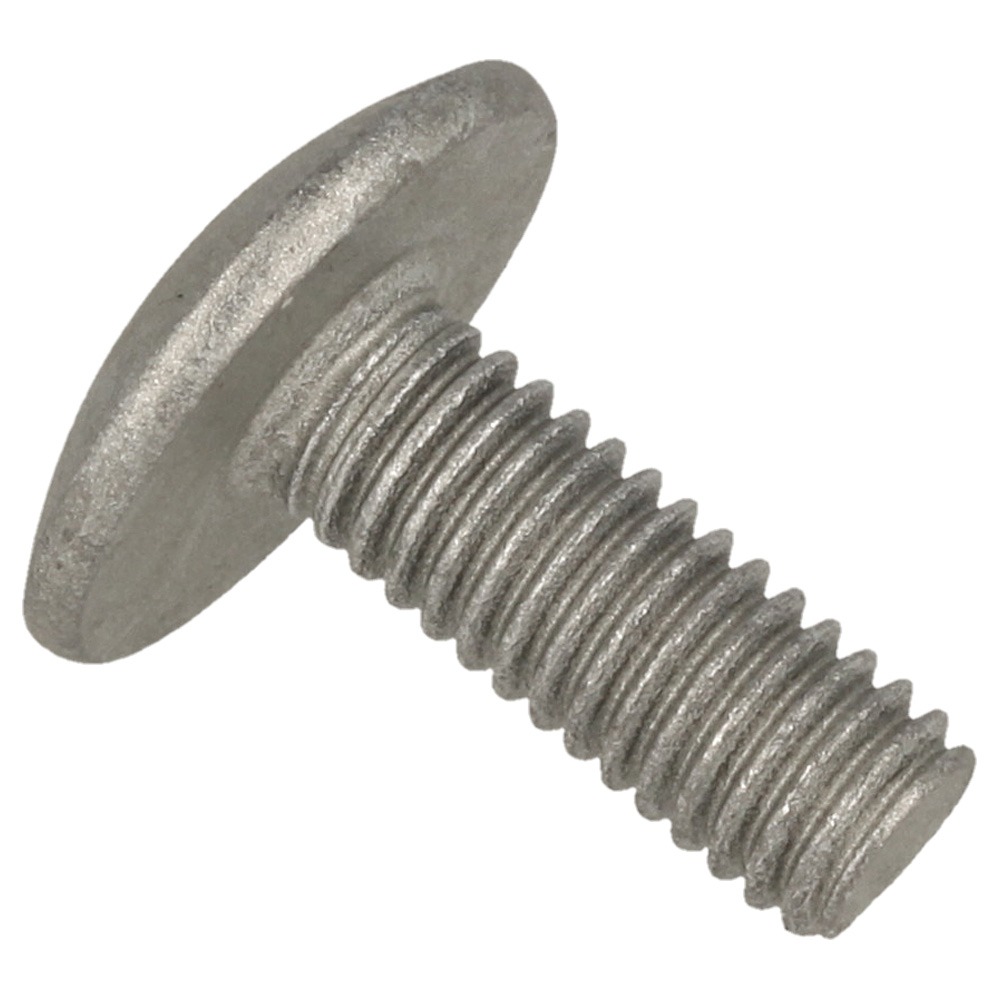

4	CO20060893 Available to backorder	Screw M6×16	£1.20 £1.00
5	CO20061336 Available to backorder	Flange Nut M8	£1.25 £1.04
6	CO20089697 Available to backorder	Cut Tention Support Weldment	£16.09 £13.41
7	CO20082799 Available to backorder	Flange Bolt5/16-18Tx3/4	£1.25 £1.04
8	CO20089504 Available to backorder	Screws M8X14	£1.25 £1.04
9	CO20089700 Available to backorder	Washer	£1.25 £1.04
10	CO20089705 Available to backorder	Right Shield	£15.66 £13.05
11	CO20092292 Available to backorder	Oil Injection Nozzle	£1.25 £1.04
12	CO20084542 Available to backorder	Adjusting Screw Rod	£1.80 £1.50

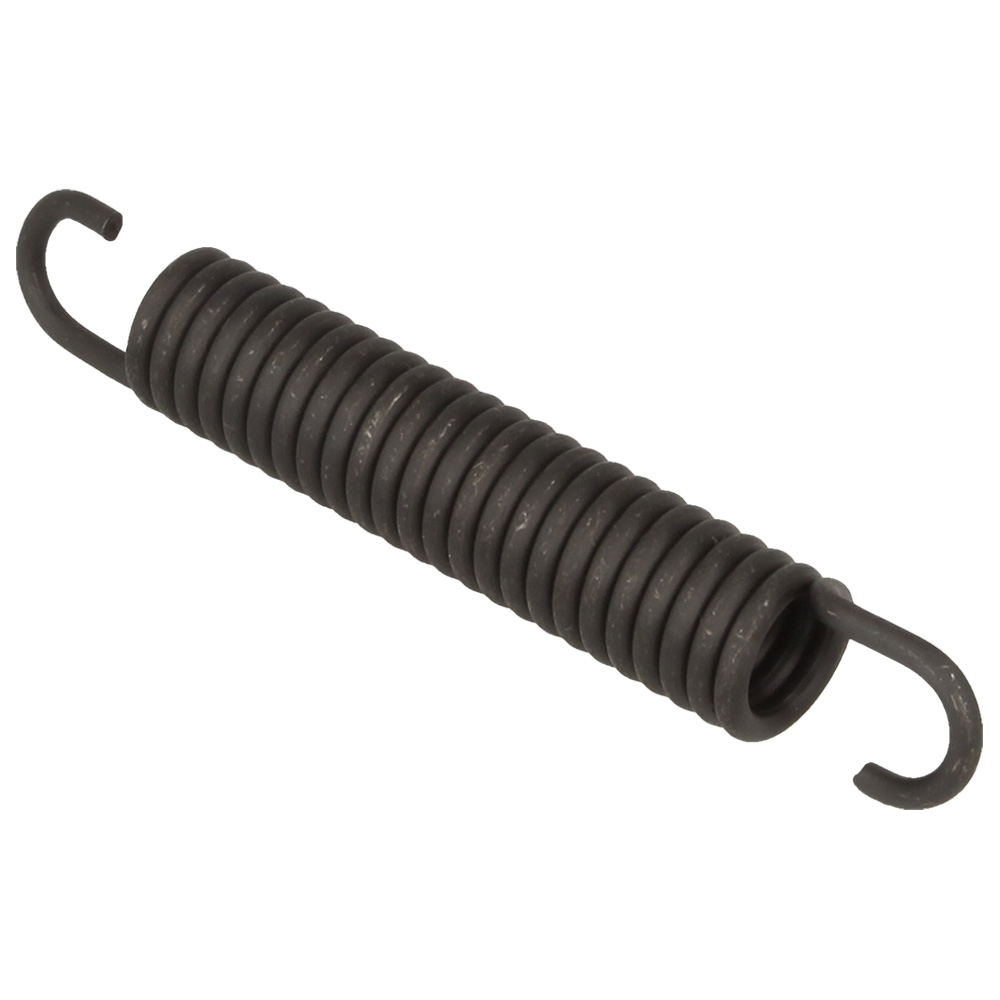

13	CO20084598 Available to backorder	Traction Spring	£2.44 £2.03
14	CO20061286 Available to backorder	Hexagon Bolt M12X1.25X50	£1.43 £1.19
15	CO20089706 Available to backorder	Cut Tention Arm Weldment	£11.70 £9.75

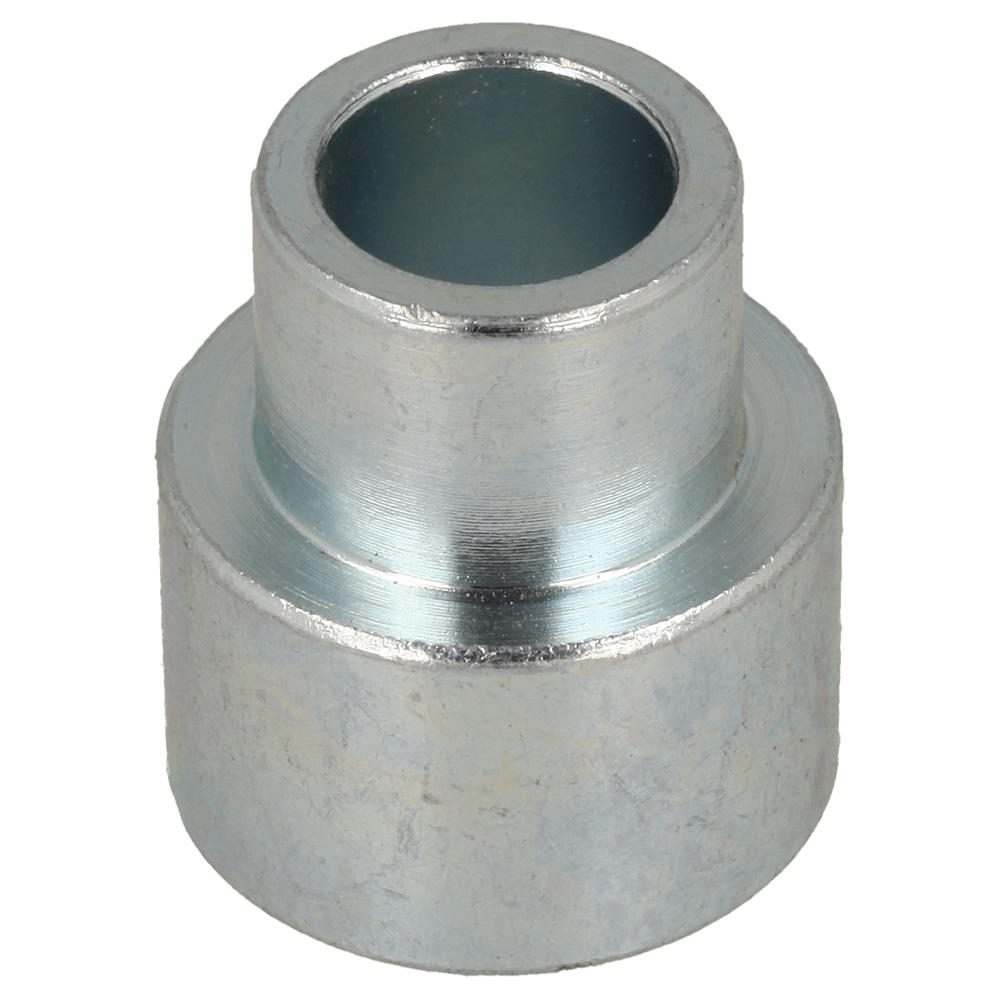

16	CO20084617 Available to backorder	Tention Pulley Cushion Cover	£3.08 £2.57
17	CO20085378 Available to backorder	Wheel Axle	£4.42 £3.68

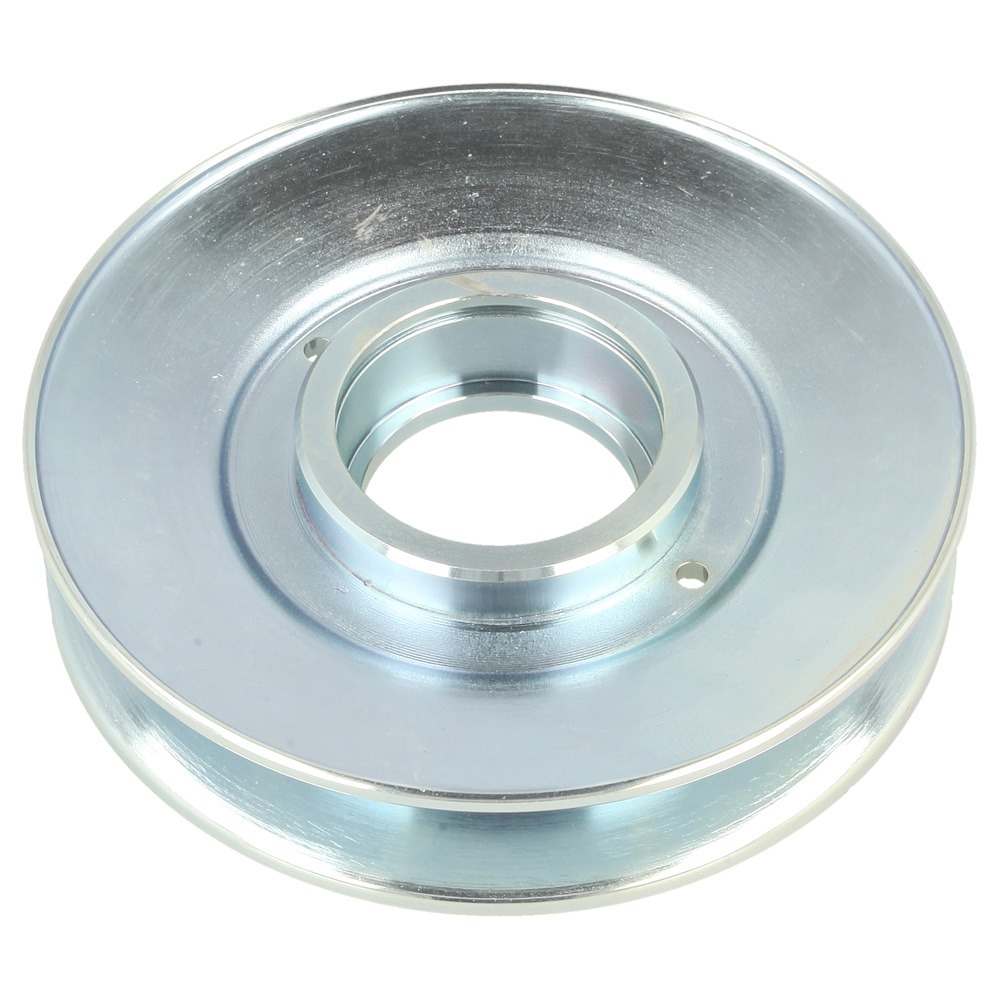

18	CO20084596 Available to backorder	Tention Pulley Weldment Ttm86 Plating White Zinc Passivation	£27.26 £22.72
19	CO20092589 Available to backorder	Bearing 6203-2Rz	£13.00 £10.83
20	CO20088559 Available to backorder	Wheel	£15.29 £12.74

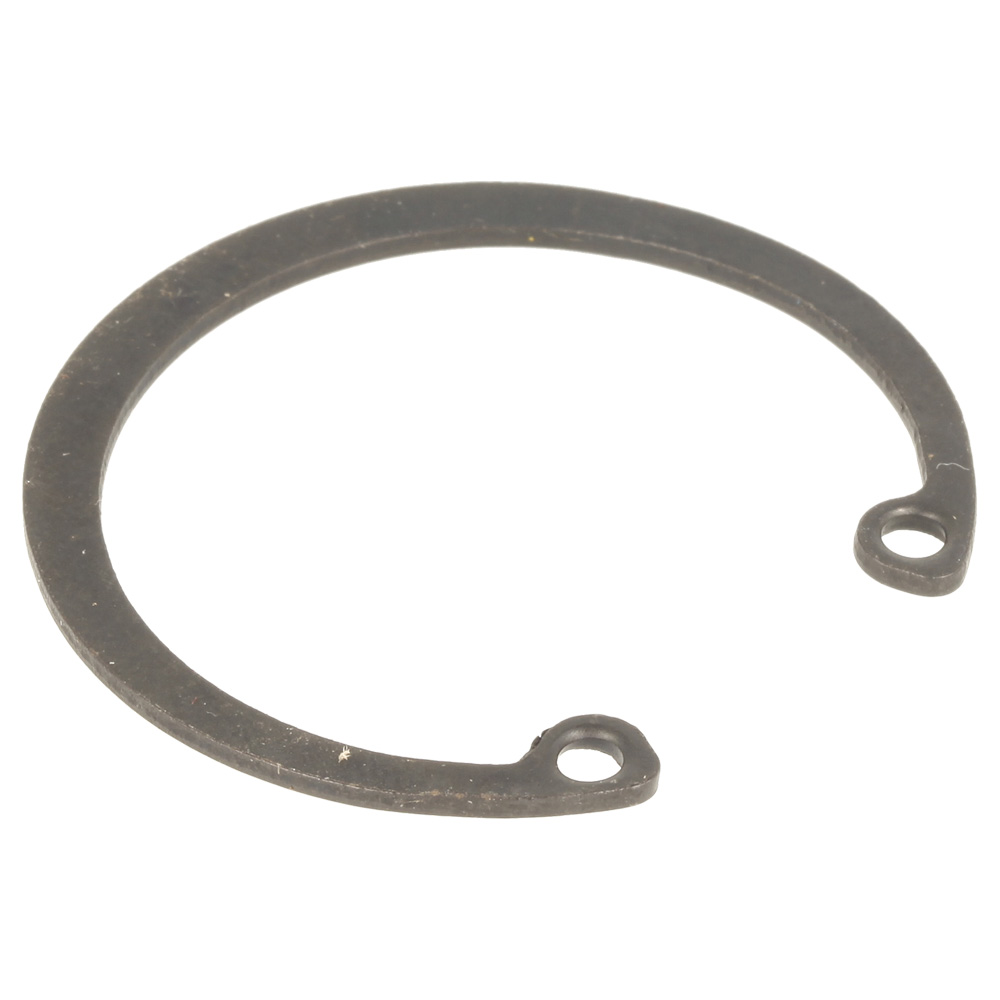

21	CO20061540 Available to backorder	Circle 40	£1.25 £1.04

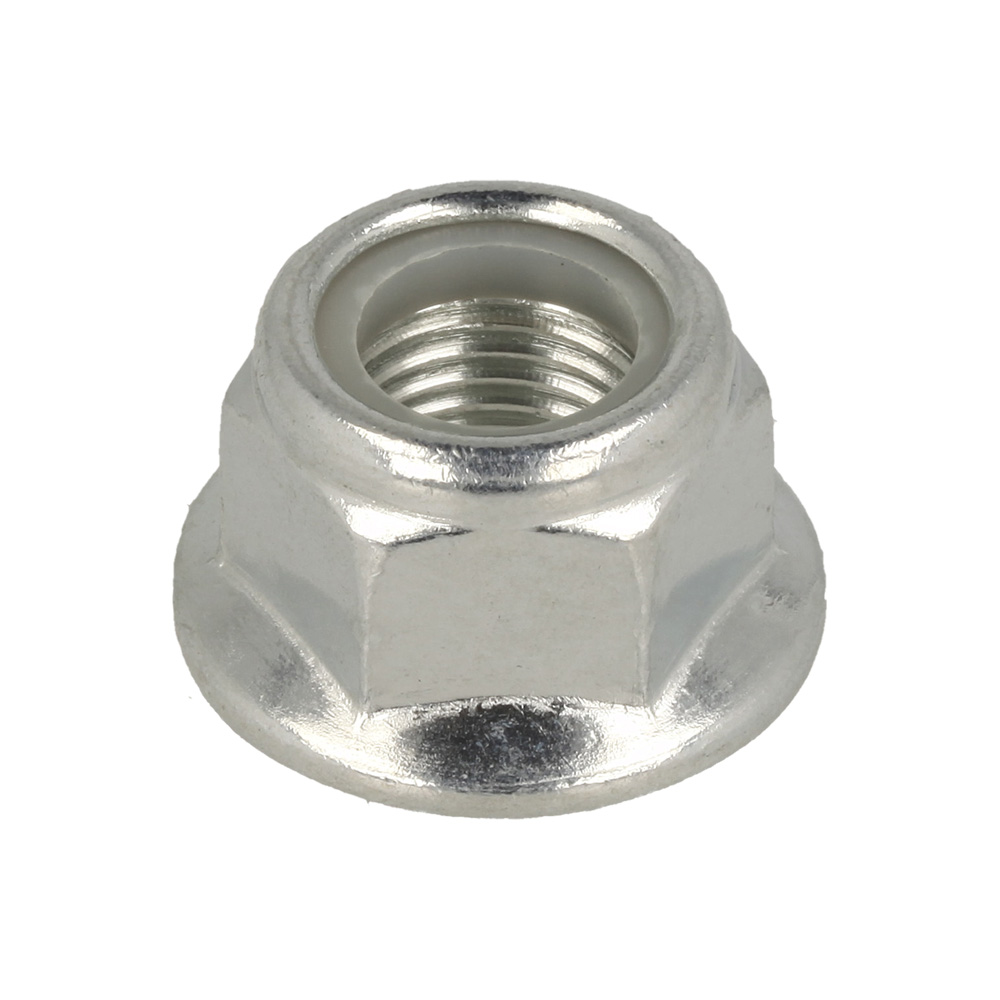

22	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.25 £1.04
23	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
24	CO20089713 Available to backorder	Deck Weldment Ttm112H Black Spray Molding	£406.68 £338.90
25	CO20084610 Available to backorder	Right Guide Wheel Cushion Cover	£2.64 £2.20
26	CO20061549 Available to backorder	Snap Ring 37	£1.25 £1.04
27	CO20092588 Available to backorder	Bearing 6301-2Rs	£10.80 £9.00

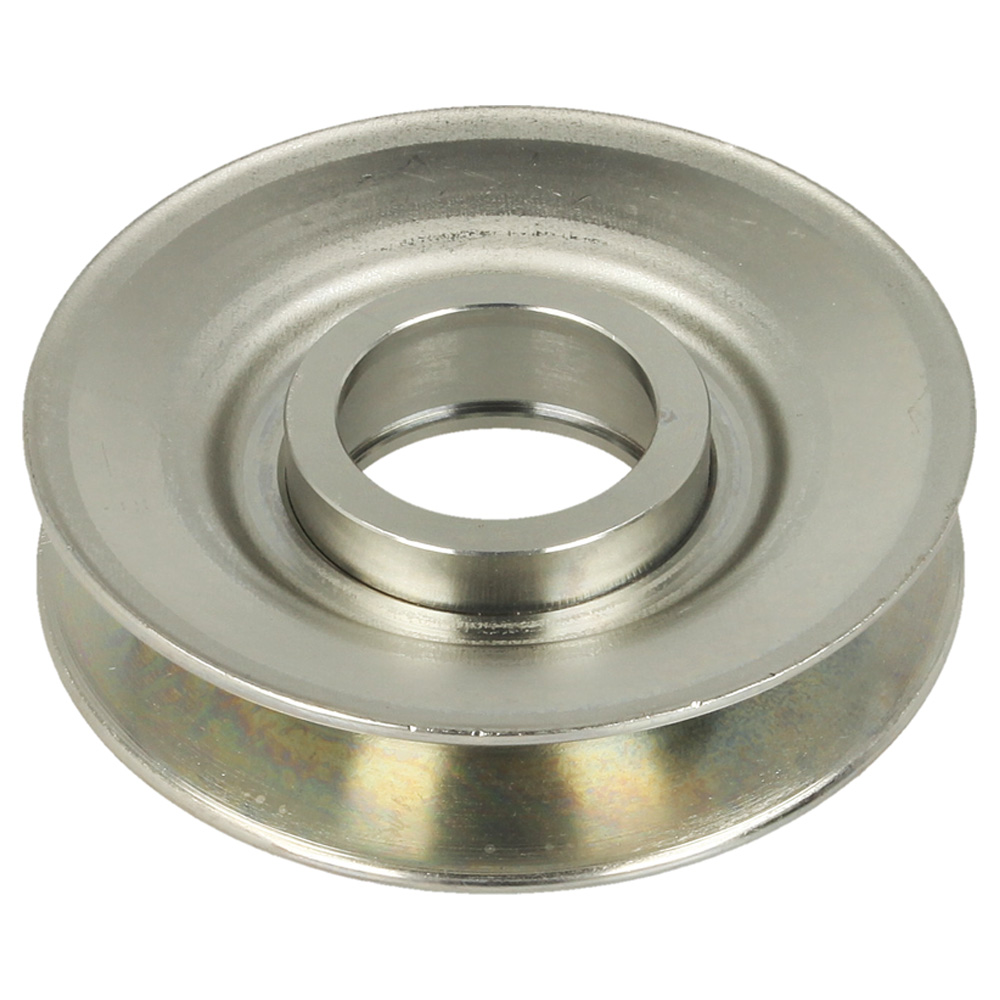

28	CO20070536 Available to backorder	Tention Pulley	£27.70 £23.08
29	CO20084604 Available to backorder	Tention Pulley Bolt Long Ttm86 Blacken	£4.30 £3.58

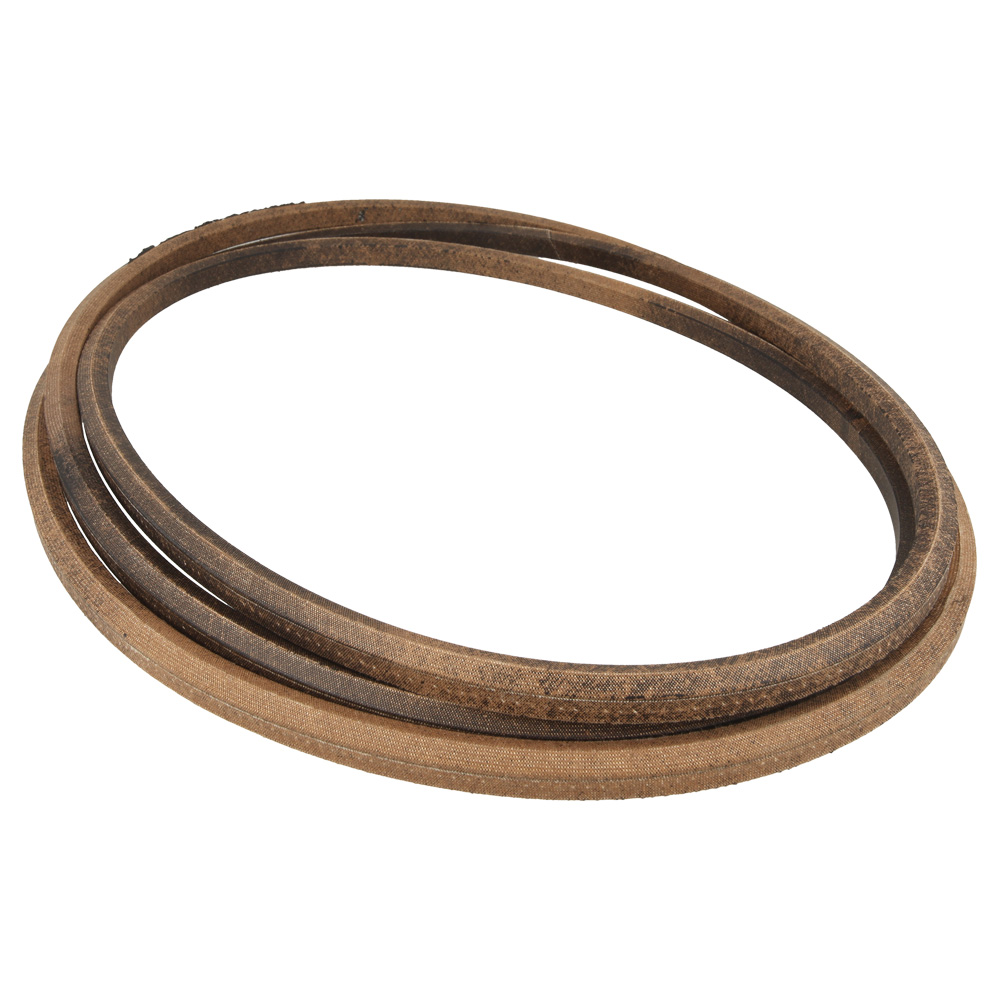

30	CO20089565 Available to backorder	Belt Haa2838，Xct102	£111.01 £92.51
31	CO20088710 Available to backorder	Clutch Lever Welding Part Ttm86	£6.76 £5.63
32	CO20070624 Available to backorder	Water Nozzle	£1.34 £1.12
33	CO20055756 Available to backorder	O Ring 11.2×2.65	£1.25 £1.04
34	CO20085899 Available to backorder	Plastic Expansion Rivets	£1.87 £1.56

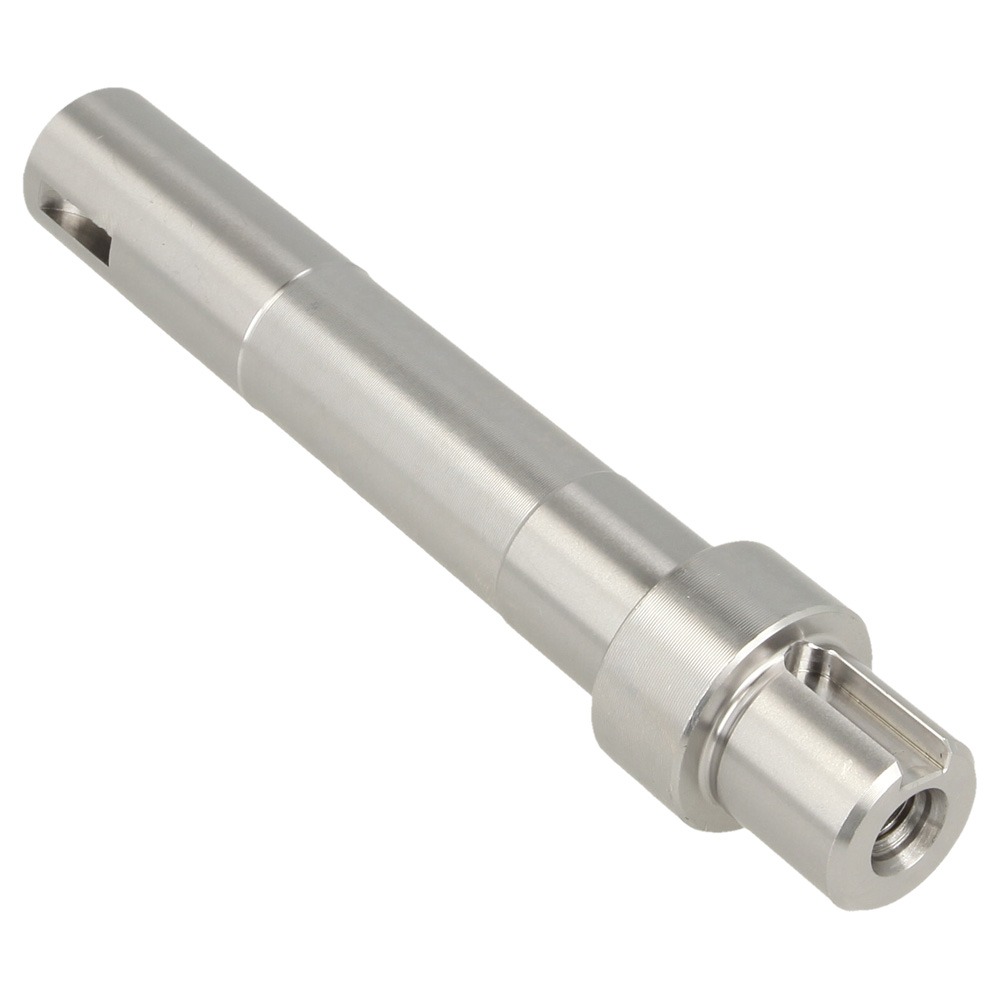

35	CO20083936 Available to backorder	Right Blade Axle	£30.68 £25.57
36	CO20092592 Available to backorder	Bearing 6204-2Rz	£12.55 £10.46
37	CO20071285 Available to backorder	Hood Bearing	£2.32 £1.93
38	CO20089723 Available to backorder	Pulley	£38.96 £32.47
39	CO20061650 Available to backorder	Flat Key C6×18	£1.48 £1.23
40	CO20055114 Available to backorder	Washer	£1.25 £1.04
41	CO20061472 Available to backorder	Spring Washer 8	£1.25 £1.04
42	CO20061274 Available to backorder	Flange Bolt M8X20	£1.25 £1.04
43	CO20062514 Available to backorder	Flange Bolt M10X60	£1.43 £1.19
44	CO20074258 Available to backorder	Washer 11.2X27X3	£1.25 £1.04
45	CO20062310 Available to backorder	Bolt	£1.94 £1.62
46	CO20062426 Available to backorder	Travelling Belt Pulley Cox3500	£28.31 £23.59
47	CO20089714 Available to backorder	Left Guide Pulley Support Shaft	£5.47 £4.56
48	CO20061358 Available to backorder	Flange Nut M10	£1.25 £1.04
49	CO20089718 Available to backorder	Belt Cover Left Ttm102 Black	£52.96 £44.13
50	CO20089719 Available to backorder	Right Shield	£16.94 £14.12

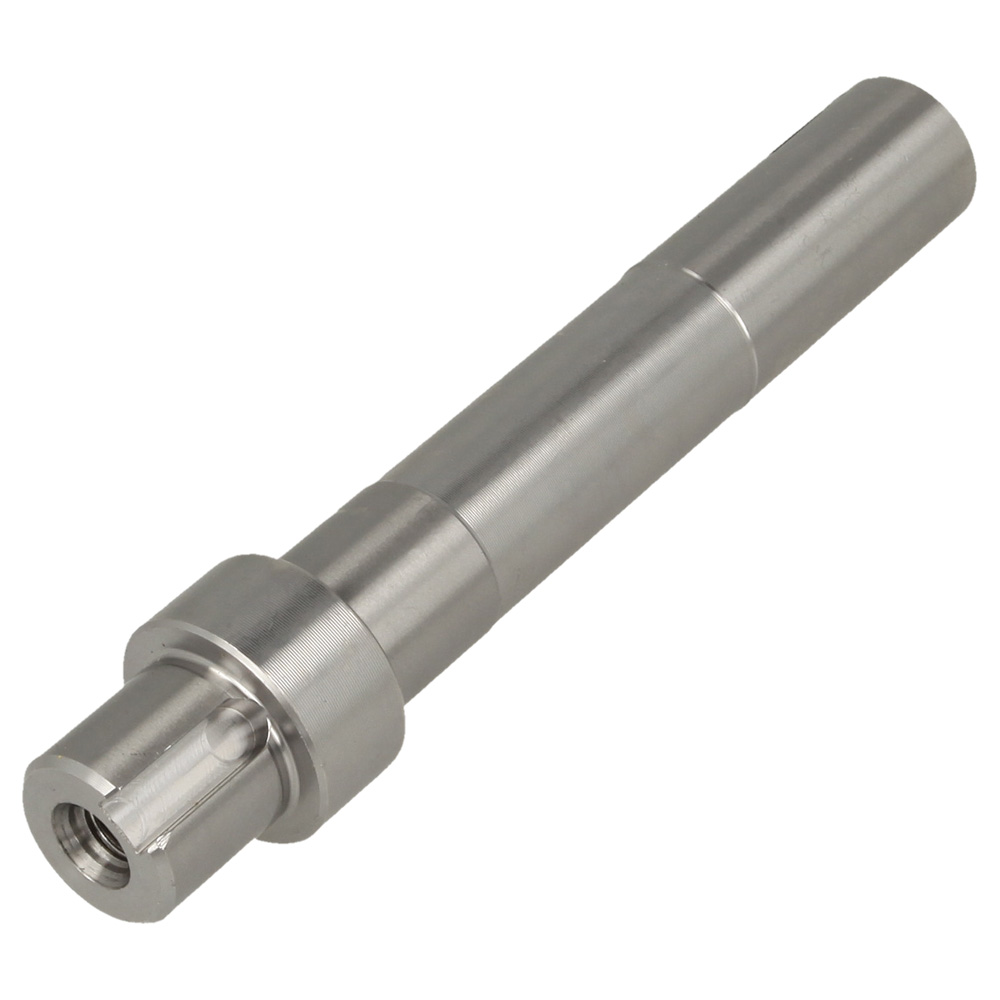

51	CO20083934 Available to backorder	Left Blade Axle	£31.79 £26.49
52	CO20061265 Available to backorder	Flange Bolt M8X35	£1.25 £1.04

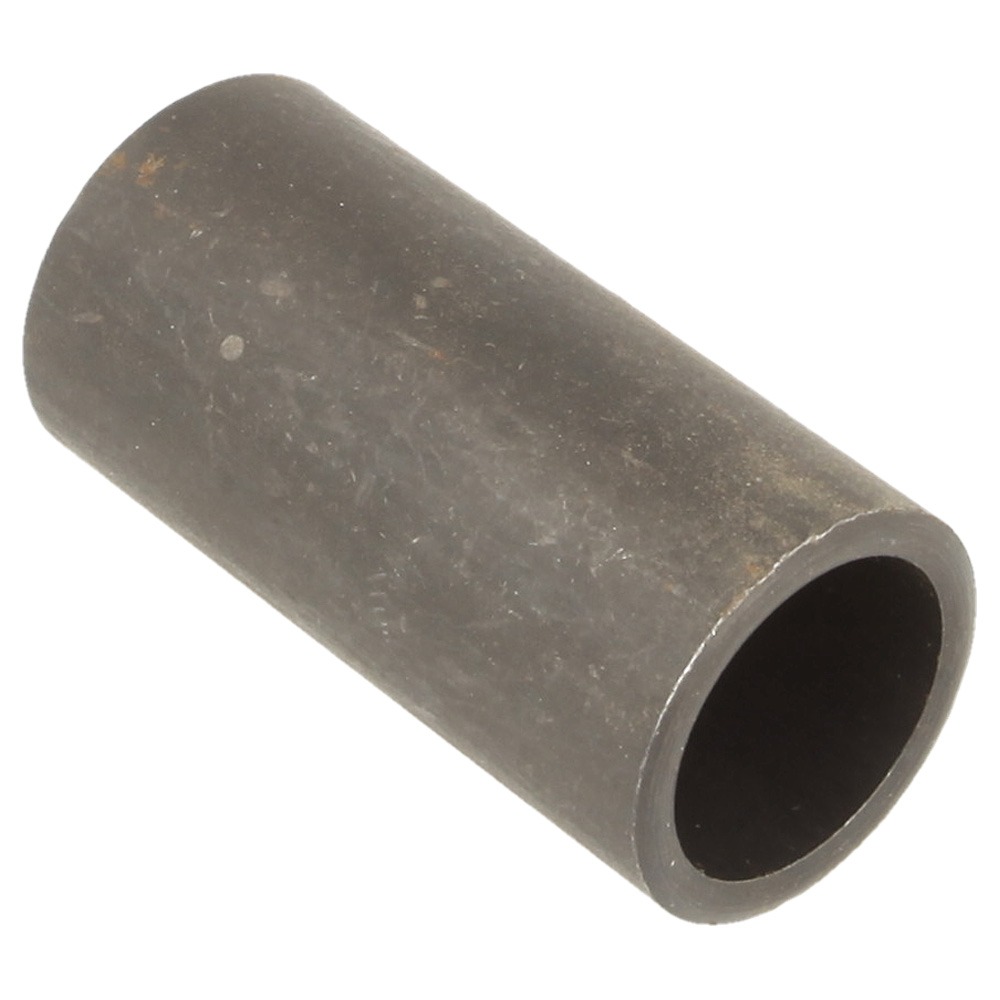

53	CO20071282 Available to backorder	Pivot Tube	£4.06 £3.38

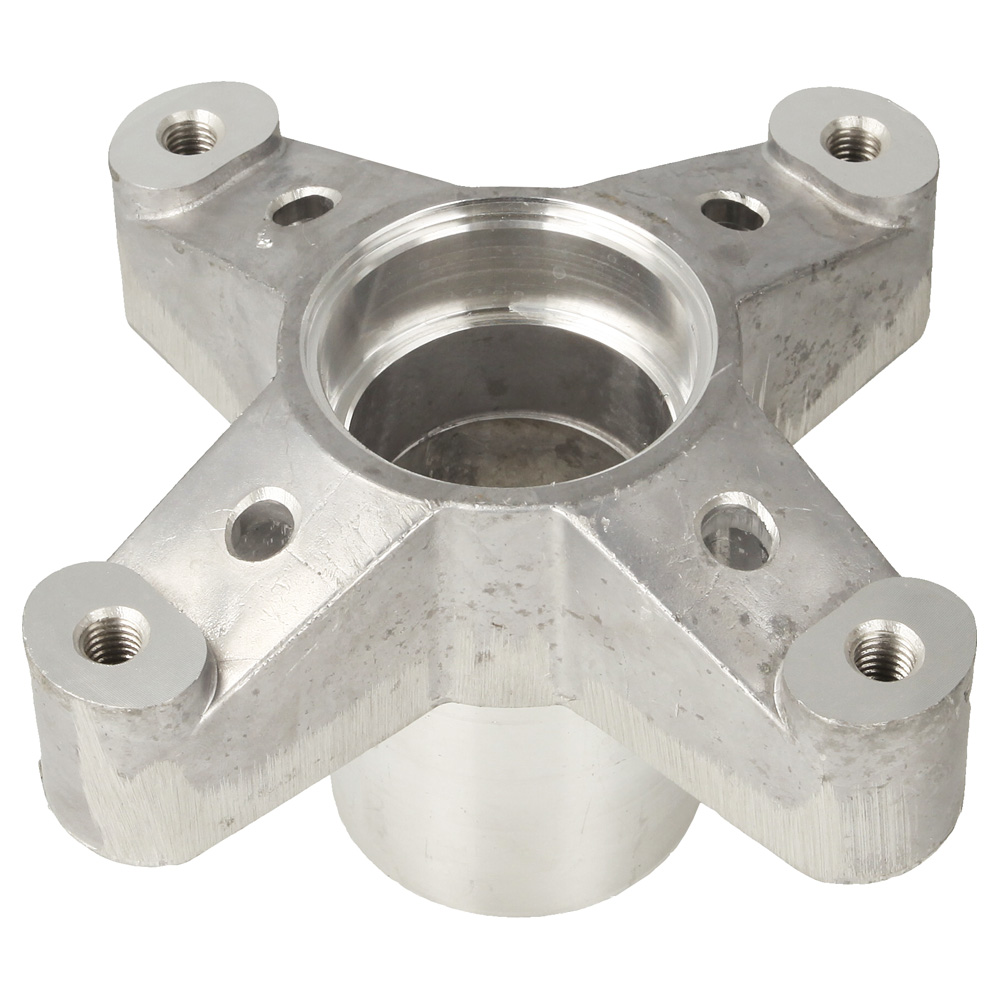

54	CO20054352 Available to backorder	Cuttter House	£57.90 £48.25
55	CO20071283 Available to backorder	Spacer Ring	£1.25 £1.04
56	CO20071286 Available to backorder	Washer 50X20.2X2	£1.34 £1.12
57	CO20054345 In stock	Sleeve	£11.68 £9.73
58	CO20071419 Available to backorder	Left Blade	£38.59 £32.16
59	CO20070623 In stock	Saucer Washer	£2.32 £1.93
60	CO20061497 In stock	Washer 10	£1.20 £1.00
61	CO20061267 In stock	Bolt 3/8-24Unf	£2.58 £2.15
62	CO20061651 Available to backorder	Halfmoon Key 4×16	£1.92 £1.60
63	CO20071420 Available to backorder	Right Blade	£38.59 £32.16

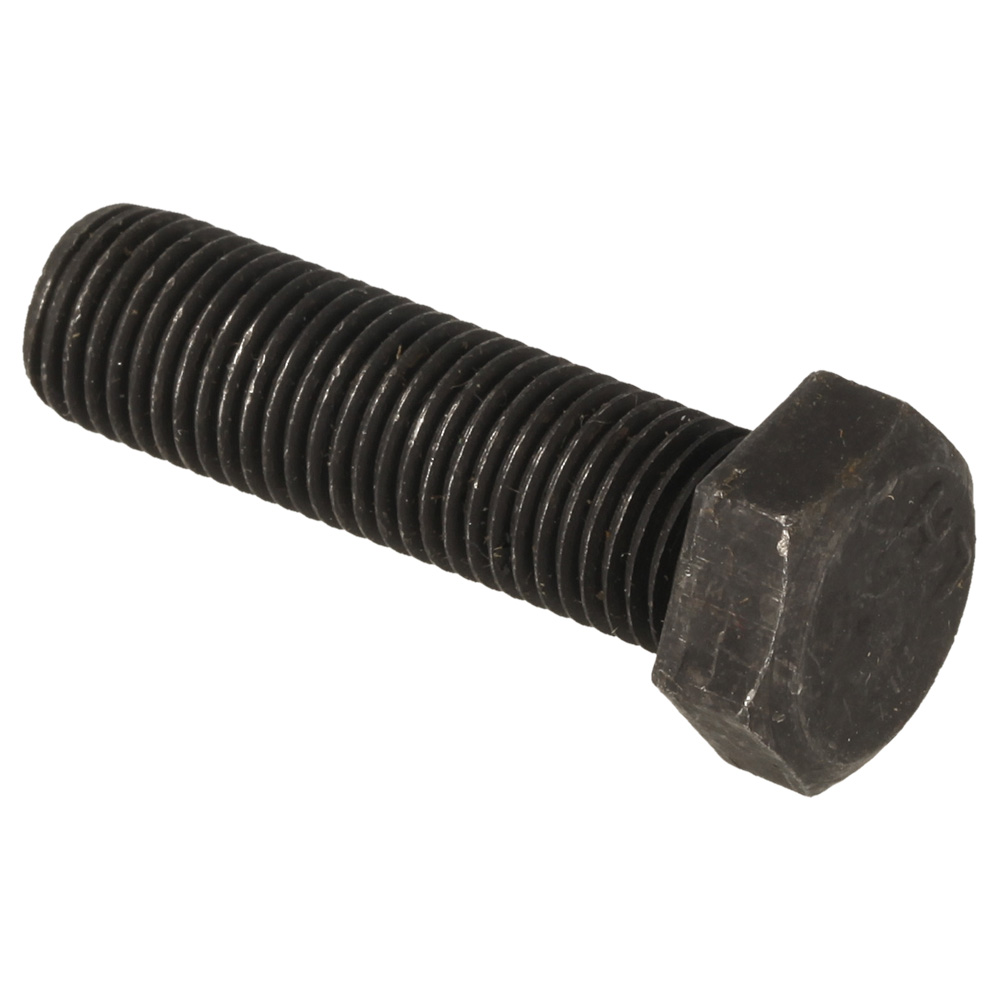

64	CO20061266 Available to backorder	Lh Bolt 3/8-24-1.25"-1.25-Lh	£2.68 £2.23
65	CO20082800 Available to backorder	Screw 6X16	£1.25 £1.04
