Cobra LT108MSL 2024 - Tractor Jan 2024 from build 2312- only Steering Diagram

Description

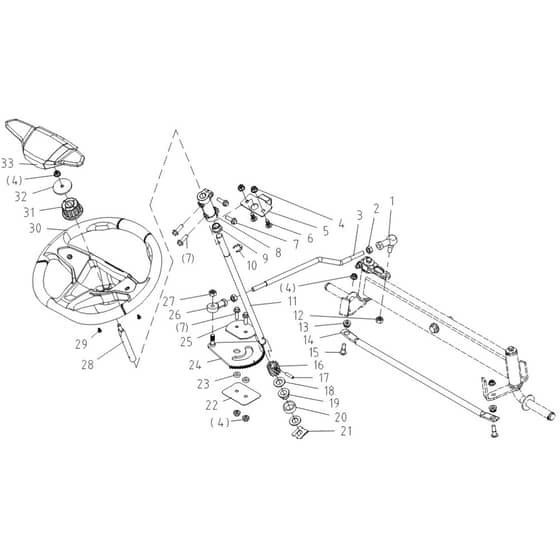

Cobra LT108MSL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20085366 Available to backorder	Joint Bearing M10	£14.36 £11.97
2	CO20061399 Available to backorder	Nut M10	£1.24 £1.03
3	CO20084461 Available to backorder	Steering Drag Rod	£10.94 £9.12
4	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
5	CO20084463 Available to backorder	Square Hole Card Board	£3.49 £2.91
6	CO20061299 Available to backorder	Screw M8×20	£1.24 £1.03
7	CO20061298 Available to backorder	Flange Bolt M8×25	£1.40 £1.17
8	CO20083389 Available to backorder	Couplings	£8.09 £6.74
9	CO20082643 Available to backorder	Hatch Bushing	£1.24 £1.03
10	CO20061548 Available to backorder	Snap Ring 15	£1.24 £1.03
11	CO20084458 Available to backorder	Steering Column	£12.02 £10.02
12	CO20061419 Available to backorder	Lock Nut M10	£1.86 £1.55
13	CO20084462 Available to backorder	Elastic Rubber Bush	£1.24 £1.03
14	CO20084456 Available to backorder	Steering Tie Rod	£17.52 £14.60
15	CO20084459 Available to backorder	Pin Screw M8×28	£5.96 £4.97
16	CO20084457 Available to backorder	Steering Gear Left	£8.59 £7.16
17	CO20061569 Available to backorder	Pin 6×26	£1.46 £1.22
18	CO20061437 Available to backorder	Washer 16	£1.24 £1.03
19	CO20070612 Available to backorder	Hexagon Bushing	£2.00 £1.67
20	CO20071127 Available to backorder	Bushing	£1.78 £1.48
21	CO20085898 Available to backorder	Snap Ring 16	£1.24 £1.03
22	CO20070939 Available to backorder	Tie Plate	£4.16 £3.47
23	CO20070932 Available to backorder	Bushing	£2.03 £1.69
24	CO20084464 Available to backorder	Steering Gear Plate Weldment	£33.12 £27.60
25	CO20070942 Available to backorder	Double Hole Board	£4.68 £3.90
26	CO20061641 Available to backorder	Joint Bearing Sijk10C	£15.02 £12.52
27	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.24 £1.03
28	CO20084468 Available to backorder	Steering Wheel Rod B	£17.20 £14.33
29	CO20060880 Available to backorder	Screw M6×35	£1.24 £1.03
30	CO20061385 Available to backorder	Flange Lock Nut M6	£1.24 £1.03
31	CO20070944 Available to backorder	Steering Wheel	£37.01 £30.84
32	CO20070945 Available to backorder	Steering Wheel Cap	£7.22 £6.02
