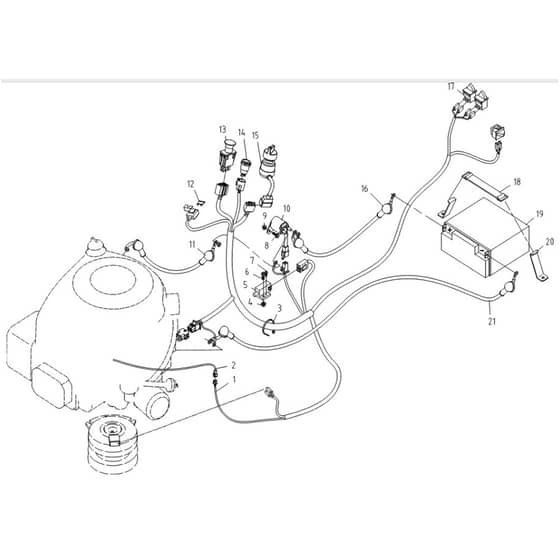

Cobra LT108MSL 2023 - Tractor Apr 2023 Electric Harness Assy Diagram

Name: Cobra LT108MSL 2023 - Tractor Apr 2023 Electric Harness Assy Diagram
SKU: lt108msl_2023_tractor_apr_2023_electric_harness_assy-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT108MSL 2023 - Tractor Apr 2023 Electric Harness Assy Diagram

Description

Cobra LT108MSL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	CO20084627 Available to backorder	Light	£15.36 £12.80
0	CO20086270 Available to backorder	Switch	£6.20 £5.17
1	CO20084778 Available to backorder	Electric Cable (Electric Start)	£133.68 £111.40
2	CO20085496 Available to backorder	Ground Cable	£12.78 £10.65
4	CO20061406 Available to backorder	Hexagon Flange Nut M6	£1.25 £1.04
5	CO20070745 Available to backorder	Double Normally Closed Switch	£9.54 £7.95
6	CO20061013 Available to backorder	Screw M6*16	£1.20 £1.00
7	CO20051776 Available to backorder	Tapping Screw St4.2*10	£1.25 £1.04
8	CO20061186 Available to backorder	Bolt M5×16	£1.25 £1.04
9	CO20061341 Available to backorder	Flange Lock Nut M5	£1.25 £1.04
10	CO20071221 Available to backorder	Star Relay	£28.26 £23.55
11	CO20084637 Available to backorder	Power Cable	£26.36 £21.97
12	CO20085696 Available to backorder	Fuse 15A 32V	£1.25 £1.04
13	CO20062234 Available to backorder	Switch Pto	£20.64 £17.20

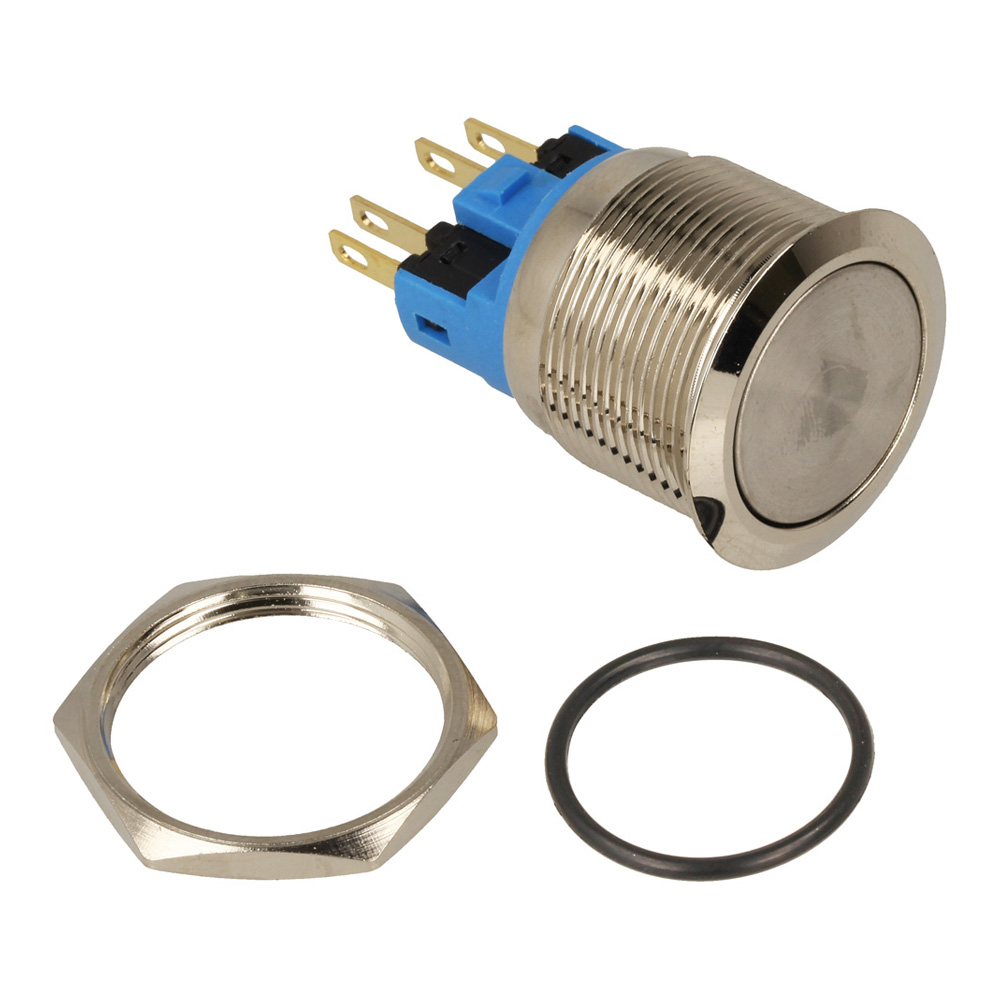

14	CO20084626 In stock	Switch	£17.20 £14.33
15	CO20089345 In stock	Electric Door Lock	£13.58 £11.32
16	CO20084624 Available to backorder	Battery Cable	£27.50 £22.92
17	CO20086271 Available to backorder	Switch	£6.20 £5.17
18	CO20070744 Available to backorder	Belt	£3.67 £3.06
19	CO20071324 Available to backorder	Battery 12V 18Ah	£134.46 £112.05
20	CO20084632 Available to backorder	Hook	£1.98 £1.65
