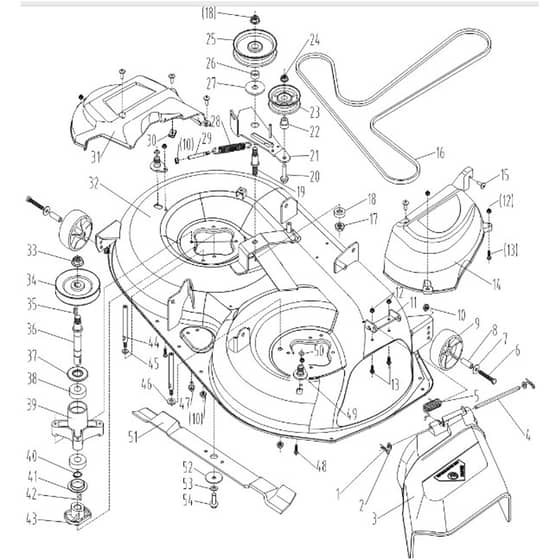

Cobra LT108MSL 2023 - Tractor Apr 2023 Cutting Deck Diagram

Name: Cobra LT108MSL 2023 - Tractor Apr 2023 Cutting Deck Diagram
SKU: lt108msl_2023_tractor_apr_2023_cutting_deck-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT108MSL 2023 - Tractor Apr 2023 Cutting Deck Diagram

Description

Cobra LT108MSL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
2	CO20061544 Available to backorder	Washer 8 (Ref: 2 & 45)	£1.25 £1.04

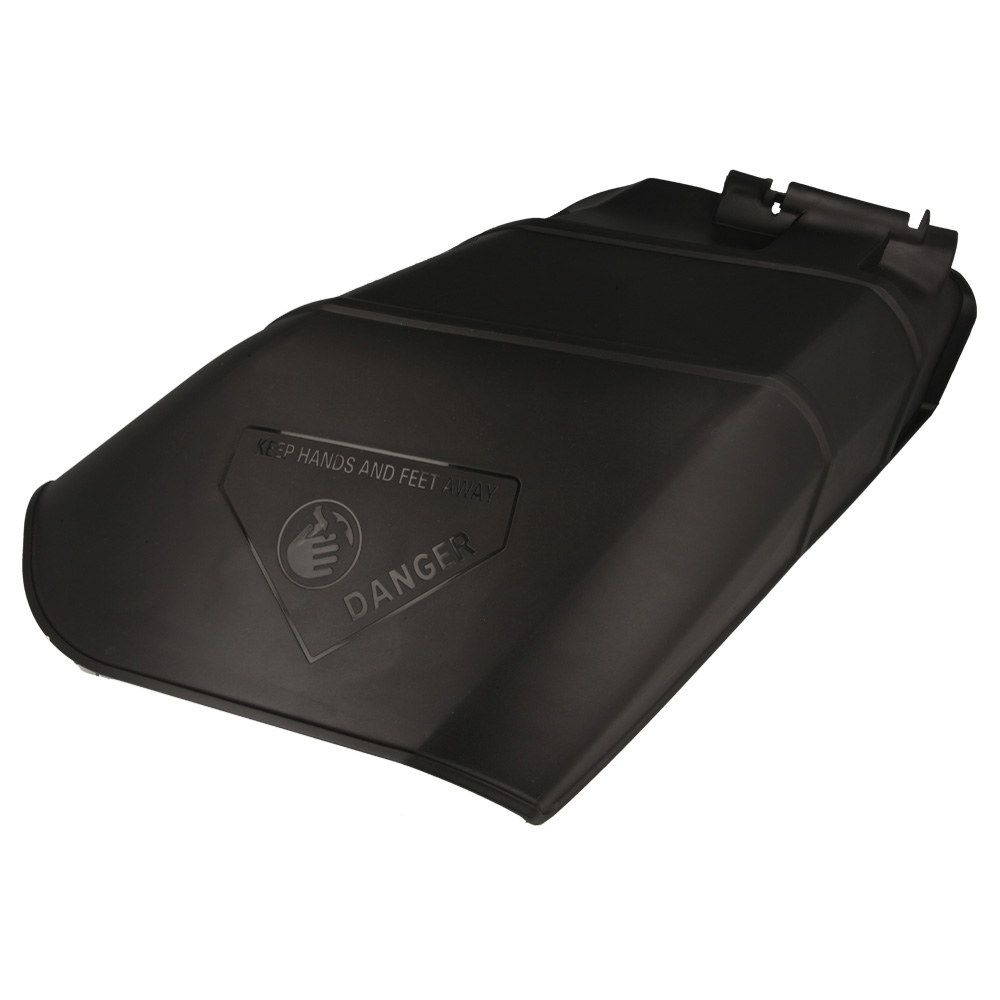

3	CO20086249 Available to backorder	Side Discharge Chute	£29.90 £24.92
4	CO20082335 Available to backorder	Pin Φ8×168	£1.25 £1.04
5	CO20086192 Available to backorder	Torsion Spring Φ3×Φ18	£2.68 £2.23
6	CO20061275 Available to backorder	Flange Bolt M8×60	£1.25 £1.04
7	CO20061431 Available to backorder	Washer 8	£1.25 £1.04
8	CO20085378 Available to backorder	Pivot Tube	£4.42 £3.68
9	CO20071268 Available to backorder	Wheel	£15.29 £12.74
10	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
11	CO20084843 Available to backorder	Hinge	£6.83 £5.69
12	CO20061385 Available to backorder	Flange Lock Nut M6	£1.25 £1.04
13	CO20061289 Available to backorder	Bolt M6×16	£1.25 £1.04
14	CO20068225 Available to backorder	Right Shield	£15.28 £12.73
15	CO20060893 Available to backorder	Screw M6×16	£1.20 £1.00

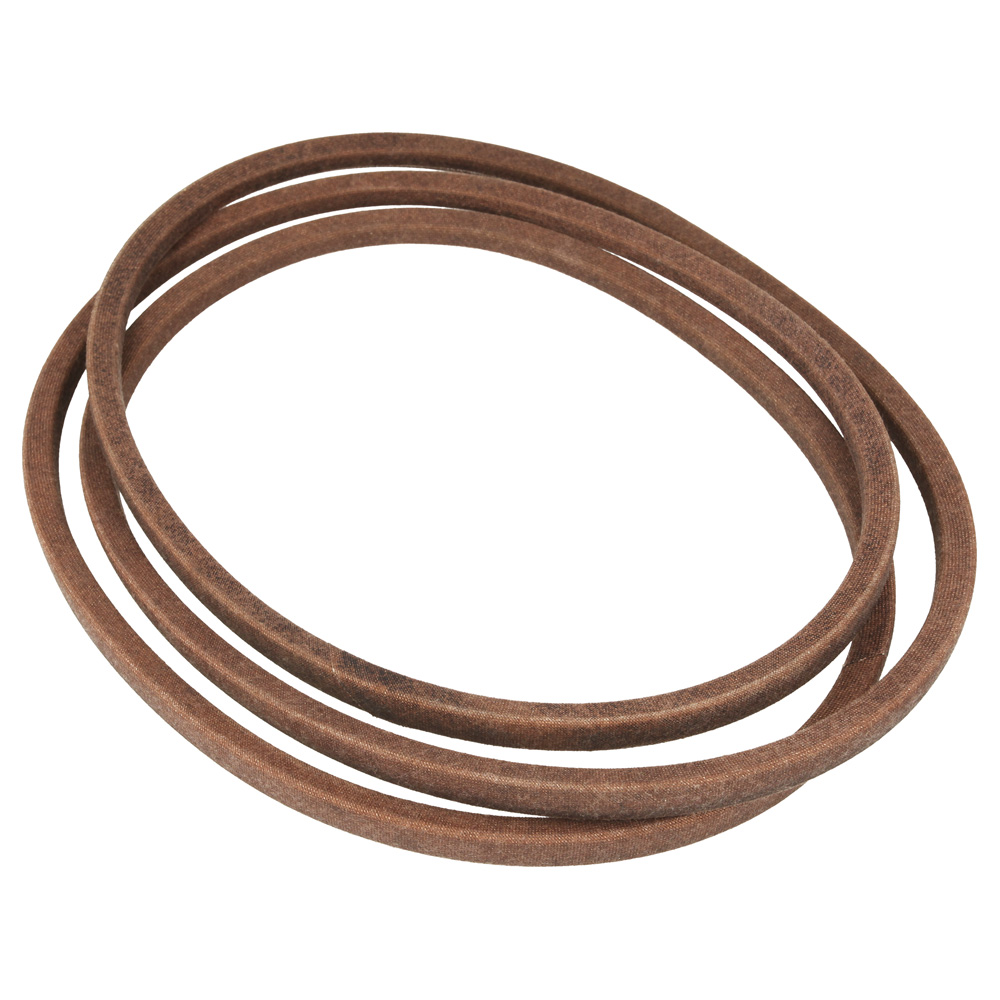

16	CO20071679 Available to backorder	V Belt 48X920 (Akx2337)	£63.96 £53.30
17	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.25 £1.04
18	CO20070897 Available to backorder	Bushing	£1.40 £1.17
19	CO20070899 Available to backorder	Idleness Pulley Shaft	£8.59 £7.16
20	CO20062521 Available to backorder	Flange Bolt M10×1.25×40	£1.25 £1.04
21	CO20084840 Available to backorder	Cutting Tensioner Arm Assembly	£11.46 £9.55
22	CO20071180 Available to backorder	Tention Pulley Bushing	£3.44 £2.87

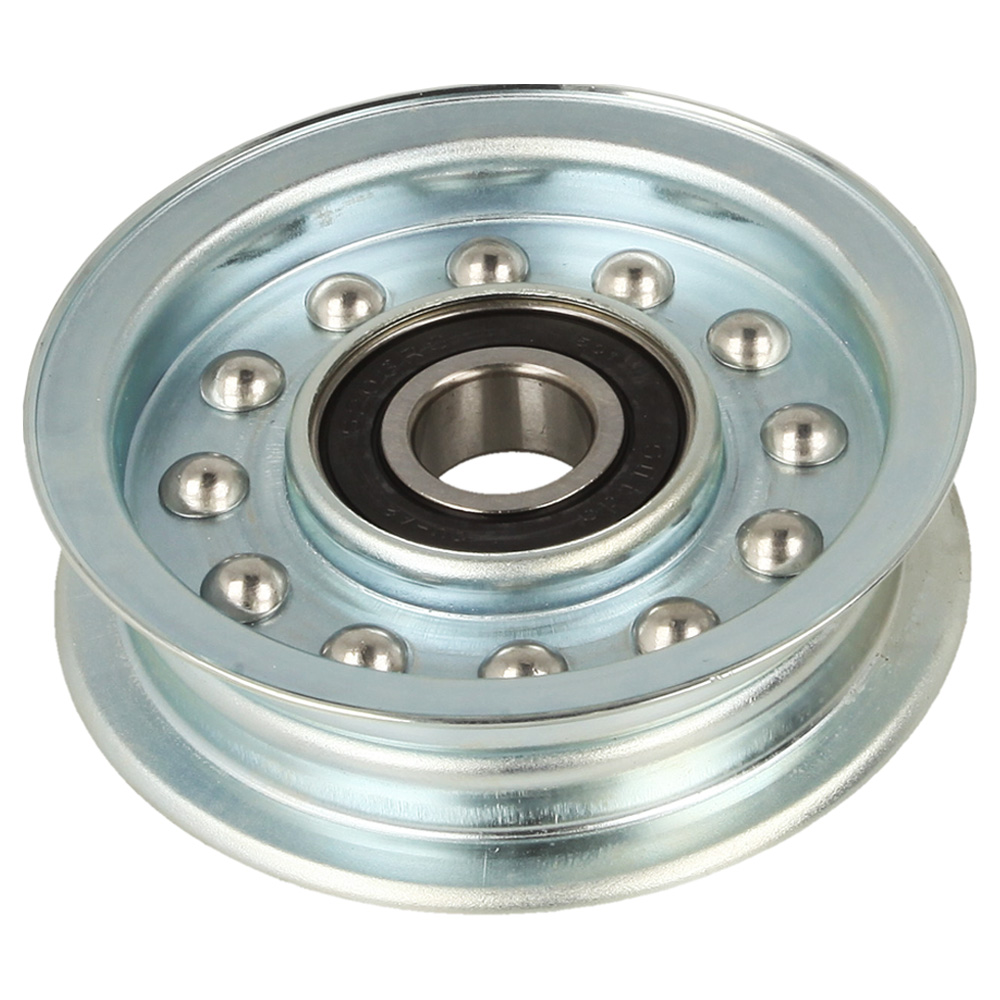

23	CO20071213 Available to backorder	Tention Pulley	£30.08 £25.07
24	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.25 £1.04
25	CO20070908 Available to backorder	Idleness Pulley	£27.50 £22.92
26	CO20070898 Available to backorder	Bushing	£3.44 £2.87
27	CO20070896 Available to backorder	Washer Φ17.3×Φ55×Δ4	£4.30 £3.58

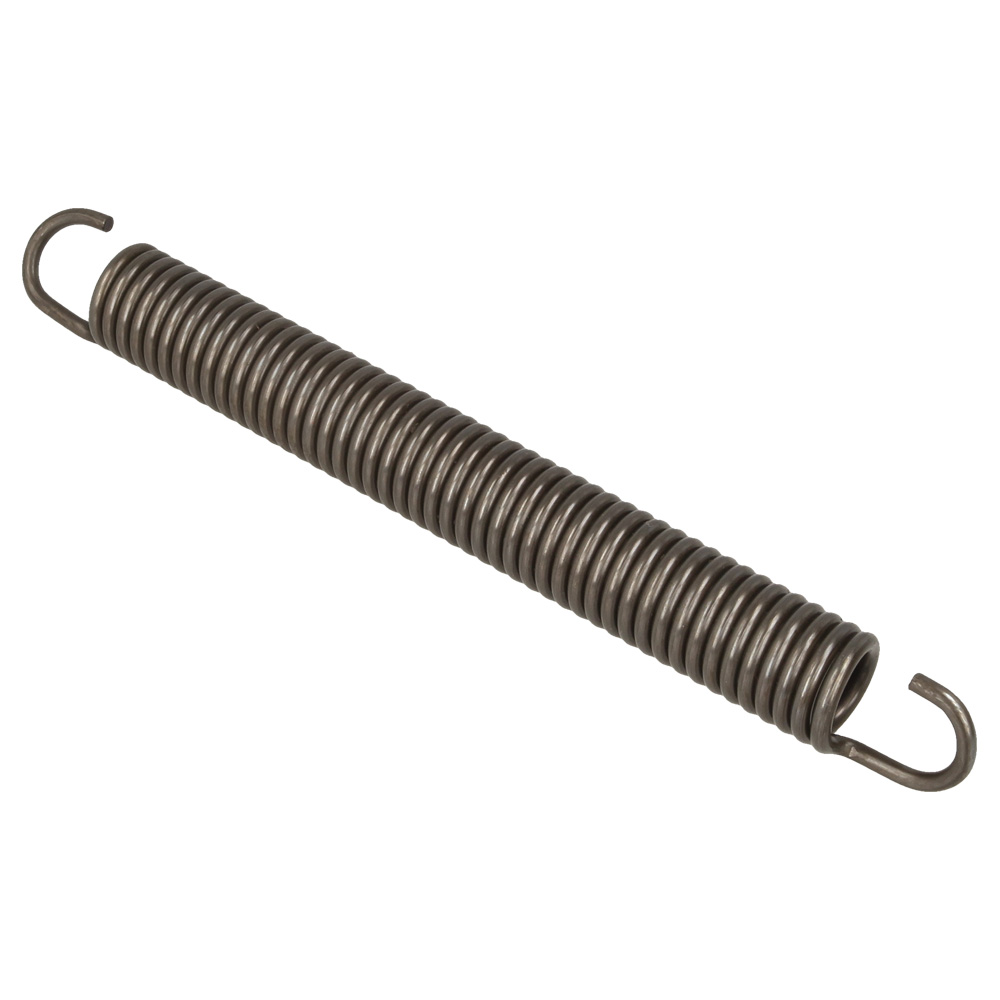

28	CO20070875 In stock	Walking Tension Spring	£4.92 £4.10
29	CO20084542 Available to backorder	Adjusting Screw	£1.80 £1.50
30	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04
31	CO20086315 Available to backorder	Left Shield	£19.40 £16.17
32	CO20084872 Available to backorder	Cutter	£202.45 £168.71
33	CO20070627 Available to backorder	Nut For Blade Axle	£2.10 £1.75
34	CO20070638 Available to backorder	Pulley	£20.78 £17.32
35	CO20061650 Available to backorder	Flat Key C6×18	£1.48 £1.23
36	CO20070622 Available to backorder	Blade Spindle	£35.33 £29.44
37	CO20071285 Available to backorder	Hood Bearing	£2.32 £1.93
38	CO20061625 In stock	Bearing 6204-2Rz	£12.10 £10.08
39	CO20054347 Available to backorder	Blade Seat	£22.46 £18.72
40	CO20061488 Available to backorder	Snap Ring 19	£1.44 £1.20
41	CO20070635 Available to backorder	Hood Bearing	£2.02 £1.68
42	CO20061651 Available to backorder	Halfmoon Key 4×16	£1.92 £1.60
43	CO20054345 In stock	Sleeve	£11.68 £9.73
44	CO20070892 Available to backorder	Stud Screw	£3.10 £2.58
46	CO20061541 Available to backorder	Big Washer 8	£1.25 £1.04
47	CO20061298 Available to backorder	Flange Bolt M8×25	£1.42 £1.18
48	CO20061249 Available to backorder	Screw M6×30	£1.54 £1.28
49	CO20070624 Available to backorder	Water Nozzle	£1.34 £1.12
50	CO20055756 Available to backorder	O Ring 11.2×2.65	£1.25 £1.04

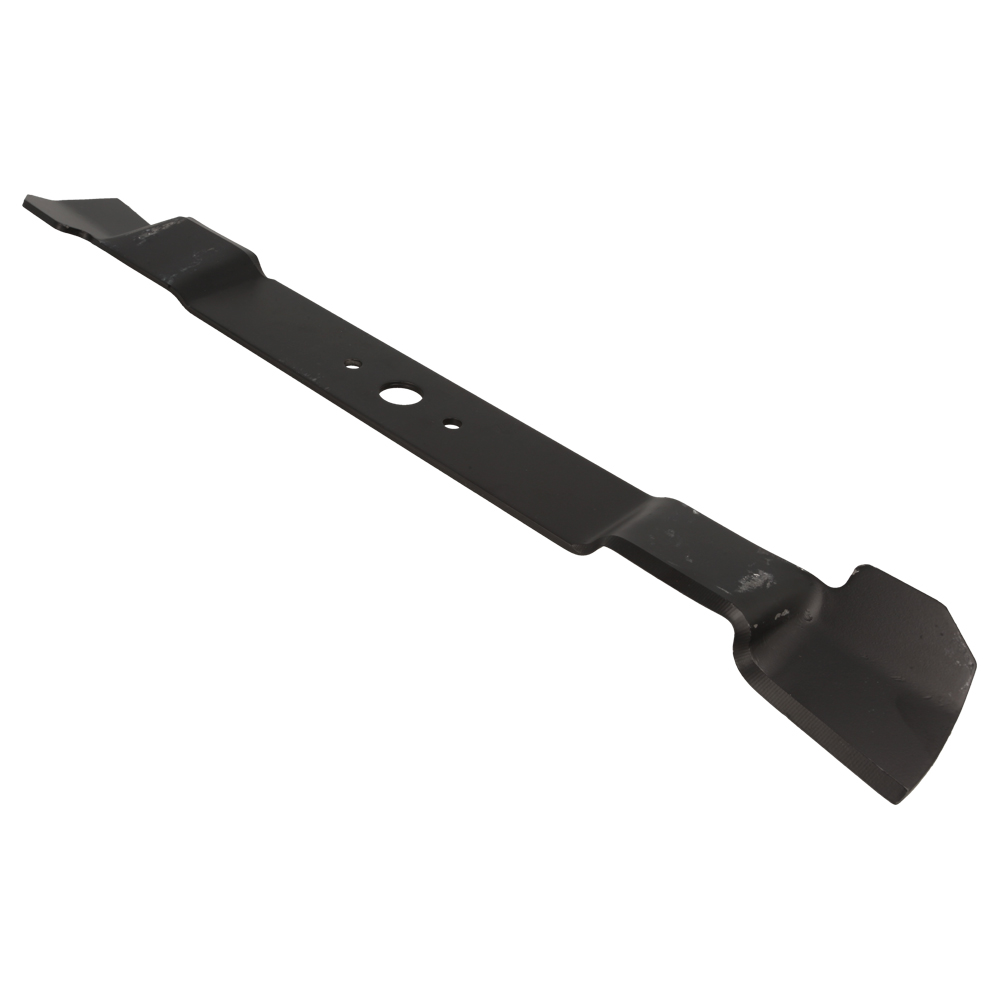

51	CO20071405 In stock	Blade	£34.08 £28.40
52	CO20070623 In stock	Dish Washer	£2.32 £1.93
53	CO20061497 In stock	Washer 10	£1.20 £1.00
54	CO20061267 In stock	Bolt	£2.58 £2.15
