Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Hanging Side Discharge Diagram

Description

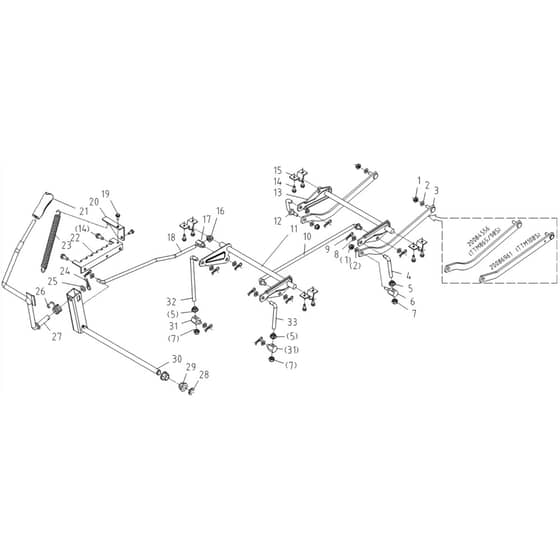

Cobra LT108HSL 2024 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
2	CO20061541 Available to backorder	Big Washer	£1.25 £1.04
3	CO20086961 Available to backorder	Front Stay Bar Weldment	£18.78 £15.65
4	CO20084557 Available to backorder	Front Right Derrick	£15.29 £12.74
5	CO20061369 Available to backorder	Hexagon Nut 10X1.25	£1.25 £1.04
6	CO20084533 Available to backorder	Pin	£6.62 £5.52
7	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.25 £1.04
8	CO20061497 In stock	Washer 10	£1.20 £1.00
9	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
10	CO20084722 Available to backorder	Lifting Link Rod Weldment(Side Row)	£21.14 £17.62
11	CO20084723 Available to backorder	Rear Arm Weldment(Side Row)	£33.35 £27.79
12	CO20084553 Available to backorder	U Derrick Weldment	£22.07 £18.39
13	CO20084560 Available to backorder	Front Arm Weldment	£30.68 £25.57
14	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.25 £1.04
15	CO20084532 Available to backorder	U-Shaped Clamp	£1.32 £1.10
16	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.25 £1.04
18	CO20084726 Available to backorder	Lifting Pull Rod(Side Row)	£16.85 £14.04
19	CO20082800 Available to backorder	Tapping Screwm6*16	£1.25 £1.04
20	CO20085316 Available to backorder	Spring Hanging Plate Ttm86 Electroplating	£6.48 £5.40
21	CO20070900 Available to backorder	Handle	£3.28 £2.73
22	CO20084549 Available to backorder	Ratchet Plate	£6.48 £5.40
23	CO20084564 Available to backorder	Lifting Helping Spring	£6.56 £5.47
24	CO20071251 Available to backorder	Cotter Pin Φ3	£1.96 £1.63
25	CO20062529 Available to backorder	Washer 14X1.5	£1.25 £1.04
26	CO20071354 Available to backorder	Right Spring	£2.10 £1.75
27	CO20084535 Available to backorder	Level Weldment	£35.23 £29.36
28	CO20061473 Available to backorder	Retainer Ring 12	£1.25 £1.04
29	CO20070612 Available to backorder	Hexagon Bushing	£2.02 £1.68
30	CO20084537 Available to backorder	Level Weldment	£33.53 £27.94
31	CO20070967 Available to backorder	Pin Joint Ttm86S Electroplated (Ref: 17 & 31)	£6.89 £5.74
32	CO20084727 Available to backorder	Rear Left Adjusting Lever	£8.93 £7.44
33	CO20085749 Available to backorder	Rear Right Adjusting Lever Ttm86S Electroplated	£8.94 £7.45
