Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Drive Assy Diagram

Name: Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Drive Assy Diagram
SKU: lt108hsl_2024_tractor_jan_2024_from_build_2312_only_drive_assy-g
Price: 1.04 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Drive Assy Diagram

Description

Cobra LT108HSL 2024 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061275 Available to backorder	Flange Bolt M8×60	£1.25 £1.04
2	CO20070780 Available to backorder	Bushing	£1.25 £1.04
3	CO20084436 Available to backorder	Spacer ¢8X¢18X33	£2.56 £2.13
4	CO20062521 Available to backorder	Flange Bolt M10×1.25×40	£1.25 £1.04
5	CO20084440 Available to backorder	Driving Tention Arm Weldment	£9.23 £7.69
6	CO20070875 In stock	Spring	£4.92 £4.10
7	CO20061336 Available to backorder	Flange Nut M8	£1.25 £1.04
8	CO20071180 Available to backorder	Tention Pulley Bushing	£3.44 £2.87
9	CO20071213 Available to backorder	Tention Pulley	£30.08 £25.07
10	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.25 £1.04
11	CO20070536 Available to backorder	Tention Pulley	£27.70 £23.08
12	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
13	CO20061549 Available to backorder	Snap Ring 37	£1.25 £1.04
14	CO20082800 Available to backorder	Tapping Screwm6*16	£1.25 £1.04
15	CO20062547 Available to backorder	Flange Bolt M10×1.5×35	£1.25 £1.04
16	CO20088482 Available to backorder	Guide Pulley Base Plate	£6.53 £5.44
17	CO20088483 Available to backorder	Washer ¢10X¢18X7	£1.87 £1.56
18	CO20061419 Available to backorder	Lock Nut M10×1.5	£1.87 £1.56

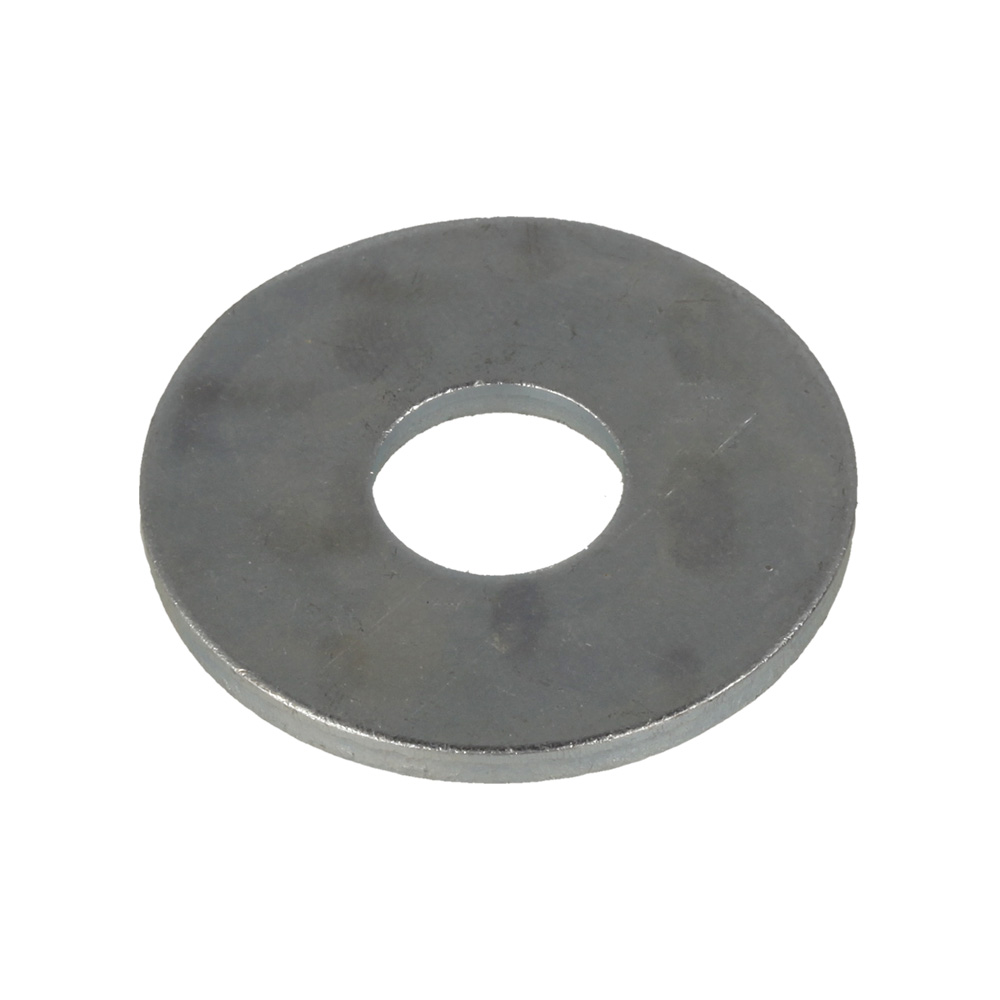

19	CO20061542 Available to backorder	Big Washer 10	£1.50 £1.25
20	CO20062499 Available to backorder	Washer ¢27X¢10.5X5	£2.24 £1.87
21	CO20084441 Available to backorder	Tensioning Wheel Bolt	£3.73 £3.11
22	CO20085198 Available to backorder	V Belt Lg4-1030	£66.12 £55.10
23	CO20062515 Available to backorder	Flange Bolt M10×1.25×50	£1.25 £1.04
24	CO20071208 Available to backorder	Driving Guide Pulley	£23.88 £19.90
25	CO20084442 Available to backorder	Guide Pulley Cushion Sleeve	£1.96 £1.63
26	CO20084655 Available to backorder	Oil Drain Rod Seat	£2.06 £1.72
27	CO20085197 Available to backorder	Oil Discharge Push Rod （K46Side)	£4.04 £3.37
28	CO20061445 Available to backorder	Washer 5	£1.25 £1.04
29	CO20059765 Available to backorder	Split Pin	£1.25 £1.04
