Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Cutting Deck Diagram

Name: Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Cutting Deck Diagram
SKU: lt108hsl_2024_tractor_jan_2024_from_build_2312_only_cutting_deck
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT108HSL 2024 - Tractor Jan 2024 from build 2312- only Cutting Deck Diagram

Description

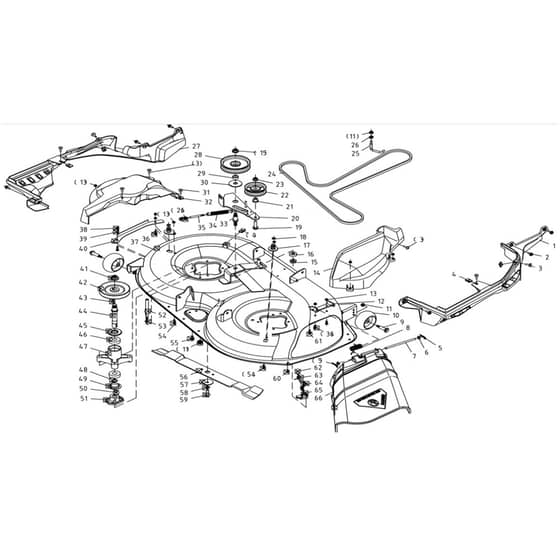

Cobra LT108HSL 2024 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20086269 Available to backorder	Belt Cover Right Ttm98S/108S Big	£28.37 £23.64
2	CO20082801 Available to backorder	Hexagon Head Tapping Screw6.3X11.5	£1.25 £1.04
3	CO20060893 Available to backorder	Screw M6×16	£1.20 £1.00
4	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04
5	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
6	CO20061544 Available to backorder	Washer 8	£1.25 £1.04
7	CO20082335 Available to backorder	Pin Φ8×168	£1.25 £1.04
8	CO20086192 Available to backorder	Torsion Spring	£2.68 £2.23
9	CO20085378 Available to backorder	Wheel Axle	£4.42 £3.68
10	CO20088559 Available to backorder	Wheel	£15.29 £12.74
11	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
12	CO20084843 Available to backorder	Hinge	£6.83 £5.69
13	CO20061385 Available to backorder	Flange Lock Nut M6	£1.25 £1.04
14	CO20086316 Available to backorder	Right Shield	£15.28 £12.73
15	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.25 £1.04
16	CO20070897 Available to backorder	Bushing	£1.40 £1.17
17	CO20070624 Available to backorder	Water Nozzle	£1.34 £1.12
18	CO20055756 Available to backorder	O Ring 11.2×2.65	£1.25 £1.04
19	CO20062521 Available to backorder	Flange Bolt M10×1.25×40	£1.25 £1.04
20	CO20084840 Available to backorder	Cut Tention Arm Assembly	£11.46 £9.55
21	CO20071180 Available to backorder	Tention Pulley Bushing	£3.44 £2.87
22	CO20071213 Available to backorder	Tention Pulley	£30.08 £25.07
23	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.25 £1.04
24	CO20071679 Available to backorder	V Belt 48X920 (Akx2337)	£63.96 £53.30
25	CO20088529 Available to backorder	Clutch Belt Stop Rod Solder	£6.83 £5.69
26	CO20061336 Available to backorder	Flange Nut M8	£1.25 £1.04
27	CO20086267 Available to backorder	Left Guard Ttm98S/108S Big	£11.65 £9.71
28	CO20070908 Available to backorder	Idleness Pulley	£27.50 £22.92
29	CO20070898 Available to backorder	Bushing	£3.44 £2.87
30	CO20070896 Available to backorder	Washer Φ17.3×Φ55×Δ4	£4.30 £3.58
31	CO20060923 Available to backorder	Screw M6×12	£1.25 £1.04
32	CO20086315 Available to backorder	Left Shield	£19.40 £16.17
33	CO20070899 Available to backorder	Idleness Pulley Shaft	£8.59 £7.16
34	CO20070875 In stock	Spring	£4.92 £4.10
35	CO20084542 Available to backorder	Adjusting Screw Rod	£1.80 £1.50
36	CO20061289 Available to backorder	Bolt M6×16	£1.25 £1.04
37	CO20084872 Available to backorder	Deck Weldmentside Black Spray Molding	£202.45 £168.71
38	CO20061421 Available to backorder	Hexagon Lock Nut M6	£1.25 £1.04
39	CO20061482 Available to backorder	Washer 6	£1.25 £1.04
40	CO20086368 Available to backorder	Reinforce Platettm108S Black Spray Molding	£19.25 £16.04
41	CO20070627 Available to backorder	Nut For Blade Axle	£2.10 £1.75
42	CO20070638 Available to backorder	Pulley	£20.78 £17.32
43	CO20061650 Available to backorder	Flat Key C6×18	£1.48 £1.23
44	CO20070622 Available to backorder	Blade Spindle	£35.33 £29.44
45	CO20071285 Available to backorder	Hood Bearing	£2.32 £1.93
46	CO20061625 In stock	Bearing 6204-2Rz	£12.10 £10.08
47	CO20054347 Available to backorder	Blade Seat	£22.46 £18.72
48	CO20061488 Available to backorder	Snap Ring 19	£1.44 £1.20
49	CO20070635 Available to backorder	Hood Bearing	£2.02 £1.68
50	CO20061651 Available to backorder	Halfmoon Key 4×16	£1.92 £1.60
51	CO20054345 In stock	Sleeve	£11.68 £9.73
52	CO20070892 Available to backorder	Stud Screw	£3.10 £2.58
53	CO20061541 Available to backorder	Big Washer 8	£1.25 £1.04
54	CO20061249 Available to backorder	Screw M6×30	£1.54 £1.28
55	CO20061298 Available to backorder	Flange Bolt M8×25	£1.42 £1.18
56	CO20071405 In stock	Blade	£34.08 £28.40
57	CO20070623 In stock	Dish Washer	£2.32 £1.93
58	CO20061497 In stock	Washer 10	£1.20 £1.00
59	CO20061267 In stock	Bolt	£2.58 £2.15
60	CO20051827 Available to backorder	Tapping Screw St4.8×13	£1.25 £1.04
61	CO20061301 Available to backorder	Bolt M6×25 Gb/T12-1988	£1.25 £1.04
62	CO20086275 Available to backorder	Self Locking Pin Ttm86S	£1.25 £1.04
63	CO20086276 Available to backorder	Self Locking Torsion Spring Ttm86S	£3.11 £2.59
64	CO20086278 Available to backorder	Self Locking Buckle Ttm86S Ral3020	£3.11 £2.59
65	CO20086277 Available to backorder	Self Locking Base Ttm86S Black	£3.11 £2.59
66	CO20086249 Available to backorder	Discharge Chute	£29.90 £24.92
