Cobra LT108HSL 2023 - Tractor Apr 2023 Transmission Assembly Diagram

Description

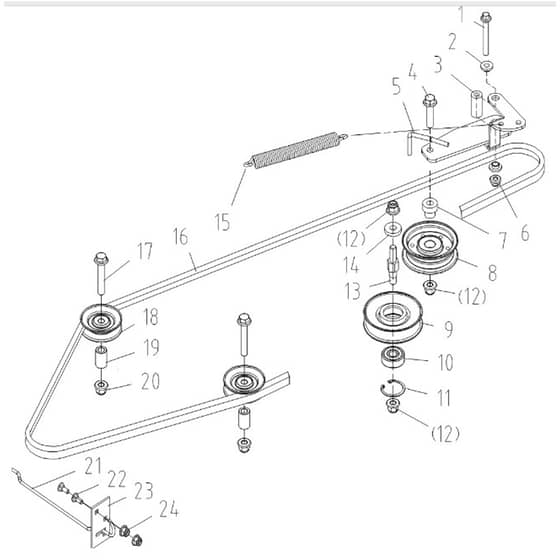

Cobra LT108HSL 2023 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20061275 Available to backorder	Flange Bolt M8×60	£1.24 £1.03
2	CO20084446 Available to backorder	Tension Arm Bushing	£2.32 £1.93
3	CO20084436 Available to backorder	Spacer	£2.54 £2.12
4	CO20062521 Available to backorder	Flange Bolt M10×1.25×40	£1.24 £1.03
5	CO20084440 Available to backorder	Travel Tension Arm	£9.23 £7.69
6	CO20061336 Available to backorder	Flange Nut M8	£1.24 £1.03
7	CO20071180 Available to backorder	Tention Pulley Bushing	£3.43 £2.86
8	CO20071213 Available to backorder	Tention Pulley	£30.08 £25.07
9	CO20070536 Available to backorder	Tention Pulley	£28.66 £23.88
10	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
11	CO20061549 Available to backorder	Snap Ring 37	£1.24 £1.03
12	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.24 £1.03
13	CO20084604 Available to backorder	Tensioner Bolt	£4.31 £3.59
14	CO20062499 Available to backorder	Washer ¢27X¢10.5X5	£2.23 £1.86
15	CO20070875 In stock	Spring	£5.24 £4.37
16	CO20085198 Available to backorder	V-Belt Lg4-1030	£63.96 £53.30
17	CO20062515 Available to backorder	Flange Bolt M10×1.25×50	£1.24 £1.03
18	CO20071208 In stock	Travel Guide Wheel Assembly	£23.88 £19.90
19	CO20084442 Available to backorder	Guide Wheel Bushing	£1.94 £1.62
20	CO20061403 Available to backorder	Lock Nut M10×1.25	£1.24 £1.03
21	CO20084654 Available to backorder	Drain Rod	£1.84 £1.53
22	CO20061289 Available to backorder	Bolt M6X16	£1.24 £1.03
23	CO20084655 Available to backorder	Drain Rod Seat	£2.06 £1.72
24	CO20061385 Available to backorder	Hexagon Flange Lock Nut M6	£1.24 £1.03
