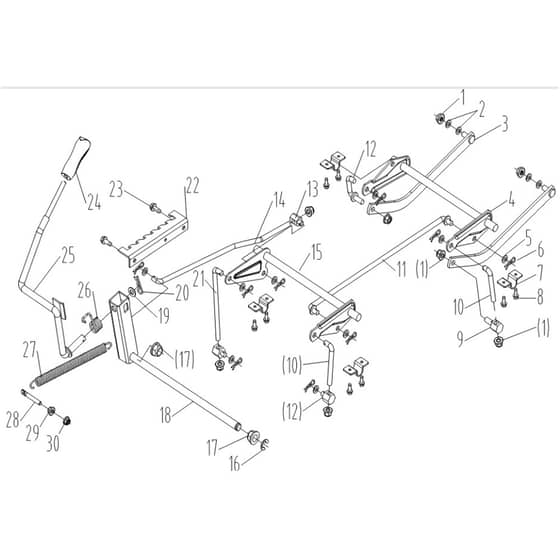

Cobra LT108HSL 2023 - Tractor Apr 2023 Hanging Side Discharge Diagram

Description

Cobra LT108HSL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061405 Available to backorder	Flange Lock Nut M10×1.25	£1.25 £1.04
2	CO20070509 Available to backorder	Washer 10.2×19	£1.25 £1.04
3	CO20084556 Available to backorder	Front Strut	£18.78 £15.65
4	CO20084560 Available to backorder	Forearm	£30.68 £25.57
5	CO20061497 In stock	Washer 10	£1.20 £1.00
6	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
7	CO20084532 Available to backorder	U-Shaped Plate	£1.32 £1.10
8	CO20082800 Available to backorder	Hexagon Washer Lock Screw	£1.25 £1.04
9	CO20084533 Available to backorder	Front Support Pin	£6.62 £5.52
10	CO20084557 Available to backorder	Front Right Boom	£15.29 £12.74
11	CO20084722 Available to backorder	Lifting Linkage Rod	£21.14 £17.62
12	CO20084553 Available to backorder	U-Shaped Boom	£22.07 £18.39
13	CO20070967 Available to backorder	Adjusting Pin	£6.89 £5.74
14	CO20084563 Available to backorder	Lifting Rod	£16.85 £14.04
15	CO20084723 Available to backorder	Back Arm	£33.35 £27.79
16	CO20061473 Available to backorder	Retainer Ring 12	£1.25 £1.04
17	CO20070612 Available to backorder	Hexagon Bushing	£2.02 £1.68
18	CO20084537 Available to backorder	Lift Arm	£33.53 £27.94
19	CO20062529 Available to backorder	Washer 14X1.5	£1.25 £1.04
20	CO20071251 Available to backorder	Cotter Pin Φ3	£1.96 £1.63
21	CO20084727 Available to backorder	Left Rear Adjustment Lever	£8.93 £7.44
22	CO20084549 Available to backorder	Ratchet Plate	£6.48 £5.40
23	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.25 £1.04
24	CO20070900 Available to backorder	Handle	£3.28 £2.73
25	CO20084535 Available to backorder	Lifting Rod	£35.23 £29.36
26	CO20071354 Available to backorder	Right Torsion Spring	£2.10 £1.75
27	CO20084564 Available to backorder	Lift Booster Tension Spring	£6.56 £5.47
28	CO20084542 Available to backorder	Adjusting Screw	£1.80 £1.50
29	CO20061336 Available to backorder	Flange Nut M8	£1.25 £1.04
30	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
