Cobra LT108HSL 2023 - Tractor Apr 2023 Cover Assy Diagram

Name: Cobra LT108HSL 2023 - Tractor Apr 2023 Cover Assy Diagram
SKU: lt108hsl_2023_tractor_apr_2023_cover_assy-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

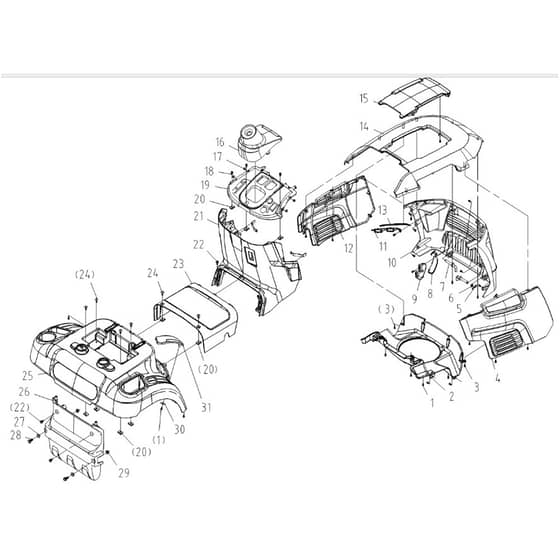

Cobra LT108HSL 2023 - Tractor Apr 2023 Cover Assy Diagram

Description

Cobra LT108HSL 2023 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061038 Available to backorder	Screw St4.8×16	£1.25 £1.04
2	CO20084507 Available to backorder	Wind Shield	£39.71 £33.09
3	CO20084497 Available to backorder	Screw St4.8×20	£1.25 £1.04
4	CO20085154 Available to backorder	Right Side Cover	£38.34 £31.95
5	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
6	CO20061497 In stock	Washer 10	£1.20 £1.00
7	CO20078136 Available to backorder	Pin	£2.41 £2.01
8	CO20084500 Available to backorder	Right Lamp	£2.68 £2.23
9	CO20085780 Available to backorder	Right Lamp Holder	£3.18 £2.65
10	CO20084511 Available to backorder	Front Cover	£59.48 £49.57
11	CO20085779 Available to backorder	Left Lamp Holder	£3.18 £2.65
12	CO20085160 Available to backorder	Left Cover	£38.34 £31.95
13	CO20084508 Available to backorder	Left Lamp	£3.01 £2.51
15	CO20085131 Available to backorder	Hood Air Intake	£34.86 £29.05
16	CO20084503 Available to backorder	Steering Wheel Cover	£19.60 £16.33
17	CO20075146 Available to backorder	Handle Shock-Absorbing Rubber	£1.25 £1.04
18	CO20061013 Available to backorder	Cross Recessed Flat Head Screw	£1.20 £1.00
19	CO20084494 Available to backorder	Panel	£27.77 £23.14
20	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04
21	CO20084495 Available to backorder	Guard Plate	£41.12 £34.27
22	CO20082800 Available to backorder	Hexagon Washer Lock Screw	£1.25 £1.04
23	CO20085161 Available to backorder	Maintenance Cover	£48.56 £40.47
24	CO20060893 Available to backorder	Hexagon Socket Head Flat Head Screw	£1.20 £1.00
25	CO20085164 Available to backorder	Side Rear Seat	£132.24 £110.20
26	CO20084803 Available to backorder	Gearbox Cover	£19.13 £15.94
27	CO20084446 Available to backorder	Tension Arm Bushing	£2.32 £1.93
28	CO20061274 Available to backorder	Flange Bolt M8×20	£1.25 £1.04
29	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
30	CO20071676 Available to backorder	Gasket 6.5×25×1.4	£1.25 £1.04
31	CO20084501 Available to backorder	Gear Decorative Plate	£6.53 £5.44
