Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Seat Diagram

Name: Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Seat Diagram
SKU: lt102hrl_2024_tractor_jan_2024_from_build_2312_only_seat-group
Price: 1.03 GBP
Availability: InStock

Part No. lt102hrl_2024_tractor_jan_2024_from_build_2312_only_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Seat Diagram

Description

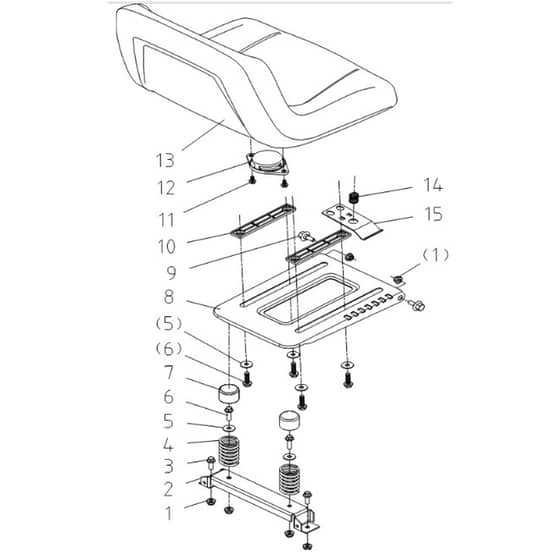

Cobra LT102HRL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
2	CO20084447 Available to backorder	Seat Back Beam	£15.86 £13.22
3	CO20061274 Available to backorder	Flange Bolt M8×20	£1.24 £1.03
4	CO20070964 Available to backorder	Seat Spring	£3.79 £3.16
5	CO20061541 Available to backorder	Big Washer	£1.24 £1.03
6	CO20061298 Available to backorder	Flange Bolt M8×25	£1.40 £1.17
7	CO20068240 Available to backorder	Spring Cap	£2.23 £1.86
8	CO20085449 Available to backorder	Justable Seat Base Plate	£31.72 £26.43
9	CO20088755 Available to backorder	Seat Screws	£2.17 £1.81
10	CO20088754 Available to backorder	Seat Cushion Strip	£1.99 £1.66
11	CO20082800 Available to backorder	Tapping Screwm6*16	£1.24 £1.03
12	CO20088756 Available to backorder	Seat Switcch Components	£18.06 £15.05
13	CO20091255 Available to backorder	Seat Zjzy2-2	£136.32 £113.60
14	CO20085377 Available to backorder	Springφ1.5×Φ16	£3.11 £2.59
15	CO20085375 Available to backorder	Seat Adjustment Plate	£5.59 £4.66
