Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Front Axle Diagram

Name: Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Front Axle Diagram
SKU: lt102hrl_2024_tractor_jan_2024_from_build_2312_only_front_axle-g
Price: 1.03 GBP
Availability: InStock

Part No. lt102hrl_2024_tractor_jan_2024_from_build_2312_only_front_axle-g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Front Axle Diagram

Description

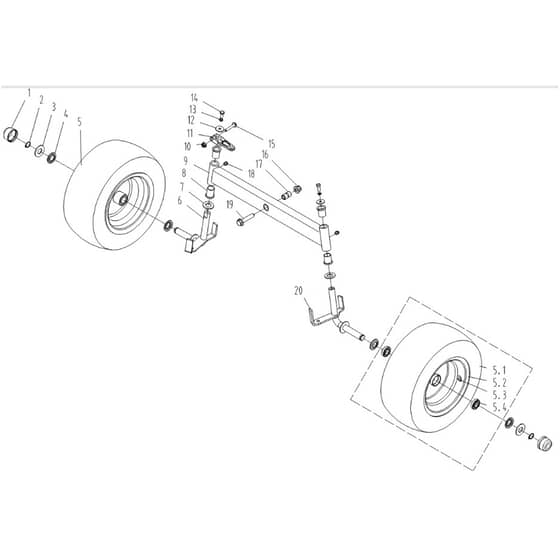

Cobra LT102HRL 2024 Ride On Mower Parts Diagram

	Part No.	Details
1	CO20068187 Available to backorder	Hub Cover	£1.72 £1.43
2	CO20061488 Available to backorder	Snap Ring 19	£1.24 £1.03
3	CO20071143 Available to backorder	Washer Φ20×Φ43×3	£1.72 £1.43
4	CO20071144 Available to backorder	Washer	£4.24 £3.53
5	CO20061595 Available to backorder	Bearing 61904-2Rz	£12.41 £10.34
5	CO20071147 Available to backorder	Tyre Valve	£95.40 £79.50
6	CO20084372 Available to backorder	Front Axle Rh	£51.64 £43.03
7	CO20061444 Available to backorder	Washer 20	£1.24 £1.03
8	CO20070566 Available to backorder	Bushing	£1.60 £1.33
9	CO20084364 Available to backorder	Front Axle Weldment	£90.84 £75.70
10	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
11	CO20070941 Available to backorder	Turnng Arm	£10.60 £8.83
12	CO20055114 Available to backorder	Washer	£1.24 £1.03
13	CO20061533 Available to backorder	Spring Washer 8	£1.24 £1.03
14	CO20061291 Available to backorder	Bolt M8×20	£1.24 £1.03
15	CO20061256 Available to backorder	Flange Bolt M8×45	£1.34 £1.12
16	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.24 £1.03
17	CO20084370 Available to backorder	Liner Tube	£1.43 £1.19
18	CO20061649 Available to backorder	Oil Injection Nozzle	£1.39 £1.16
19	CO20085752 Available to backorder	Flange Bolt M12×1.25×55	£1.24 £1.03
20	CO20084367 Available to backorder	Front Axle Lh	£51.64 £43.03
