Cobra LT102HRL 2024 - Tractor Jan 2024 from build 2312- only Cover Assy Diagram

Description

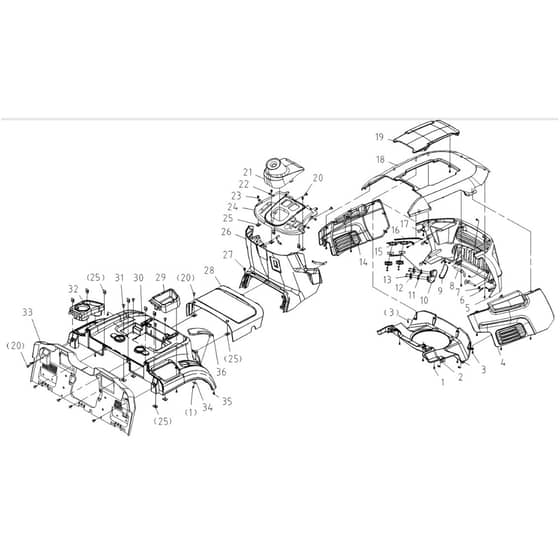

Cobra LT102HRL 2024 Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20061038 Available to backorder	Screw St4.8×16	£1.25 £1.04
2	CO20084507 Available to backorder	Air Director	£39.71 £33.09
3	CO20084497 Available to backorder	Screw St4.8×20	£1.25 £1.04
4	CO20085132 Available to backorder	Right Side Cover	£23.00 £19.17
5	CO20084511 Available to backorder	Front Cover	£59.48 £49.57
6	CO20070576 Available to backorder	Spring Pin	£1.25 £1.04
7	CO20061497 In stock	Washer 10	£1.20 £1.00
8	CO20078136 Available to backorder	Pin	£2.41 £2.01
9	CO20084500 Available to backorder	Left Light Cover	£2.68 £2.23
10	CO20085780 Available to backorder	Right Light Base Ttm86 Bright Silver Plating	£3.18 £2.65
11	CO20084627 Available to backorder	Light	£15.36 £12.80
12	CO20085735 Available to backorder	Lamp Base Cover Ttm86 Black	£3.18 £2.65
13	CO20051768 Available to backorder	Tapping Screw St2.9X12	£1.25 £1.04
14	CO20085125 Available to backorder	Left Side Cover	£23.00 £19.17
15	CO20085779 Available to backorder	Left Light Base Ttm86 Bright Silver Plating	£3.18 £2.65
16	CO20084508 Available to backorder	Left Light Cover	£3.01 £2.51
17	CO20050895 Available to backorder	Ignition Wire Clamp	£3.01 £2.51
18	CO20085131 Available to backorder	Engine Cover	£34.86 £29.05
19	CO20085130 Available to backorder	Engine Cover Air Intake	£25.82 £21.52
20	CO20060893 Available to backorder	Screw M6×16	£1.20 £1.00
21	CO20084503 Available to backorder	Steering Wheel Cover	£19.60 £16.33
22	CO20075146 Available to backorder	Handle Anti-Vibration Rubber	£1.25 £1.04
23	CO20061013 Available to backorder	Screw M6X16	£1.20 £1.00
24	CO20084494 Available to backorder	Panel	£27.77 £23.14
25	CO20070630 Available to backorder	Buckle Nut M6	£1.25 £1.04
26	CO20084495 Available to backorder	Shield	£41.12 £34.27
27	CO20082800 Available to backorder	Screw 6X16	£1.25 £1.04
28	CO20085126 Available to backorder	Maintenance Cover	£29.14 £24.28
29	CO20084509 Available to backorder	Right Storage Box	£10.24 £8.53
30	CO20087815 Available to backorder	Rear Seat	£80.90 £67.42
31	CO20060858 Available to backorder	Screw M6×20	£1.25 £1.04
32	CO20084493 Available to backorder	Left Storage Box	£11.36 £9.47
33	CO20084499 Available to backorder	Rear Cover Tail-Board	£55.52 £46.27
34	CO20071676 Available to backorder	Gasket 6.5×25×1.4	£1.25 £1.04
35	CO20084298 Available to backorder	Tapping Screw St4.8X16	£1.25 £1.04
36	CO20084501 Available to backorder	Stall Decorative Plate	£6.53 £5.44
