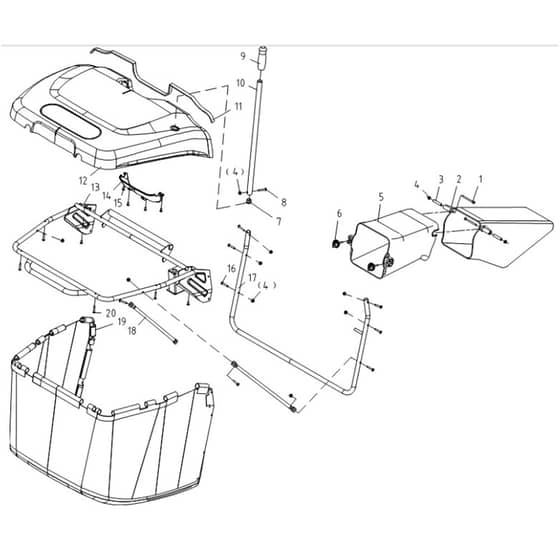

Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Grass Catcher Diagram

Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Grass Catcher Diagram
Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Grass Catcher Diagram

Description

Cobra LT102HR2L Ride On Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Screw M6X65
Screw M6X65
CO20084300
Available to backorder
Screw M6X65
£1.25 £1.04

  2 Front Grass Collectorttm86，K46/T2
Front Grass Collectorttm86，K46/T2
CO20085874
Available to backorder
Front Grass Collectorttm86，K46/T2
£37.32 £31.10

  3 Spacer Φ6*Φ10*48
Spacer Φ6*Φ10*48
CO20084482
Available to backorder
Spacer Φ6*Φ10*48
£3.28 £2.73

  4 Hexagon Lock Nut M6
Hexagon Lock Nut M6
CO20061385
Available to backorder
Hexagon Lock Nut M6
£1.25 £1.04

  5 Rear Grass Collector Ttm86，K46/T2
Rear Grass Collector Ttm86，K46/T2
CO20085875
Available to backorder
Rear Grass Collector Ttm86，K46/T2
£30.43 £25.36

  6 Lock Knob
Lock Knob
CO20086201
Available to backorder
Lock Knob
£4.31 £3.59

  7 Core Plug
Core Plug
CO20070642
Available to backorder
Core Plug
£2.15 £1.79

  8 Screw M6×30
Screw M6×30
CO20060905
Available to backorder
Screw M6×30
£1.87 £1.56

  9 Handle
Handle
CO20070643
Available to backorder
Handle
£4.02 £3.35

  10 Lever
Lever
CO20071295
Available to backorder
Lever
£21.40 £17.83

  11 Sealing Wool
Sealing Wool
CO20071687
Available to backorder
Sealing Wool
£1.70 £1.42

  12 Cover
Cover
CO20085124
Available to backorder
Cover
£105.80 £88.17

  13 Grass Collecting Frame Front Support Weldment
Grass Collecting Frame Front Support Weldment
CO20084469
Available to backorder
Grass Collecting Frame Front Support Weldment
£56.04 £46.70

  14 Handle Decprative Plate
Handle Decprative Plate
CO20084472
Available to backorder
Handle Decprative Plate
£4.20 £3.50

  15 Tapping Screw St4.8X16
Tapping Screw St4.8X16
CO20084298
Available to backorder
Tapping Screw St4.8X16
£1.25 £1.04

  16 Hexagon Boltm6X35
Hexagon Boltm6X35
CO20061246
Available to backorder
Hexagon Boltm6X35
£1.25 £1.04

  17 Grass Collecting Frame State Support Weldment
Grass Collecting Frame State Support Weldment
CO20084483
Available to backorder
Grass Collecting Frame State Support Weldment
£38.35 £31.96

  18 Side Stay Pipe
Side Stay Pipe
CO20084488
Available to backorder
Side Stay Pipe
£8.22 £6.85

  19 Grass Catcher(Bottom+Catcher)
Grass Catcher(Bottom+Catcher)
CO20084473
Available to backorder
Grass Catcher(Bottom+Catcher)
£133.31 £111.09

  20 Tapping Screw St5.5X35
Tapping Screw St5.5X35
CO20084299
Available to backorder
Tapping Screw St5.5X35
£1.25 £1.04


Description

Cobra LT102HR2L Ride On Mower Parts Diagram
