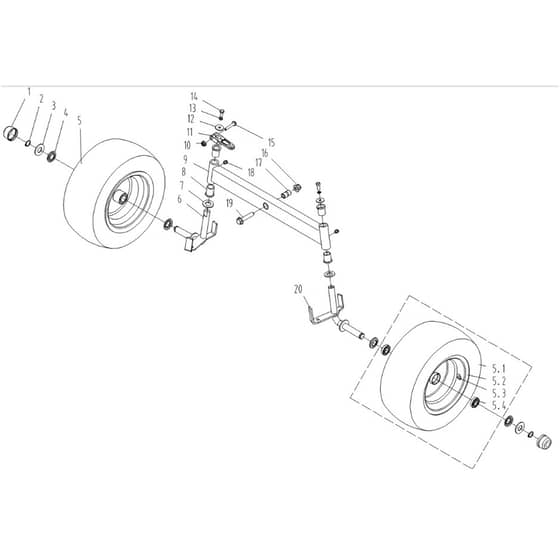

Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Front Axle Diagram

Name: Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Front Axle Diagram
SKU: lt102hr2l_tractor_jan_2024_from_build_2312_only_front_axle-group
Price: 1.04 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Front Axle Diagram

Description

Cobra LT102HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO20068187 Available to backorder	Hub Cover	£1.81 £1.51
2	CO20061488 Available to backorder	Snap Ring 19	£1.44 £1.20
3	CO20071143 Available to backorder	Washer Φ20×Φ43×3	£1.72 £1.43
4	CO20071144 Available to backorder	Washer	£4.25 £3.54
5	CO20061595 Available to backorder	Bearing 61904-2Rz	£12.42 £10.35
5	CO20071147 Available to backorder	Tyre Valve	£95.38 £79.48
6	CO20084372 Available to backorder	Front Axle Rh	£51.65 £43.04
7	CO20061444 Available to backorder	Washer 20	£1.25 £1.04
8	CO20070566 Available to backorder	Bushing	£1.61 £1.34
9	CO20084364 Available to backorder	Front Axle Weldment	£93.96 £78.30
10	CO20061348 Available to backorder	Flange Lock Nut M8	£1.25 £1.04
11	CO20070941 Available to backorder	Turning Arm	£10.61 £8.84
12	CO20055114 Available to backorder	Washer	£1.25 £1.04
13	CO20061533 Available to backorder	Spring Washer 8	£1.25 £1.04
14	CO20061291 Available to backorder	Bolt M8×20	£1.25 £1.04
15	CO20061256 Available to backorder	Flange Bolt M8×45	£1.34 £1.12
16	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.25 £1.04
17	CO20084370 Available to backorder	Liner Tube	£1.43 £1.19
18	CO20061649 Available to backorder	Oil Injection Nozzle	£1.38 £1.15
19	CO20085752 Available to backorder	Flange Bolt M12×1.25×55	£1.25 £1.04
20	CO20084367 Available to backorder	Front Axle Lh	£51.65 £43.04
