Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Engine Diagram

Description

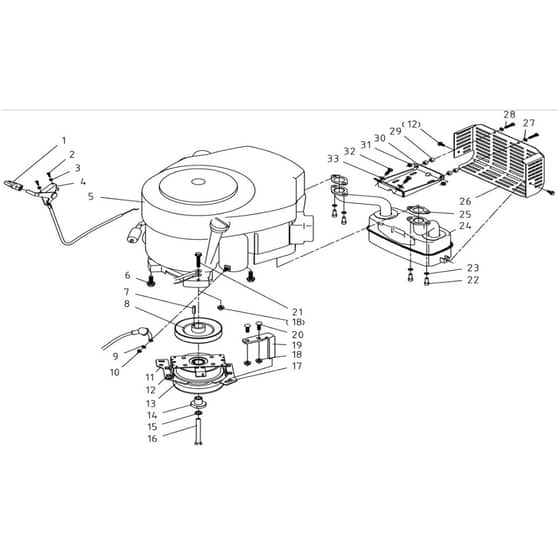

Cobra LT102HR2L Ride On Mower Parts Diagram

	Part No.	Details
1	CO20084362 Available to backorder	Choke Knob	£1.54 £1.28
2	CO20051803 Available to backorder	Screw M4×16	£1.24 £1.03
3	CO20061531 Available to backorder	Washer 4	£1.24 £1.03
4	CO20071440 Available to backorder	Throttle Cable	£29.09 £24.24
6	CO20061285 Available to backorder	Tapping Screw 3/8"-16-1 1/4"	£1.24 £1.03
7	CO20070519 Available to backorder	Flat Key 6.35×30	£1.24 £1.03
8	CO20071187 Available to backorder	Engine Pulley Weldment	£38.57 £32.14
9	CO20061482 Available to backorder	Washer 6	£1.24 £1.03
10	CO20061385 Available to backorder	Flange Lock Nut M6	£1.24 £1.03
11	CO20088530 Available to backorder	Support	£1.26 £1.05
12	CO20082800 Available to backorder	Tapping Screwm6*16	£1.24 £1.03
13	CO20085206 Available to backorder	Electric Clutch	£291.48 £242.90
14	CO20085758 Available to backorder	Clutch Step Bushing	£8.59 £7.16
15	CO20061455 Available to backorder	Spring Washer 7/16"	£1.24 £1.03
16	CO20062410 Available to backorder	Bolt 7/16"-20- 3" Unf	£2.17 £1.81
17	CO20085121 Available to backorder	Clutch Clamp Plate	£1.26 £1.05
18	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
19	CO20085859 Available to backorder	Clutch Baffle (Small Bin)	£11.46 £9.55
20	CO20061299 Available to backorder	Bolt M8×20	£1.24 £1.03
21	CO20061254 Available to backorder	Flange Bolt M8×40	£1.24 £1.03
22	CO20060850 Available to backorder	Screw 5/16"-18 -3/4"	£1.24 £1.03
23	CO20061453 Available to backorder	Spring Washer 5/16"	£1.24 £1.03
24	CO20084879 Available to backorder	Muffle	£57.29 £47.74
25	CO20070868 Available to backorder	Gasket	£1.24 £1.03
26	CO20085348 Available to backorder	Front Shield	£26.28 £21.90
27	CO20061539 Available to backorder	Big Washer 6	£1.24 £1.03
28	CO20061214 Available to backorder	Bolt M6×30	£1.24 £1.03
29	CO20085755 Available to backorder	Washer Φ6.2Φ126	£1.24 £1.03
30	CO20084296 Available to backorder	Bracket	£14.09 £11.74
31	CO20061346 Available to backorder	Flange Lock Nut M6	£1.24 £1.03
32	CO20082799 Available to backorder	Flange Bolt 5/16-18Tx3/4	£1.24 £1.03
33	CO20061541 Available to backorder	Big Washer 8	£1.24 £1.03
