Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Electrical Parts Diagram

Name: Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Electrical Parts Diagram
SKU: lt102hr2l_tractor_jan_2024_from_build_2312_only_electrical_parts
Price: 1.03 GBP
Availability: InStock

Part No. lt102hr2l_tractor_jan_2024_from_build_2312_only_electrical_parts

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Electrical Parts Diagram

Description

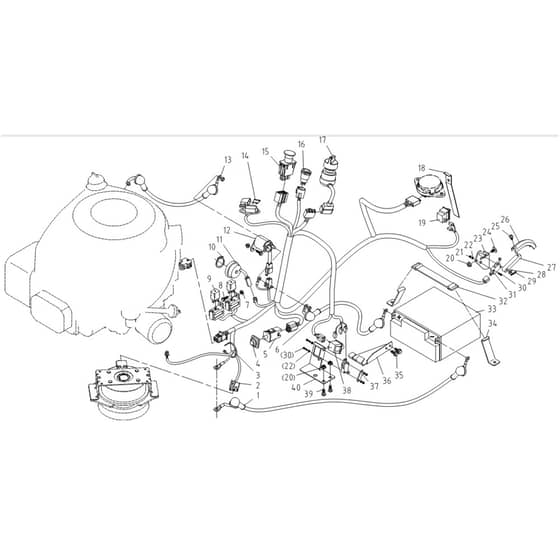

Cobra LT102HR2L Ride On Mower Parts Diagram

	Part No.	Details
1	CO20085496 Available to backorder	Ground Cable	£12.77 £10.64
2	CO20088998 Available to backorder	Electric Cable (Electric Start)	£124.32 £103.60
4	CO20062416 Available to backorder	Cover Switch	£5.59 £4.66
5	CO20089224 In stock	Switch Plunger	£27.74 £23.12
6	CO20084624 Available to backorder	Battery Cable	£27.49 £22.91
7	CO20061341 Available to backorder	Flange Lock Nut M5	£1.24 £1.03
8	CO20061186 Available to backorder	Bolt M5×16	£1.24 £1.03
9	CO20089006 Available to backorder	Relay Yap23H-12-Hr	£10.66 £8.88
10	CO20061492 Available to backorder	Axial Elastic Ring Φ24	£1.24 £1.03
11	CO20070813 Available to backorder	Buzzer	£12.11 £10.09
12	CO20071221 Available to backorder	Star Relay	£28.26 £23.55
13	CO20084637 Available to backorder	Power Cable	£26.36 £21.97
14	CO20085696 Available to backorder	Fuse Brm148S，20A	£1.24 £1.03
15	CO20062234 Available to backorder	Switch Pto	£20.63 £17.19
16	CO20084626 In stock	Switch	Was £17.16 £14.30 Special Price £11.96 £9.97
17	CO20089345 In stock	Electric Door Lock	£14.56 £12.13
18	CO20084634 Available to backorder	Spring Plate	£8.29 £6.91
19	CO20086271 Available to backorder	Switch	£6.19 £5.16
20	CO20061385 Available to backorder	Hexagon Flange Lock Nut M6	£1.24 £1.03
21	CO20061334 Available to backorder	Nut M3	£1.24 £1.03
22	CO20084633 Available to backorder	Washer 3	£1.24 £1.03
23	CO20084622 Available to backorder	Switch Base	£3.56 £2.97
24	CO20060893 In stock	Screw M6*16	£1.28 £1.07
25	CO20051776 Available to backorder	Tapping Screw St4.2*10	£1.24 £1.03
26	CO20084640 Available to backorder	Hook	£4.97 £4.14
27	CO20071233 Available to backorder	Switch Lever	£4.01 £3.34
28	CO20061539 Available to backorder	Washer Ф6	£1.24 £1.03
29	CO20059765 Available to backorder	Split Pin	£1.24 £1.03
30	CO20051763 Available to backorder	Screw M3*20	£1.24 £1.03
31	CO20071232 Available to backorder	Switch	£7.24 £6.03
32	CO20070744 Available to backorder	Belt	£3.66 £3.05
33	CO20071324 Available to backorder	Battery 12V 18Ah	£129.96 £108.30
34	CO20084632 Available to backorder	Hook	£1.97 £1.64
35	CO20082800 Available to backorder	Tapping Screwm6*1	£1.24 £1.03
36	CO20084636 Available to backorder	Switch Lever	£6.80 £5.67
37	CO20084628 Available to backorder	Washer	£1.24 £1.03
38	CO20086270 Available to backorder	Switch	£6.19 £5.16
39	CO20061289 Available to backorder	Bolt M6×16	£1.24 £1.03
40	CO20084629 Available to backorder	Switch Base	£5.11 £4.26
