Cobra LT102HR2L - Tractor Jan 2024 from build 2312- only Cutting Deck Diagram

Description

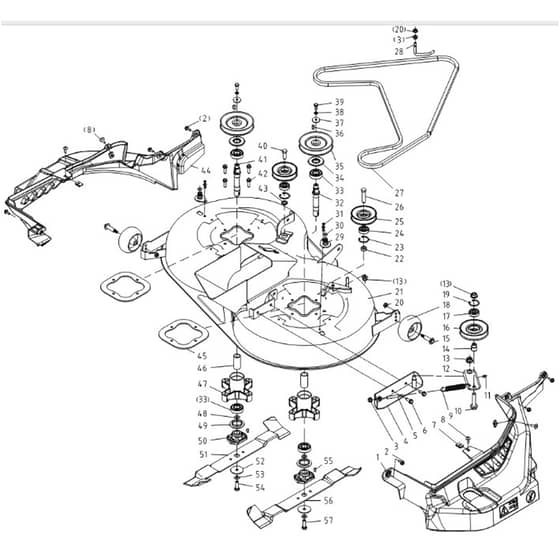

Cobra LT102HR2L Ride On Mower Parts Diagram

	Part No.	Details
1	CO20088576 In stock	Belt Cover Gight	£36.77 £30.64
2	CO20082801 Available to backorder	Hexagon Head Tapping Screw6.3X11.5	£1.24 £1.03
3	CO20061336 Available to backorder	Flange Nut M8	£1.24 £1.03
4	CO20084618 Available to backorder	Cut Tention Support Weldment	£16.03 £13.36
5	CO20084542 Available to backorder	Adjusting Screw Rod	£1.80 £1.50
6	CO20082799 Available to backorder	Flange Bolt5/16-18Tx3/4	£1.24 £1.03
7	CO20070630 Available to backorder	Buckle Nut M6	£1.24 £1.03
8	CO20060893 In stock	Screw M6×16	£1.28 £1.07
9	CO20084598 Available to backorder	Traction Spring	£2.52 £2.10
10	CO20061286 Available to backorder	Hexagon Bolt M12X1.25X50	£1.43 £1.19
11	CO20061649 Available to backorder	Oil Injection Nozzle	£1.39 £1.16
12	CO20084615 Available to backorder	Cut Tention Arm Weldment	£11.46 £9.55
13	CO20061359 Available to backorder	Flange Lock Nut M12×1.25	£1.24 £1.03
14	CO20084617 Available to backorder	Tention Pulley Cushion Cover	£3.08 £2.57
15	CO20085378 Available to backorder	Wheel Axle	£4.40 £3.67
16	CO20084596 Available to backorder	Tention Pulley Weldment Ttm86 Plating White Zinc Passivation	£28.20 £23.50
17	CO20061610 Available to backorder	Bearing 6203-2Rz	£12.52 £10.43
18	CO20088559 Available to backorder	Wheel	£15.29 £12.74
19	CO20061540 Available to backorder	Circle 40	£1.24 £1.03
20	CO20061348 Available to backorder	Flange Lock Nut M8	£1.24 £1.03
21	CO20088582 Available to backorder	Deck Weldment Ttm102 Black Spray Molding	£351.72 £293.10
22	CO20084610 Available to backorder	Right Guide Wheel Cushion Cover	£2.63 £2.19
23	CO20061549 Available to backorder	Snap Ring 37	£1.24 £1.03
24	CO20061626 Available to backorder	Bearing 6301-2Rs	£10.51 £8.76
25	CO20070536 Available to backorder	Tention Pulley	£28.66 £23.88
26	CO20084604 Available to backorder	Tention Pulley Bolt Long Ttm86 Blacken	£4.31 £3.59
27	CO20084305 Available to backorder	Belt Ttm102 Aa95	£66.48 £55.40
28	CO20088710 Available to backorder	Clutch Lever Welding Part Ttm86	£6.74 £5.62
29	CO20070624 Available to backorder	Water Nozzle	£1.34 £1.12
30	CO20055756 Available to backorder	O Ring 11.2×2.65	£1.24 £1.03
31	CO20085899 Available to backorder	Plastic Expansion Rivets	£1.86 £1.55
32	CO20083936 In stock	Right Blade Axle	£32.88 £27.40
33	CO20061625 Available to backorder	Bearing 6204-2Rz	£12.52 £10.43
34	CO20071285 Available to backorder	Hood Bearing	£2.40 £2.00
35	CO20070638 Available to backorder	Pulley	£21.49 £17.91
36	CO20061650 Available to backorder	Flat Key C6×18	£1.46 £1.22
37	CO20055114 Available to backorder	Washer	£1.24 £1.03
38	CO20061472 Available to backorder	Spring Washer 8	£1.24 £1.03
39	CO20061274 Available to backorder	Flange Bolt M8X20	£1.24 £1.03
40	CO20062310 Available to backorder	Bolt	£1.94 £1.62
41	CO20083934 Available to backorder	Left Blade Axle	£31.78 £26.48
42	CO20061265 Available to backorder	Flange Bolt M8X35	£1.24 £1.03
43	CO20061452 Available to backorder	Spring Washer 12	£1.24 £1.03
44	CO20088571 Available to backorder	Belt Cover Left Ttm102 Black	£52.54 £43.78
45	CO20088737 Available to backorder	Deck Disc Reinforcement Plate	£15.52 £12.93
46	CO20071282 Available to backorder	Pivot Tube	£4.20 £3.50
47	CO20054352 Available to backorder	Cuttter House	£59.89 £49.91
48	CO20071283 Available to backorder	Spacer Ring	£1.24 £1.03
49	CO20071286 Available to backorder	Washer 50X20.2X2	£1.34 £1.12
50	CO20054345 In stock	Sleeve	£12.52 £10.43
51	CO20071284 In stock	Left Blade	£34.61 £28.84
52	CO20070623 In stock	Saucer Washer	£2.50 £2.08
53	CO20061497 In stock	Washer 10	£1.28 £1.07
54	CO20061267 In stock	Bolt 3/8-24Unf	£2.76 £2.30
55	CO20061651 In stock	Halfmoon Key 4×16	£2.02 £1.68
56	CO20071289 In stock	Right Blade	£34.61 £28.84
57	CO20061266 In stock	Lh Bolt 3/8-24-1.25"-1.25-Lh	£2.76 £2.30
