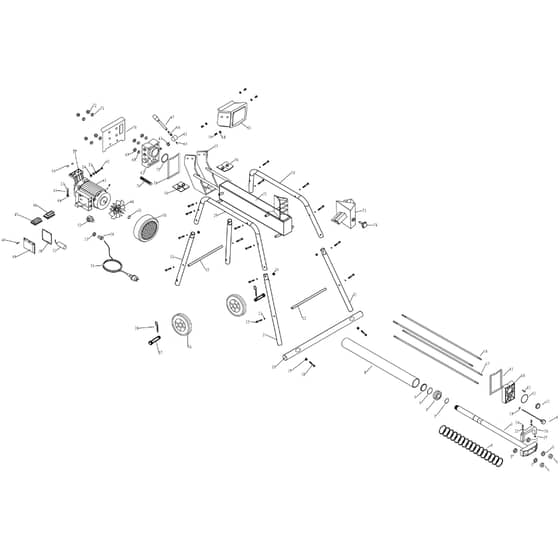

Cobra LS520D Log Splitter Parts Diagram

	Part No.	Details
1	CO05020566 Available to backorder	Lock Nut M14	£2.48 £2.07
2	CO05020553 Available to backorder	Hex Screwm14	£2.48 £2.07
3	CO05990883 Available to backorder	Piston Rod	£37.24 £31.03
4	CO05071548 Available to backorder	Spring	£10.50 £8.75
5	CO05020789 Available to backorder	O Seal 25X355	£2.48 £2.07
6	CO05072120 Available to backorder	Piston Rod	£6.20 £5.17
8	CO05071547 Available to backorder	Tube	£28.97 £24.14
9	CO05071247 Available to backorder	Oil Stick	£2.52 £2.10
10	CO05071535 Available to backorder	Seal	£2.48 £2.07
13	CO02044002 Available to backorder	Screw	£2.48 £2.07
14	CO05071518 Available to backorder	Cylinder Cover Front	£16.55 £13.79
16	CO05020687 Available to backorder	Bolt 798	£4.97 £4.14
17	CO05071565 Available to backorder	Bolt 813	£4.97 £4.14
18	CO05020333 Available to backorder	Bolt 8X25	£2.48 £2.07
19	CO05020549 Available to backorder	Screw 8	£1.26 £1.05
20	CO02033396 Available to backorder	Front Support Foot	£16.55 £13.79
21	CO02032211 Available to backorder	Front Support Leg	£12.41 £10.34
22	CO02032213 Available to backorder	Support Connector	£12.41 £10.34
23	CO05020604 Available to backorder	Washer 8	£2.48 £2.07
24	CO05020572 Available to backorder	Lock Nut 8	£1.24 £1.03
25	CO05020339 Available to backorder	Bolt 8X50	£2.48 £2.07
26	CO05080214 Available to backorder	Wheel	£9.11 £7.59
27	CO05070162 Available to backorder	Axle	£2.48 £2.07
28	CO05071447 Available to backorder	Spring	£2.48 £2.07

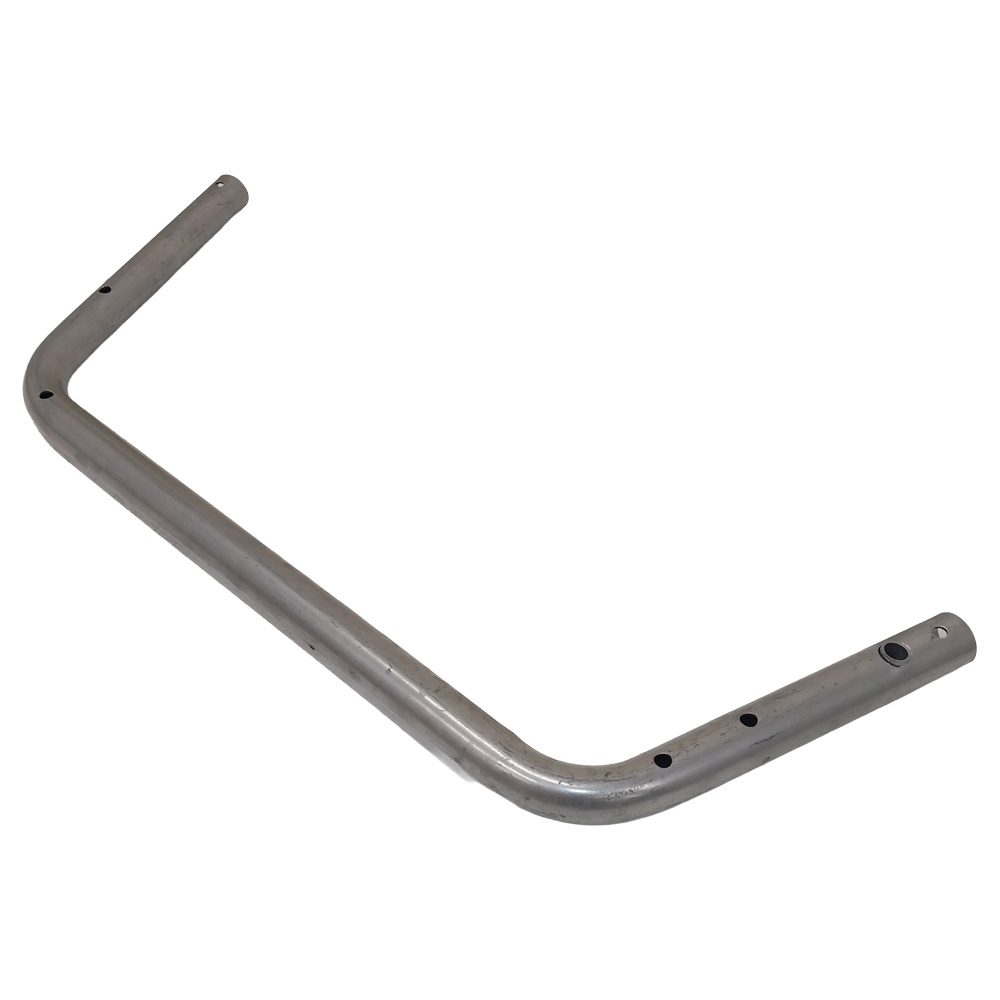

30	CO02032210 Available to backorder	Tube Right	£24.83 £20.69
31	CO02036295 Available to backorder	Knife Column	£88.68 £73.90
32	CO02032212 Available to backorder	Back Support Tube	£20.69 £17.24
33	CO2033799 Available to backorder	Back Connector	£10.50 £8.75
34	CO05020423 Available to backorder	Cross Head Screw M6X20	£1.24 £1.03
35	CO05020603 Available to backorder	Washer 6	£2.48 £2.07
36	CO05080296 Available to backorder	Handle	£2.48 £2.07
37	CO05020548 Available to backorder	Nut M6	£2.48 £2.07
38	CO2032912 Available to backorder	Motor Cover	£5.04 £4.20
39	CO05020657 Available to backorder	Snap Ring 20	£2.48 £2.07
40	CO05021047 Available to backorder	Motor Fan	£2.48 £2.07
41	CO2050120 Available to backorder	Motor	£116.88 £97.40
42	CO05020337 Available to backorder	Bolt 8X40	£2.48 £2.07
43	CO05020769 Available to backorder	O Seal 106X265	£2.48 £2.07
44	CO05020334 Available to backorder	Bolt 8X30	£2.48 £2.07
45	CO05020634 Available to backorder	Spring Washer 8	£2.48 £2.07
46	CO05080293 Available to backorder	Rubber Pad Left	£2.48 £2.07
47	CO05080294 Available to backorder	Rubber Pad Right	£2.48 £2.07
48	CO05021474 Available to backorder	Tapping Screw 35X13	£2.48 £2.07
49	CO05120071 Available to backorder	Box Cover	£2.89 £2.41
50	CO05120086 Available to backorder	Rubber Pad	£2.48 £2.07
51	CO05120082 Available to backorder	Capacitor	£8.40 £7.00
52	CO05040201 Available to backorder	Switch	£6.30 £5.25
53	CO05120139 Available to backorder	Nut	£2.48 £2.07
54	CO05080329 Available to backorder	Bushing	£2.48 £2.07
55	CO05040098 Available to backorder	Wire	£8.28 £6.90
56	CO05080418 Available to backorder	Plastic Plate	£2.48 £2.07
57	CO02041550 Available to backorder	Log Pusher	£33.60 £28.00
59	CO05020434 Available to backorder	Hex Screw 10X25	£2.48 £2.07
60	CO05020564 Available to backorder	Lock Nut 10	£2.48 £2.07
61	CO05077071 Available to backorder	Log Pusher Head	£14.48 £12.07
62	CO02041693 Available to backorder	Cylinder Cover Back	£53.80 £44.83
64	CO05020523 Available to backorder	Screw 8X10	£2.48 £2.07
65	CO05071529 Available to backorder	Handle Base	£4.14 £3.45
66	CO050772226 Available to backorder	Handle Short	£2.48 £2.07
67	CO050772215 In stock	Handle Long	£2.48 £2.07
68	CO05020203 Available to backorder	Copper Washer 10	£2.48 £2.07
69	CO05020536 Available to backorder	Nut M10	£2.48 £2.07
70	CO2036296 Available to backorder	Protection Board	£3.31 £2.76
71	CO05020589 Available to backorder	Washer 10	£2.48 £2.07
72	CO05020585 Available to backorder	Nut 10	£2.48 £2.07
73	CO2033439 Available to backorder	Cross Wedge	£29.40 £24.50
74	CO05072265 Available to backorder	Fixing Screw	£2.48 £2.07
76	CO02042194 In stock	Filter	£4.97 £4.14
77	CO02041674 Available to backorder	Casting	£27.68 £23.07
