Cobra LRH26C - Pole Hedge Trimmer Main Diagram

Name: Cobra LRH26C - Pole Hedge Trimmer Main Diagram
SKU: lrh26c_pole_hedge_trimmer_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LRH26C - Pole Hedge Trimmer Main Diagram

Description

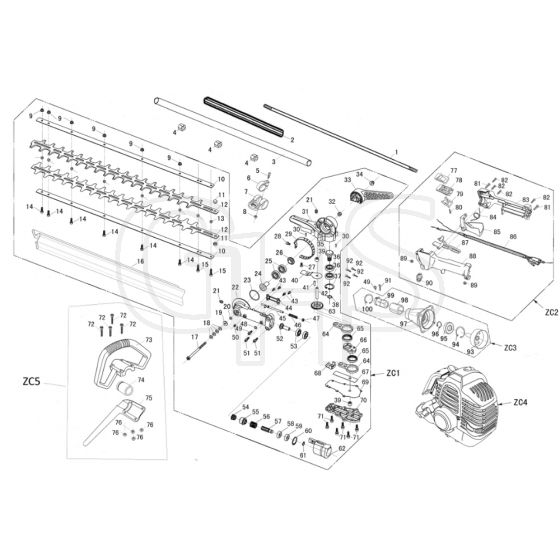

Cobra LRH26C Hedge Trimmer Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COGC260-45131 Available to backorder	Drive Shaft	£27.10 £22.58
1	COLJ260K-47200 Available to backorder	ZC1 Gearbox + Blade Assy	£219.48 £182.90
2	COGCM250-48057 Available to backorder	Rubber Cover	£5.68 £4.73
2	COLJ260K-47000 Available to backorder	ZC2 Controller Assy	£18.84 £15.70

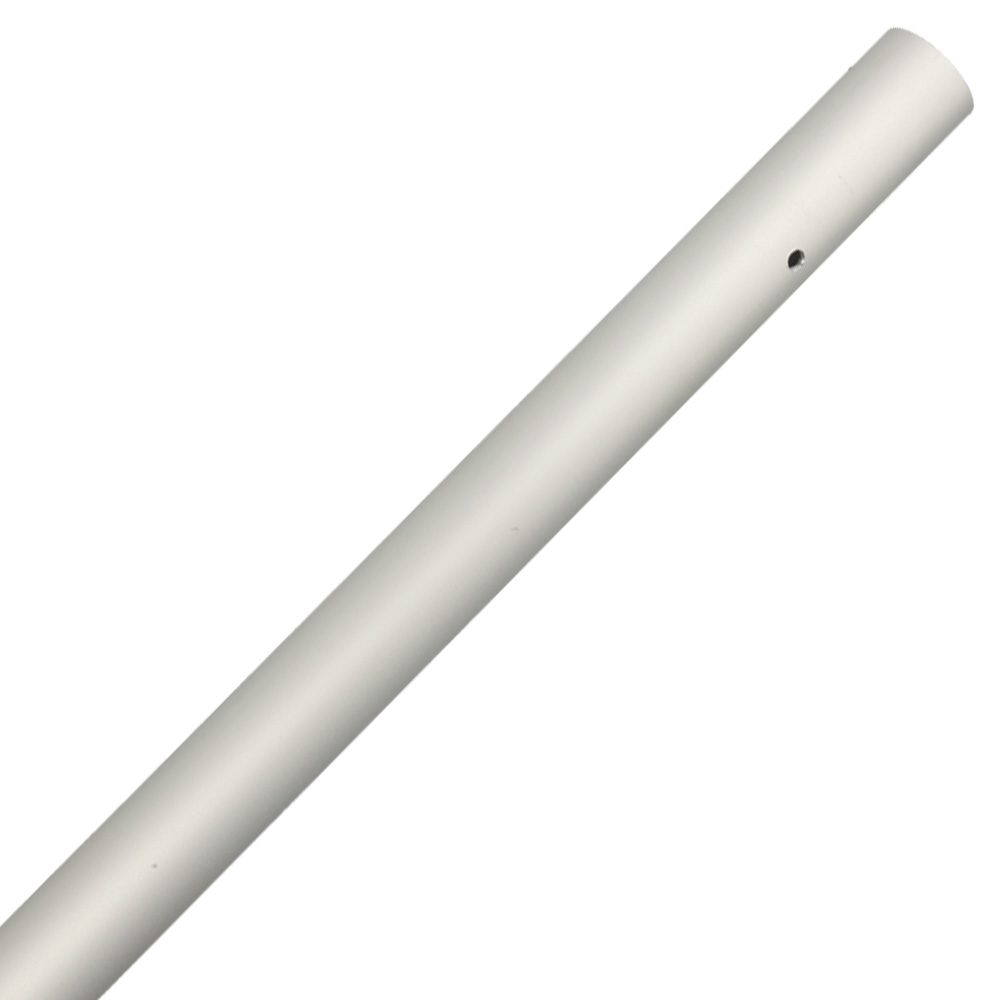

3	COGC260-45123A Available to backorder	Aluminium Tube	£23.63 £19.69
3	COGC260.3-44310 Available to backorder	ZC3 Clutch House Assy Φ26X9T	£34.20 £28.50
4	COGC305-45300 Available to backorder	Oil Bearing	£2.52 £2.10
4	COGC260.3B-42000 Available to backorder	ZC4 Engine Assy	£91.80 £76.50
5	COGC260-46090 Available to backorder	ZC5 Handle Assy	£11.98 £9.98
6	COGC305.3-46581 Available to backorder	Hook Φ26	£2.52 £2.10
7	COGC305.3-46582 Available to backorder	Fixed Seat Of Hookφ26	£2.52 £2.10
9	COLJ260K-92104 Available to backorder	Nut M5	£1.20 £1.00
10	COLJ260K-56206 Available to backorder	Guide Rail Of Blade	£11.34 £9.45
12	COLJ260K-56203 Available to backorder	Blade	£53.70 £44.75
13	COLJ260K-56204 In stock	Sliding Block	£2.40 £2.00
14	COLJ260K-90041 Available to backorder	Screw M5×15	£2.40 £2.00
15	COLJ260K-56103 Available to backorder	Screw M5×20	£2.40 £2.00
16	COLJ260K-56208 Available to backorder	Cover Of Blade	£7.16 £5.97
17	COLJ260K-90124 Available to backorder	Screw M6×104	£2.52 £2.10
18	COLJ260K-53901 Available to backorder	Belleville Spring	£2.52 £2.10
19	COYD3600-93002 Available to backorder	Gasket	£2.52 £2.10
20	COLJ260K-53903 Available to backorder	O-Ring	£2.52 £2.10
21	COLJ260K-46720 Available to backorder	Zerk	£2.52 £2.10
22	COLJ260K-53904 Available to backorder	Gearbox B	£21.97 £18.31
23	COLJ260K-53905 Available to backorder	O-Ring	£2.52 £2.10
24	COLJ260K-53906 Available to backorder	Gear C	£7.12 £5.93
25	COLJ260K-96016 Available to backorder	Bearing	£4.44 £3.70
26	COLJ260K-53907 Available to backorder	Gear B	£8.23 £6.86

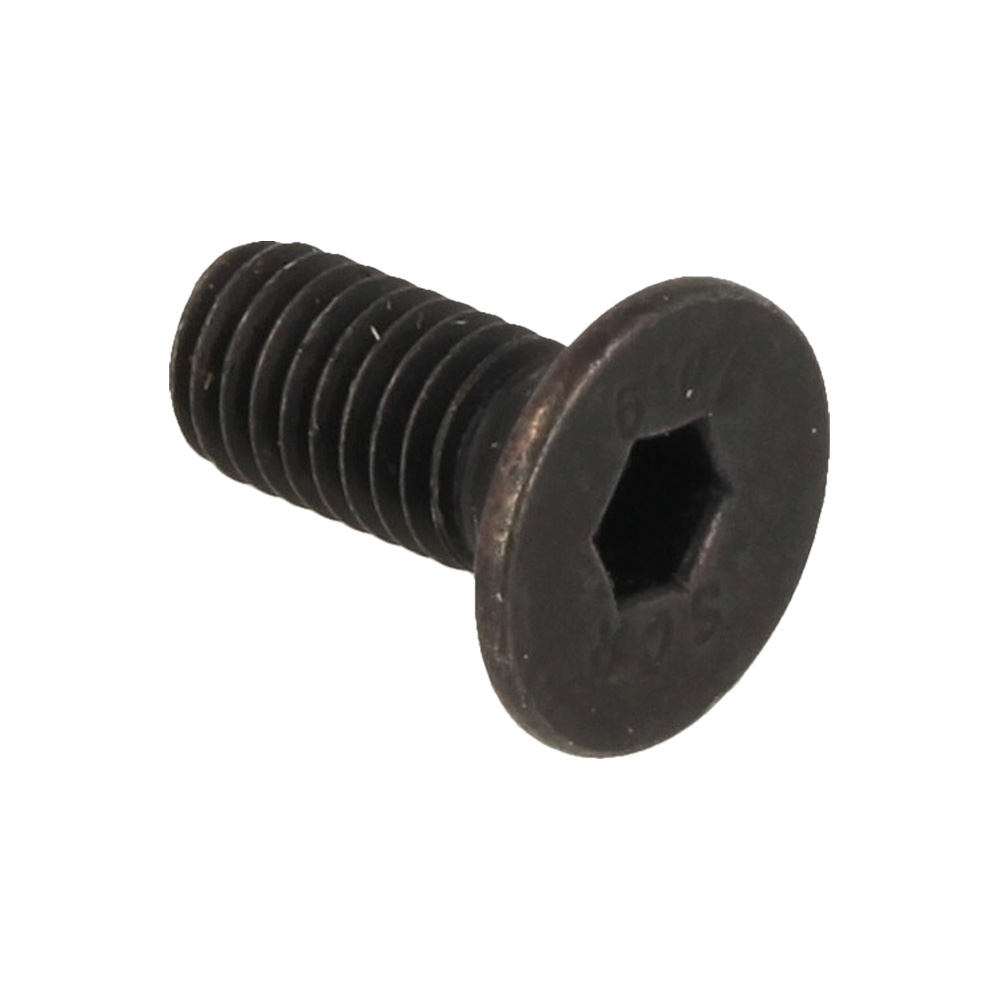

27	COLJ260K-90310 Available to backorder	Screw M5×12	£2.62 £2.18

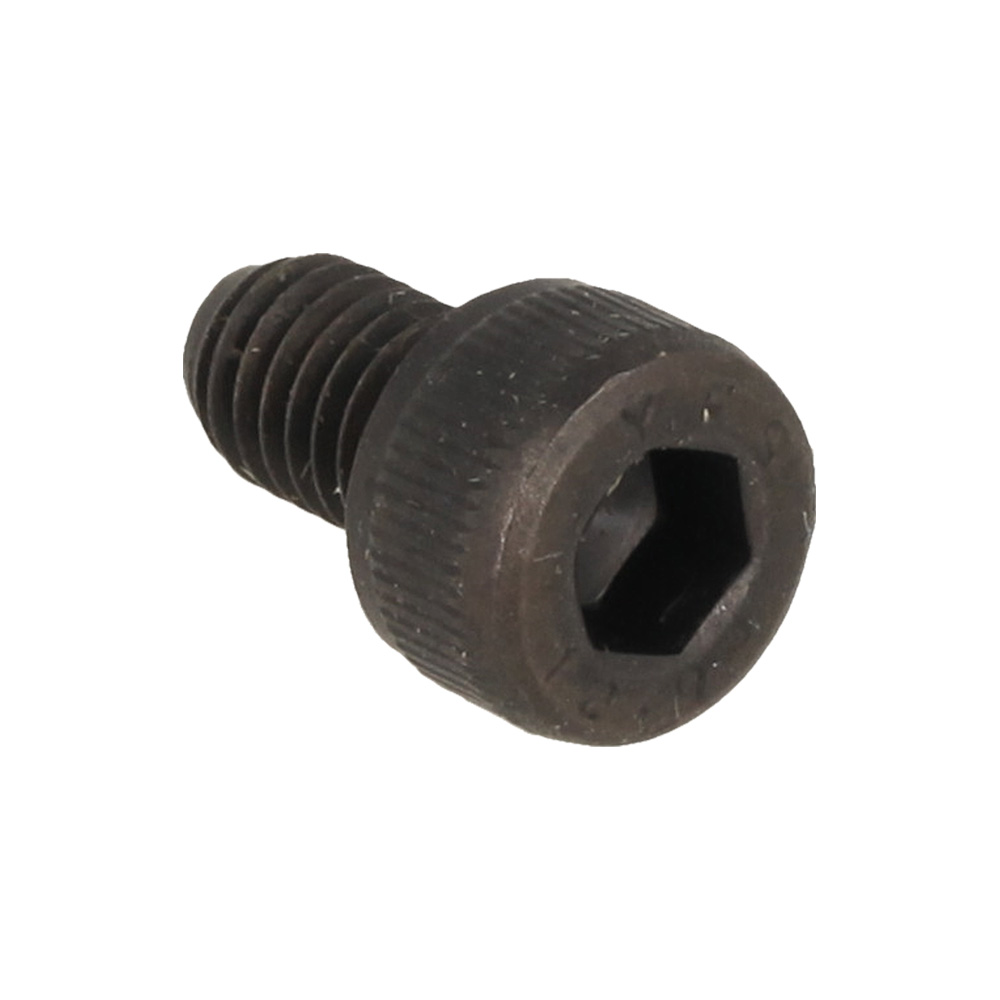

28	COLJ260K-90042 Available to backorder	Screw M5×8	£2.40 £2.00

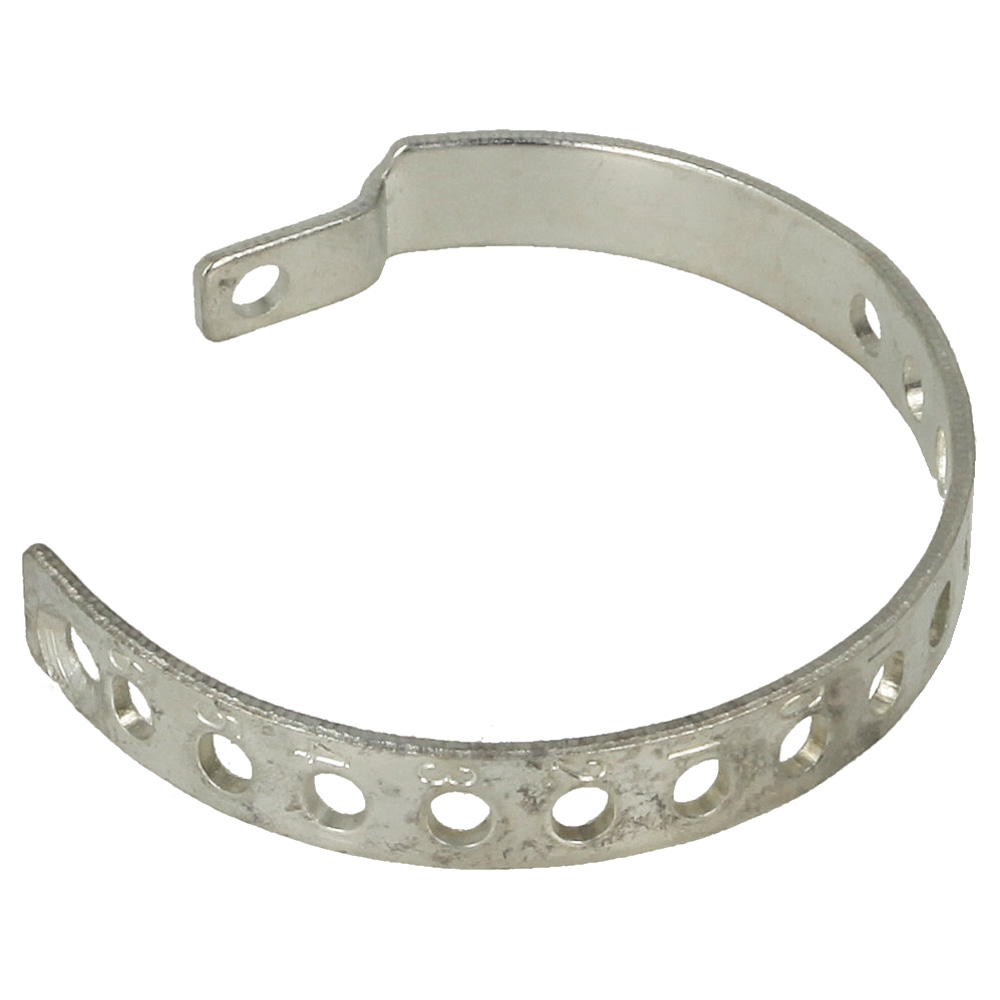

29	COLJ260K-47201 In stock	Stop Plate	£2.40 £2.00

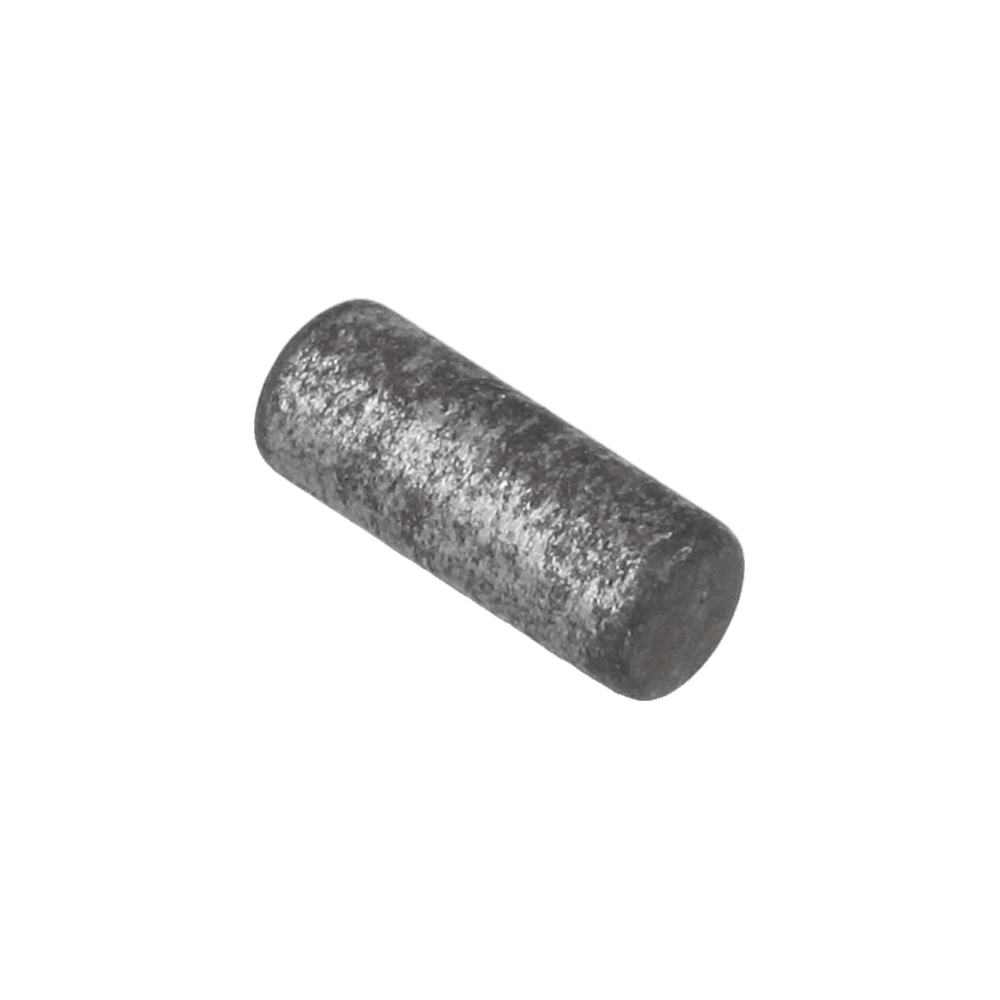

30	COLJ260K-94031 Available to backorder	Pin Φ4×10	£2.62 £2.18

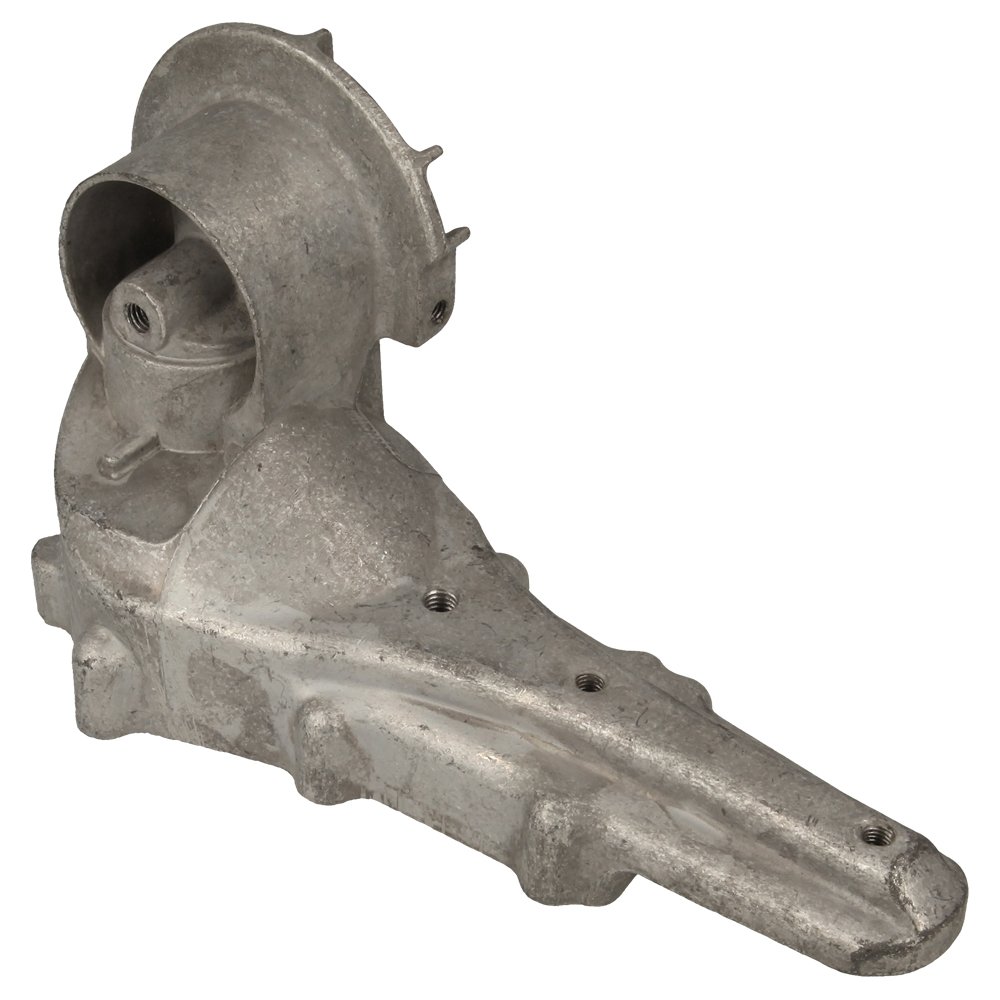

31	COLJ260K-53009 Available to backorder	Crankcase	£35.03 £29.19
32	COLJ260K-92007 Available to backorder	Nut M6	£64.44 £53.70
33	COLJ260K-47202 Available to backorder	Handle	£5.02 £4.18
34	COLJ230B.2-92107 Available to backorder	Locknut M6	£1.26 £1.05
35	COLJ260K-53908 Available to backorder	Gear D	£9.01 £7.51
36	COLJ260K-96025 Available to backorder	Bearing	£3.72 £3.10
37	COLJ260K-30014 Available to backorder	Snap Spring	£2.52 £2.10
38	COLJ260K-30015 Available to backorder	Snap Spring	£2.62 £2.18
39	COLJ260K-30016 Available to backorder	Needle Bearing	£2.40 £2.00
40	COLJ260K-53004 Available to backorder	Thrust Plate - Upper	£2.62 £2.18
41	COLJ260K-53007 Available to backorder	Fixed Pin	£2.52 £2.10
42	COLJ260K-53008 Available to backorder	Pin	£2.62 £2.18

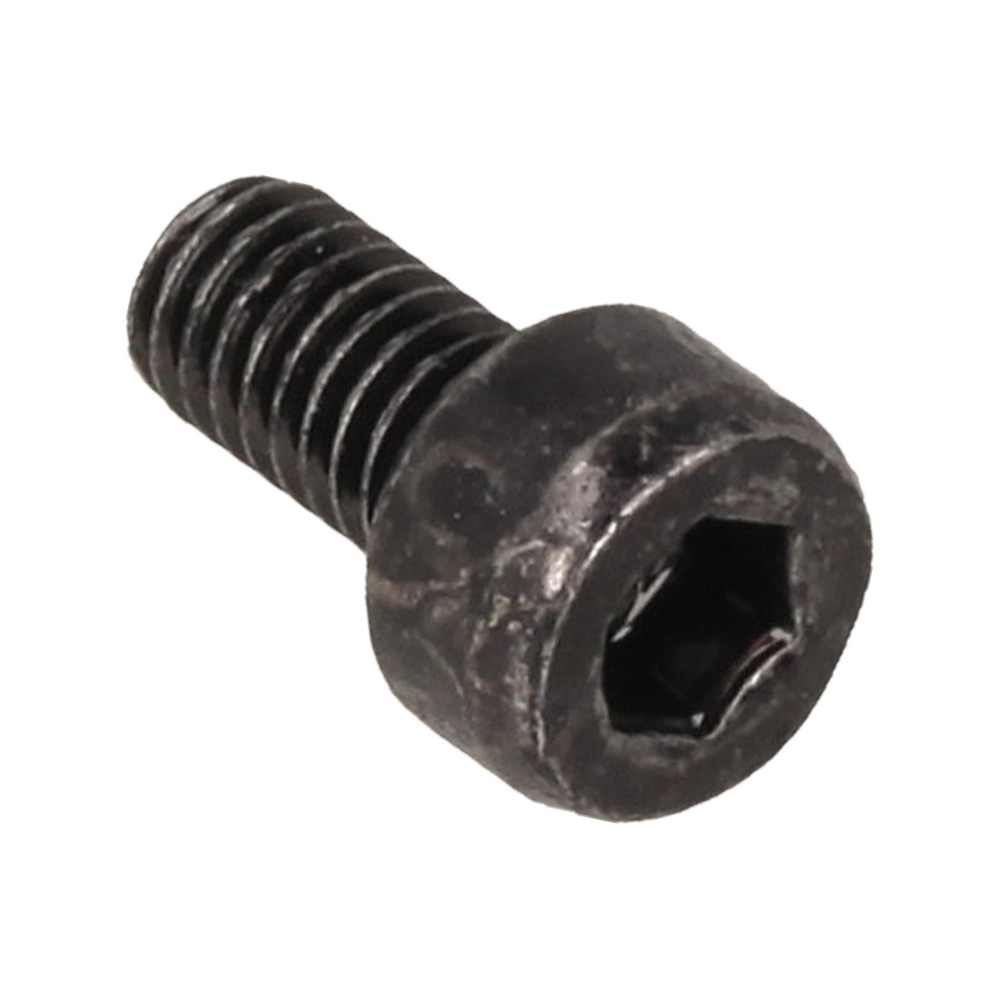

43	COLJ260K-90006 Available to backorder	Screw M4×8	£1.20 £1.00

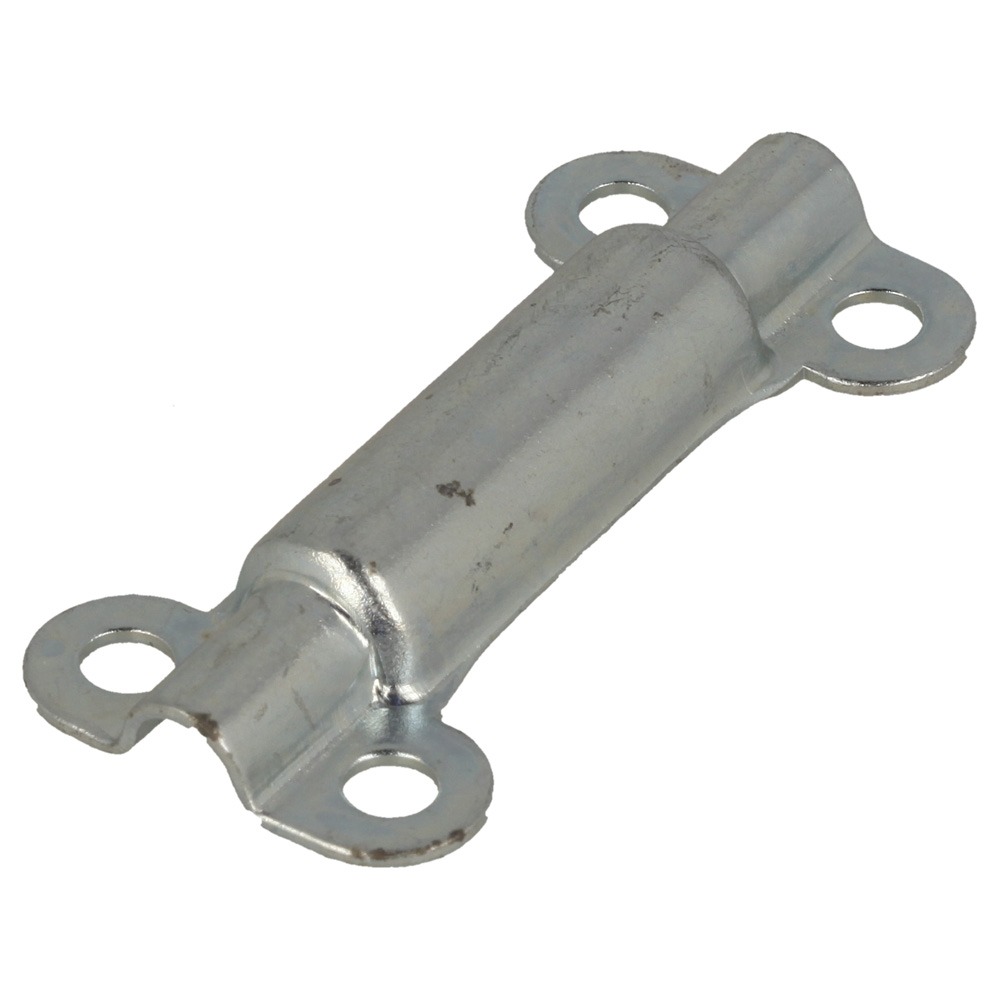

44	COLJ260K-47203 Available to backorder	Cover Plate	£2.52 £2.10
45	COLJ260K-47204 Available to backorder	Centre	£6.36 £5.30
46	COLJ260K-58603 Available to backorder	Spring A	£2.52 £2.10
48	COGC305.3B-93113 Available to backorder	Spring Washer	£2.52 £2.10
49	COYD4500-90122 Available to backorder	Screw M5×12	£1.26 £1.05

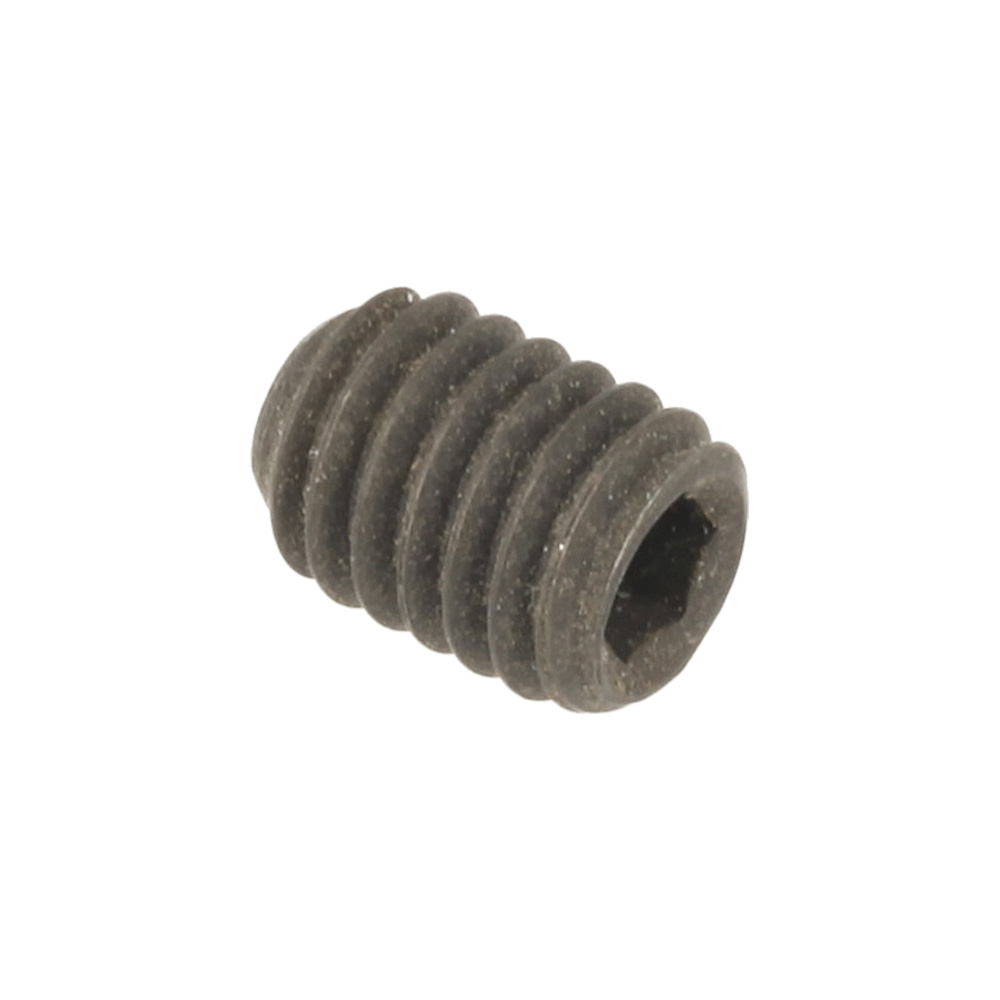

50	COLJ260K-90101 Available to backorder	Screw M6×8	£2.52 £2.10
51	COLJ260K-90010 Available to backorder	Screw M6×20	£2.52 £2.10

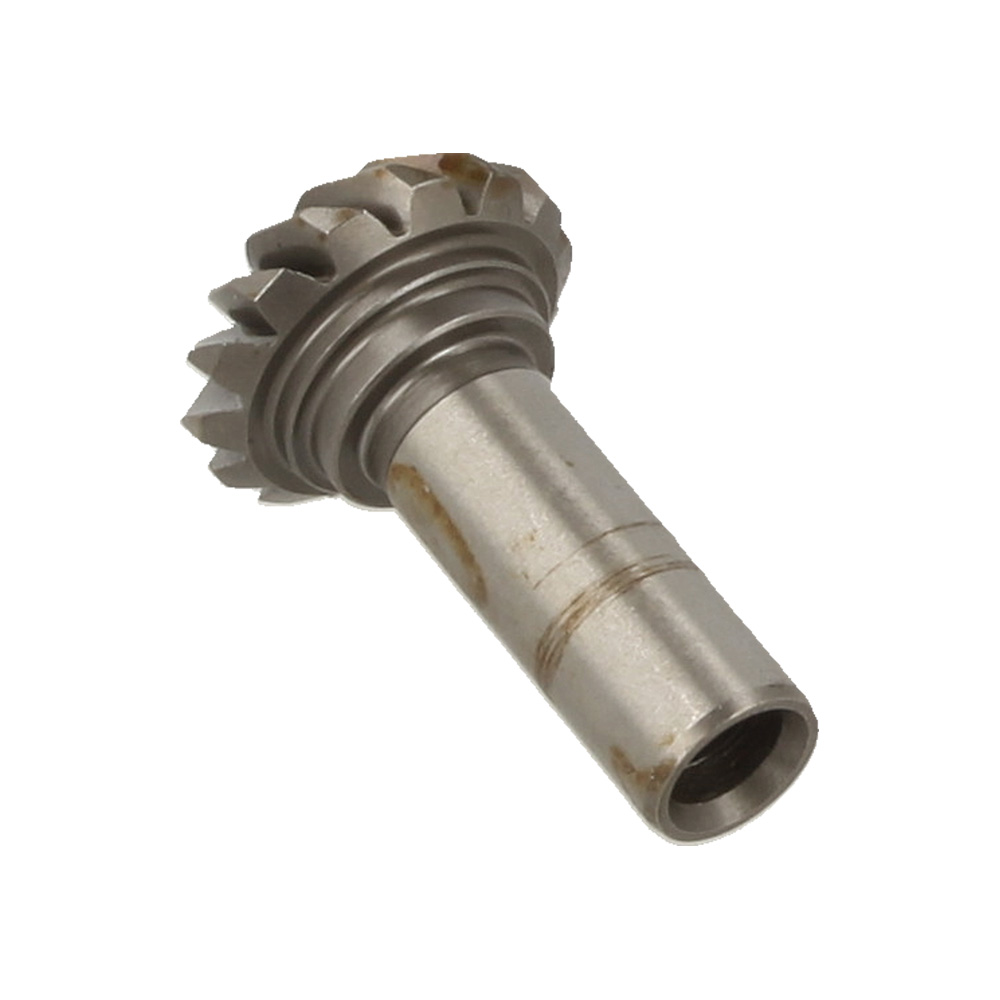

52	COLJ260K-47025 Available to backorder	Small Gear	£6.36 £5.30

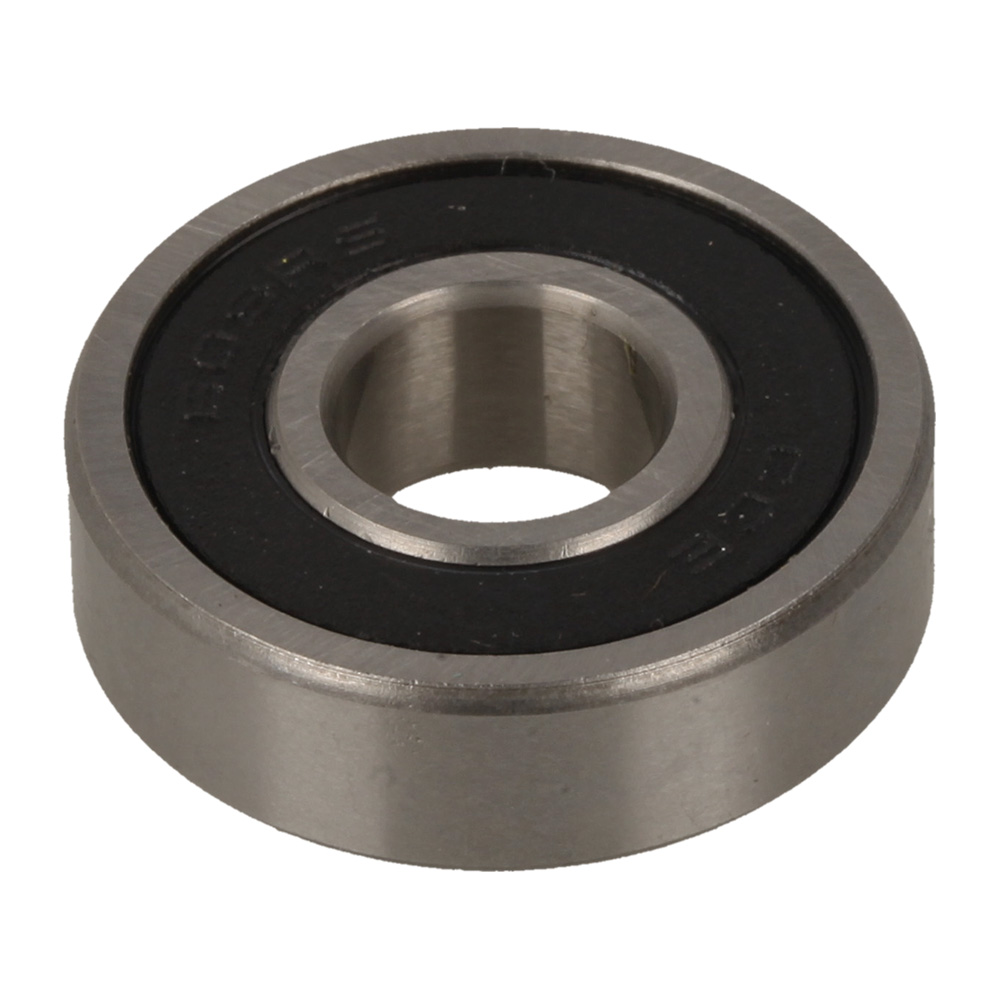

53	COLJ260K-96026 Available to backorder	Bearing	£2.40 £2.00

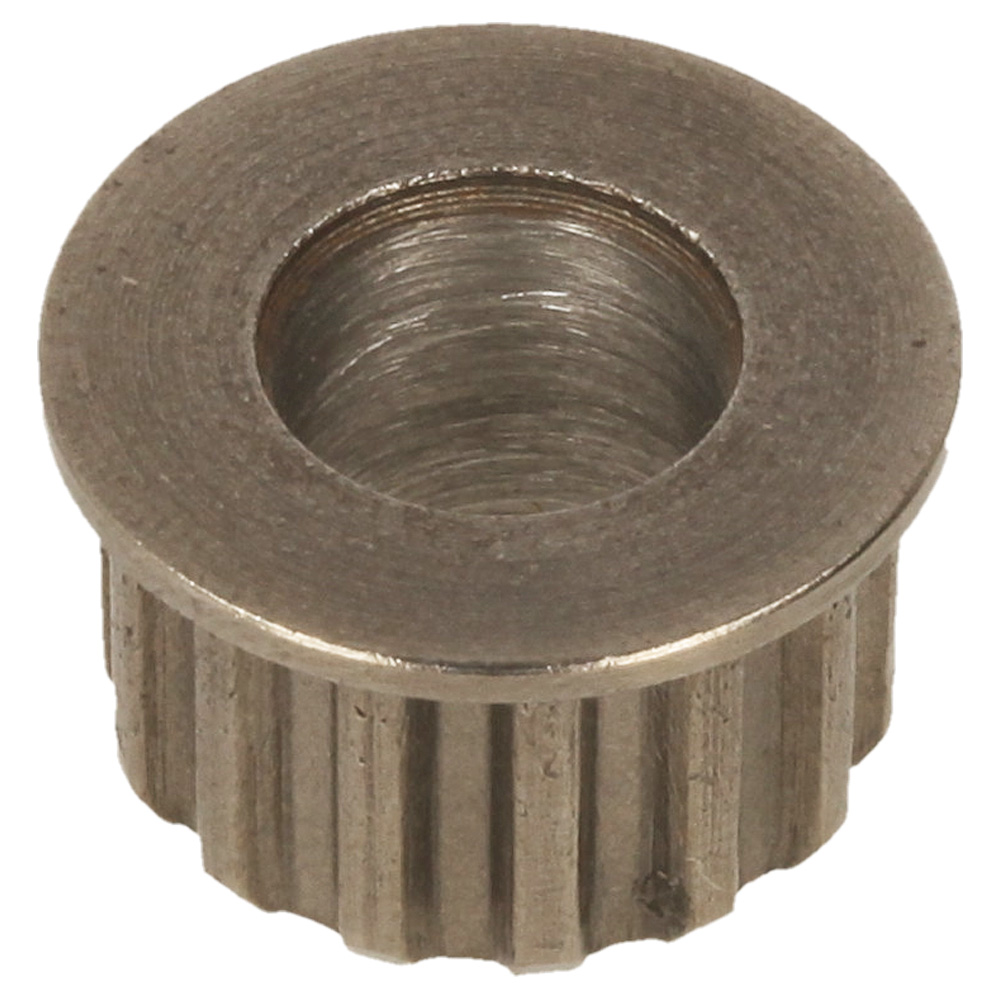

54	COLJ260K-47026 Available to backorder	Fixed Shaft	£10.21 £8.51

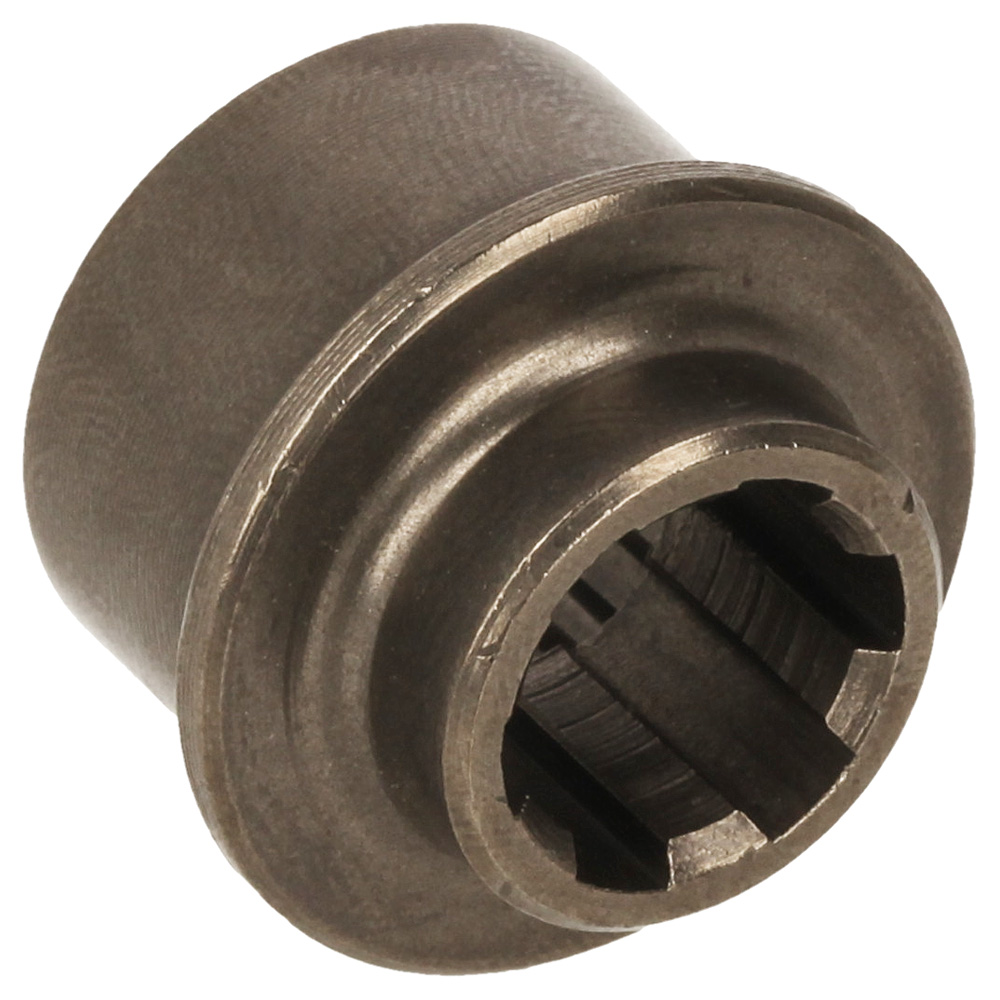

55	COLJ260K-47027 Available to backorder	Sliding Shaft	£17.24 £14.37
56	COLJ260K-47028 Available to backorder	Spring B	£2.52 £2.10

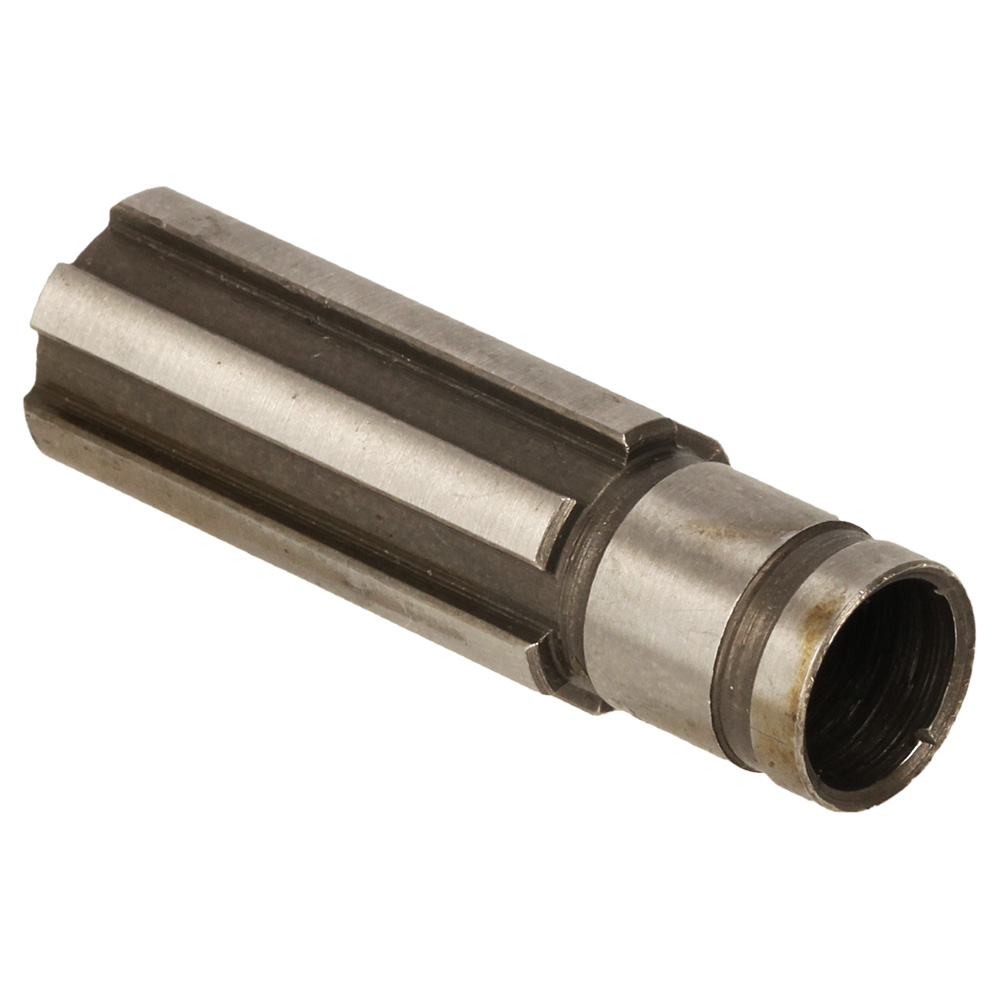

57	COLJ260K-47029 Available to backorder	Rotating Shaft	£8.52 £7.10
58	COLJ260K-47032 Available to backorder	Rotating Disk	£2.52 £2.10
59	COLJ260K-30022 Available to backorder	Bearing	£3.50 £2.92

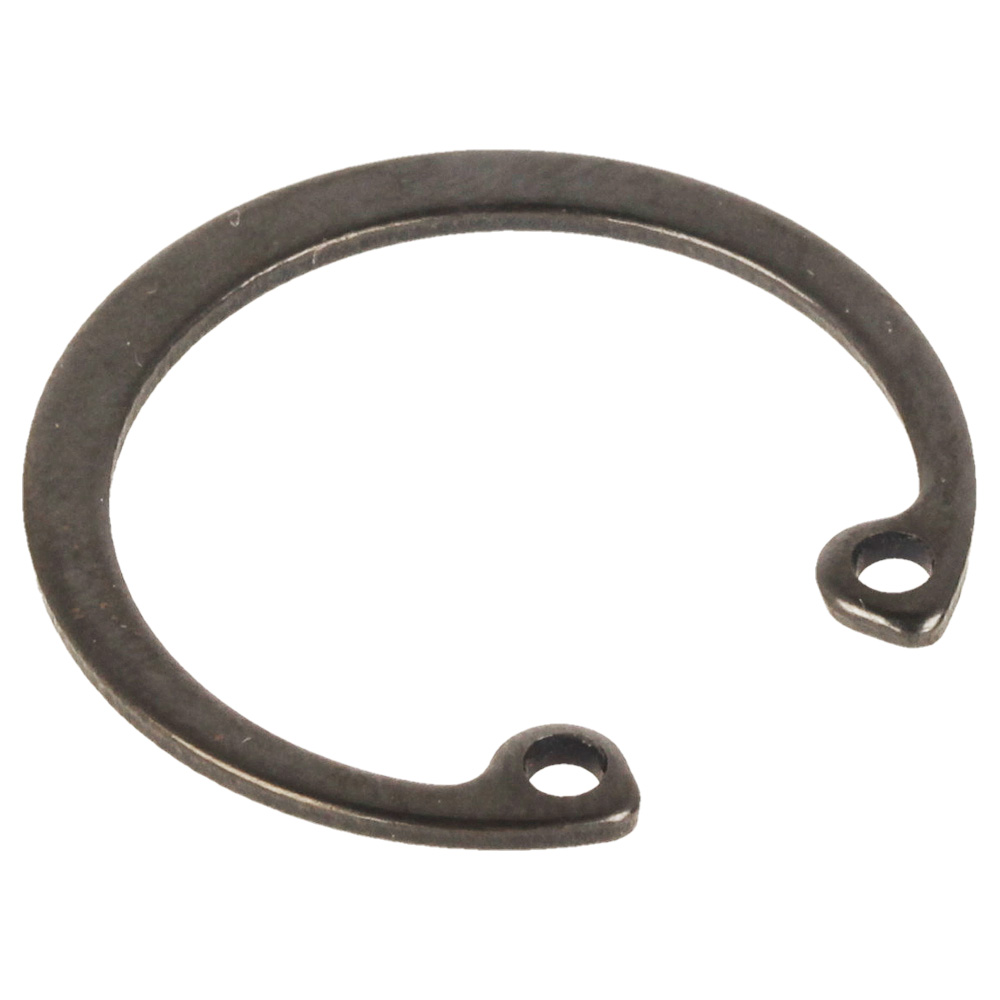

60	COLJ260K-30023 Available to backorder	Snap Spring	£1.44 £1.20
61	COLJ260K-30024 Available to backorder	Snap Spring	£1.26 £1.05
63	COLJ260K-53909 Available to backorder	Gear A	£10.48 £8.73
64	COLJ260K-53021 In stock	Connecting Rod	£8.28 £6.90
65	COLJ260K-53022 In stock	Needle Bearing	£5.28 £4.40
66	COLJ260K-47031 Available to backorder	Eccentric Wheel	£16.49 £13.74
67	COLJ260K-53005 Available to backorder	Thrust Plate - Lower	£2.40 £2.00
68	COLJ260K-58302 Available to backorder	Gasket	£2.40 £2.00
69	COLJ260K-53002 In stock	Seal Paper Washer	£2.40 £2.00
70	COLJ260K-53001 Available to backorder	Bottom Cover	£9.90 £8.25
71	COLJ260K-45194 Available to backorder	Screw M5×18	£2.40 £2.00
72	COGC305-90013 Available to backorder	Screw M5×30	£1.26 £1.05
74	COGC260-46092 Available to backorder	Round Rubber Cover	£3.76 £3.13
77	COLJ260K-47061 Available to backorder	Slide Switch	£3.50 £2.92
85	COLJ260K-47006 Available to backorder	Trigger	£3.76 £3.13
86	COLJ260K-47060 Available to backorder	Off Cable	£5.65 £4.71
89	COYD2500-92001 Available to backorder	Nut M5	£1.26 £1.05
90	COLJ260K-47030 Available to backorder	Adjuster	£4.14 £3.45
92	COYD3800-90024 In stock	Screw M6X20	£1.20 £1.00
93	COGC260-22121 Available to backorder	Clutch Drum	£6.02 £5.02
95	COGC305-96019 Available to backorder	Ball Bearing	£2.52 £2.10
96	COGC305-93217 Available to backorder	Circlip	£2.52 £2.10
97	COGC260.3-44324 Available to backorder	Clutch House	£5.15 £4.29
98	COGC305-44323.2 Available to backorder	Upper - Clamp	£4.90 £4.08
99	COGC415-44327 Available to backorder	Lower - Clamp	£4.90 £4.08
