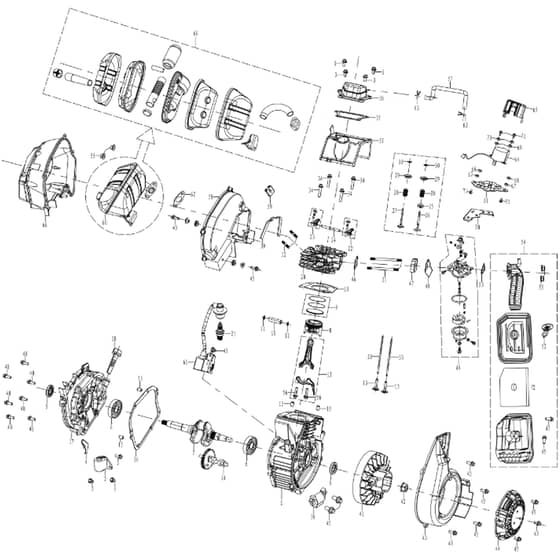

Cobra IG20si - Generator Engine Diagram

Ref. Img. Part No. Details
  2 Switch Assembly Oil Level
Switch Assembly Oil Level
CO92036000100 Out of stock
Switch Assembly Oil Level
£18.23 £15.19

  3 Bolt M6X12
Bolt M6X12
CO70100006000 Out of stock
Bolt M6X12
£1.26 £1.05

  5 Oil Seal
Oil Seal
CO71000000100 Out of stock
Oil Seal
£3.76 £3.13

  6 Ball Bearing
Ball Bearing
CO70900000100 Out of stock
Ball Bearing
£4.87 £4.06

  7 Crankshaft
Crankshaft
CO92035000300 Out of stock
Crankshaft
£42.55 £35.46

  8 Piston
Piston
CO92035000400 Out of stock
Piston
£9.72 £8.10

  9 Scraper Ring Set Piston
Scraper Ring Set Piston
CO92035000500 Out of stock
Scraper Ring Set Piston
£8.51 £7.09

  10 Pin Piston
Pin Piston
CO92035000600 Out of stock
Pin Piston
£1.26 £1.05

  11 Clip Piston
Clip Piston
CO92005002000 Out of stock
Clip Piston
£1.26 £1.05

  12 Rod Assembly Connecting
Rod Assembly Connecting
CO92035000700 Out of stock
Rod Assembly Connecting
£9.29 £7.74

  13 Lifter Valve
Lifter Valve
CO92035000800 Out of stock
Lifter Valve
£2.52 £2.10

  14 Camshaft Assembly
Camshaft Assembly
CO92035000900 Out of stock
Camshaft Assembly
£21.11 £17.59

  15 Crankcase Pin Dowel
Crankcase Pin Dowel
CO70400000401 Out of stock
Crankcase Pin Dowel
£1.26 £1.05

  16 Gasket Mould Assembling
Gasket Mould Assembling
CO92037000100 Out of stock
Gasket Mould Assembling
£2.88 £2.40

  17 Cover Assembly Crankcase
Cover Assembly Crankcase
CO92035001000 Out of stock
Cover Assembly Crankcase
£38.35 £31.96

  18 Dipstick
Dipstick
CO92033000100 Out of stock
Dipstick
£2.52 £2.10

  19 Gasket Cylinder Head
Gasket Cylinder Head
CO92037000200 Out of stock
Gasket Cylinder Head
£3.11 £2.59

  20 Cylinder Head
Cylinder Head
CO92035001100 Out of stock
Cylinder Head
£39.78 £33.15

  22 Inlet Valve Rocker Assy
Inlet Valve Rocker Assy
CO92035001300 Out of stock
Inlet Valve Rocker Assy
£5.52 £4.60

  23 Exhaust Valve Rocker Assy
Exhaust Valve Rocker Assy
CO92035001200 Out of stock
Exhaust Valve Rocker Assy
£5.52 £4.60

  24 Rockshaft
Rockshaft
CO92035001400 Out of stock
Rockshaft
£1.26 £1.05

  25 Inlet Valve Spring Seat
Inlet Valve Spring Seat
CO92035001500 Out of stock
Inlet Valve Spring Seat
£2.52 £2.10

  26 Valve In
Valve In
CO92035001600 Out of stock
Valve In
£3.64 £3.03

  27 Valve Exhaust
Valve Exhaust
CO92035001700 Out of stock
Valve Exhaust
£5.76 £4.80

  28 Spring Valve
Spring Valve
CO92035001800 Out of stock
Spring Valve
£1.26 £1.05

  29 Seat Valve Spring In
Seat Valve Spring In
CO92035001900 Out of stock
Seat Valve Spring In
£1.26 £1.05

  30 Valve Lock Clamp
Valve Lock Clamp
CO92035002000 Out of stock
Valve Lock Clamp
£1.26 £1.05

  31 Bolt Stud
Bolt Stud
CO70100002400 Out of stock
Bolt Stud
£0.78 £0.65

  32 Bolt Stud
Bolt Stud
CO70100007400 Out of stock
Bolt Stud
£1.26 £1.05

  33 Rod Push
Rod Push
CO92035002100 Out of stock
Rod Push
£1.26 £1.05

  34 Bolt M6X50
Bolt M6X50
CO70100007500 Out of stock
Bolt M6X50
£1.26 £1.05

  35 Packing Headcover
Packing Headcover
CO92034000100 Out of stock
Packing Headcover
£2.52 £2.10

  36 Cover Comp Cylinder Head
Cover Comp Cylinder Head
CO92035002200 Out of stock
Cover Comp Cylinder Head
£5.09 £4.24

  37 Shroud
Shroud
CO92033000200 Out of stock
Shroud
£5.52 £4.60

  38 Magneto Ignition
Magneto Ignition
CO92036000200 Out of stock
Magneto Ignition
£19.55 £16.29

  39 Stripper Rubber
Stripper Rubber
CO92034000200 Out of stock
Stripper Rubber
£2.52 £2.10

  40 Bolt M6X20
Bolt M6X20
CO70100007600 Out of stock
Bolt M6X20
£1.26 £1.05

  41 Flywheel
Flywheel
CO92035002300 Out of stock
Flywheel
£49.28 £41.07

  42 Nut Flywheel M12
Nut Flywheel M12
CO70200000400 Out of stock
Nut Flywheel M12
£1.26 £1.05

  43 Recoil Starter Cover
Recoil Starter Cover
CO92033000300 Out of stock
Recoil Starter Cover
£14.59 £12.16

  44 Recoil Starter
Recoil Starter
CO92033000400 Out of stock
Recoil Starter
£21.22 £17.68

  45 Bolt M6X16
Bolt M6X16
CO70100007300 Out of stock
Bolt M6X16
£1.26 £1.05

  46 Gasket Connection Block
Gasket Connection Block
CO92037000300 Out of stock
Gasket Connection Block
£1.26 £1.05

  47 Thermal Insulation Carburator
Thermal Insulation Carburator
CO92033000500 Out of stock
Thermal Insulation Carburator
£2.52 £2.10

  48 Paper Washer Carburator
Paper Washer Carburator
CO92037000400 Out of stock
Paper Washer Carburator
£1.26 £1.05

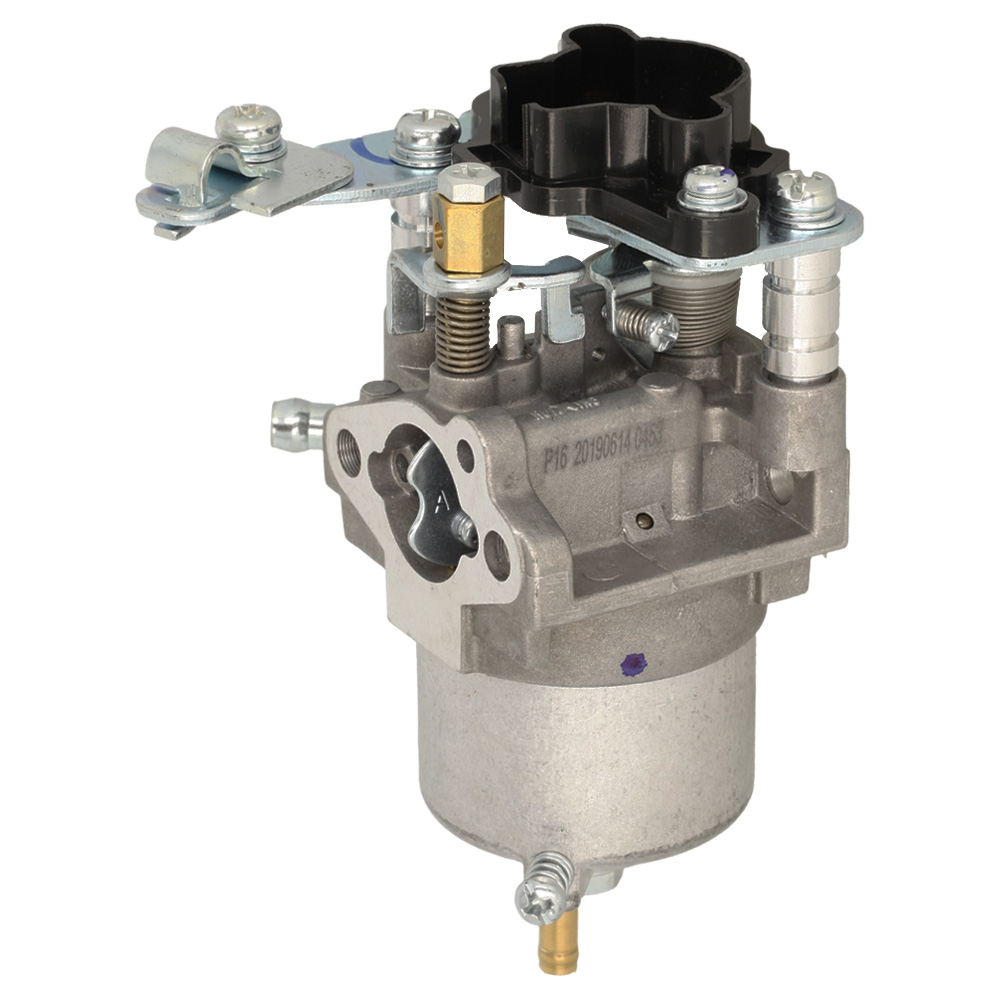

  49 Carburetor Assembly
Carburetor Assembly
CO92035002400 Out of stock
Carburetor Assembly
£46.08 £38.40

  50 Bracket Stepper Motor
Bracket Stepper Motor
CO92035002500 Out of stock
Bracket Stepper Motor
£3.11 £2.59

  51 Stepper Motor Protection
Stepper Motor Protection
CO92033000600 Out of stock
Stepper Motor Protection
£1.26 £1.05

  52 Cross-Head Screw M5X12
Cross-Head Screw M5X12
CO70300001600 Out of stock
Cross-Head Screw M5X12
£1.26 £1.05

  53 Gasket Air Cleaner
Gasket Air Cleaner
CO92037000500 Out of stock
Gasket Air Cleaner
£1.26 £1.05

  54 Air Cleaner Assembly
Air Cleaner Assembly
CO92033000700 Out of stock
Air Cleaner Assembly
£14.47 £12.06

  55 Nut M6
Nut M6
CO70200002100 Out of stock
Nut M6
£1.26 £1.05

  56 Bolt M6X25
Bolt M6X25
CO70100006400 Out of stock
Bolt M6X25
£1.26 £1.05

  57 Tube Breather
Tube Breather
CO92034000300 Out of stock
Tube Breather
£1.26 £1.05

  58 Muffler Cover2
Muffler Cover2
CO92033000800 Out of stock
Muffler Cover2
£13.25 £11.04

  59 Clip Muffler Cover
Clip Muffler Cover
CO92035002600 Out of stock
Clip Muffler Cover
£1.26 £1.05

  60 Muffler Assy
Muffler Assy
CO92035002700 Out of stock
Muffler Assy
£51.01 £42.51

  61 Ignition Coil
Ignition Coil
CO80880000030 Out of stock
Ignition Coil
£42.44 £35.37

  62 Gasket Exhaust
Gasket Exhaust
CO92037000600 Out of stock
Gasket Exhaust
£1.26 £1.05

  63 Clip Breather Tube
Clip Breather Tube
CO61015001600 Out of stock
Clip Breather Tube
£1.26 £1.05

  64 Stepper Motor
Stepper Motor
CO91006000100 Out of stock
Stepper Motor
£14.47 £12.06

  65 Stepper Motor Protective Cover
Stepper Motor Protective Cover
CO92033000900 Out of stock
Stepper Motor Protective Cover
£1.26 £1.05

  66 Muffler Cover1
Muffler Cover1
CO92033001000 Out of stock
Muffler Cover1
£11.62 £9.68

  72 Air Cleaner Element
Air Cleaner Element
CO92027000900 Out of stock
Air Cleaner Element
£3.16 £2.63


Description

Cobra IG20si Generator Parts Diagram
