Cobra IG10si - Generator Engine Diagram

Name: Cobra IG10si - Generator Engine Diagram
SKU: ig10si_generator_engine-group
Price: 1.03 GBP
Availability: InStock

Part No. ig10si_generator_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

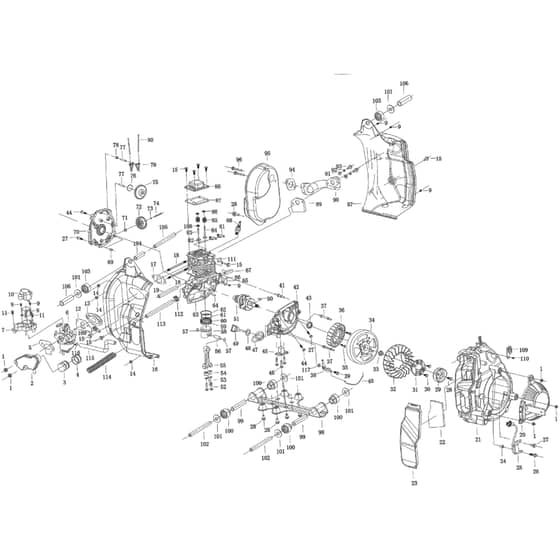

Cobra IG10si Generator Parts Diagram

	Part No.	Details
1	CO70200001300 Available to backorder	Nut	£1.24 £1.03
2	CO91003000100 Available to backorder	Air Filter Bend Pipe	£4.57 £3.81
3	CO91004000100 Available to backorder	Air Filter Breather Tube	£1.24 £1.03
4	CO91005000100 Available to backorder	Snap Ring	£1.24 £1.03
5	CO91007000100 Available to backorder	Air Filter Gasket	£1.24 £1.03
6	CO91005000200 Available to backorder	Carburetor	£39.25 £32.71
7	CO91003000200 Available to backorder	The Lower Part Of The Shell	£2.48 £2.07
8	CO91006000100 Available to backorder	Stepper Motor	£14.26 £11.88
9	CO70300004600 Available to backorder	Screw Assembly	£1.24 £1.03
10	CO91003000300 Available to backorder	Top Half Shell	£1.24 £1.03
11	CO70300004500 Available to backorder	Screw Assembly	£1.24 £1.03
12	CO91007000200 Available to backorder	Carburetor Gasket	£1.24 £1.03
13	CO91003000400 Available to backorder	Intake Pipe	£1.24 £1.03
14	CO70200001500 Available to backorder	Nut	£1.24 £1.03
16	CO61015000300 Available to backorder	Left Air Duct Shield	£10.94 £9.12
17	CO91007000300 Available to backorder	Intake Pipe Gasket	£1.24 £1.03
18	CO70100002600 Available to backorder	Stud	£1.32 £1.10
19	CO91004000200 Available to backorder	Oil-Proof Rubber Tubes	£6.20 £5.17
20	CO91003000500 Available to backorder	Starter	£25.55 £21.29
21	CO91003000600 Available to backorder	Magnetor Shield	£27.40 £22.83
22	CO91007000400 Available to backorder	Filter Element	£2.48 £2.07
23	CO91003000700 Available to backorder	Air Filter Shield	£3.49 £2.91
24	CO91005000400 Available to backorder	Support Column	£1.24 £1.03
25	CO91006000600 Available to backorder	Ignition Coil	£27.40 £22.83
26	CO70100002700 Available to backorder	Screw Assembly	£1.24 £1.03
27	CO70100002800 Available to backorder	Screw Assembly	£1.24 £1.03
28	CO70100002900 Available to backorder	Screw Assembly	£1.24 £1.03
29	CO91005000500 Available to backorder	Starter Ratchet	£3.19 £2.66
30	CO70100003000 Available to backorder	Screw Assembly	£1.24 £1.03
31	CO91005000600 Available to backorder	Starter Support	£5.48 £4.57
32	CO91003000900 Available to backorder	Impeller	£8.54 £7.12
33	CO70200001600 Available to backorder	Nut	£1.24 £1.03
34	CO61011000200 Available to backorder	Rotor Assembly	£47.46 £39.55
36	CO61071000200 Available to backorder	Stator Assembly	£55.78 £46.48
37	CO70100003100 Available to backorder	Screw Assembly	£1.24 £1.03
38	CO91006000200 Available to backorder	Trigger Group	£12.77 £10.64
39	CO70100003200 Available to backorder	Bolt	£1.24 £1.03
40	CO91006000300 Available to backorder	Trigger Cable	£1.24 £1.03
41	CO70100003300 Available to backorder	Screw	£1.24 £1.03
42	CO91005000700 Available to backorder	Lower Housing	£55.39 £46.16
43	CO71000000300 Available to backorder	Oil Seal	£2.48 £2.07
44	CO70100002500 Available to backorder	Screws Assembly	£1.24 £1.03
45	CO91006000400 Available to backorder	Oil Level Sensor Assembly	£5.57 £4.64
46	CO70100003800 Available to backorder	Screws Assembly	£1.24 £1.03
47	CO91004000300 Available to backorder	Oil Seal Seat	£7.76 £6.47
48	CO71000000400 Available to backorder	Seal Ring	£1.24 £1.03
49	CO91003000800 Available to backorder	Oil Level Dipstick	£1.24 £1.03
51	CO91005000800 Available to backorder	Crankshaft Assembly	£37.24 £31.03
52	CO91005005000 Available to backorder	Linkage Combined	£35.34 £29.45
54	CO91005004900 Available to backorder	Tubing Clamp	£1.24 £1.03
56	CO91005001200 Available to backorder	Piston Ring	£4.78 £3.98
57	CO91005001300 Available to backorder	Piston Pin Baffle Ring	£1.24 £1.03
58	CO91005001400 Available to backorder	Piston	£5.06 £4.22
59	CO91005001500 Available to backorder	Ring	£6.97 £5.81
60	CO91005004700 Available to backorder	Elastic Hoop	£1.24 £1.03
61	CO91004000500 Available to backorder	Oil-Proof Rubber Tubes	£3.14 £2.62
65	CO91005001700 Available to backorder	Leaf Valve Plate Pinch	£1.24 £1.03
66	CO91005001800 Available to backorder	Leaf Valve	£1.24 £1.03
67	CO91005001900 Available to backorder	Oil-Gas Separator Block	£1.24 £1.03
69	CO70400000401 Available to backorder	Locating Pin	£1.24 £1.03
70	CO91005002000 Available to backorder	Side Gland	£11.60 £9.67
71	CO70600002501 Available to backorder	Gear Gasket	£1.24 £1.03
72	CO91005002100 Available to backorder	Governor Gear	£5.74 £4.78
73	CO70600003000 Available to backorder	Governor Ring	£1.24 £1.03
74	CO91005002200 Available to backorder	Gear Pin	£1.24 £1.03
75	CO91005002300 Available to backorder	Cam Wheel	£7.76 £6.47
76	CO91005002400 Available to backorder	Anti-Attrition Gasket	£1.24 £1.03
77	CO91005002500 Available to backorder	Pin Shaft	£1.24 £1.03
78	CO91005002600 Available to backorder	Clamp Sleeve	£1.24 £1.03
79	CO91005002700 Available to backorder	Low Rocker Arm	£2.48 £2.07
80	CO91005002800 Available to backorder	Push Rod	£2.48 £2.07
81	CO91005002900 Available to backorder	Rocker Arm Assembly	£2.48 £2.07
82	CO91005003000 Available to backorder	Rocker Arm Shaft	£1.24 £1.03
83	CO91005003100 Available to backorder	Intake Valve	£3.25 £2.71
84	CO91005003200 Available to backorder	Exhuast Valve	£3.25 £2.71
85	CO91005003300 Available to backorder	Valve Spring	£1.24 £1.03
86	CO91005003400 Available to backorder	Valve Spring Seat	£1.24 £1.03
87	CO91007000500 Available to backorder	Cylinder Head Cover Gasket	£1.24 £1.03
88	CO91005003500 Available to backorder	Cylinder Head Shield	£2.48 £2.07
89	CO91007000600 Available to backorder	Exhuast Gasket	£1.24 £1.03
90	CO91005003600 Available to backorder	Exhaust Pipe	£7.43 £6.19
91	CO70600002800 Available to backorder	Gasket	£1.24 £1.03
92	CO70600002900 Available to backorder	Spring Gasket	£1.24 £1.03
93	CO70300004800 Available to backorder	Screws	£1.24 £1.03
94	CO91007000700 Available to backorder	Muffler Assembly Mat	£1.24 £1.03
95	CO91005003700 Available to backorder	Muffler Assembly	£15.79 £13.16
96	CO70300004900 Available to backorder	Screws Assembly	£1.24 £1.03
97	CO61015000200 Available to backorder	Right Air Duct Shield	£10.94 £9.12
98	CO91005003900 Available to backorder	Bottom Support	£6.97 £5.81
99	CO91005004000 Available to backorder	Casing	£1.24 £1.03
100	CO91004000400 Available to backorder	Rubber Plug	£1.24 £1.03
101	CO70600000101 Available to backorder	Gasket	£1.24 £1.03
102	CO91005004100 Available to backorder	Support Sleeve	£1.24 £1.03
103	CO91004000600 Available to backorder	Clamping Rubber Plug	£2.48 £2.07
104	CO91005004200 Available to backorder	Upper Support Sleeve	£2.48 £2.07
105	CO91005004300 Available to backorder	Upper Support Column	£1.24 £1.03
106	CO91005004400 Available to backorder	Upper Support Sleeve	£2.48 £2.07
108	CO71000000200 Available to backorder	Intake Valve Oil Gasket	£1.24 £1.03
109	CO91005004500 Available to backorder	Ignition Cable Clip	£1.24 £1.03
110	CO70300005000 Available to backorder	Screw	£1.24 £1.03
111	CO91005004600 Available to backorder	Spark Plug Protecting Spring	£1.24 £1.03
112	CO9100500470 Available to backorder	Elastic Loop	£1.24 £1.03
113	CO9100400050 Available to backorder	Oil Proof Rubber Tubes	£1.24 £1.03
114	CO91005004800 Available to backorder	Air Tube Protecting Spring	£2.65 £2.21
115	CO61014000300 Available to backorder	Fuel Pipe	£1.24 £1.03
116	CO9100500490 Available to backorder	Tubing Clamp	£1.24 £1.03
117	CO70600000500 Available to backorder	Gasket	£1.24 £1.03
