Cobra HS23 - Hand Spreader Main Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra HS23 - Hand Spreader Main Diagram

Cobra HS23 - Hand Spreader Main Diagram

Description

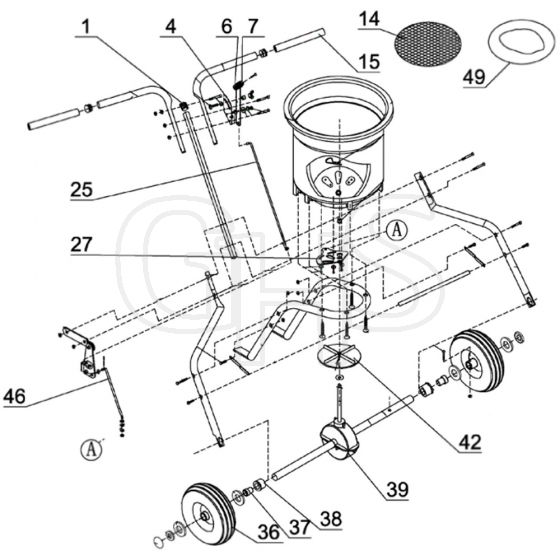

Cobra HS23 Hand Spreader Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		CON570-00012-000 Available to backorder	Handle Spacer		£4.22 £3.52
	4		CON570-10000-000 Available to backorder	Gauge & Lever Assembly		£4.85 £4.04
	6		CON570-00014-000 Available to backorder	Adjust Handle A		£4.22 £3.52
	7		CON570-00015-000 Available to backorder	Adjust Handle B		£4.22 £3.52
	14		CON570-00016-000 Available to backorder	Screen		£14.53 £12.11
	15		CON570-00009-000 Available to backorder	Handle Cover		£4.22 £3.52

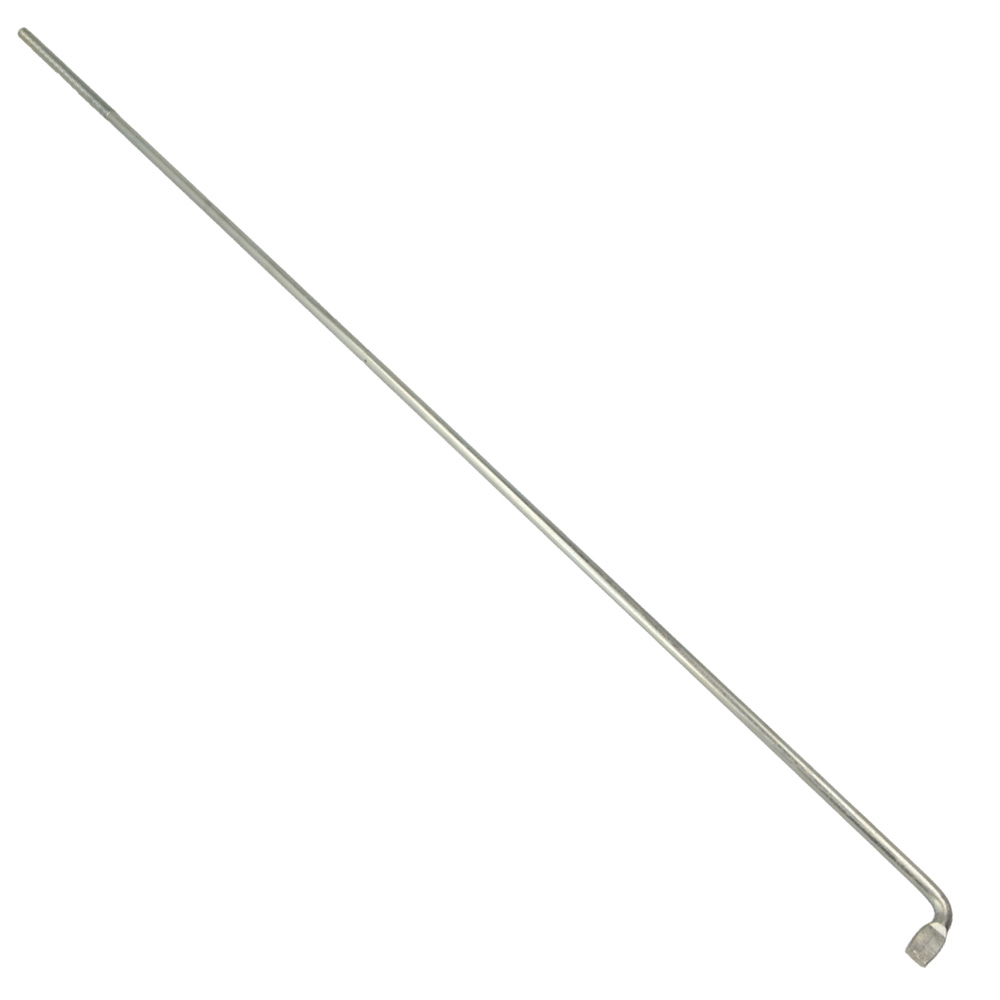

	25		CON570-00003-000 Available to backorder	Control Rod A		£9.48 £7.90
	27		CON570-00023-000 Available to backorder	Shut Off Plate		£11.64 £9.70
	36		CON570-00020-000 Available to backorder	Pneumatic Wheel		£23.27 £19.39
	37		CON570-00018-000 Available to backorder	Inner Axle Bushing		£4.22 £3.52
	38		CON570-00011-000 Available to backorder	Outer Axle Bushing		£4.22 £3.52

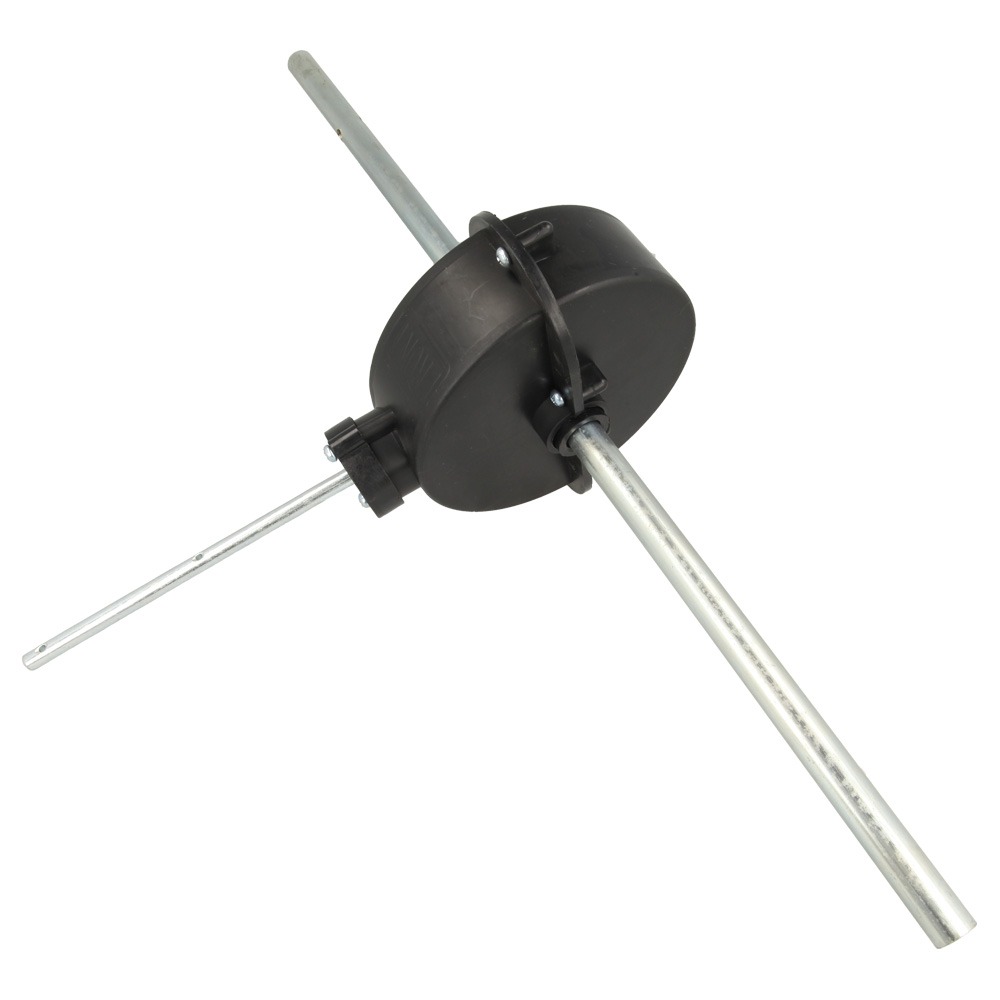

	39		CON578-01000-000 Available to backorder	Gear Box & Axle Assemble		£32.30 £26.92
	42		CON510-00003-000 Available to backorder	Impeller		£9.68 £8.07
	46		CON570-00004-000 Available to backorder	Adjust Connect Rod B		£9.68 £8.07
	49		CON570-00022-000 Available to backorder	Rain Cover		£14.53 £12.11
