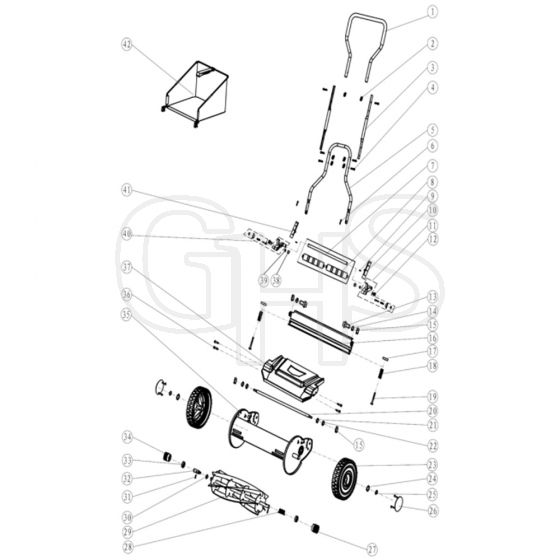

Cobra HM381 Cylinder Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO104001130064-01 Available to backorder	Top Handle	£7.16 £5.97
2	CO102002120000-01 Available to backorder	S-Type Knob	£2.52 £2.10
3	CO104001052064-01 Available to backorder	Middle Handle	£7.96 £6.63
4	COGB/T12 M6X35 Available to backorder	Cup Head Square Neck Bolt	£2.52 £2.10
5	CO104001053064-01 Available to backorder	Lower Handle	£7.96 £6.63
6	CO1040010770003-01 Available to backorder	R-Type Quick Release Pin	£1.26 £1.05
7	CO101019039006-01 Available to backorder	Roller Shaft	£2.80 £2.33
8	CO101019036000-01 Available to backorder	Roller	£6.36 £5.30
9	COGB/T845-ST4.2X8 Available to backorder	Tapping Screw	£1.26 £1.05
10	CO101019079000-01 Available to backorder	Cutting Height Indicator (L)	£2.80 £2.33
11	CO101019170000-01 Available to backorder	Roller Bracket (L)	£5.57 £4.64
12	CO21040820202-01 Available to backorder	High Step Bolt	£3.19 £2.66
13	CO21040820182-01 Available to backorder	Cutting Blade Step Bolt	£3.19 £2.66
14	COGB/T93-8 Available to backorder	Spring Washer	£1.26 £1.05
15	COGB/T41-M8 Available to backorder	Nut M8	£1.26 £1.05
16	CO101019018098-01 Available to backorder	Cutting Blade	£19.88 £16.57
17	CO101019058003-01 Available to backorder	Square Nut	£1.60 £1.33
18	CO26114030352-01 Available to backorder	Blade Adjustment Spring	£2.54 £2.12
19	COGB/T70.2-M6X50 Available to backorder	Adjustment Bolt	£1.60 £1.33
20	CO101019031000-01 Available to backorder	Panel Rod	£4.76 £3.97
21	CO23012008152-01 Available to backorder	Washer	£1.26 £1.05
22	CO23012008102-01 Available to backorder	Washer	£1.26 £1.05
23	CO101005022000-01 Available to backorder	Wheel	£14.33 £11.94
24	CO23013420082-01 Available to backorder	Shaft Adjustment Washer	£1.26 £1.05
25	COGB/T894.1-19 Available to backorder	C-Clip	£1.26 £1.05
26	CO101014024000-01 Available to backorder	Wheel Cap	£3.19 £2.66
27	CO101052005000-01 Available to backorder	Gear (L)	£3.12 £2.60
28	CO26119020382-01 Available to backorder	Spring	£1.60 £1.33
30	COGB/T894.1-15 Available to backorder	C-Clip	£1.26 £1.05

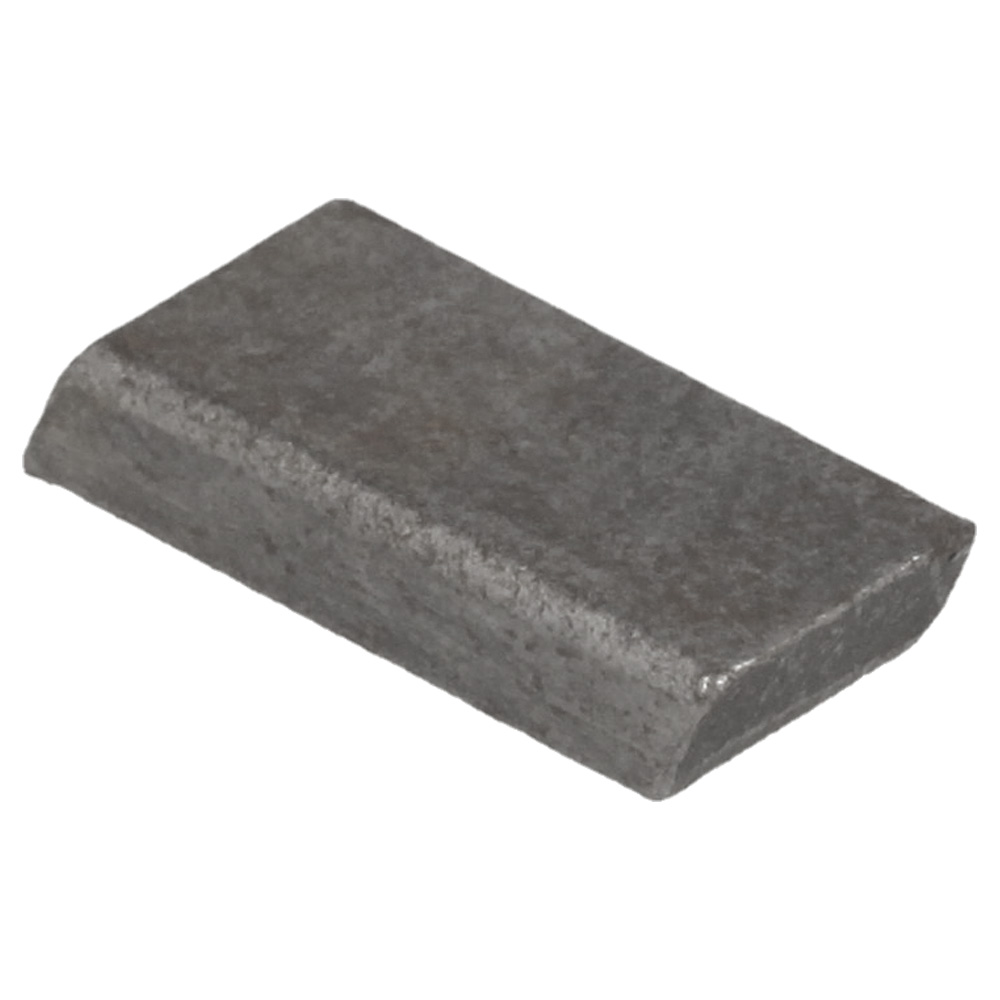

31	CO101005008000-01 Available to backorder	Pin	£1.82 £1.52
32	CO101005004000-01 Available to backorder	Connector To Shaft	£4.00 £3.33
33	CO6902Z Available to backorder	Bearing	£4.00 £3.33
34	CO101052006000-01 Available to backorder	Gear (R)	£3.12 £2.60
36	COGB/T9074.5-M4X10 Available to backorder	Pan Head Cross Screw	£1.28 £1.07
37	CO123001081000-01 Available to backorder	Panel	£12.73 £10.61
38	COGB/T6172.2-M8 Available to backorder	Nut M8	£1.26 £1.05
39	CO23011708122-01 Available to backorder	Washer	£1.26 £1.05
40	CO101019180000-01 Available to backorder	Roller Bracket (R)	£4.76 £3.97
41	CO101019057000-01 Available to backorder	Cuting Height Indicator (R)	£2.80 £2.33

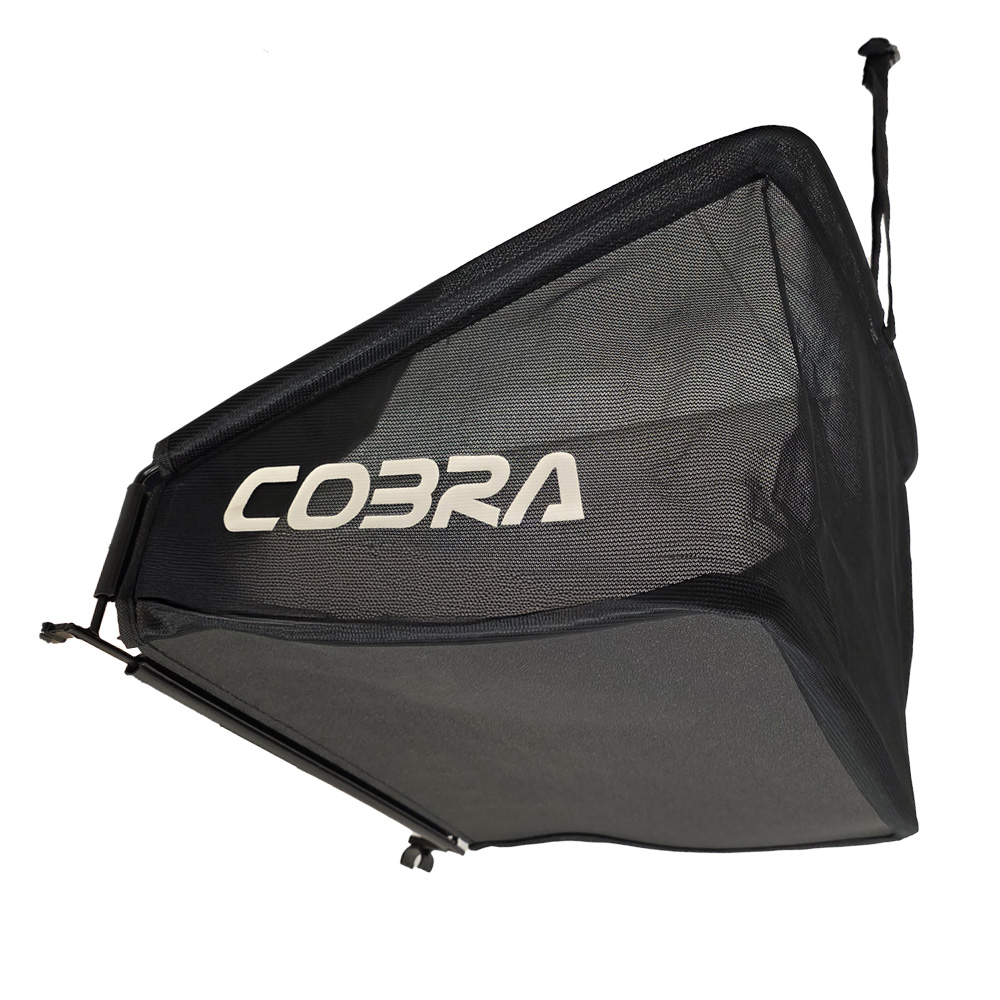

42	CO101019190000-01 Available to backorder	Grass Bag	£20.69 £17.24
43	COHM381HANDLEASSEM Available to backorder	Handle Assembly Set	£26.99 £22.49
