Cobra H5024V - Hedge Trimmer Main Diagram

Description

Cobra H50-24V Hedge Trimmer Parts Diagram

	Part No.	Details
1	COQ0J5K26AZA7 Available to backorder	Right Cover	£4.14 £3.45
2	COQ0J5T91AH01 Available to backorder	Button	£2.52 £2.10
4	COA0J54320002R Available to backorder	Battery Pack Connecting Seat	£3.32 £2.77
7	COQ0J58850B11 Available to backorder	Protect	£8.29 £6.91
8	COQ0J5C950B21R Available to backorder	Blade Sheath	£11.28 £9.40
9	COJ5200000003R Available to backorder	Blade Steady Bar	£16.60 £13.83
10	COJ5210000004R Available to backorder	Blade Support Bar	£9.94 £8.28
11	COJ2420000140R Available to backorder	Blade Assy	£22.79 £18.99

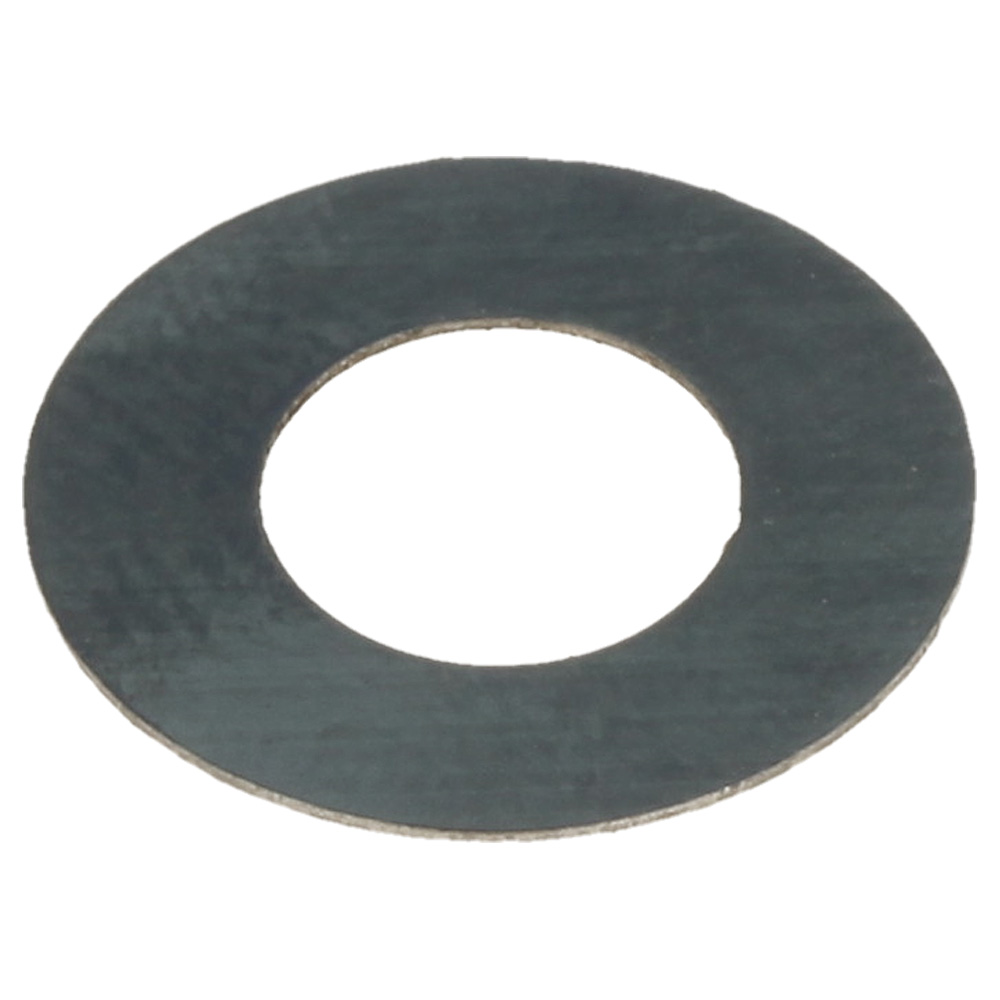

12	COJ0200000300R Available to backorder	Washer	£1.20 £1.00

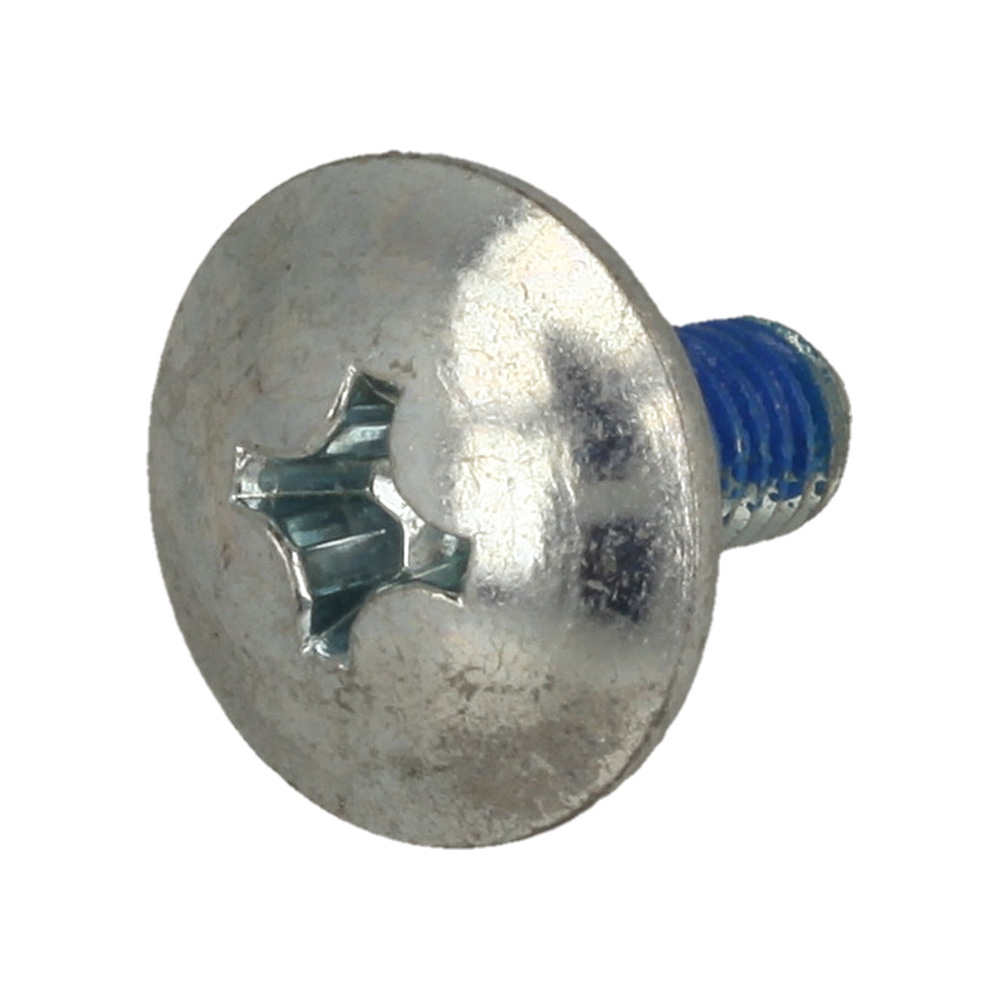

13	COJ0010000522R Available to backorder	Bolt	£3.00 £2.50
14	COQ0J5F03AH01 Available to backorder	End Protector	£2.52 £2.10
15	COJ0200000164R Available to backorder	Washer	£2.52 £2.10

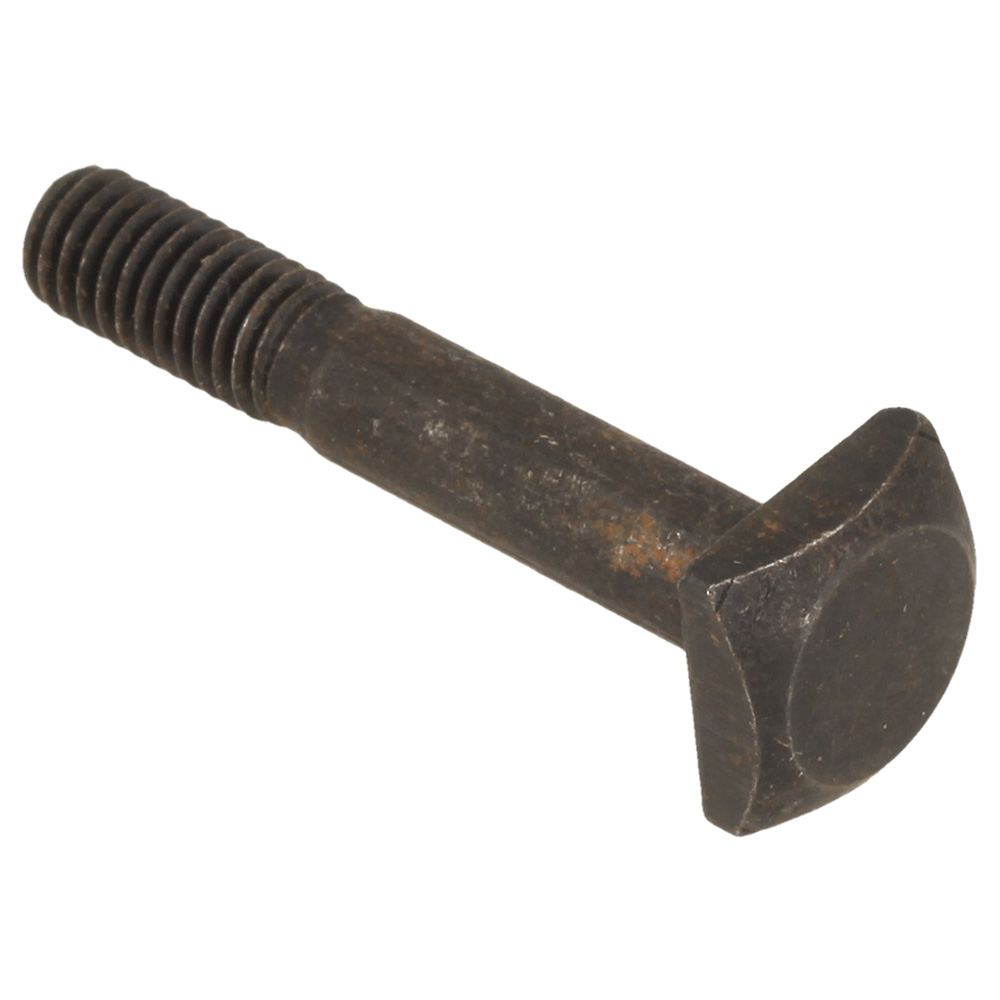

28	COJ0020000204R Available to backorder	Bolt	£2.40 £2.00
35	COJ2580000030R Available to backorder	Spring Pin	£2.52 £2.10
36	COJ2960550003R Available to backorder	Spring	£2.52 £2.10
37	COQ0J7943A007 Available to backorder	Trigger	£4.14 £3.45
38	COD3027000021R Available to backorder	Switch	£15.76 £13.13
40	CO-24V2AHLI Available to backorder	Battery	£60.48 £50.40
41	COQ0J5K29AZA7 Available to backorder	Left Housing Clamshell Inlay	£4.14 £3.45
42	COA0G92300001R Available to backorder	Charger	£39.04 £32.53
45	COD3157000001R Available to backorder	Switch	£11.93 £9.94
46	COQ0J5943A007 Available to backorder	Front Handle Trigger	£4.98 £4.15

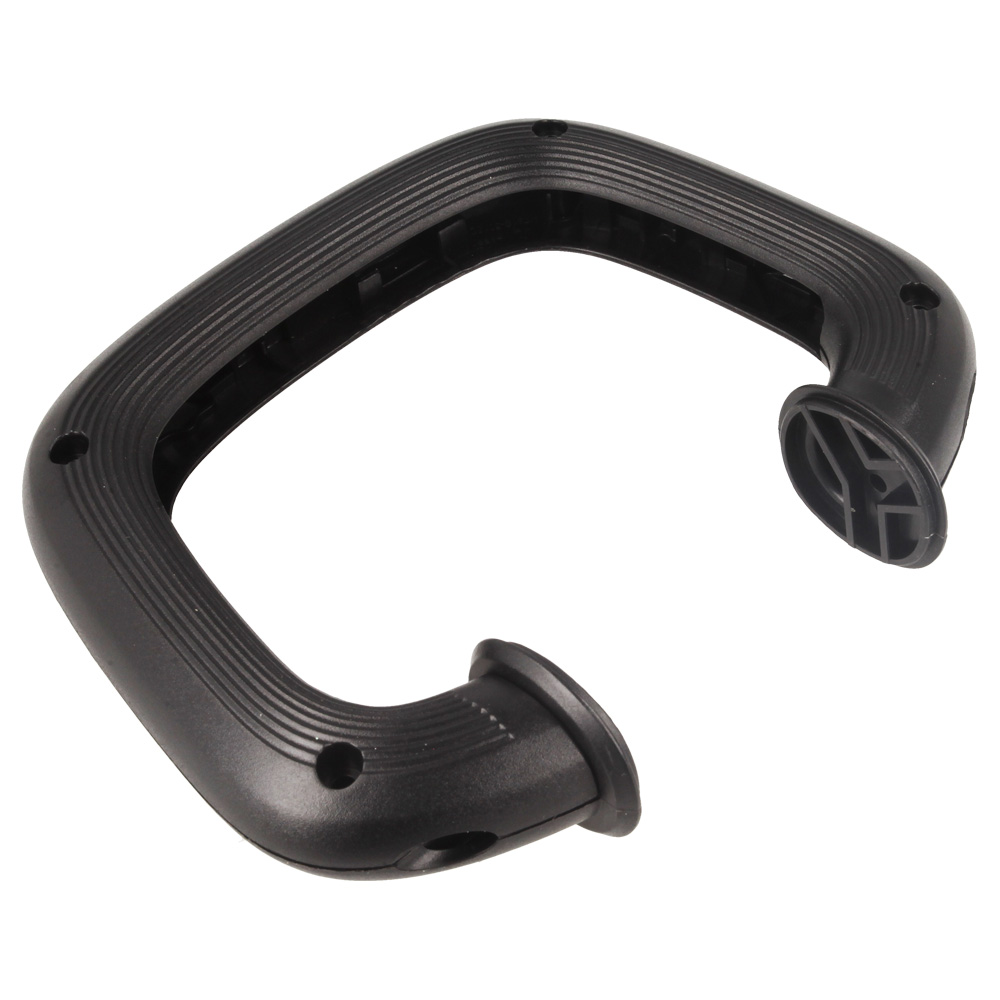

47	COQ0J5K880H01 Available to backorder	Front Handle Lower	£9.46 £7.88
