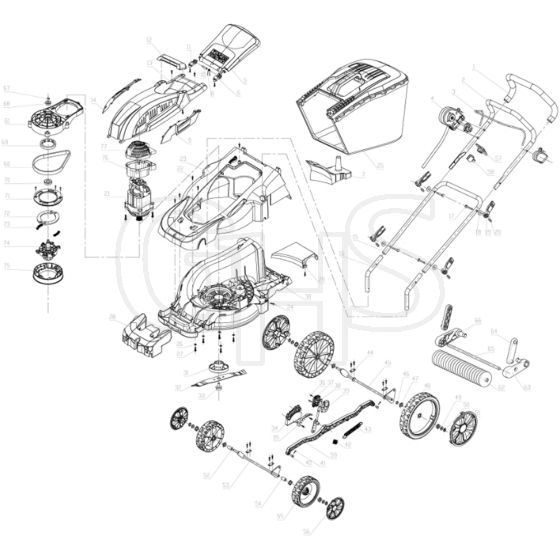

Cobra GTRM43 Rotary Mower Parts Diagram

	Part No.	Details
2	CO1413208 Available to backorder	Up Handle	£12.14 £10.12
3	CO1413204 Available to backorder	Switch Bar	£5.88 £4.90
4	CO01429ZA Available to backorder	Switch Box	£25.19 £20.99
5	CO1411006 Available to backorder	Rear Flap	£7.43 £6.19
6	CO1413019 Available to backorder	Support	£2.48 £2.07
7	CO1413026 Available to backorder	Mulch Plug	£7.06 £5.88
8	CO1413502 Available to backorder	Spring	£2.48 £2.07
9	CO1413035 Available to backorder	Decoration R	£2.48 £2.07
10	CO1413212 Available to backorder	Axle	£2.48 £2.07
11	CO1413008 Available to backorder	Support	£2.48 £2.07
12	CO1413036 Available to backorder	Lift Handle	£2.48 £2.07
13	CO1413022 Available to backorder	Up Cover	£8.63 £7.19
14	CO1413034 Available to backorder	Decoration L	£2.48 £2.07
15	CO1413207 Available to backorder	Middle Handle	£7.66 £6.38
16	CO1413210 In stock	Lower Handle	£5.36 £4.47
17	CO1413216 In stock	Bolt	£1.93 £1.61
18	COB504007 In stock	Flat Washer 66X24X2	£1.28 £1.07
19	CO1413010 In stock	Quick Release	£1.93 £1.61
20	CO1413209 In stock	Pin	£1.28 £1.07
21	CO1414704 Available to backorder	Motor	£71.76 £59.80
22	COB400025F In stock	Screw St42X16	£2.48 £2.07
23	CO1413002 Available to backorder	Deck	£9.04 £7.53
25	COSLM43K.0.2B Available to backorder	Grass Bag	£20.69 £17.24
28	COSLM43K.0.2 Available to backorder	Balance Weight	£20.69 £17.24
29	CO1413009 Available to backorder	Support	£2.48 £2.07
31	CO1414005 In stock	Blade Base	£3.11 £2.59
32	CO1413205 In stock	Blade	£12.84 £10.70
33	CO428041 In stock	Screw M9X1	£2.58 £2.15
34	CO1413007 Available to backorder	Support	£2.48 £2.07
35	CO1413211 Available to backorder	Block	£2.52 £2.10
36	COB400006F Available to backorder	Screw St29X13	£2.48 £2.07
37	CO1413017 Available to backorder	Adjust Knob L	£2.48 £2.07
38	CO1413214 Available to backorder	Height Adjust System	£5.36 £4.47
39	CO1413018 Available to backorder	Adjust Knob R	£2.48 £2.07
40	COB576001 Available to backorder	Pin 8X16-B	£2.48 £2.07
41	COB560007 Available to backorder	Pin 2X18	£1.24 £1.03
42	CO1413501 Available to backorder	Spring	£2.48 £2.07
43	CO1413503 Available to backorder	Spring	£2.48 £2.07
44	CO448210 Available to backorder	Support	£2.48 £2.07
45	CO1413244 Available to backorder	Rear Axle Assembly	£9.26 £7.72
46	CO47206 Available to backorder	Bushing	£2.48 £2.07
47	CO916402 Available to backorder	Bushing	£2.48 £2.07
48	CO1413011 Available to backorder	Rear Wheel	£8.03 £6.69
50	COB278008 In stock	Lock Ring 10	£1.28 £1.07
51	CO1413013 Available to backorder	Rear Wheel Cap	£2.48 £2.07
52	CO1413206 Available to backorder	Bushing	£2.48 £2.07
53	CO1413201 Available to backorder	Front Axle Assembly	£10.97 £9.14
54	CO1413213 Available to backorder	Bushing	£2.48 £2.07
55	CO738017 Available to backorder	Front Wheel	£6.37 £5.31
56	CO1413012 Available to backorder	Front Wheel Cap	£2.48 £2.07
57	CO429013 Available to backorder	Cord Holder	£2.48 £2.07
58	CO428032 In stock	Cord Clamp	£1.28 £1.07
59	CO1413005 Available to backorder	Adjust Handle	£4.31 £3.59
60	CO1414301 In stock	Belt	£15.42 £12.85
61	CO1414001 Available to backorder	Transmission Box	£29.88 £24.90
62	CO1412008 Available to backorder	Roller	£6.16 £5.13
63	CO1413046 Available to backorder	Reller Support R	£2.48 £2.07
64	CO1413047 Available to backorder	Support	£2.48 £2.07
65	CO1413245 Available to backorder	Roller Axle	£4.69 £3.91
66	CO1413045 Available to backorder	Roller Support L	£2.48 £2.07
68	COB700406 Available to backorder	Bearing 609-2Rs	£2.48 £2.07
69	CO1414901 Available to backorder	Brake Friction	£3.66 £3.05
71	CO1414004 Available to backorder	Pulley Cover	£2.48 £2.07
72	CO1414203 Available to backorder	Brake Block	£2.48 £2.07
74	CO1414003 Available to backorder	Brake System	£9.79 £8.16
75	CO1414002 Available to backorder	Pulley	£2.48 £2.07
