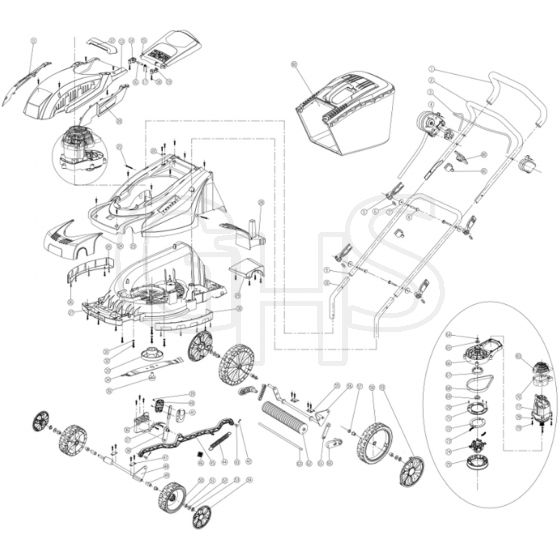

Cobra GTRM40 Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO1407901 Available to backorder	Foam	£2.52 £2.10
2	CO1407207 Available to backorder	Up Handle	£13.72 £11.43
3	CO1407204 Available to backorder	Switch Bar	£5.57 £4.64
4	CO01429ZA In stock	Switch Box	£23.52 £19.60
5	CO1413010 In stock	Quick Release	£1.80 £1.50
6	CO1413209 Available to backorder	Pin	£1.20 £1.00

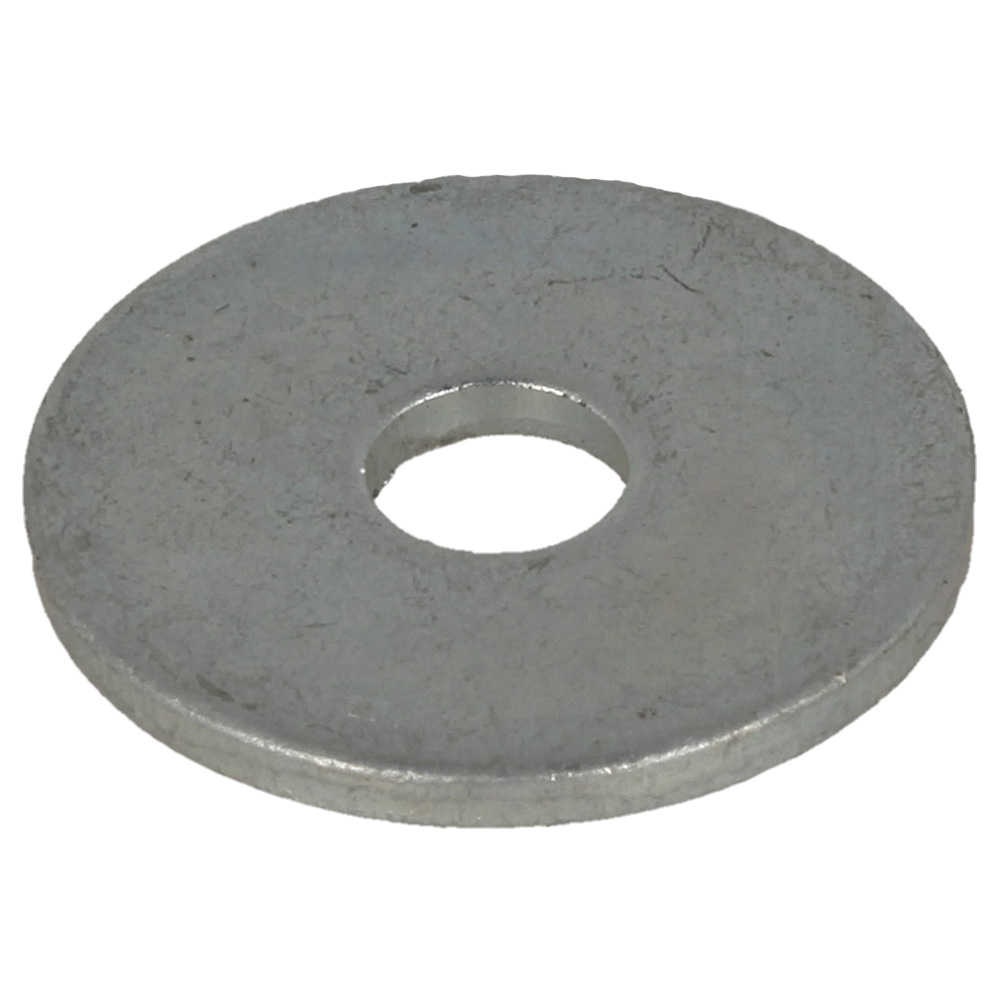

7	COB504007 In stock	Flat Washer 66X24X2	£1.20 £1.00
8	CO1413216 In stock	Bolt	£1.80 £1.50
9	CO1411205 Available to backorder	Middle Handle	£9.55 £7.96
10	CO1411207 Available to backorder	Lower Handle	£2.52 £2.10
11	CO1413034 Available to backorder	Decoration L	£2.52 £2.10
12	CO1413036 Available to backorder	Lift Handle	£2.52 £2.10
13	CO1412001 Available to backorder	Up Cover	£6.77 £5.64
14	CO1411037 Available to backorder	Support	£2.52 £2.10
15	CO1411006 Available to backorder	Rear Flap	£7.54 £6.28
16	CO1413212 Available to backorder	Axle	£2.52 £2.10
17	CO1411502 Available to backorder	Spring	£2.52 £2.10
19	CO1411007 Available to backorder	Support	£2.52 £2.10
20	CO1413035 Available to backorder	Decoration R	£2.52 £2.10
22	CO401705 Available to backorder	Strain Release	£2.52 £2.10
23	CO1411002 Available to backorder	Deck	£20.44 £17.03
24	CO1412003 Available to backorder	Front Cover	£5.04 £4.20
28	CO1412002 Available to backorder	Mulching Plug	£4.25 £3.54
29	CO1411012 Available to backorder	Support	£2.52 £2.10
33	CO1414005 In stock	Blade Base	£2.90 £2.42
34	CO1411209 In stock	Blade	£11.00 £9.17
35	CO428041 In stock	Blade Nut M9X1	£2.40 £2.00
36	CO1411014 Available to backorder	Adjust Support	£2.52 £2.10
37	CO1411203 Available to backorder	Support	£2.52 £2.10
38	CO1413214 Available to backorder	Adjustment Assembly	£5.44 £4.53
40	CO1413017 Available to backorder	Adjustment Knob L	£2.52 £2.10
41	CO1413018 Available to backorder	Adjustment Knob R	£2.52 £2.10
43	COGB/T 882 Available to backorder	Pin 8X16-B	£2.52 £2.10
45	CO1411015 Available to backorder	Adjust Bar	£4.37 £3.64

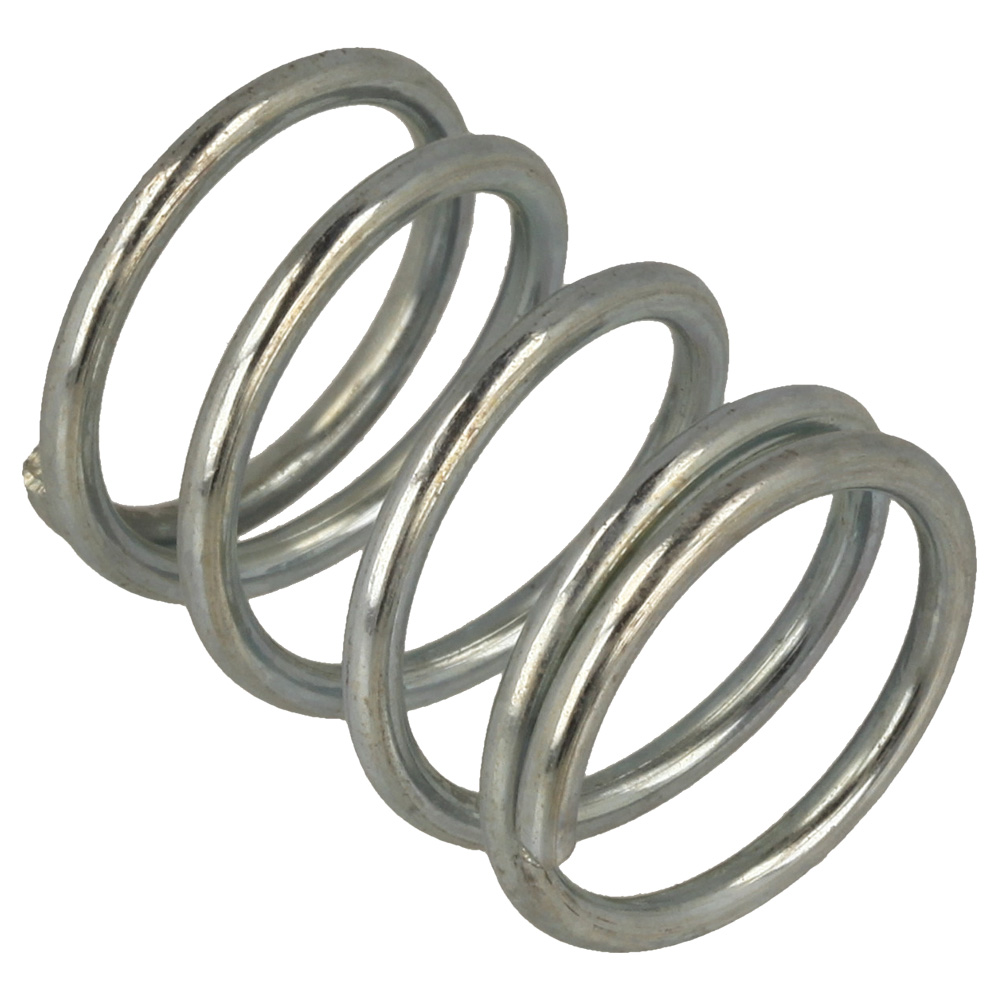

46	CO1411501 Available to backorder	Spring	£2.62 £2.18
47	CO448210 Available to backorder	Support	£2.52 £2.10
48	CO1411201 Available to backorder	Front Axle Assembly	£8.62 £7.18
49	CO1413213 Available to backorder	Bushing	£2.52 £2.10
50	CO738017 Available to backorder	Front Wheel	£6.00 £5.00
51	CO916402 Available to backorder	Bushing	£2.40 £2.00
54	CO1413012 Available to backorder	Front Wheel Cap	£2.52 £2.10
55	CO1411208 Available to backorder	Support	£2.52 £2.10
56	CO1412204 Available to backorder	Rear Axle Assembly	£9.41 £7.84
58	CO1413011 Available to backorder	Rear Wheel	£8.15 £6.79
59	CO1413013 Available to backorder	Rear Wheel Cap	£2.52 £2.10
60	CO1412010 Available to backorder	Support	£2.52 £2.10
61	CO1412009 Available to backorder	Support	£2.52 £2.10
62	CO1412008 In stock	Roller	£5.76 £4.80
63	CO1412205 Available to backorder	Axle	£4.45 £3.71
64	COGB/T 894.1 Available to backorder	Lock Ring 8	£1.26 £1.05
66	CO1414001 Available to backorder	Transmission Box	£30.32 £25.27

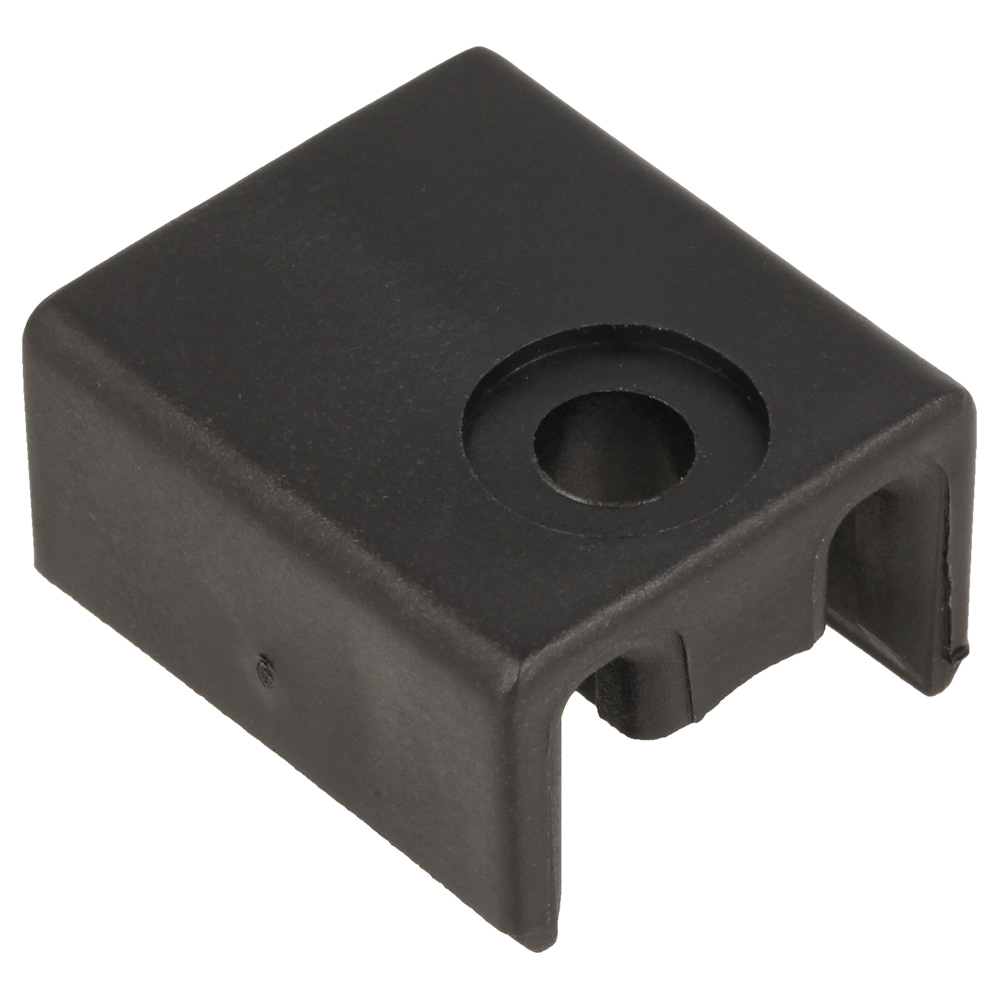

67	CO1414901 Available to backorder	Brake Friction	£3.72 £3.10
68	CO1414301 Available to backorder	Belt	£14.38 £11.98
71	CO1414004 Available to backorder	Pulley Cover	£2.52 £2.10

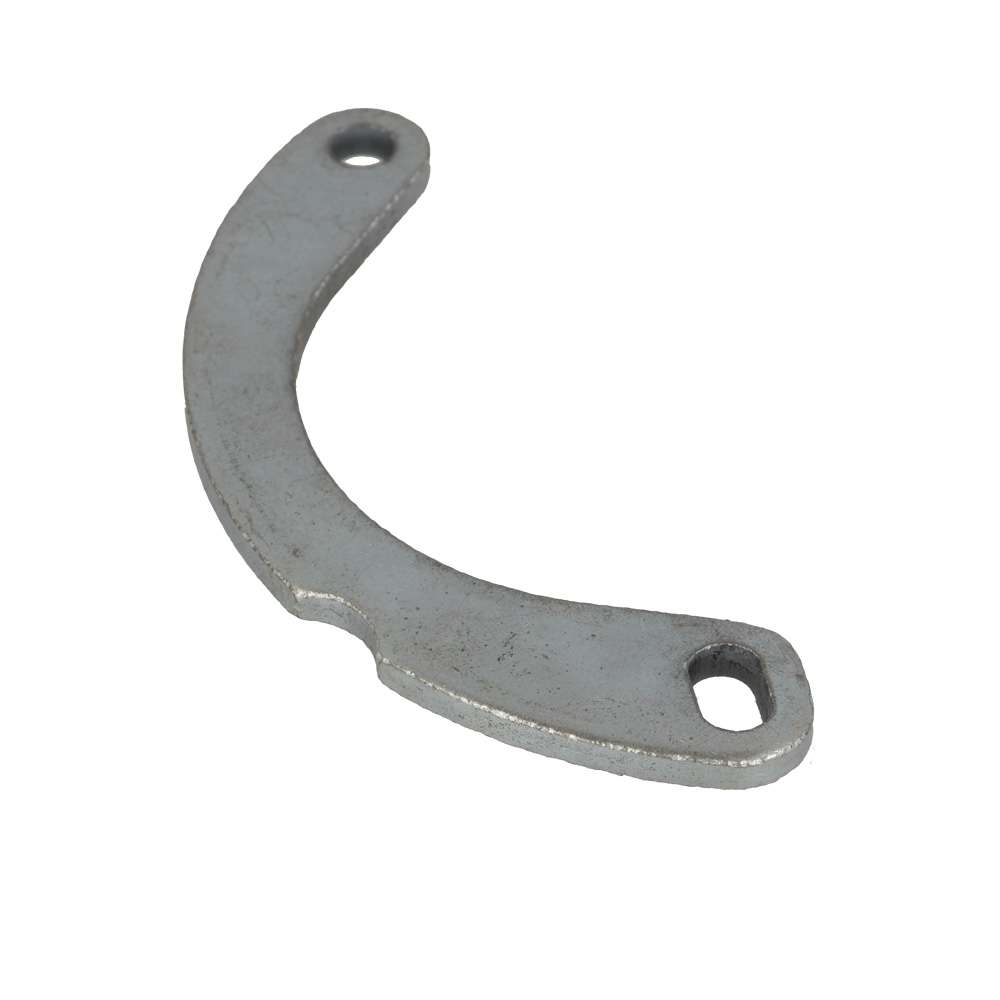

72	CO1414203 Available to backorder	Brake Block	£2.62 £2.18

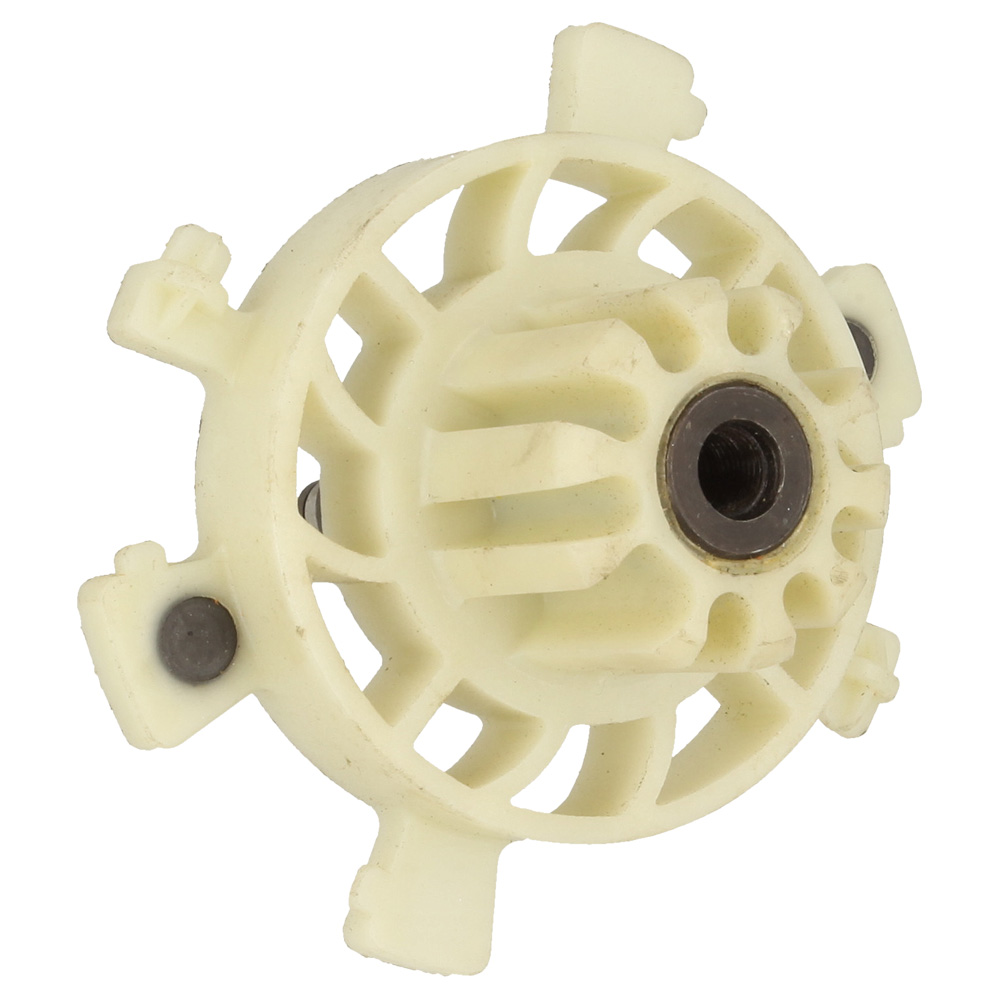

74	CO1414003 Available to backorder	Brake System	£9.94 £8.28

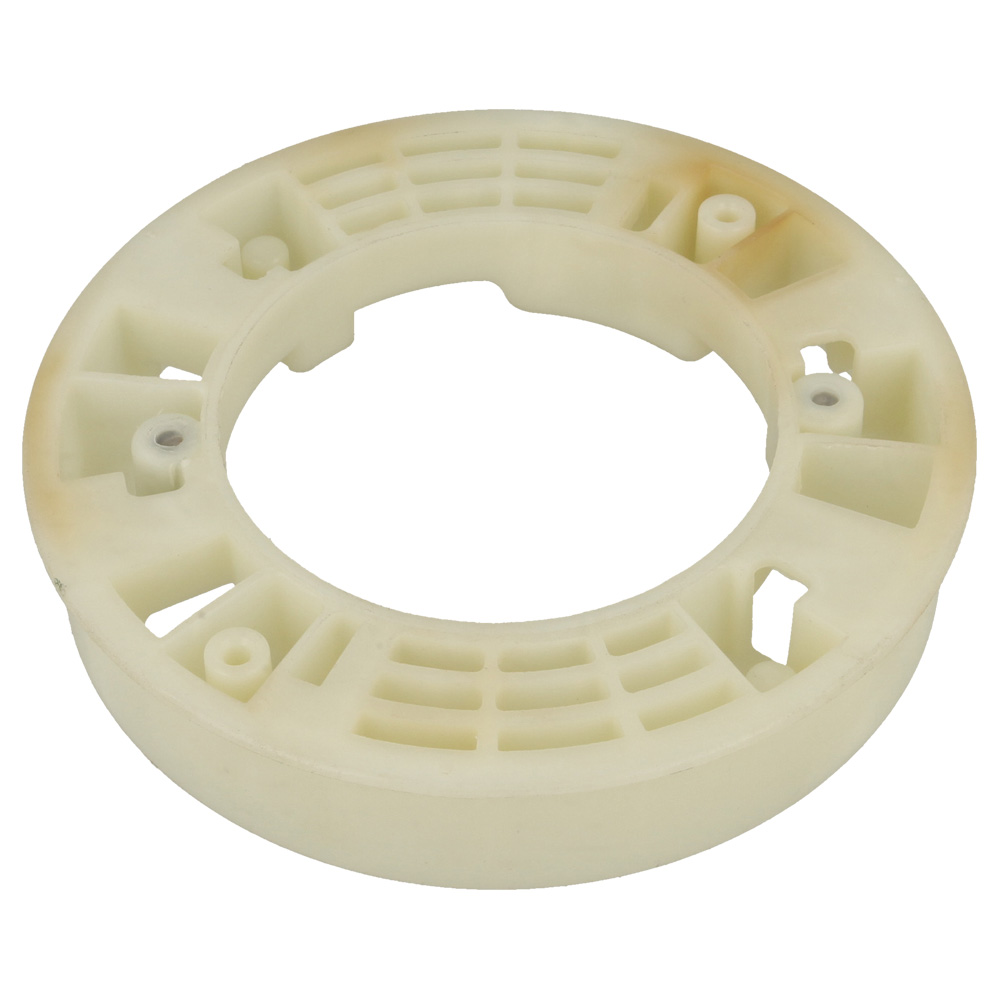

75	CO1414002 Available to backorder	Pulley	£2.62 £2.18
77	CO1432777 Available to backorder	Motor	£45.58 £37.98
78	COGB/T 97.1 Available to backorder	Washer 5	£2.52 £2.10
80	CO429013 Available to backorder	Cord Holder	£2.52 £2.10
81	CO428032 In stock	Cord Clamp	£1.20 £1.00
82	COSLM40K.0.2 Available to backorder	Grass Bag	£19.96 £16.63
