Cobra GTRM38 - Nov 2018 On Main Diagram

Name: Cobra GTRM38 - Nov 2018 On Main Diagram
SKU: gtrm38_nov_2018_on_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

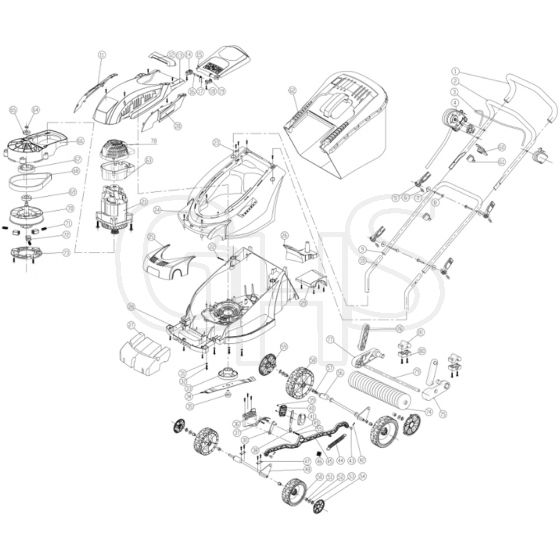

Cobra GTRM38 Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO1407901 Available to backorder	Foam	£2.52 £2.10
2	CO1407207 Available to backorder	Up Handle	£13.72 £11.43
3	CO1407204 Available to backorder	Switch Bar	£5.57 £4.64
4	CO01429ZA In stock	Switch Box	£23.52 £19.60
5	CO1413010 In stock	Quick Release	£1.80 £1.50
6	CO1413209 Available to backorder	Pin	£1.20 £1.00
7	COB504007 In stock	Flat Washer 66X24X2	£1.20 £1.00
8	CO1413216 In stock	Bolt	£1.80 £1.50
9	CO1432206 Available to backorder	Middle Handle	£7.03 £5.86
10	CO1432207 Available to backorder	Lower Handle	£2.52 £2.10
11	CO1413034 Available to backorder	Decoration L	£2.52 £2.10
12	CO1413036 Available to backorder	Lift Handle	£2.52 £2.10
13	CO1412001 Available to backorder	Up Cover	£6.77 £5.64
14	CO1411037 Available to backorder	Support	£2.52 £2.10
15	CO1411006 Available to backorder	Rear Flap	£7.54 £6.28
16	CO1413212 Available to backorder	Axle	£2.52 £2.10
17	CO1411205 Available to backorder	Spring	£9.55 £7.96
18	COB400025F Available to backorder	Screw St42×16	£2.40 £2.00
19	CO1411007 Available to backorder	Support	£2.52 £2.10
20	CO1413035 Available to backorder	Decoration R	£2.52 £2.10
21	CO1432777 Available to backorder	Motor	£45.58 £37.98
23	CO401705 Available to backorder	Strain Release	£2.52 £2.10
24	CO1432007 Available to backorder	Deck	£19.04 £15.87
25	CO1432013 Available to backorder	Front Cover	£4.25 £3.54

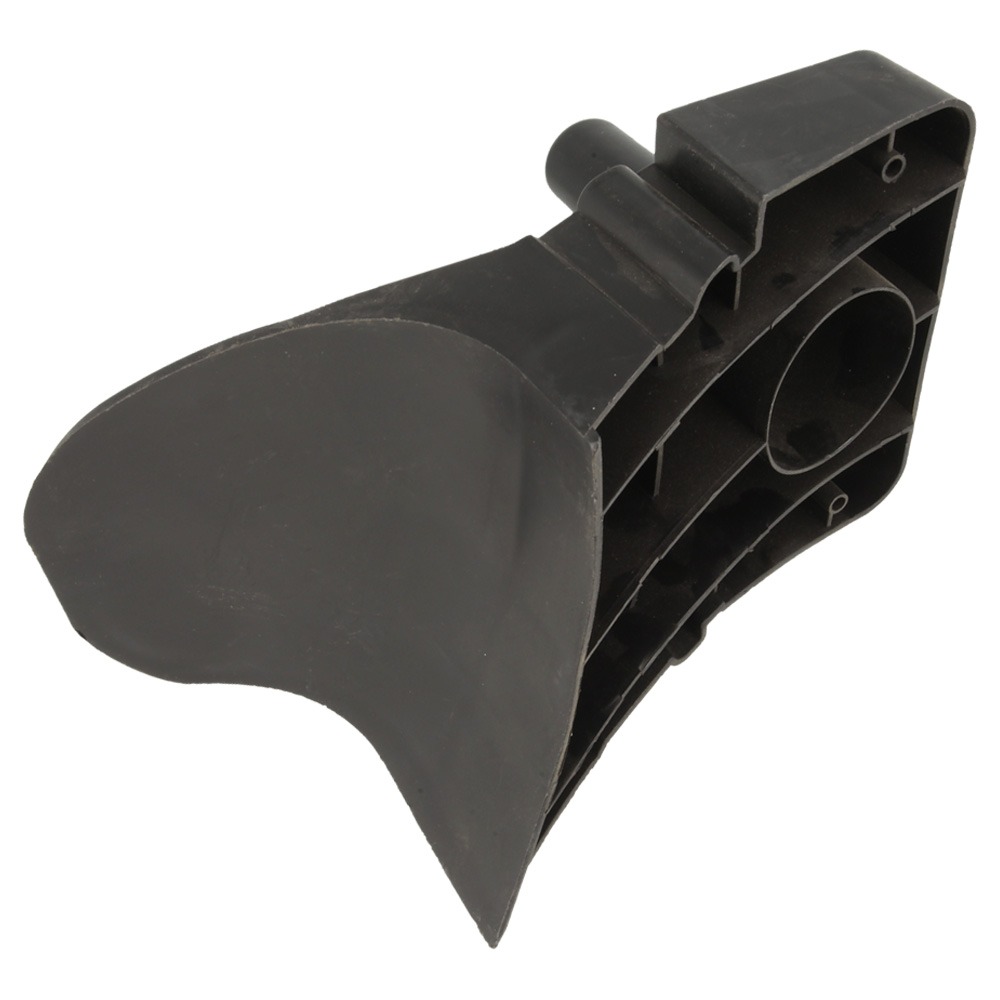

26	CO1432012 Available to backorder	Mulch Plug	£3.40 £2.83
28	CO1432006 Available to backorder	Base Deck	£19.04 £15.87
29	CO1432009 Available to backorder	Support	£4.64 £3.87
33	CO1408004 Available to backorder	Blade Base	£3.05 £2.54
34	CO1432209 In stock	Blade	£10.00 £8.33
35	CO428041 In stock	Blade Nut M9X1	£2.40 £2.00
36	CO1432008 Available to backorder	Support	£2.52 £2.10
37	CO1432208 Available to backorder	Support	£2.52 £2.10
38	CO1432204 Available to backorder	Adjust Handle	£2.52 £2.10
39	COB400006F Available to backorder	Screw St29X13	£2.52 £2.10
40	CO1413017 Available to backorder	Adjust Knob L	£2.52 £2.10
41	CO1413018 Available to backorder	Adjust Knob R	£2.52 £2.10
42	COB560007 Available to backorder	Pin	£1.26 £1.05
43	COB576001 Available to backorder	Pin 8X16-B	£2.52 £2.10
44	CO1407503 Available to backorder	Spring	£3.13 £2.61
45	CO1432014 Available to backorder	Adjust Bar	£4.37 £3.64
46	CO1407501 Available to backorder	Spring	£2.52 £2.10
47	CO448210 Available to backorder	Support	£2.52 £2.10
48	CO1432202 Available to backorder	Front Axle Assembly	£7.84 £6.53
50	CO738017 Available to backorder	Front Wheel	£6.00 £5.00
51	CO916402 Available to backorder	Bushing	£2.40 £2.00
53	COB278008 Available to backorder	Lock Ring	£1.20 £1.00
54	CO1413012 Available to backorder	Front Wheel Cap	£2.52 £2.10
56	CO1432211 Available to backorder	Rear Axle Assemly	£9.88 £8.23
57	CO447206 Available to backorder	Bushing	£2.52 £2.10
58	CO1413011 Available to backorder	Rear Wheel	£8.15 £6.79
59	CO1413013 Available to backorder	Rear Wheel Cap	£2.52 £2.10
60	CO429013 Available to backorder	Cord Holder	£2.52 £2.10
61	CO428032 In stock	Cord Clamp	£1.20 £1.00

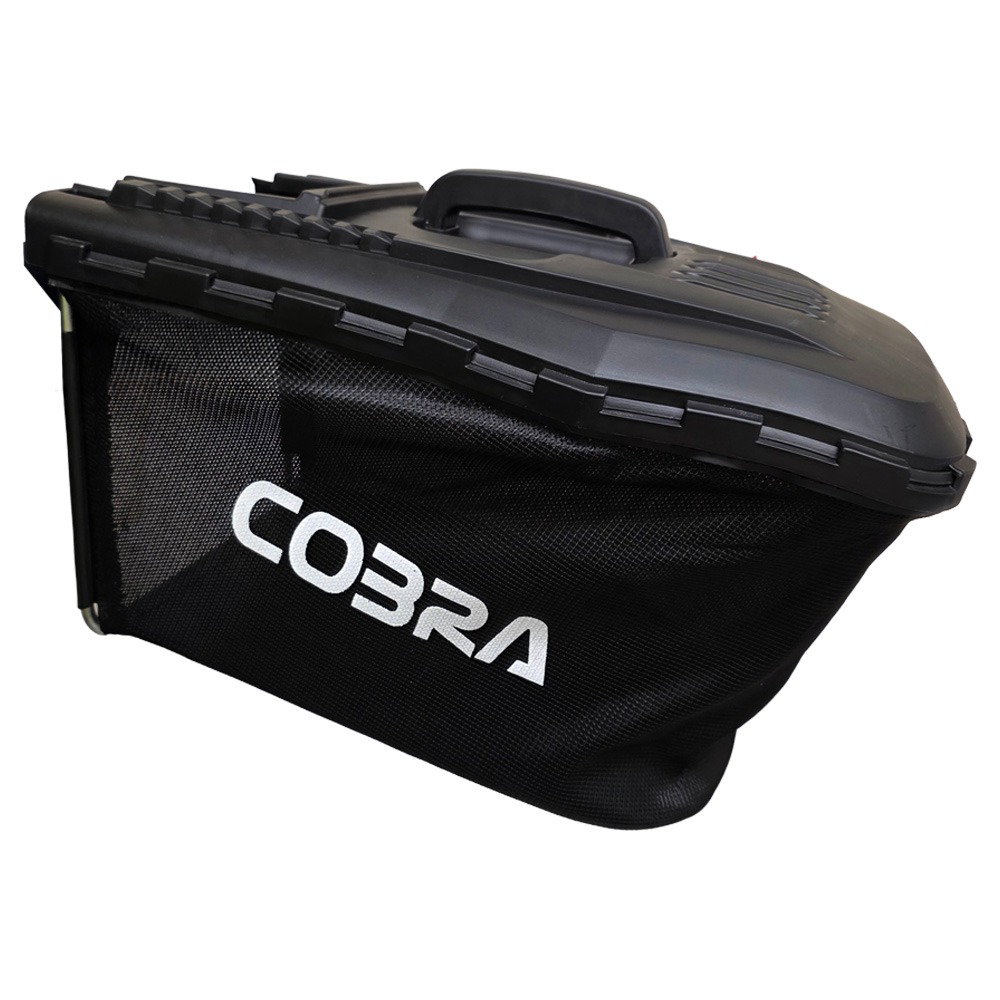

62	COSLM38.0.2 Available to backorder	Grass Bag	£20.40 £17.00
65	COB700406 Available to backorder	Bearing 609-2Rs	£2.62 £2.18
67	CO1408901 Available to backorder	Brake Friction	£3.72 £3.10
68	CO447903 Available to backorder	Belt	£15.58 £12.98
70	CO1408002 Available to backorder	Pulley	£9.49 £7.91
73	CO1408003 Available to backorder	Pulley Cover	£2.52 £2.10
74	CO1432018 In stock	Roller	£4.36 £3.63
75	CO1432016 Available to backorder	Roller Support R	£2.52 £2.10
76	CO1432017 Available to backorder	Roller Adjuster	£2.52 £2.10
77	CO1432015 Available to backorder	Roller Support L	£2.52 £2.10
80	CO1413050 Available to backorder	Support	£1.26 £1.05
81	CO1413049 Available to backorder	Support	£1.26 £1.05
