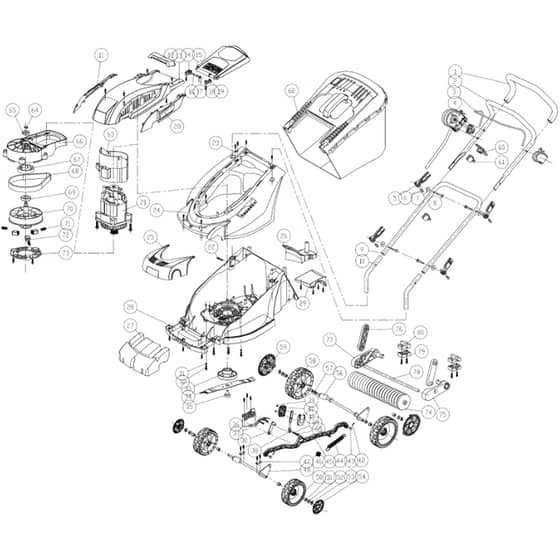

Cobra GTRM38 Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO1407901 Available to backorder	Foam	£2.52 £2.10
2	CO1407207 Available to backorder	Upper Handle	£13.72 £11.43
3	CO1407204 Available to backorder	Switch Lever	£5.57 £4.64
4	CO01429ZA In stock	Switch Box Assemly	£23.52 £19.60
5	CO1413010 In stock	Quick Release Clip	£1.80 £1.50
6	CO1413209 Available to backorder	Pin	£1.20 £1.00
7	COB504007 In stock	Plain Washers 66X24X2	£1.20 £1.00
8	CO1413216 In stock	Bolt	£1.80 £1.50
9	CO1432206 Available to backorder	Lower Handle	£7.03 £5.86
10	CO1432207 Available to backorder	Connection Handle	£2.52 £2.10
11	CO1413034 Available to backorder	Left Decoration	£2.52 £2.10
12	CO1413036 Available to backorder	Carrier Of Top Cover	£2.52 £2.10
13	CO1412001 Available to backorder	Top Cover	£6.77 £5.64
14	CO1411037 Available to backorder	Left Axle Bearing	£2.52 £2.10
15	CO1411006 Available to backorder	Rear Flappy	£7.54 £6.28
16	CO1413212 Available to backorder	Rear Flappy Axle	£2.52 £2.10
17	CO1411205 Available to backorder	Rear Flappy Spring	£9.55 £7.96
19	CO1411007 Available to backorder	Right Axle Bearing	£2.52 £2.10
20	CO1413035 Available to backorder	Right Decoration	£2.52 £2.10
21	CO1432701 Available to backorder	Motor Assy	£56.51 £47.09
22	COB400025F Available to backorder	Cross Recessed Pan Head Tapping Screws42X25	£2.40 £2.00
23	CO401705 Available to backorder	Cable Strain Relief	£2.52 £2.10
24	CO1432007 Available to backorder	Second Layer Deck	£19.04 £15.87
25	CO1432013 Available to backorder	Front Deck	£4.25 £3.54
26	CO1432012 Available to backorder	Mulching Kit	£3.40 £2.83
28	CO1432006 Available to backorder	Bottom Deck	£19.04 £15.87
29	CO1432009 Available to backorder	Bottom Bridge Block	£4.64 £3.87
33	CO1414005 In stock	Blade Transmission Block	£2.90 £2.42
34	CO1432209 In stock	Blade	£10.00 £8.33
35	CO428041 Available to backorder	Blade Bolt	£2.40 £2.00
36	CO1432008 Available to backorder	Height Adjustment Comb Pivot	£2.52 £2.10
37	CO1432208 Available to backorder	Height Adjustment Comb	£2.52 £2.10
38	CO1432204 Available to backorder	Height Adjustment Lever Assmbly	£2.52 £2.10
39	COB400006F Available to backorder	Self-Tapped Screws 29X13	£2.52 £2.10
40	CO1413017 Available to backorder	Height Adjustment Lever Left Grip	£2.52 £2.10
41	CO1413018 Available to backorder	Height Adjustment Lever Right Grip	£2.52 £2.10
42	COB560007 Available to backorder	Pin	£1.26 £1.05
43	COB576001 Available to backorder	Pin Axle	£2.52 £2.10
44	CO1407503 Available to backorder	Height Adjustment Beam Spring	£3.13 £2.61
45	CO1432014 Available to backorder	Height Adjustment Beam	£4.37 £3.64
46	CO1407501 Available to backorder	Height Adjustment Spring	£2.52 £2.10
47	CO448210 Available to backorder	Axle Fixing Plate	£2.52 £2.10
48	CO1432202 Available to backorder	Front Axle Assembly	£7.84 £6.53
50	CO738017 Available to backorder	Front Wheel	£6.00 £5.00
51	CO916402 Available to backorder	Wheel Bush	£2.40 £2.00
53	COB278008 Available to backorder	Circlips For Shaft—Type A 10	£1.20 £1.00
54	CO1413012 Available to backorder	Front Wheel Cover 165Mm	£2.52 £2.10
56	CO1432211 Available to backorder	Rear Axle Assembly	£9.88 £8.23
57	CO447206 Available to backorder	Rear Axle Bush	£2.52 £2.10
58	CO1413011 Available to backorder	Rear Wheel	£8.15 £6.79
59	CO1413013 Available to backorder	Rear Wheel Cover 200Mm	£2.52 £2.10
60	CO429013 Available to backorder	Cable Holder	£2.52 £2.10
61	CO428032 In stock	Cable Clamp	£1.20 £1.00
62	COSLM38.0-3 Available to backorder	Grass Catcher Assmbly	£18.88 £15.73
65	COB700406 Available to backorder	Bearing 609-2Rs	£2.62 £2.18
67	CO1408901 Available to backorder	Brake Friction	£3.72 £3.10
68	CO447903 Available to backorder	Belt	£15.58 £12.98
70	CO1408002 Available to backorder	Pulley	£9.49 £7.91
73	CO1408003 Available to backorder	Pulley Cover	£2.52 £2.10
74	CO1432018 In stock	Roller	£4.36 £3.63
75	CO1432016 Available to backorder	Roller Support R	£2.52 £2.10
76	CO1432017 Available to backorder	Roller Adjuster	£2.52 £2.10
77	CO1432015 Available to backorder	Roller Support L	£2.52 £2.10
