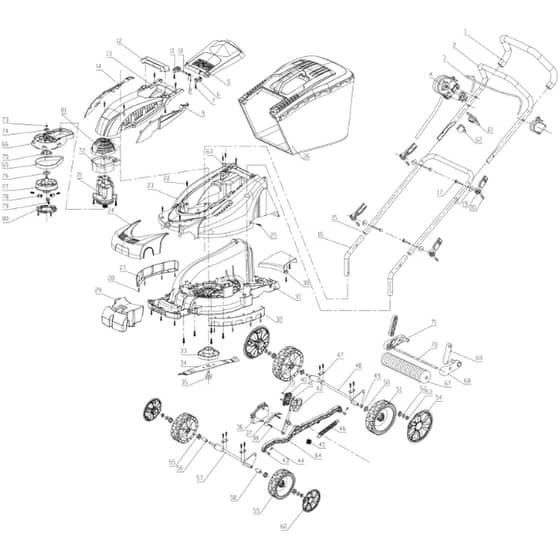

Cobra GTRM34 - Nov 2018 On Main Diagram

Name: Cobra GTRM34 - Nov 2018 On Main Diagram
SKU: gtrm34_nov_2018_on_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

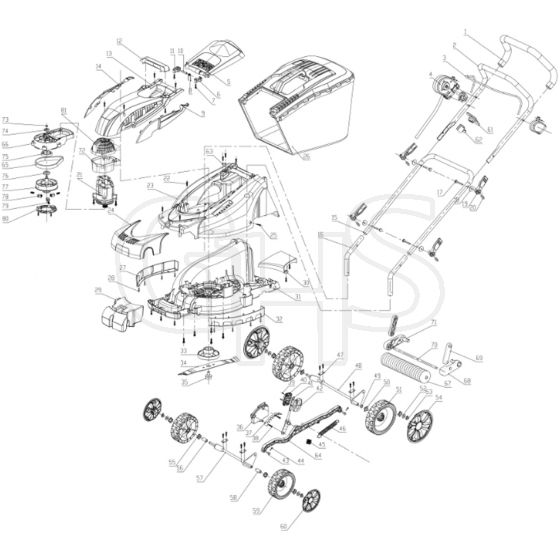

Cobra GTRM34 Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO1407901 Available to backorder	Foam	£2.52 £2.10
2	CO1407207 Available to backorder	Upper Handle	£13.72 £11.43
3	CO1407204 Available to backorder	Switch Bar	£5.57 £4.64
4	CO01429ZA In stock	Switch Box	£23.52 £19.60
5	CO1407004 Available to backorder	Rear Flap	£6.28 £5.23
6	CO1407009 Available to backorder	Support	£2.52 £2.10
9	CO1407010 Available to backorder	Decoration R	£2.52 £2.10
11	CO1407013 Available to backorder	Support	£2.52 £2.10
15	CO1407206 Available to backorder	Middle Handle	£9.29 £7.74

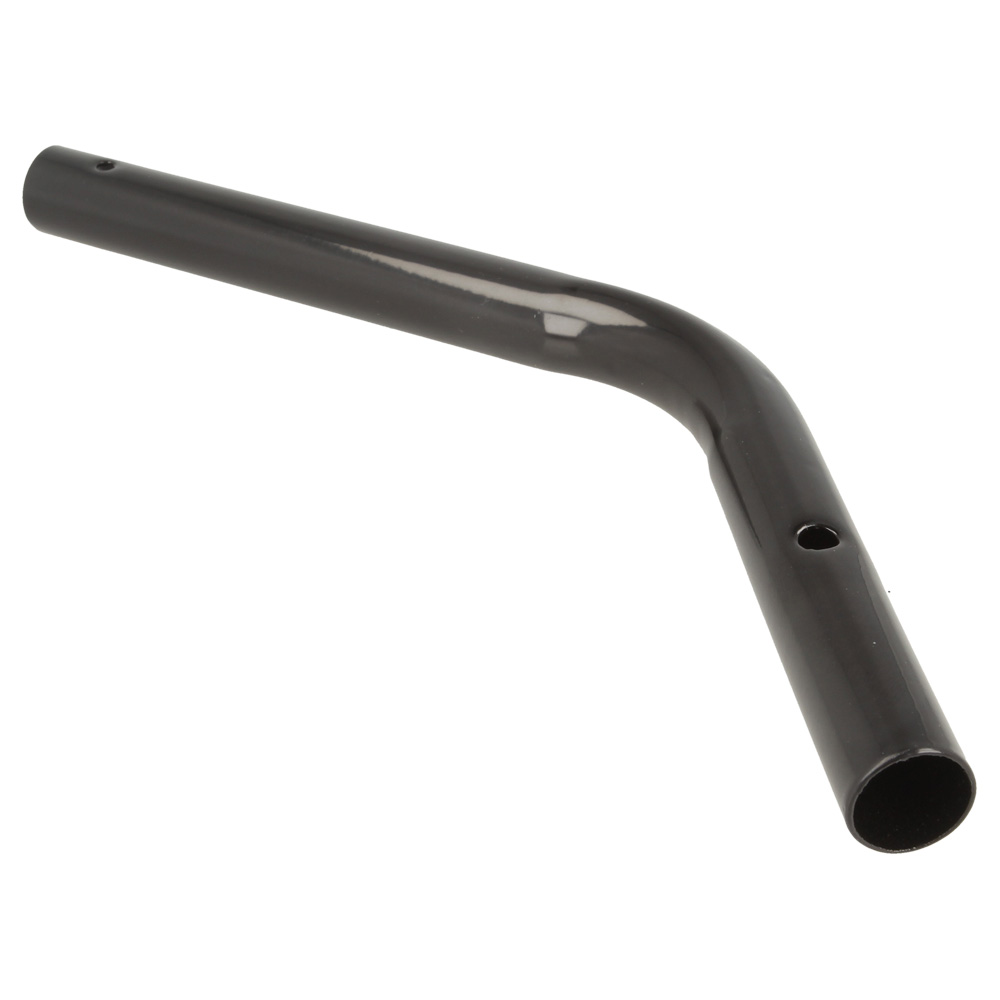

16	CO1407208 Available to backorder	Lower Handle	£6.24 £5.20
17	CO1413216 In stock	Bolt	£1.80 £1.50
18	COB504007 In stock	Flat Washer 66X24X2	£1.20 £1.00
19	CO1413010 In stock	Quick Release	£1.80 £1.50
20	CO1413209 Available to backorder	Pin	£1.20 £1.00

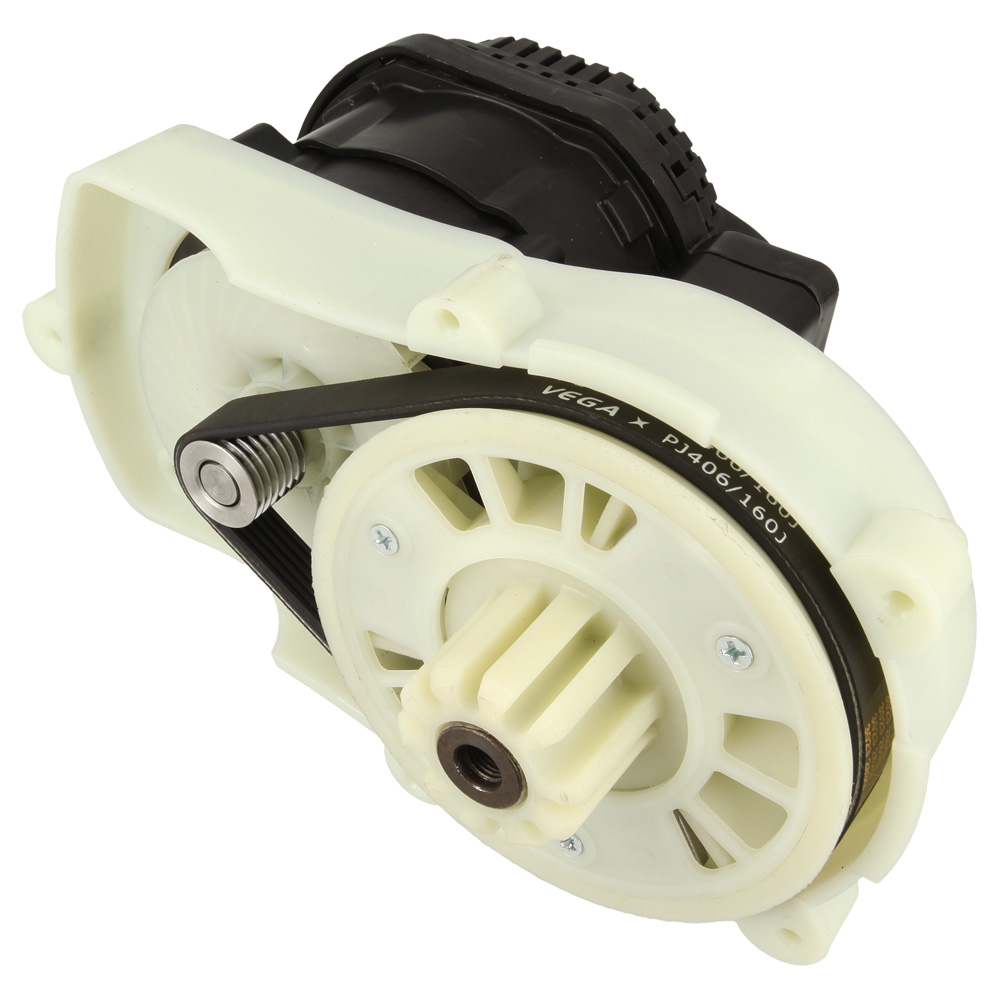

21	CO1408777 Available to backorder	Motor	£44.38 £36.98
22	COB400025F Available to backorder	Screw St42X16	£2.40 £2.00
23	CO1407002 Available to backorder	Deck	£16.91 £14.09
24	CO1407016 Available to backorder	Front Cover	£4.90 £4.08

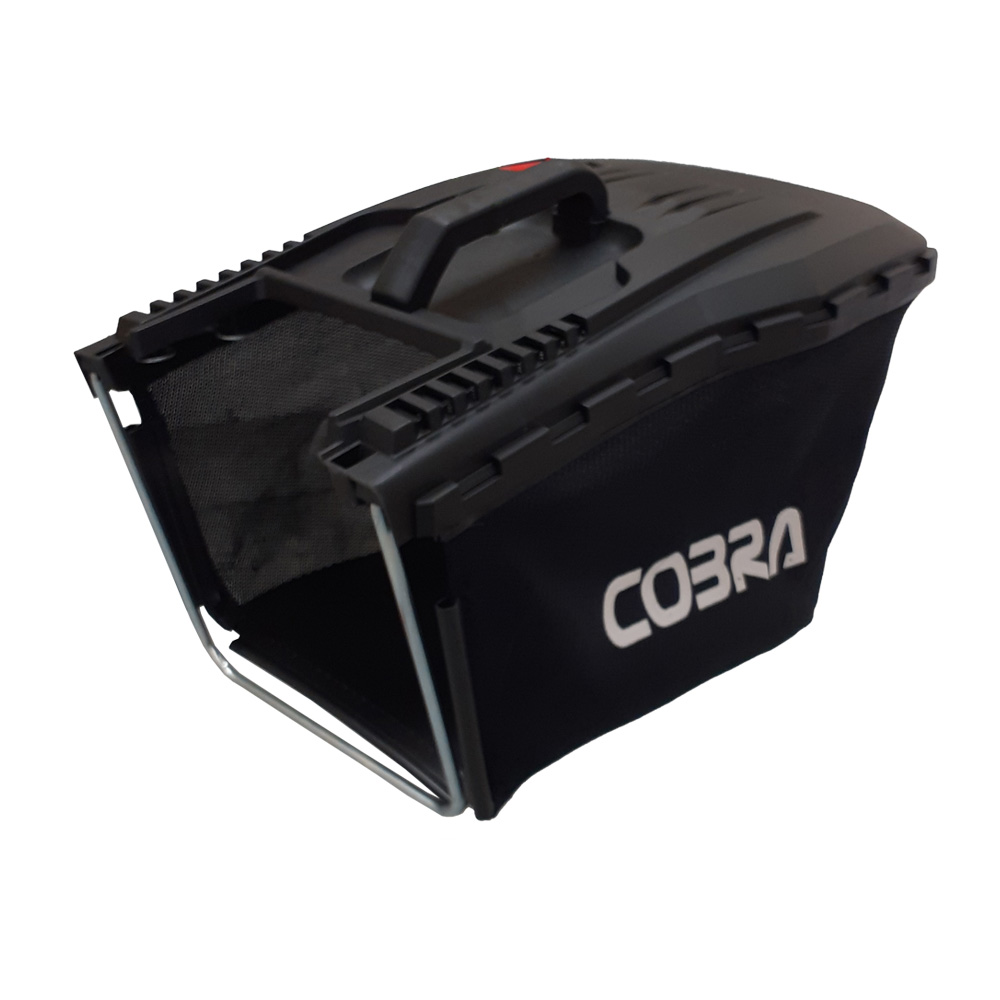

26	COSLM34K.0.2 Available to backorder	Grass Bag	£20.06 £16.72
27	CO1407014 Available to backorder	Bump Zoom L	£2.52 £2.10
30	CO1407015 Available to backorder	Support	£2.52 £2.10
32	CO1407021 Available to backorder	Bump Zoom R	£2.52 £2.10
33	CO1408004 Available to backorder	Blade Base	£3.05 £2.54
34	CO1407215 In stock	Blade	£9.00 £7.50
35	CO428041 In stock	Blade Bolt M9X1	£2.40 £2.00
36	CO1407011 Available to backorder	Support	£2.52 £2.10
37	CO1413211 Available to backorder	Support	£2.57 £2.14
39	COB400006F Available to backorder	Screw St29X13	£2.52 £2.10
40	CO1413017 Available to backorder	Adjust Handle Knob R	£2.52 £2.10
41	CO1407211 Available to backorder	Height Adjust Assembly	£5.04 £4.20
42	CO1413018 Available to backorder	Adjust Handle Knob L	£2.52 £2.10
43	COB576001 Available to backorder	Pin 8X16-B	£2.52 £2.10
44	COB560007 Available to backorder	Screw 2X18	£1.26 £1.05
45	CO1407501 Available to backorder	Spring	£2.52 £2.10
46	CO1407503 Available to backorder	Spring	£3.13 £2.61
47	CO448210 Available to backorder	Support	£2.52 £2.10
48	CO1407220 Available to backorder	Rear Axle Assembly	£9.16 £7.63
49	CO47206 Available to backorder	Bushing	£2.52 £2.10
50	CO916402 Available to backorder	Bushing	£2.40 £2.00
51	CO738018 Available to backorder	Rear Wheel	£5.94 £4.95
53	COB278008 Available to backorder	Lock Ring 10	£1.20 £1.00
54	CO1411029 Available to backorder	Rear Wheel Cap	£2.52 £2.10
55	CO431031 Available to backorder	Bushing	£2.52 £2.10

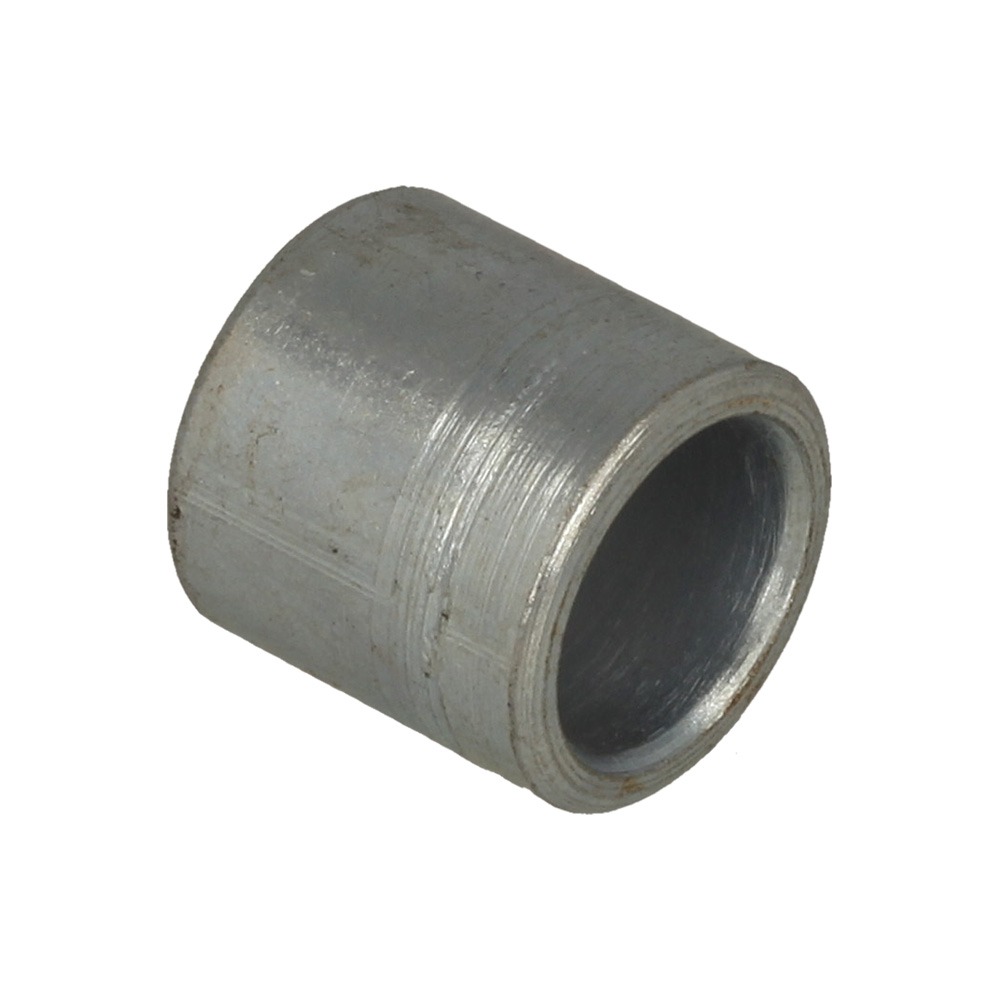

56	CO1413206 Available to backorder	Washer	£2.40 £2.00
57	CO1407201 Available to backorder	Front Axle Assembly	£8.36 £6.97
58	CO1413213 Available to backorder	Washer	£2.52 £2.10
59	CO447030 Available to backorder	Front Wheel	£4.76 £3.97
60	CO1407029 Available to backorder	Front Wheel Cap	£2.52 £2.10
61	CO429013 Available to backorder	Cord Holder	£2.52 £2.10
62	CO428032 In stock	Cord Clamp	£1.20 £1.00
63	CO401705 Available to backorder	Strain Release	£2.52 £2.10
65	CO447903 Available to backorder	Belt	£15.58 £12.98
67	CO1407038 Available to backorder	Roller	£3.05 £2.54
68	CO1407036 Available to backorder	Support R	£2.52 £2.10
69	CO1407037 Available to backorder	Adjust Support	£2.52 £2.10
70	CO1407221 Available to backorder	Roller Axle	£2.80 £2.33
71	CO1407035 Available to backorder	Support L	£2.52 £2.10

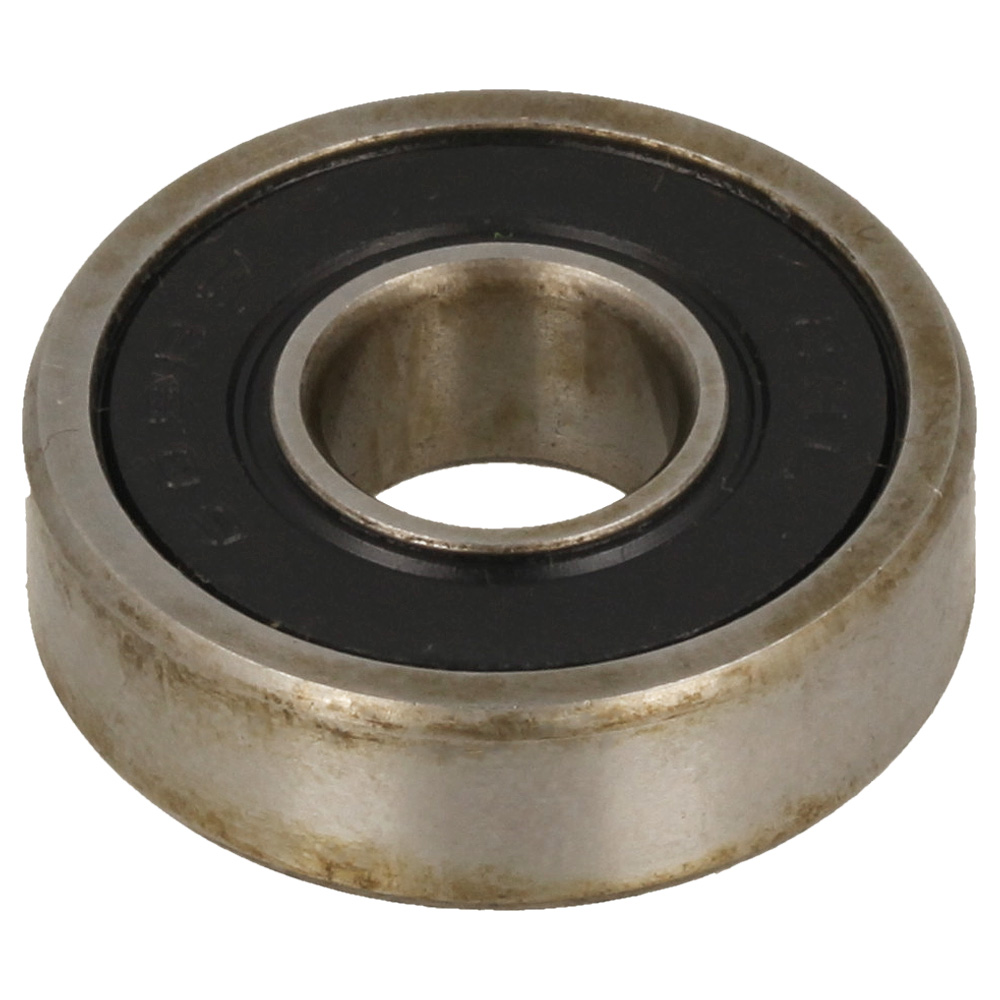

74	COB700406 Available to backorder	Bearing 609-2Rs	£2.62 £2.18
75	CO1408901 Available to backorder	Brake Friction	£3.72 £3.10
77	CO1408002 Available to backorder	Pulley Assmbly	£9.49 £7.91
80	CO1408003 Available to backorder	Pulley Cover	£2.52 £2.10
