Cobra GTRM34 - 13" Electric Main Diagram

Name: Cobra GTRM34 - 13" Electric Main Diagram
SKU: gtrm34_13_electric_main-group
Price: 1.03 GBP
Availability: InStock

Part No. gtrm34_13_electric_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra GTRM34 - 13" Electric Main Diagram

Description

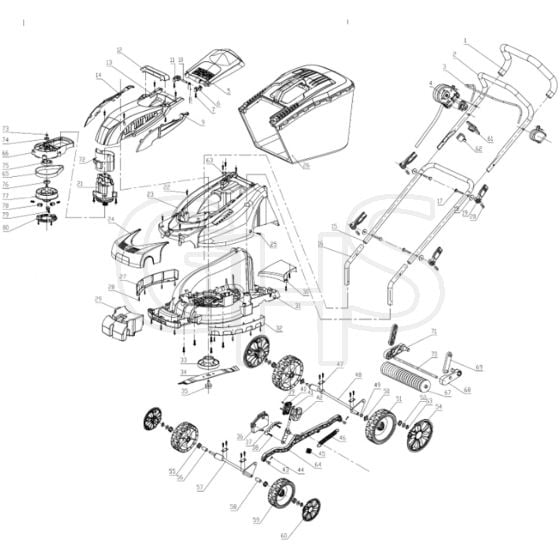

Cobra GTRM34 Rotary Mower Parts Diagram

	Part No.	Details
1	CO1407901 Available to backorder	Foam	£2.48 £2.07
2	CO1407207 Available to backorder	Up Handle	£13.51 £11.26
3	CO1407204 Available to backorder	Switch Bar	£5.48 £4.57
4	CO01429ZA Available to backorder	Switch Box	£25.19 £20.99
5	CO1407004 Available to backorder	Rear Flap	£6.19 £5.16
6	CO1407009 Available to backorder	Rigth Rotation Suppor	£2.48 £2.07
9	CO1407010 Available to backorder	Rigth Decoration	£2.48 £2.07
11	CO1407013 Available to backorder	Left Roation Support	£2.48 £2.07
12	CO1407007 Available to backorder	Lift Handle	£2.48 £2.07
13	CO1407003 Available to backorder	Top Cover	£6.14 £5.12
14	CO1407012 Available to backorder	Left Decoration	£2.48 £2.07
15	CO1407206 Available to backorder	Middle Handle	£9.14 £7.62
16	CO1407208 Available to backorder	Lower Handle	£6.46 £5.38
17	CO1413216 In stock	Bolt	£1.93 £1.61
18	COB504007 In stock	Flat Washer	£1.28 £1.07
19	CO1413010 In stock	Quick Clamp	£1.93 £1.61
20	CO1413209 In stock	Pin	£1.28 £1.07
21	COSLM34K.0.1 Available to backorder	Motor Assem	£45.91 £38.26
22	COB400025F In stock	Screw	£2.48 £2.07
23	CO1407002 Available to backorder	Deck	£16.66 £13.88
24	CO1407016 Available to backorder	Front Wheel	£4.82 £4.02
26	COSLM34K.0.2 Available to backorder	Collection Bag	£20.06 £16.72
27	CO1407014 Available to backorder	Left Bump Zone	£2.48 £2.07
30	CO1407015 Available to backorder	Grass Guide	£2.48 £2.07
32	CO1407021 Available to backorder	Rigth Bump Zone	£2.48 £2.07
33	CO1414005 In stock	Blade Base	£3.11 £2.59
34	CO1408205 Available to backorder	Blade	£9.29 £7.74
35	CO428041 In stock	Blade Bolt	£2.58 £2.15
36	CO1407011 Available to backorder	Adjustment Base	£2.48 £2.07
37	CO1413211 Available to backorder	Adjustment Piece	£2.52 £2.10
39	COB400006F Available to backorder	Screw	£2.48 £2.07
40	CO1413017 Available to backorder	Adjust Knob Left Half	£2.48 £2.07
41	CO1407211 Available to backorder	Adjust Handle	£4.97 £4.14
42	CO1413018 Available to backorder	Adjust Knob Right Hal	£2.48 £2.07
43	COB576001 Available to backorder	Pin	£2.48 £2.07
44	COB560007 Available to backorder	Pin	£1.24 £1.03
45	CO1407501 Available to backorder	Spring	£2.48 £2.07
46	CO1407503 Available to backorder	Spring	£3.08 £2.57
47	CO448210 Available to backorder	Support	£2.48 £2.07
48	CO1407202 Available to backorder	Rear Axle Assm	£9.02 £7.52
49	CO47206 Available to backorder	Rear Axle Sleeve	£2.48 £2.07
50	CO916402 Available to backorder	Wheel Bushing	£2.48 £2.07
51	CO738017 Available to backorder	Rear Wheel	£6.37 £5.31
53	COB278008 In stock	Lock Ring	£1.28 £1.07
54	CO1407022 Available to backorder	Rear Wheel Cover	£2.48 £2.07
55	CO431031 Available to backorder	Wheel Bushing	£2.48 £2.07
56	CO1413206 Available to backorder	Axle Washer	£2.48 £2.07
57	CO1407201 Available to backorder	Front Axle Assem	£8.23 £6.86
58	CO1413213 Available to backorder	Front Axle Washer	£2.48 £2.07
59	CO447030 Available to backorder	Front Wheel	£4.69 £3.91
60	CO1407017 Available to backorder	Front Wheel Cover	£2.48 £2.07
61	CO429013 Available to backorder	Cord Holder	£2.48 £2.07
62	CO428032 In stock	Cord Clamp	£1.28 £1.07
63	CO401705 Available to backorder	Strain Releaf	£2.48 £2.07
64	CO1407008 Available to backorder	Adjust Bar	£4.31 £3.59
65	CO447903 Available to backorder	Belt	£16.12 £13.43
67	CO1407038 Available to backorder	Roller	£3.00 £2.50
68	CO1407036 Available to backorder	Support R	£2.48 £2.07
69	CO1407037 Available to backorder	Adjust Support	£2.48 £2.07
70	CO1407221 Available to backorder	Roller Axle	£2.75 £2.29
71	CO1407035 Available to backorder	Support L	£2.48 £2.07
74	COB700406 Available to backorder	Bearing 609-2Rs	£2.48 £2.07
75	CO1408901 Available to backorder	Brake Friction	£3.66 £3.05
77	CO1408002 Available to backorder	Pulley Assembly	£9.35 £7.79
80	CO1408003 Available to backorder	Pulley Cover	£2.48 £2.07
