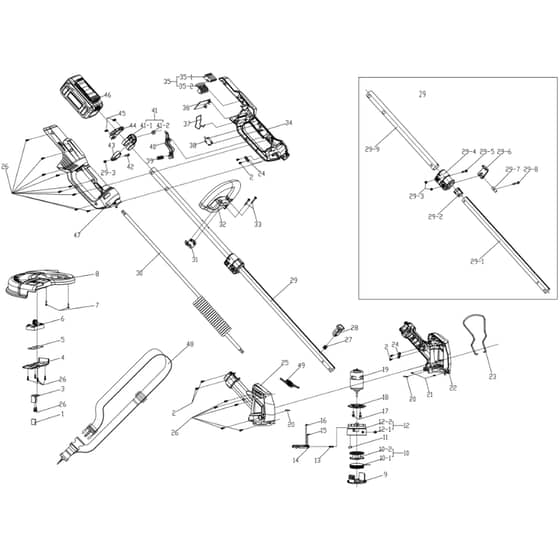

Cobra GT3240VZ - Grass Trimmer Main Diagram

Cobra GT3240VZ - Grass Trimmer Main Diagram
Cobra GT3240VZ - Grass Trimmer Main Diagram Cobra GT3240VZ - Grass Trimmer Main Diagram Cobra GT3240VZ - Grass Trimmer Main Diagram Cobra GT3240VZ - Grass Trimmer Main Diagram Cobra GT3240VZ - Grass Trimmer Main Diagram

Description

Cobra GT3240VZ Brushcutter Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Self-Driving Screw CO26800100302
Self-Driving Screw
 Out of stock
£1.44 £1.20

  3 Blade CO26300109102
Blade
 Out of stock
£2.52 £2.10

  4 Fixed Support Cover Board CO25356800101
Fixed Support Cover Board
 Out of stock
£2.52 £2.10

  5 Fixed Support Baffle CO25357000101
Fixed Support Baffle
 Out of stock
£2.52 £2.10

  6 Blade Fixing Support CO25356700101
Blade Fixing Support
 Out of stock
£3.36 £2.80

  8 Protecting Cover CO25356600101
Protecting Cover
 Out of stock
£12.68 £10.57

  9 Nylon Line Box Upper Cover CO25356400401
Nylon Line Box Upper Cover
 Out of stock
£6.28 £5.23

  10 Reel Assy CO23001418501
Reel Assy
 Out of stock
£5.26 £4.38

  12 Line Box Base Assy CO23001415501
Line Box Base Assy
 Out of stock
£12.07 £10.06

  23 Protecting Iron Wire CO26900120001
Protecting Iron Wire
 Out of stock
£3.36 £2.80

  26 Self-Driving Screw CO26800100501
Self-Driving Screw
 In stock
£1.26 £1.05

  27 Elastic Button Pressing Spring CO26801126701
Elastic Button Pressing Spring
 Out of stock
£2.52 £2.10

  28 Direction Rotation Button CO25356100101
Direction Rotation Button
 Out of stock
£2.52 £2.10

  29 Telescopic Pole Assy CO26900119601
Telescopic Pole Assy
 Out of stock
£23.63 £19.69

  30 Spring Cable CO27100116601
Spring Cable
 Out of stock
£13.44 £11.20

  31 Auxiliary Handle Pressing Board CO26300309901
Auxiliary Handle Pressing Board
 Out of stock
£2.75 £2.29

  32 Auxiliary Handle CO25355700101
Auxiliary Handle
 Out of stock
£7.25 £6.04

  33 Screw CO26800307601
Screw
 Out of stock
£1.26 £1.05

  35 Battery Socket Assy CO23001415401
Battery Socket Assy
 Out of stock
£7.45 £6.21

  36 Controller CO28600103501
Controller
 Out of stock
£22.39 £18.66

  37 Battery Spring CO26801127601
Battery Spring
 Out of stock
£2.52 £2.10

  38 Switch CO27600100201
Switch
 Out of stock
£3.80 £3.17

  39 Switch Trigger Spring CO26801116201
Switch Trigger Spring
 Out of stock
£2.52 £2.10

  40 Switch Trigger CO25355300401
Switch Trigger
 Out of stock
£2.52 £2.10

  41 Strap Ring CO25355600101
Strap Ring
 Out of stock
£2.52 £2.10

  43 Strap Ring Fixing Support CO25355500101
Strap Ring Fixing Support
 Out of stock
£2.52 £2.10

  44 Safty Button CO25355400401
Safty Button
 Out of stock
£2.52 £2.10

  45 Safty Button Spring CO26801100301
Safty Button Spring
 Out of stock
£2.52 £2.10

  46 Battery COA72E
Battery
 Out of stock
£131.04 £109.20

  48 Shoulder Belt CO29000800401
Shoulder Belt
 Out of stock
£6.64 £5.53

  49 Inductance CO28200202901
Inductance
 Out of stock
£13.44 £11.20

  351 35-1 Battery Male Terminal CO26900118701
35-1 Battery Male Terminal
 Out of stock
£5.59 £4.66

  352 35-2 Battery Male Socket CO25330100101
35-2 Battery Male Socket
 Out of stock
£2.52 £2.10


Description

Cobra GT3240VZ Brushcutter Parts Diagram
